INSTRUMENT AND CONTROL FUNCTIONS
3-27

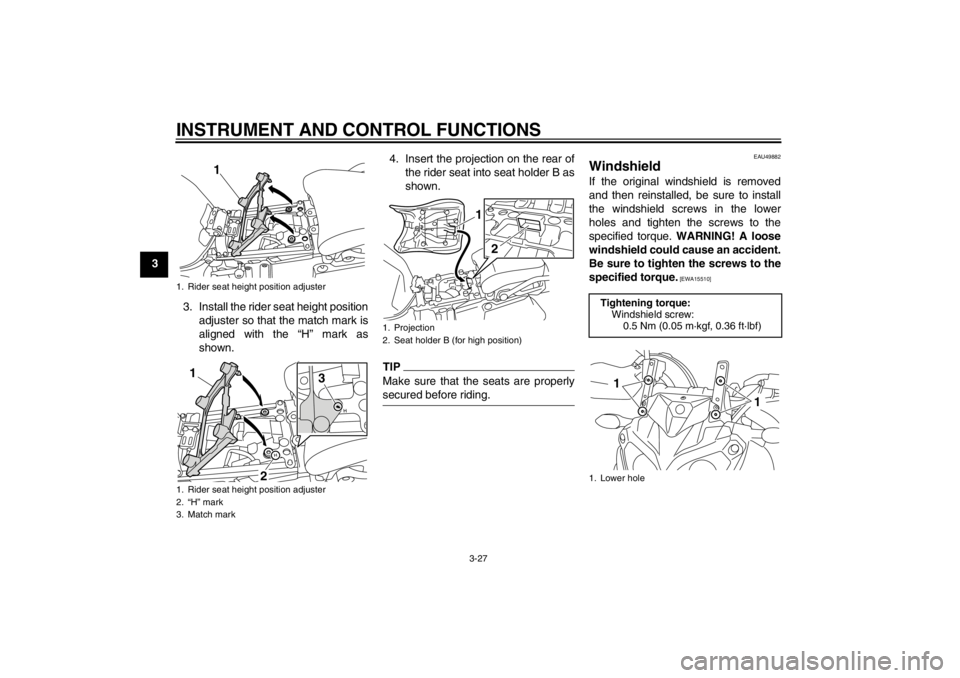

33. Install the rider seat height positionadjuster so that the match mark is
aligned with the “ H” mark as
shown. 4. Insert the projection on the rear of
the rider seat into seat holder B as
shown.
TIPMake sure that the seats are properly
secured before riding.
EAU49882
Windshield If the original windshield is removed
and then reinstalled, be sure to install
the windshield screws in the lower
holes and tighten the screws to the
specified torque. WARNING! A loose
windshield could cause an accident.
Be sure to tighten the screws to the
specified torque.
[EWA15510]
1. Rider seat height position adjuster
1. Rider seat height position adjuster
2. “H ” mark
3. Match mark
1
2 3
1
1. Projection
2. Seat holder B (for high position)
1
2
Tightening torque:
Windshield screw:
0.5 Nm (0.05 m ·kgf, 0.36 ft· lbf)1. Lower hole
1
1
