YAMAHA XT1200Z 2014 Owners Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23284

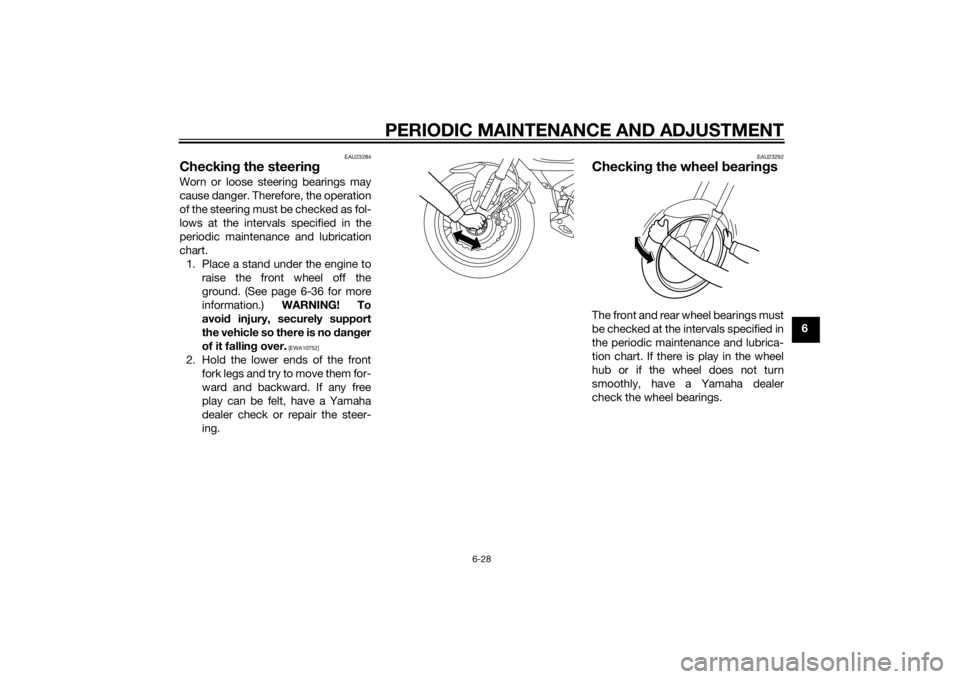

Checking the steerin gWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place a stand under the engine to raise the front wheel off the
ground. (See page 6-36 for more
information.) WARNING! To
avoi d injury, securely support
the vehicle so there is no dan ger
of it fallin g over.
[EWA10752]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU23292
Checkin g the wheel bearin gsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
U2BSE0E0.book Page 28 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU34226

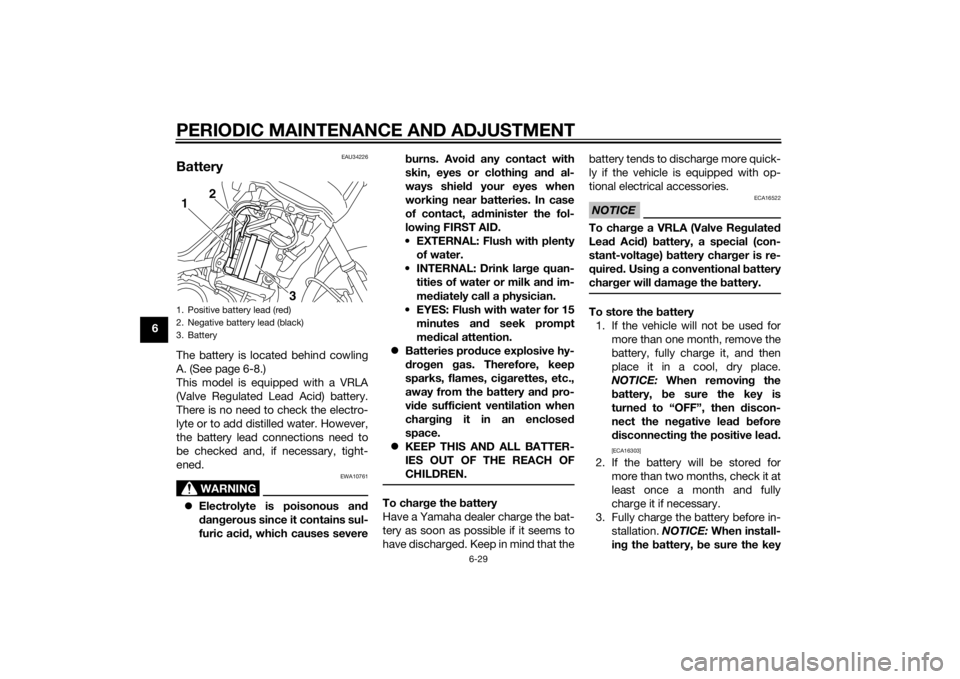

BatteryThe battery is located behind cowling
A. (See page 6-8.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to
be checked and, if necessary, tight-
ened.
WARNING
EWA10761
Electrolyte is poisonous an d
d an gerous since it contains sul-
furic aci d, which causes severe b
urns. Avoi d any contact with
skin, eyes or clothin g an d al-
ways shiel d your eyes when
workin g near b atteries. In case
of contact, a dminister the fol-
lowin g FIRST AID.
EXTERNAL: Flush with plenty of water.
INTERNAL: Drink lar ge quan-
tities of water or milk and im-
me diately call a physician.
EYES: Flush with water for 15 minutes an d seek prompt
me dical attention.
 Batteries pro duce explosive hy-
d ro gen gas. Therefore, keep
sparks, flames, ci garettes, etc.,
away from the battery an d pro-
vi de sufficient ventilation when
char gin g it in an enclose d
space.
 KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To char ge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.
NOTICE
ECA16522
To char
ge a VRLA (Valve Re gulate d
Lea d Aci d) battery, a special (con-
stant-volta ge) battery char ger is re-
quire d. Usin g a conventional b attery
char ger will damag e the b attery.To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removin g the
b attery, be sure the key is
turne d to “OFF”, then d iscon-
nect the neg ative lead b efore
d isconnectin g the positive lea d.
[ECA16303]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-
in g the b attery, be sure the key
1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery1
3
2
U2BSE0E0.book Page 29 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
is turne
d to “OFF”, then connect
the positive lea d before con-
nectin g the ne gative lead .
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the b attery charged .
Storin g a dischar ged battery can
cause permanent battery damag e.
EAU58960

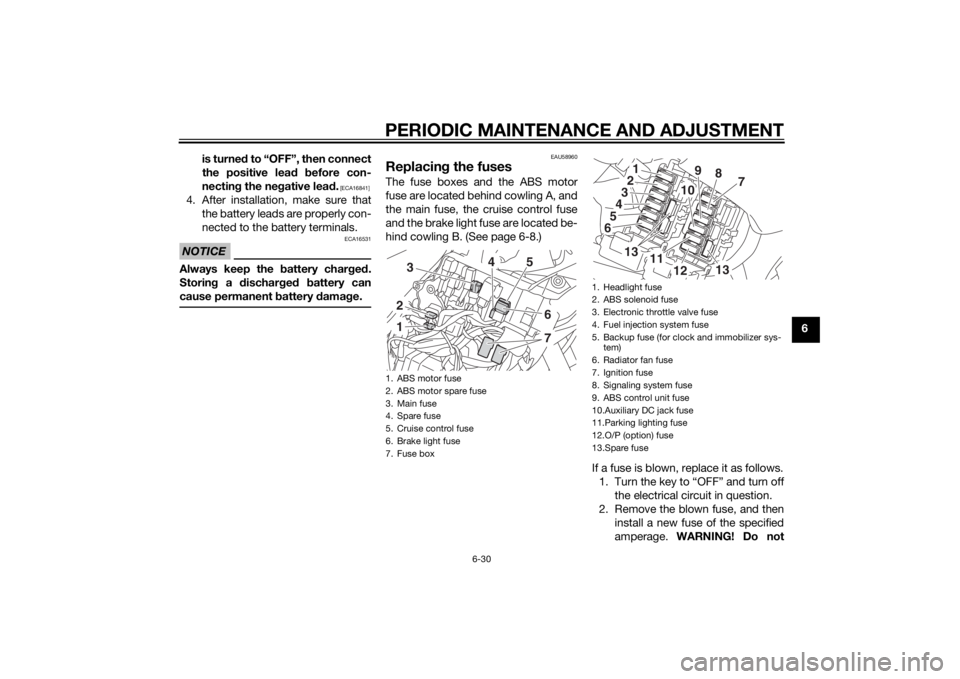

Replacin g the fusesThe fuse boxes and the ABS motor
fuse are located behind cowling A, and
the main fuse, the cruise control fuse
and the brake light fuse are located be-
hind cowling B. (See page 6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not1. ABS motor fuse
2. ABS motor spare fuse
3. Main fuse
4. Spare fuse
5. Cruise control fuse
6. Brake light fuse
7. Fuse box123
5
4
67
1. Headlight fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan fuse
7. Ignition fuse
8. Signaling system fuse
9. ABS control unit fuse
10.Auxiliary DC jack fuse
11.Parking lighting fuse
12.O/P (option) fuse
13.Spare fuse
13456
2
7
8
9
10
13
11
12
13
U2BSE0E0.book Page 30 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6use a fuse of a hi
gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
Specifie d fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Brake light fuse: 1.0 A
Parking lighting fuse: 7.5 A
Signaling system fuse:
7.5 A
Ignition fuse: 20.0 A
Radiator fan fuse: 20.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse: 7.5 A
Fuel injection system fuse: 20.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse: 3.0 A
O/P (option) fuse: 20.0 A
U2BSE0E0.book Page 31 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU39014

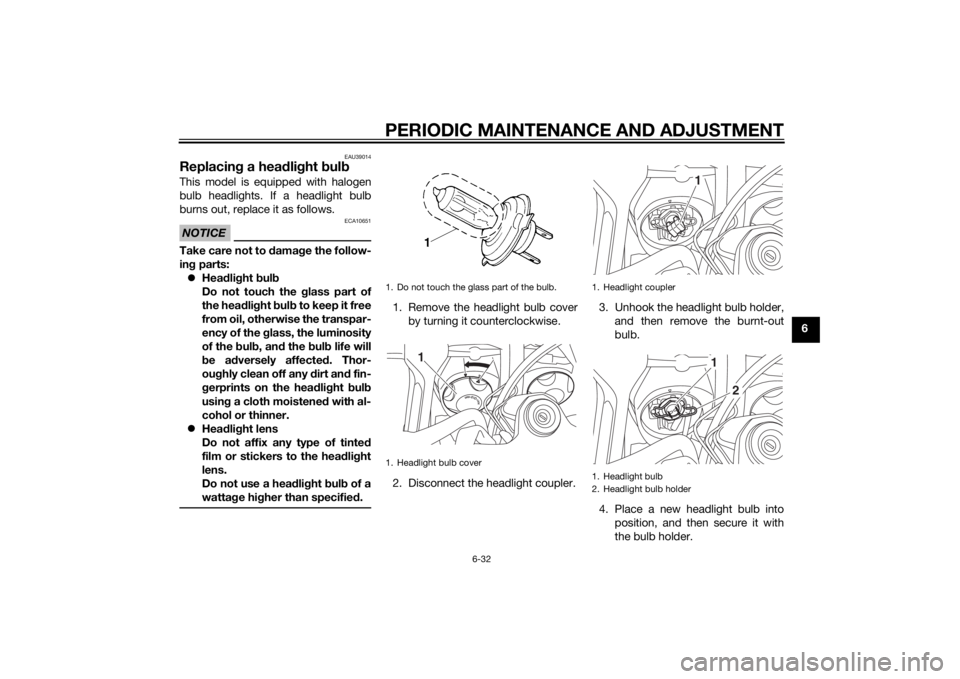

Replacing a hea dlig ht bul bThis model is equipped with halogen
bulb headlights. If a headlight bulb
burns out, replace it as follows.NOTICE
ECA10651
Take care not to damag e the follow-
in g parts:
 Hea dlig ht bul b
Do not touch the glass part of
the hea dlig ht bul b to keep it free
from oil, otherwise the transpar-
ency of the g lass, the luminosity
of the b ulb, an d the b ulb life will
b e ad versely affected . Thor-
ou ghly clean off any d irt and fin-
g erprints on the head light bul b
using a cloth moistene d with al-
cohol or thinner.
 Hea dlig ht lens
Do not affix any type of tinted
film or stickers to the head light
lens.
Do not use a hea dlig ht bul b of a
watta ge hi gher than specified .
1. Remove the headlight bulb cover
by turning it counterclockwise.
2. Disconnect the headlight coupler. 3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into position, and then secure it with
the bulb holder.1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1
1. Headlight coupler
1. Headlight bulb
2. Headlight bulb holder
1
1
2
U2BSE0E0.book Page 32 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
65. Connect the headlight coupler.
6. Install the headlight bulb cover by
turning it clockwise.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
EAU58590
Turn si gnal li ght an d tail/ brake
li g htThis model is equipped with LED-type
turn signal lights and an LED-type
tail/brake light.
If a turn signal light or the tail/brake
light does not come on, have a
Yamaha dealer check it.
EAU49722

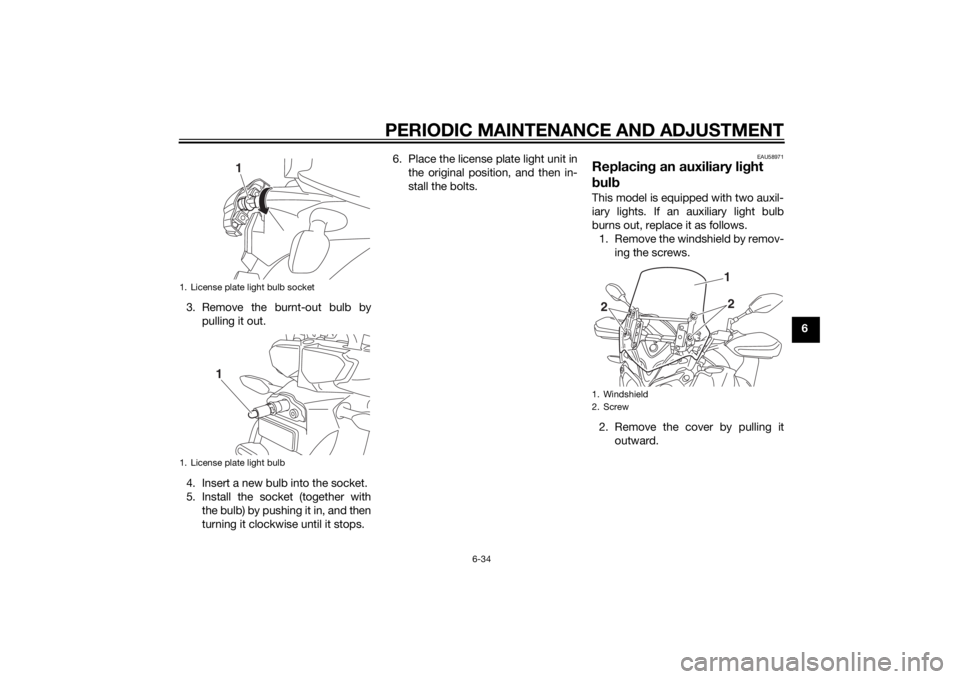

Replacin g a license plate li ght
b ul b1. Remove the license plate light unit
bolts.
2. Remove the license plate light bulb socket (together with the
bulb) by turning it counterclock-

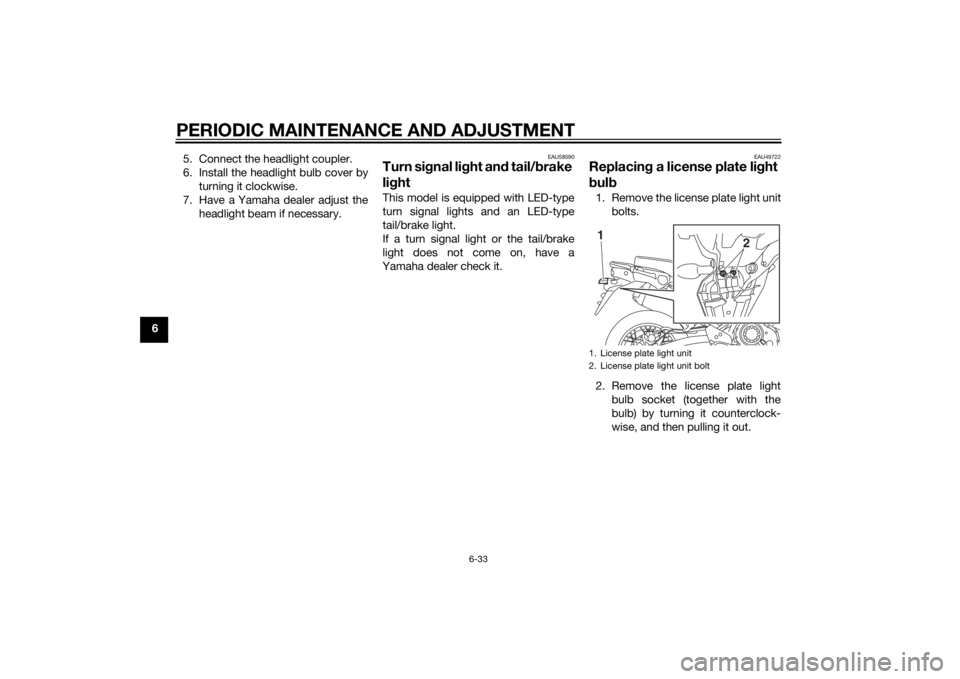

wise, and then pulling it out.1. License plate light unit
2. License plate light unit bolt
2
1
U2BSE0E0.book Page 33 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by pushing it in, and then
turning it clockwise until it stops. 6. Place the license plate light unit in
the original position, and then in-
stall the bolts.
EAU58971
Replacin g an auxiliary lig ht
b ul bThis model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the windshield by remov- ing the screws.
2. Remove the cover by pulling it outward.
1. License plate light bulb socket
1. License plate light bulb
1
1
1. Windshield
2. Screw
12
2
U2BSE0E0.book Page 34 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35

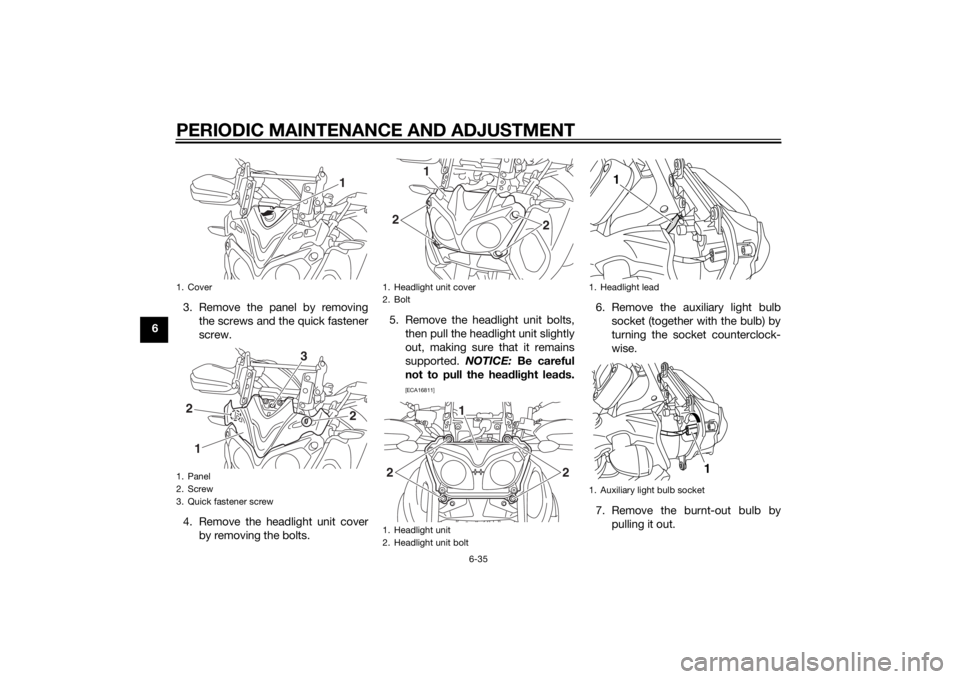

63. Remove the panel by removing
the screws and the quick fastener
screw.
4. Remove the headlight unit cover by removing the bolts. 5. Remove the headlight unit bolts,
then pull the headlight unit slightly
out, making sure that it remains
supported. NOTICE: Be careful
not to pull the hea dlig ht lea ds.
[ECA16811]
6. Remove the auxiliary light bulb
socket (together with the bulb) by
turning the socket counterclock-
wise.
7. Remove the burnt-out bulb by pulling it out.
1. Cover
1. Panel
2. Screw
3. Quick fastener screw
1
3
2
21
1. Headlight unit cover
2. Bolt
1. Headlight unit
2. Headlight unit bolt
1
2
2
1
2
2
1. Headlight lead
1. Auxiliary light bulb socket
1
1
U2BSE0E0.book Page 35 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
8. Insert a new bulb into the socket.
9. Install the socket (together with
the bulb) by pushing it in and turn-
ing it clockwise.
10. Install the headlight unit by install- ing the bolts, and then tightening
them to the specified torque.
11. Install the headlight unit cover by installing the bolts.
12. Install the panel by installing the screws and the quick fastener
screw.
13. Install the cover. 14. Install the windshield by installing
the screws, and then tightening
them to the specified torque.
WARNING! A loose win dshiel d
coul d cause an acci dent. Be
sure to tig hten the screws to the
specifie d torque.
[EWA15511] EAU24351
Supportin
g the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulbTi ghtenin g torque:
Headlight unit bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1
Tightenin g torque:
Windshield screw: 0.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
U2BSE0E0.book Page 36 Tuesday, September 17, 2013 8:55 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
6a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU25872
Trou
bleshootin gAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty damag e.
U2BSE0E0.book Page 37 Tuesday, September 17, 2013 8:55 AM
