DESCRIPTION
2-2
2
EAU10421
Right view
1
8
7
9
12
13
10
11
2
3,4
5
6

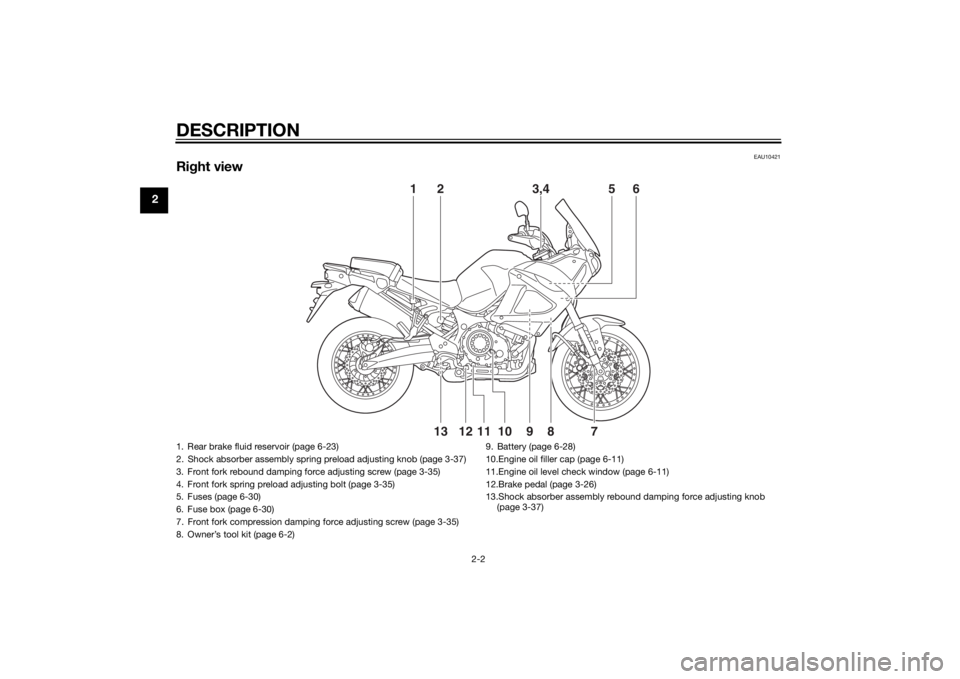

1. Rear brake fluid reservoir (page 6-23)
2. Shock absorber assembly spring preload adjusting knob (page 3-37)
3. Front fork rebound damping force adjusting screw (page 3-35)
4. Front fork spring preload adjusting bolt (page 3-35)
5. Fuses (page 6-30)
6. Fuse box (page 6-30)
7. Front fork compression damping force adjusting screw (page 3-35)
8. Owner’s tool kit (page 6-2) 9. Battery (page 6-28)
10.Engine oil filler cap (page 6-11)
11.Engine oil level check window (page 6-11)
12.Brake pedal (page 3-26)
13.Shock absorber assembly rebound damping force adjusting knob
(page 3-37)U2BSE1E0.book Page 2 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU58961
Replacing the fusesThe fuse boxes and the ABS motor
fuse are located behind cowling A, and
the main fuse, the cruise control fuse
and the brake light fuse are located be-
hind cowling B. (See page 6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not use a fuse of a hi
gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
1. ABS motor fuse
2. ABS motor spare fuse
3. Main fuse
4. Spare fuse
5. Cruise control fuse
6. Brake light fuse
7. Fuse box123
5
4
67
1. Headlight fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan motor fuse
7. Ignition fuse
8. Signaling system fuse
9. ABS control unit fuse
10.Auxiliary DC jack fuse
11.Parking lighting fuse
12.O/P (option) fuse
13.Spare fuse
13456
2
7
8
9
10
13
11
12
13
U2BSE1E0.book Page 30 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU39014
Replacin g a hea dlig ht bul bThis model is equipped with halogen
bulb headlights. If a headlight bulb
burns out, replace it as follows.NOTICE
ECA10651
Take care not to d amage the follow-
in g parts:
 Hea dlig ht bul b
Do not touch the glass part of
the hea dlig ht bul b to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bul b, an d the bul b life will
b e a dversely affected . Thor-
ou ghly clean off any dirt an d fin-
g erprints on the head lig ht bul b
usin g a cloth moistene d with al-
cohol or thinner.
 Hea dlig ht lens
Do not affix any type of tinted
film or stickers to the hea dlig ht
lens.
Do not use a hea dlig ht bul b of a
watta ge hi gher than specified .
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Brake light fuse: 1.0 A
Parking lighting fuse: 7.5 A
Signaling system fuse:
7.5 A
Ignition fuse: 20.0 A
Radiator fan motor fuse: 20.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse: 7.5 A
Fuel injection system fuse: 20.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse: 3.0 A
O/P (option) fuse: 20.0 A
U2BSE1E0.book Page 31 Thursday, July 31, 2014 4:31 PM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:TCI
Charging system:
AC magnetoBattery:Model:YTZ12S
Voltage, capacity:
12 V, 11.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light: LED
Front turn signal light:
LED
Rear turn signal light: LED
Auxiliary light: 12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED Turn signal indicator light:
LED
Engine trouble warning light: LED
ABS warning light:
LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light: LED
Immobilizer system indicator light:
LED
Traction control system indicator/warning
light:
LED
Fuses:Main fuse:50.0 A
Headlight fuse:
20.0 A
Brake light fuse: 1.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
20.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse:
20.0 A
ABS control unit fuse: 7.5 A ABS motor fuse:
30.0 A
ABS solenoid fuse: 20.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse: 3.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
O/P (option) fuse: 20.0 A
U2BSE1E0.book Page 3 Thursday, July 31, 2014 4:31 PM
