SPECIFICATIONS
8-2
8
Secondary reduction ratio:2.987 (21/25 x 32/9)
Transmission type: Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio: 1st:
2.769 (36/13)
2nd: 2.063 (33/16)
3rd: 1.571 (33/21)
4th:
1.250 (30/24)
5th: 1.042 (25/24)
6th: 0.929 (26/28)Chassis:Frame type:Backbone
Caster angle: 28.00 °
Trail:
126 mm (5.0 in)Front tire:Type:Tubeless
Size:
110/80R19M/C 59V
Manufacturer/model: BRIDGESTONE/BW501
Rear tire:Type: Tubeless
Size:
150/70R17M/C 69V
Manufacturer/model: BRIDGESTONE/BW502Loa din g:Maximum load:
205 kg (452 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:225 kPa (2.25 kgf/cm², 33 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition: 90–205 kg (198–452 lb)
Front:225 kPa (2.25 kgf/cm², 33 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:Spoke wheel
Rim size:
19M/C x MT2.50Rear wheel:Wheel type:Spoke wheel Rim size:
17M/C x MT4.00
Unifie d b rake system:Operation:
Activated by front brakeFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:
Single disc brake
Operation: Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
190 mm (7.5 in)Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 190 mm (7.5 in)
U2KBE1E0.book Page 2 Monday, August 18, 2014 9:42 AM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:TCI
Charging system:
AC magnetoBattery:Model:YTZ12S
Voltage, capacity:
12 V, 11.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light: LED
Front turn signal light:
LED
Rear turn signal light: LED
Auxiliary light: 12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED Turn signal indicator light:
LED
Engine trouble warning light: LED
ABS warning light:
LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light: LED
Immobilizer system indicator light:
LED
Traction control system indicator/warning
light:
LED
Suspension warning light: LED
Fuses:Main fuse:
50.0 A
Headlight fuse: 20.0 A
Brake light fuse: 1.0 A
Signaling system fuse:
7.5 A
Ignition fuse: 20.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse:
20.0 A
Fuel injection system fuse: 20.0 A ABS control unit fuse:
7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse: 15.0 A
Cruise control fuse: 1.0 A
Auxiliary DC jack fuse:
3.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse: 7.5 A
O/P (option) fuse:
20.0 A
U2KBE1E0.book Page 3 Monday, August 18, 2014 9:42 AM

CONSUMER INFORMATION
9-1
9
EAU53562

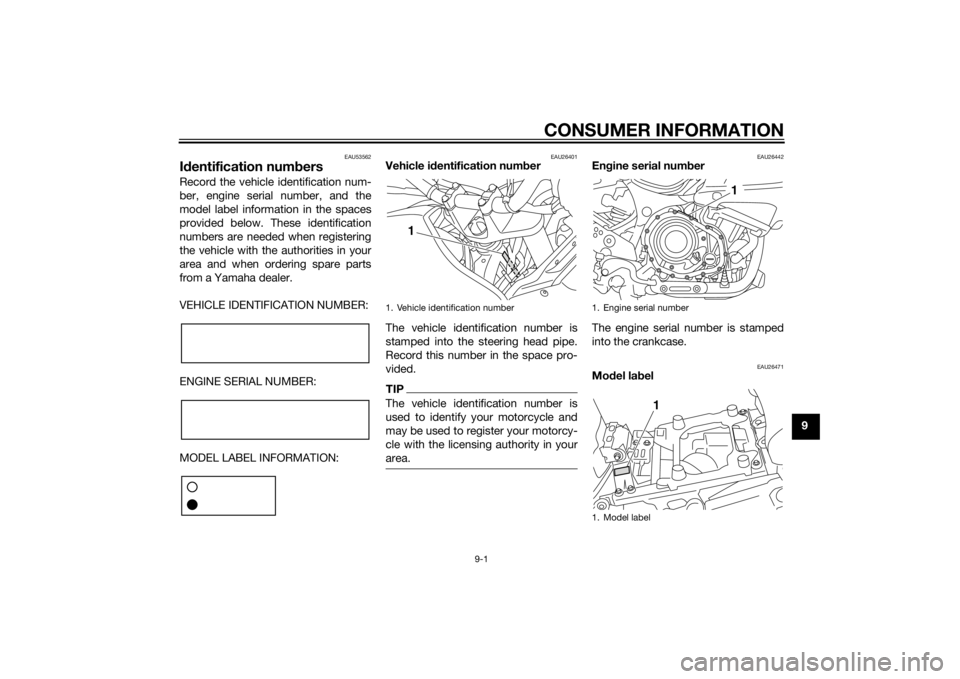

Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26471
Mo del la bel
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
U2KBE1E0.book Page 1 Monday, August 18, 2014 9:42 AM

CONSUMER INFORMATION
9-2
9The model label is affixed to the frame
under the rider seat. (See page 3-34.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
U2KBE1E0.book Page 2 Monday, August 18, 2014 9:42 AM

10-1
10
INDEX
AABS....................................................... 3-28
ABS warning light ................................... 3-5
Air filter element.................................... 6-17
Auxiliary DC jack .................................. 3-45
Auxiliary light bulb, replacing ............... 6-33BBattery .................................................. 6-28
Brake and clutch fluids, changing ........ 6-24
Brake and clutch levers, checking and lubricating........................................... 6-25
Brake and shift pedals, checking and
lubricating........................................... 6-25
Brake fluid level, checking.................... 6-23
Brake lever............................................ 3-27
Brake lever free play, checking ............ 6-21
Brake light switches ............................. 6-22
Brake pedal .......................................... 3-28CCare ........................................................ 7-1
Carriers ................................................. 3-42
Catalytic converter ............................... 3-33
Centerstand and sidestand, checking
and lubricating ................................... 6-26
Clutch lever.................................. 3-26, 6-21
Coolant ................................................. 6-15
Cowlings, removing and installing.......... 6-8
Cruise control indicator lights................. 3-4
Cruise control switches ........................ 3-25
Cruise control system............................. 3-7DDimmer/Pass switch............................. 3-25
D-mode (drive mode)............................ 3-24
EElectronically adjustable suspension system warning light ............................ 3-6
Engine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-17
Engine oil and oil filter cartridge........... 6-11
Engine serial number ............................. 9-1
Engine trouble warning light .................. 3-5FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-22
Front fork, checking ............................. 6-27
Fuel ...................................................... 3-32
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-33
Fuel tank cap........................................ 3-31
Fuses, replacing ................................... 6-30HHandlebar switches ............................. 3-24
Hazard switch ...................................... 3-25
Headlight bulb, replacing ..................... 6-31
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-25IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-43
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-6
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-35
Luggage strap holders ......................... 3-42
MMain switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution................................ 7-1
Menu switch ......................................... 3-25
Model label ............................................. 9-1
Multi-function meter unit ...................... 3-10NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PParking.................................................... 5-4
Part locations.......................................... 2-1RRider seat.............................................. 3-34
Rider seat height, adjusting .................. 3-35SSafety information................................... 1-1
Select switch ........................................ 3-26
Shifting.................................................... 5-2
Shift pedal............................................. 3-27
Sidestand.............................................. 3-43
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Start/Engine stop switch ...................... 3-25
Starting the engine ................................. 5-1
Steering, checking ................................ 6-28
Storage ................................................... 7-4
Suspension, adjusting the front and
rear ..................................................... 3-37
Swingarm pivots, lubricating ................ 6-27
U2KBE1E0.book Page 1 Monday, August 18, 2014 9:42 AM

INDEX
10-2
10
TThrottle grip and cable, checking and lubricating ........................................... 6-24
Throttle grip free play, checking ........... 6-17
Tires ...................................................... 6-18
Tool kit .................................................... 6-2
Traction control system ........................ 3-29
Traction control system indicator/ warning light ......................................... 3-5
Troubleshooting .................................... 6-36
Troubleshooting charts ......................... 6-37
Turn signal indicator lights ...................... 3-4
Turn signal light and tail/brake light ...... 6-35
Turn signal switch ................................. 3-25VValve clearance..................................... 6-18
Vehicle identification number ................. 9-1WWheel bearings, checking..................... 6-28
Wheels .................................................. 6-20
Windshield ............................................ 3-36
U2KBE1E0.book Page 2 Monday, August 18, 2014 9:42 AM
