SAFETY INFORMATION
1-4

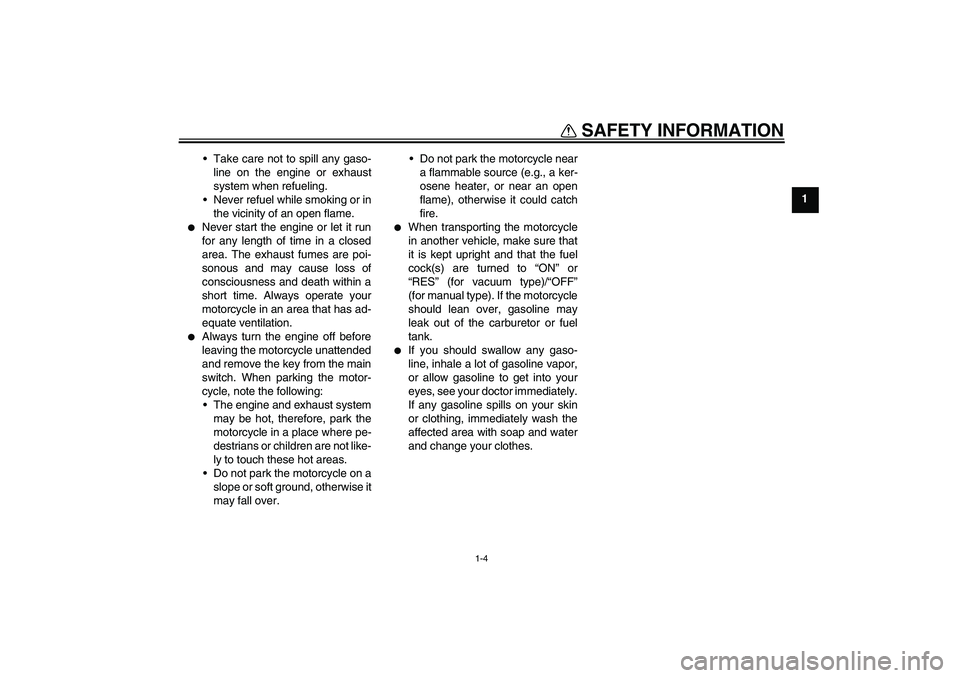

1 Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
Never refuel while smoking or in
the vicinity of an open flame.


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.


Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motor-
cycle, note the following:
The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pe-
destrians or children are not like-
ly to touch these hot areas.
Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.


When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuel
cock(s) are turned to “ON” or
“RES” (for vacuum type)/“OFF”
(for manual type). If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.

DESCRIPTION
2-1
2
EAU10410

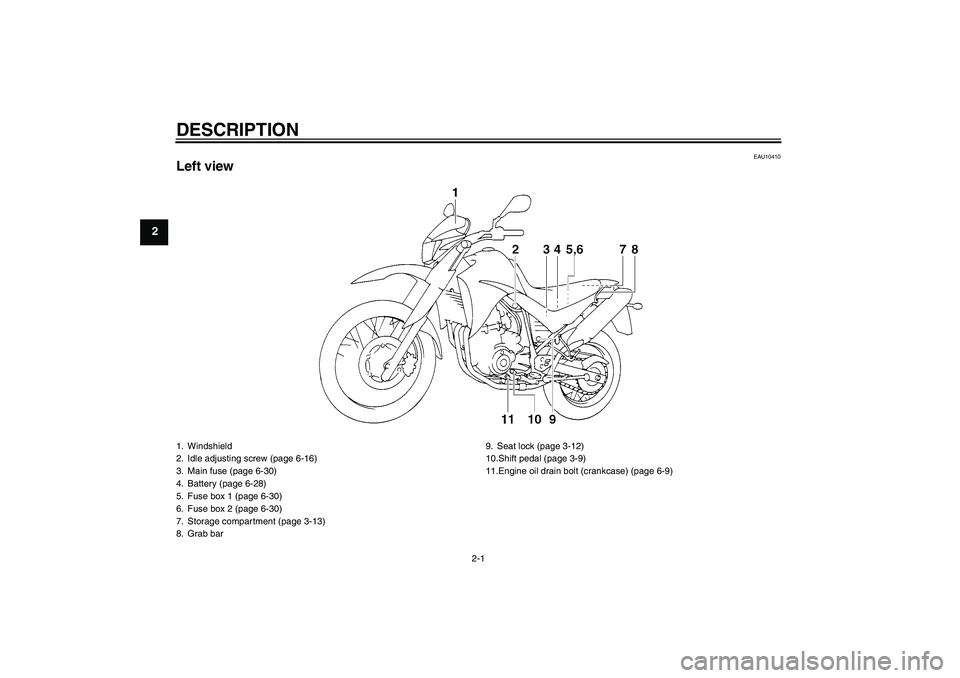

Left view1. Windshield
2. Idle adjusting screw (page 6-16)
3. Main fuse (page 6-30)
4. Battery (page 6-28)
5. Fuse box 1 (page 6-30)
6. Fuse box 2 (page 6-30)
7. Storage compartment (page 3-13)
8. Grab bar9. Seat lock (page 3-12)
10.Shift pedal (page 3-9)
11.Engine oil drain bolt (crankcase) (page 6-9)

DESCRIPTION
2-2
2
EAU10420
Right view1. Owner’s tool kit (page 6-1)
2. Air filter element (page 6-15)
3. Shock absorber assembly spring preload adjusting ring (page 3-13)
4. Rear brake fluid reservoir (page 6-22)
5. Front brake fluid reservoir (page 6-22)
6. Engine oil filler cap (page 6-9)
7. Engine oil drain bolt (oil tank) (page 6-9)
8. Coolant reservoir (page 6-12)9. Engine oil filter element (page 6-9)
10.Coolant drain bolt (page 6-13)
11.Brake pedal (page 3-10)

DESCRIPTION
2-3
2
EAU32240

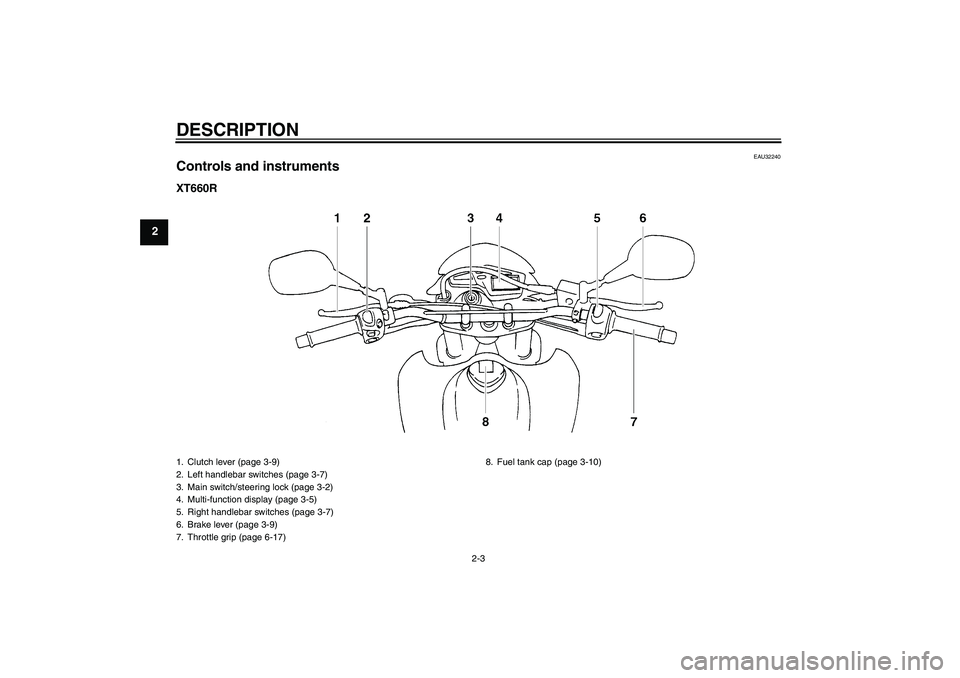

Controls and instrumentsXT660R1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Right handlebar switches (page 3-7)
6. Brake lever (page 3-9)
7. Throttle grip (page 6-17)8. Fuel tank cap (page 3-10)

DESCRIPTION
2-4

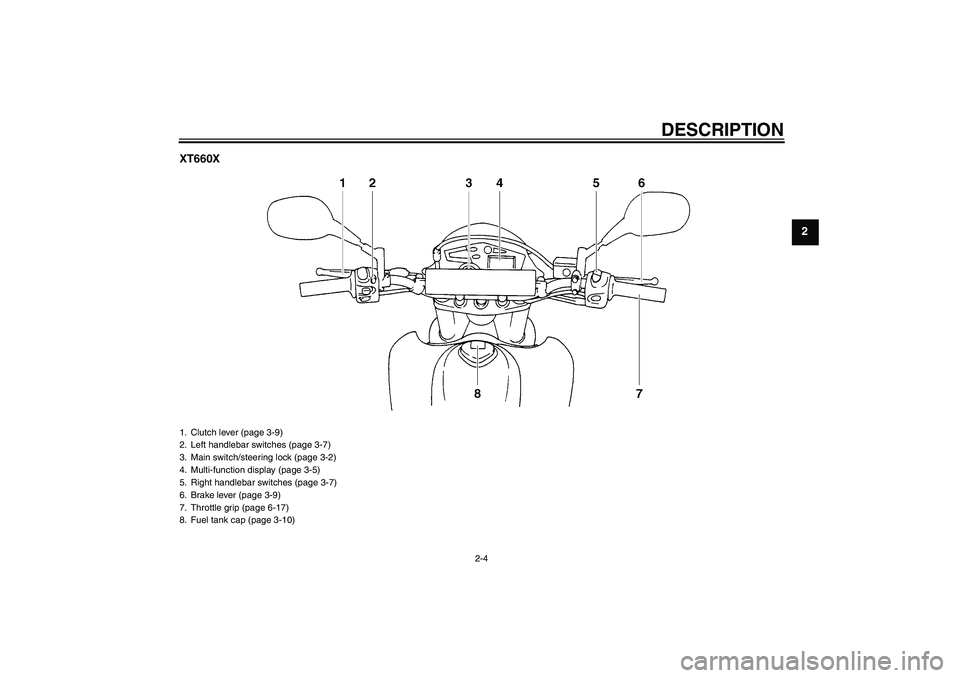

2 XT660X
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Right handlebar switches (page 3-7)
6. Brake lever (page 3-9)
7. Throttle grip (page 6-17)
8. Fuel tank cap (page 3-10)

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10972

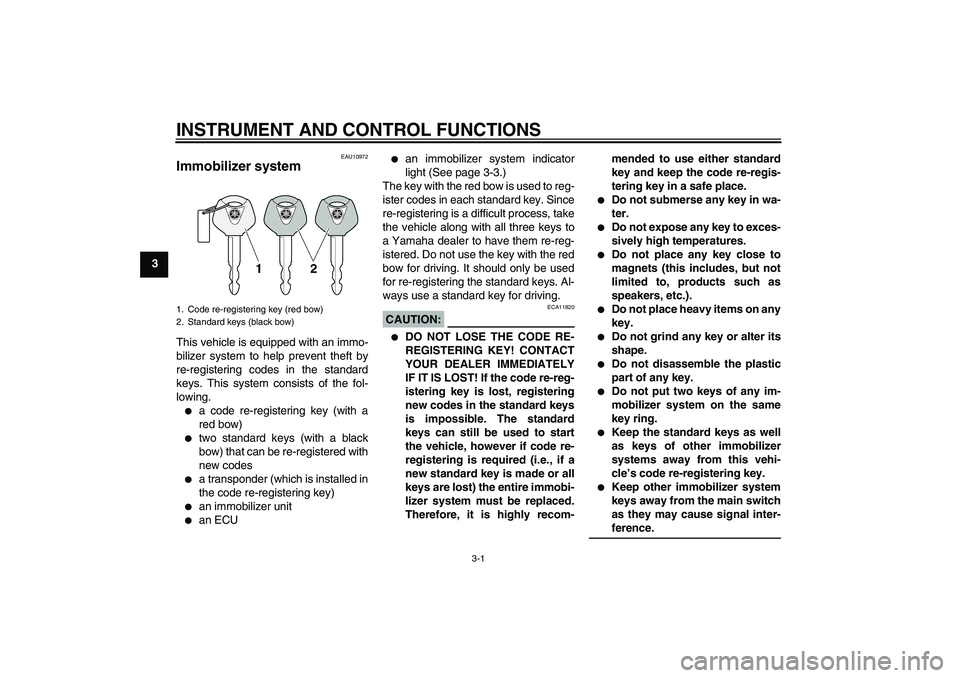

Immobilizer system This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.

a code re-registering key (with a
red bow)


two standard keys (with a black
bow) that can be re-registered with
new codes


a transponder (which is installed in
the code re-registering key)


an immobilizer unit


an ECU


an immobilizer system indicator
light (See page 3-3.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
CAUTION:
ECA11820


DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-reg-
istering key is lost, registering
new codes in the standard keys
is impossible. The standard
keys can still be used to start
the vehicle, however if code re-
registering is required (i.e., if a
new standard key is made or all
keys are lost) the entire immobi-
lizer system must be replaced.
Therefore, it is highly recom-mended to use either standard
key and keep the code re-regis-
tering key in a safe place.


Do not submerse any key in wa-
ter.


Do not expose any key to exces-
sively high temperatures.


Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).


Do not place heavy items on any
key.


Do not grind any key or alter its
shape.


Do not disassemble the plastic
part of any key.


Do not put two keys of any im-
mobilizer system on the same
key ring.


Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.


Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-ference.
1. Code re-registering key (red bow)
2. Standard keys (black bow)

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10471

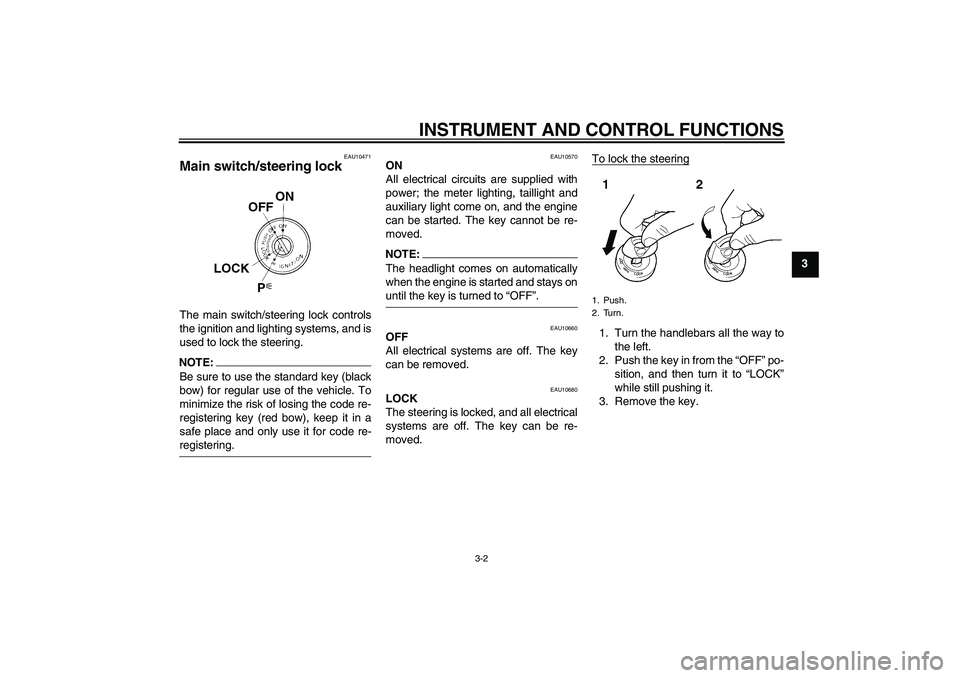

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.NOTE:Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-registering.
EAU10570
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.NOTE:The headlight comes on automatically
when the engine is started and stays onuntil the key is turned to “OFF”.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU33000
(Parking)
The steering is locked, and the taillight
and auxiliary light are on. The hazard
light and turn signal lights can be turned
on, but all other electrical systems are
off. The key can be removed.
The steering must be locked before the
key can be turned to “”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
EAU11001
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
1. Push.
2. Turn.
1. Engine trouble warning light “”
2. Turn signal indicator light “”
3. Fuel level warning light “”
4. High beam indicator light “”
5. Neutral indicator light “”
6. Coolant temperature warning light “”
7. Immobilizer system indicator light “”

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11360
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
5.0 L (1.32 US gal) (1.10 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning lightwill flash eight times, then go off for 2.5
seconds. If this occurs, have a Yamaha
dealer check the vehicle.
EAU11440
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-diagnosis system. (See page 3-5 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU26871
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
NOTE:This model is also equipped with a self-
diagnosis device for the immobilizer
system. If the immobilizer system is de-
fective, the indicator will start flashing
and the multi-function meter will display
an error code when the key is turned to
“ON”. (See “Self-diagnosis device” onpage 3-5 for details.)
EAUM1662

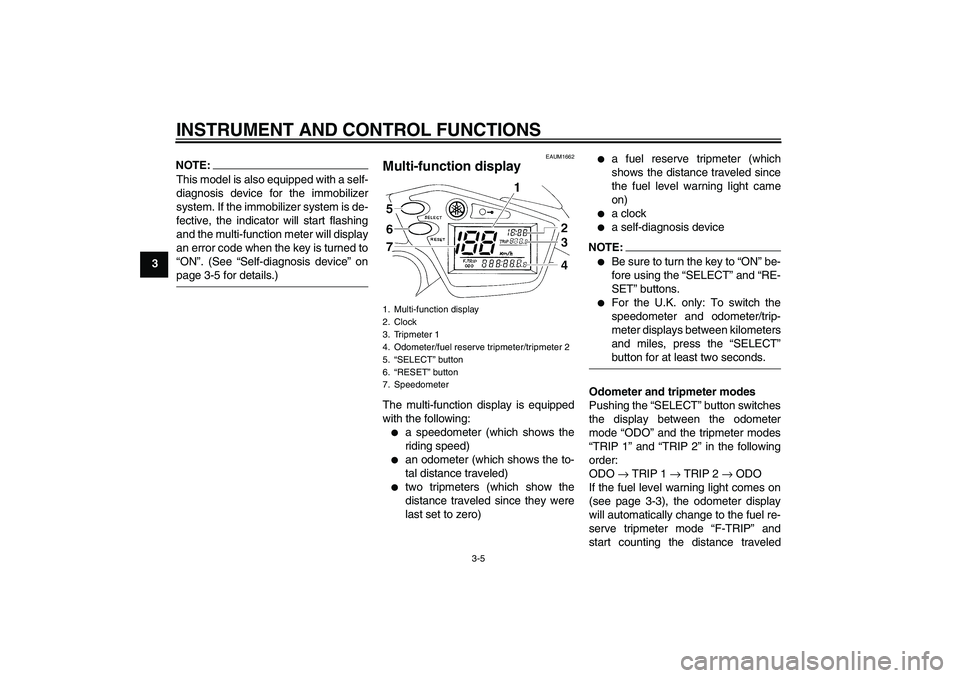

Multi-function display The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


a self-diagnosis device
NOTE:

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”button for at least two seconds.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
If the fuel level warning light comes on
(see page 3-3), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
1. Multi-function display
2. Clock
3. Tripmeter 1
4. Odometer/fuel reserve tripmeter/tripmeter 2
5.“SELECT” button
6.“RESET” button
7. Speedometer
