INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAUM1790
Fuel tank cap To remove the fuel tank cap
1. Open the fuel tank cap lock cover.
2. Insert the key into the lock and turn
it 1/4 turn clockwise. The lock will
be released and the fuel tank cap
can be removed.
To install the fuel tank cap
1. Push and install the fuel tank cap
into position with the key inserted
in the lock.
2. Turn the key counterclockwise to
the original position, and then re-
move it.
NOTE:The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA11140
Make sure that the fuel tank cap isproperly installed before riding.
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU13430
Catalytic converter This model is equipped with a catalytic
converter in the exhaust chamber.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.


Do not allow the engine to idletoo long.
EAU13900
Seat To remove the seat
1. Insert the key into the seat lock,
and then turn it as shown.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
NOTE:Make sure that the seat is properly se-cured before riding.
1. Seat lock
2. Unlock.
1. Seat holder
2. Projection

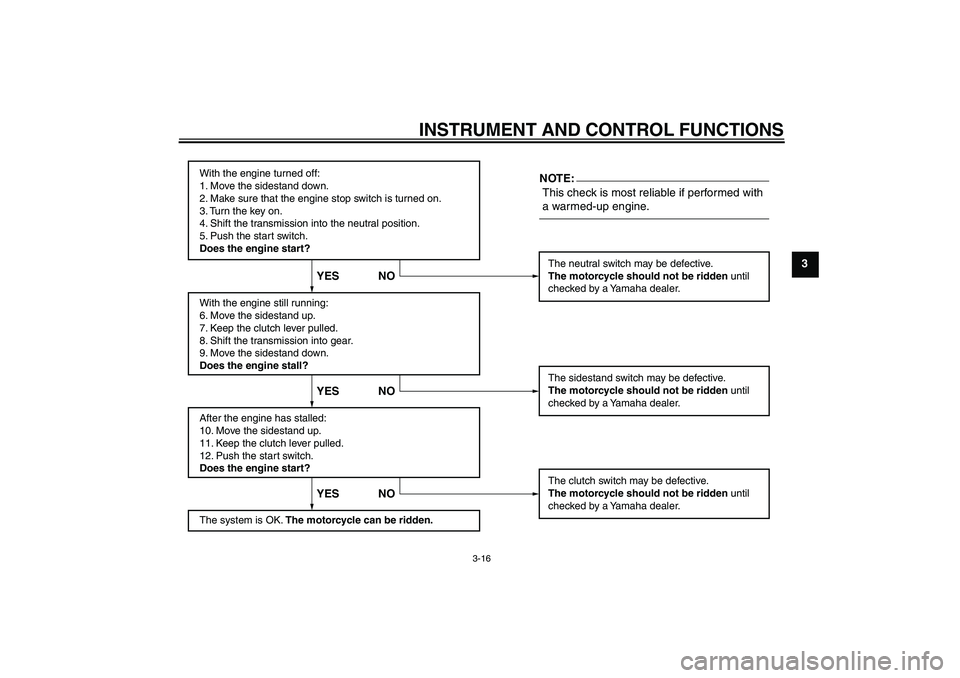

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAUM1670
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-15.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECAM1030
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Fuel level warning light


Coolant temperature warning
light


Engine trouble warning light


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-

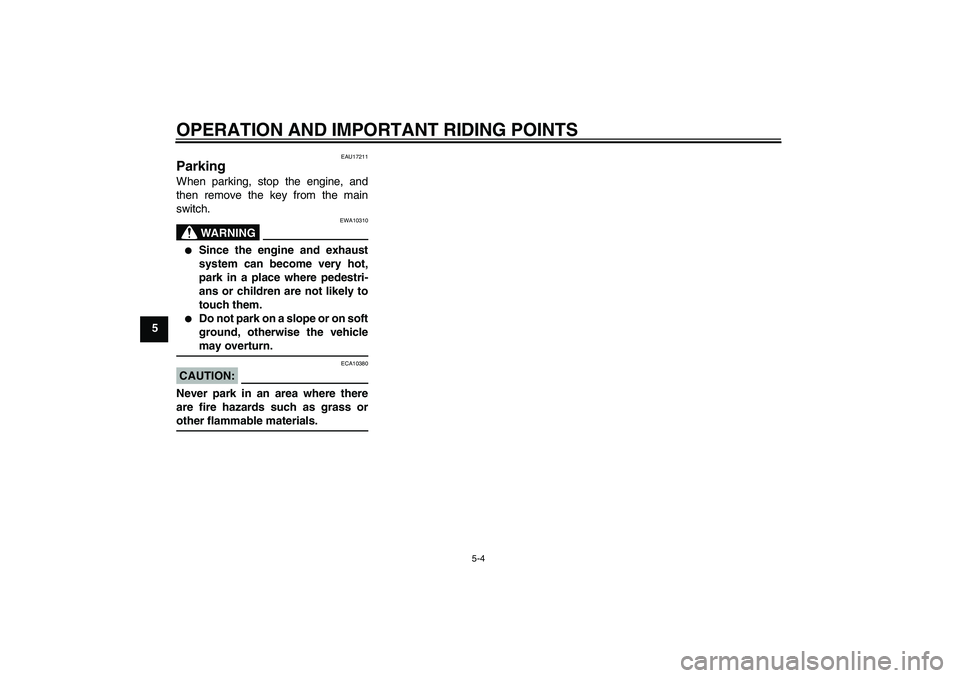

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17211
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAUM1740
Replacing the fuses The main fuse is located behind panel
A. (See page 6-5.)
Fuse box 1 and fuse box 2 are located
under the seat. (See page 3-12.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Main fuse
2. Spare main fuse
1. Fuse box 1
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Electronic fuel injection fuse
6. Radiator fan fuse
7. Backup fuse (for odometer, clock and
immobilizer system)
8. Parking lighting fuse
9. Fuse box 2
10.Spare fuse
Specified fuses:
Main fuse:
30.0 A
Fuse box 1:
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Radiator fan fuse:
7.5 A
Ignition fuse:
10.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
Fuse box 2:
Parking lighting fuse:
10.0 A

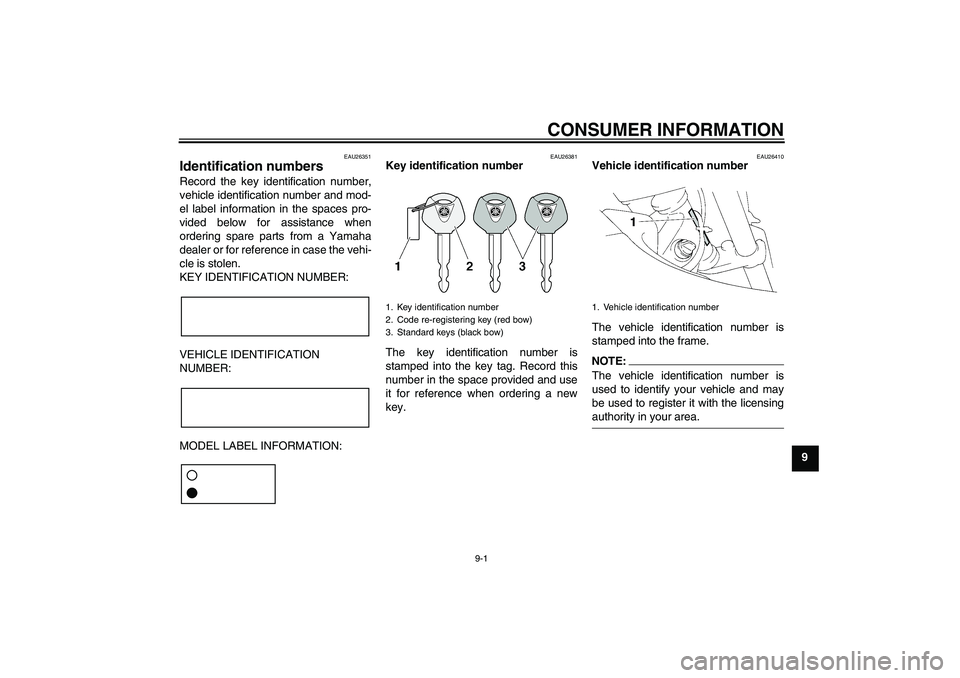

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-15
Anti-theft alarm (optional) ....................... 3-7
Auxiliary light bulb, replacing ................ 6-33BBattery .................................................. 6-28
Brake and clutch levers, checking
and lubricating .................................... 6-25
Brake fluid level, checking .................... 6-22
Brake lever ............................................. 3-9
Brake pedal .......................................... 3-10
Brake pedal, lubricating ........................ 6-26CCables, checking and lubricating .......... 6-25
Care ........................................................ 7-1
Catalytic converter ................................ 3-12
Clutch lever............................................. 3-9
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-4
Cowlings and panels, removing and
installing ............................................... 6-5DDimmer switch ........................................ 3-8
Drive chain, lubricating ......................... 6-24
Drive chain slack .................................. 6-23EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-16
Engine oil and oil filter element............... 6-9
Engine stop switch.................................. 3-8
Engine trouble warning light ................... 3-4
FFront and rear brake pads, checking .... 6-21
Front fork, checking...............................6-27
Fuel ....................................................... 3-11
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank cap......................................... 3-10
Fuses, replacing .................................... 6-30HHandlebar switches ................................. 3-7
Hazard switch.......................................... 3-8
Headlight bulb, replacing....................... 6-31
High beam indicator light......................... 3-4
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-15
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and lubrication
chart ......................................................6-2Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-21SSafety information ................................... 1-1
Seat ...................................................... 3-12
Shifting .................................................... 5-2
Shift pedal ............................................... 3-9
Shock absorber assembly, adjusting .... 3-13
Sidestand .............................................. 3-14
Sidestand, checking and lubricating ..... 6-26
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Storage compartment ........................... 3-13
Supporting the motorcycle .................... 6-33TThrottle cable free play, adjusting ......... 6-17
Throttle grip and cable, checking
and lubricating .................................... 6-25
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-37
Troubleshooting charts ......................... 6-38
Turn signal indicator light ........................ 3-3
Turn signal light bulb or tail/brake
light bulb, replacing............................. 6-32
Turn signal switch ................................... 3-8VVehicle identification number .................. 9-1
