engine YAMAHA XT660R 2004 Owner's Guide

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
NOTE:

The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page6-38 for further instructions.
EAUM1801
To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Remove the seat and panel B.
(See pages 3-12 and 6-5.)
3. Remove cowling B. (See page
6-5.)
4. Place a container under the engine
to collect the used coolant.
5. Loosen the radiator cap retainer
screw.
6. Remove the radiator cap and cool-
ant reservoir cap.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.7. Remove the coolant reservoir
bolts, and then turn the coolant
reservoir upside down to empty it.
8. Install the coolant reservoir by
placing it in the original position,
then installing the bolts.9. Remove the coolant drain bolt to
drain the cooling system.
10. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
1. Radiator cap
2. Radiator cap retaining screw
3. Radiator cap retainer
4. Coolant reservoir cap
1. Bolt
1. Coolant drain bolt

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
611. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
12. Pour the specified amount of rec-
ommended coolant into the radia-
tor and reservoir.
CAUTION:
ECA10470


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.
13. Install the coolant reservoir cap.
14. Install the radiator cap and radiator
cap retainer by installing the
screw.
15. Start the engine, let it idle for sev-
eral minutes, and then turn it off.16. Check the coolant level in the res-
ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
17. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
18. Install the cowling, the panel and
the seat.
Tightening torque:
Coolant drain bolt:
11 Nm (1.1 m·kgf, 8.0 ft·lbf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
1.00 L (1.06 US qt) (0.88 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAUM1833
Replacing the air filter element
and cleaning the check hose The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hose must be fre-
quently checked and cleaned if neces-
sary.
To replace the air filter element
1. Remove the seat. (See page
3-12.)
2. Remove panel B. (See page 6-5.)
3. Remove the air filter case cover by
removing the screws.4. Pull the air filter element out.
5. Insert a new air filter element into
the air filter case as shown.
CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
6. Install the air filter case cover by in-
stalling the screws.
7. Install the panel.
8. Install the seat.
To clean the air filter check hose
1. Check the hose on the side of the
air filter case for accumulated dirt
or water.
1. Air filter case cover
2. Screw
1. Air filter element

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
62. If dirt or water is visible, remove
the hose, clean it, and then install
it.
EAUM1910
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:

The engine is warm when it quickly
responds to the throttle.


A diagnostic tachometer is neededto make this adjustment.
1. Attach the tachometer to the spark
plug lead.
2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the idle adjust-
ing screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
1. Air filter check hose
1. Idle adjusting screwEngine idling speed:
1300–1500 r/min

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22780
To check the drive chain slack
1. Place the motorcycle on a level
surface and hold it in an upright po-
sition.NOTE:When checking and adjusting the drive
chain slack, the motorcycle should be
positioned straight up and there shouldbe no weight on it.
2. Shift the transmission into the neu-
tral position.3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.
4. If the drive chain slack is incorrect,
adjust it as follows.
NOTE:When checking the drive chain slack,
the chain tensioner should not betouching the drive chain.
EAU22930
To adjust the drive chain slack
1. Loosen the axle nut, then loosen
the locknut at each end of the
swingarm.
2. To tighten the drive chain, turn the
adjusting nut at each end of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing nut at each end of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same po-sition for proper wheel alignment.CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.
1. Drive chain slack
Drive chain slack:
40.0–55.0 mm (1.57–2.17 in)
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
4. Alignment marks

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
63. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
EAU23021
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
Tightening torque:
Axle nut:
104 Nm (10.4 m·kgf, 75 ft·lbf)

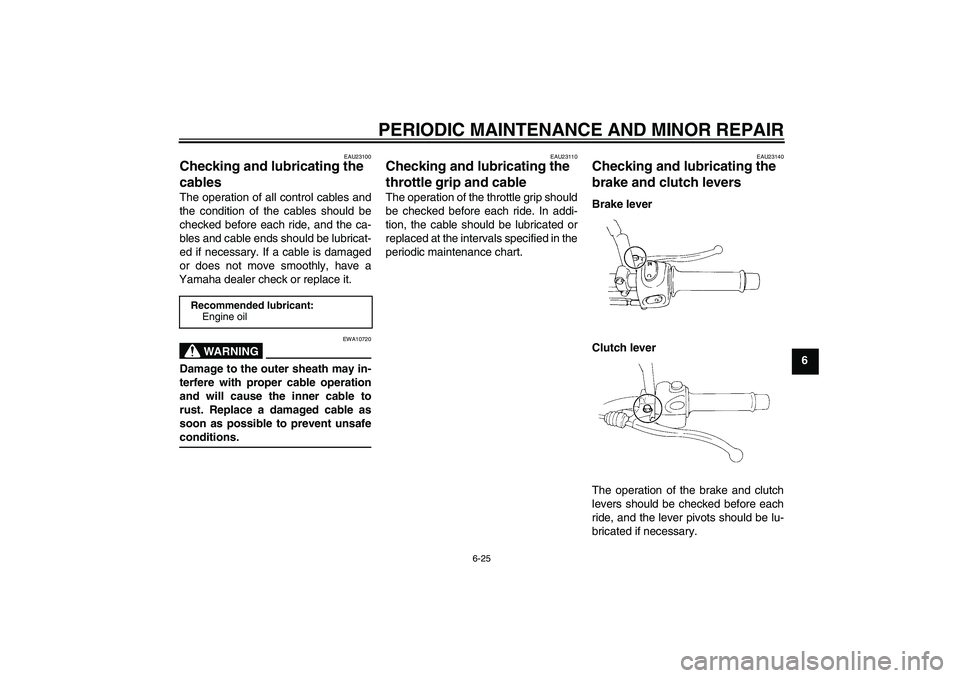

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
EAU23110
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated or
replaced at the intervals specified in the
periodic maintenance chart.
EAU23140
Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Engine oil

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAUM1820
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove cowling A together with
the headlight unit. (See page 6-5.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the cowling together with
the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulb socket

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6
EAU25921
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
