PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6 4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUM1750

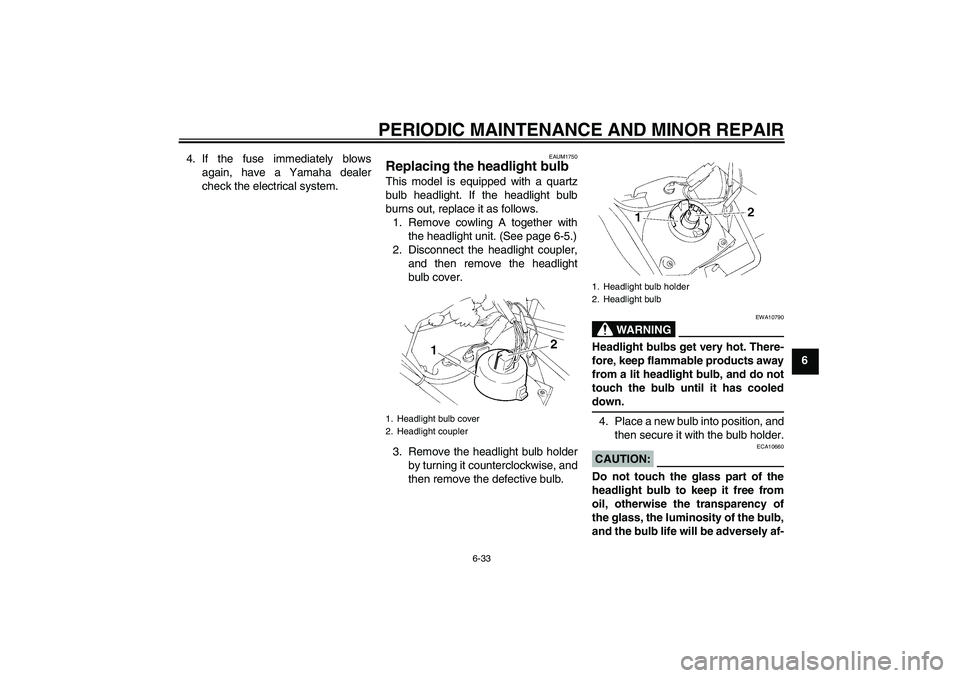

Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove cowling A together with
the headlight unit. (See page 6-5.)
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new bulb into position, and
then secure it with the bulb holder.CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
1. Headlight bulb cover
2. Headlight coupler
1. Headlight bulb holder
2. Headlight bulb
U5VKE1E0.book Page 33 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
5. Install the bulb cover, and then
connect the coupler.
6. Install the cowling together with
the headlight unit.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24281

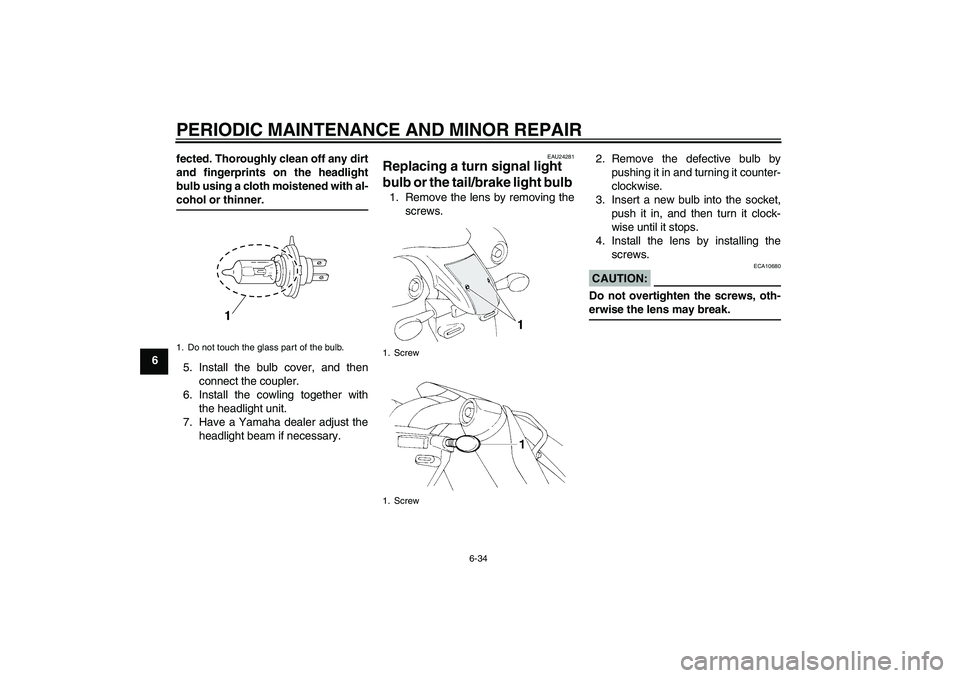

Replacing a turn signal light
bulb or the tail/brake light bulb 1. Remove the lens by removing the
screws.2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
CAUTION:
ECA10680
Do not overtighten the screws, oth-erwise the lens may break.
1. Do not touch the glass part of the bulb.
1. Screw
1. Screw
U5VKE1E0.book Page 34 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAUM1820

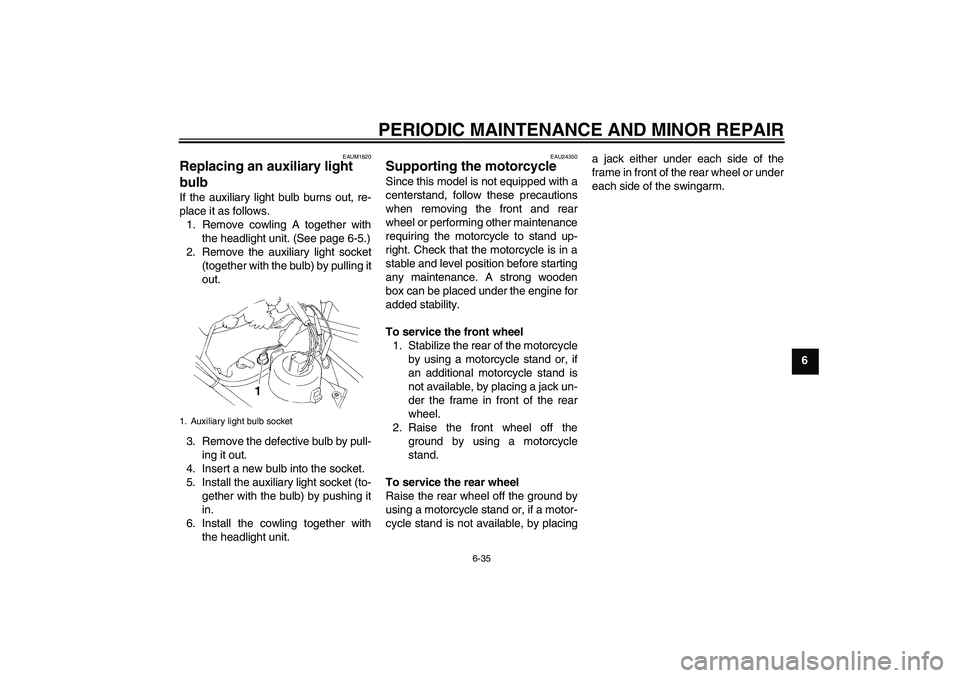

Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove cowling A together with
the headlight unit. (See page 6-5.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the cowling together with
the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulb socket
U5VKE1E0.book Page 35 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU24360

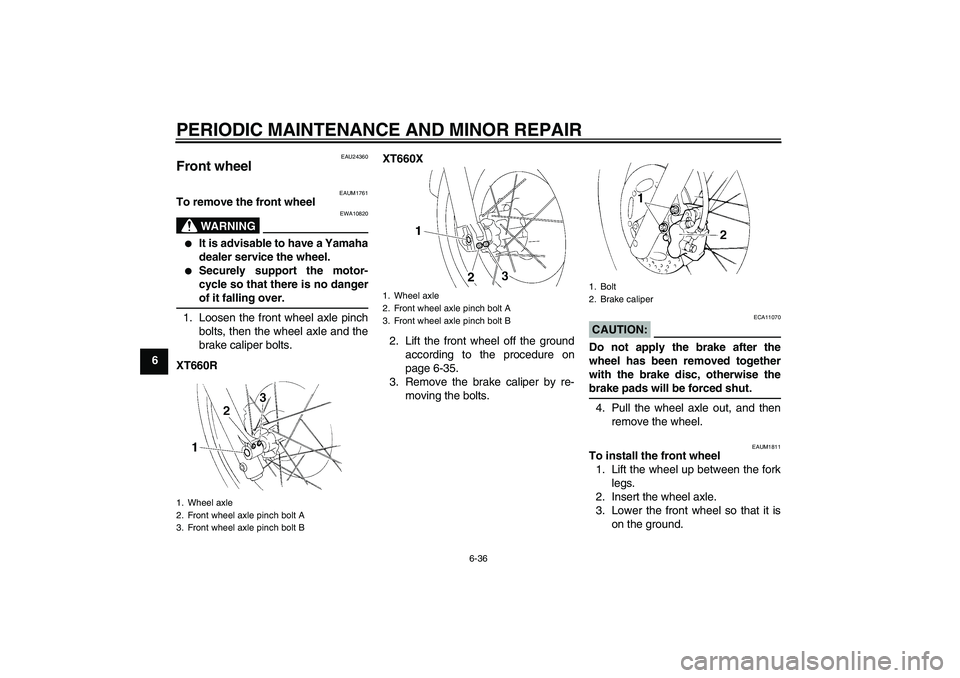

Front wheel
EAUM1761
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the front wheel axle pinch
bolts, then the wheel axle and the
brake caliper bolts.
XT660RXT660X
2. Lift the front wheel off the ground
according to the procedure on
page 6-35.
3. Remove the brake caliper by re-
moving the bolts.
CAUTION:
ECA11070
Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise thebrake pads will be forced shut.
4. Pull the wheel axle out, and then
remove the wheel.
EAUM1811
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
1. Wheel axle
2. Front wheel axle pinch bolt A
3. Front wheel axle pinch bolt B
1. Wheel axle
2. Front wheel axle pinch bolt A
3. Front wheel axle pinch bolt B
1. Bolt
2. Brake caliper
U5VKE1E0.book Page 36 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6 4. Install the brake caliper by install-
ing the bolts.
NOTE:Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brakedisc.
5. Tighten the wheel axle to the spec-
ified torque.
6. Tighten the wheel axle pinch bolt A
and pinch bolt B to the specified
torques.
7. Retighten the wheel axle pinch bolt
A to the specified torque.
8. Tighten the brake caliper bolts to
the specified torques.
9. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080

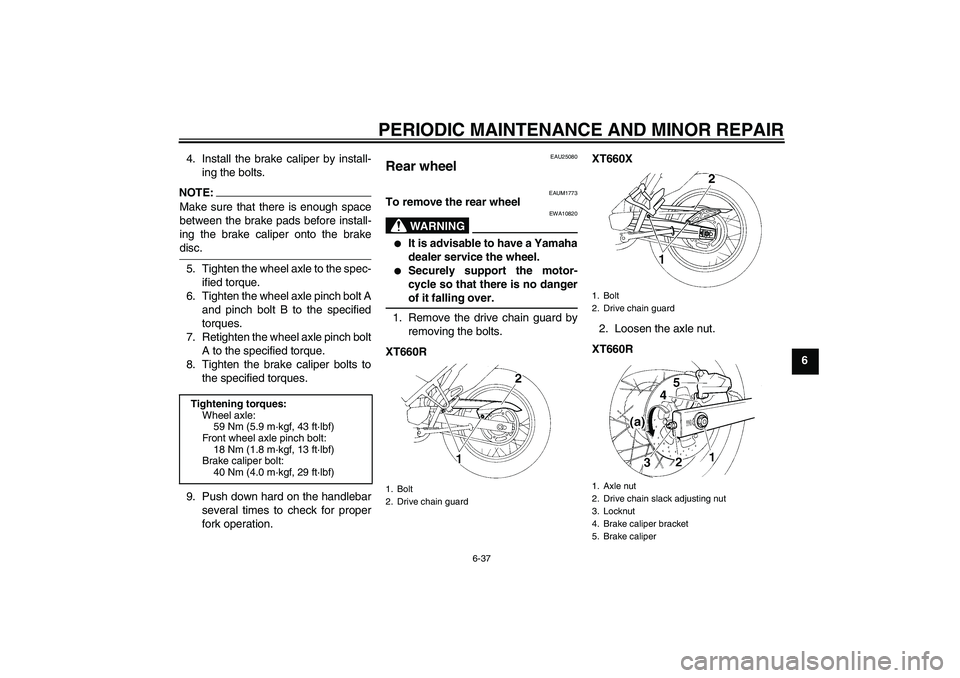

Rear wheel
EAUM1773
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Remove the drive chain guard by
removing the bolts.
XT660RXT660X
2. Loosen the axle nut.
XT660R
Tightening torques:
Wheel axle:
59 Nm (5.9 m·kgf, 43 ft·lbf)
Front wheel axle pinch bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1. Bolt
2. Drive chain guard
1. Bolt
2. Drive chain guard
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
4. Brake caliper bracket
5. Brake caliper
U5VKE1E0.book Page 37 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38

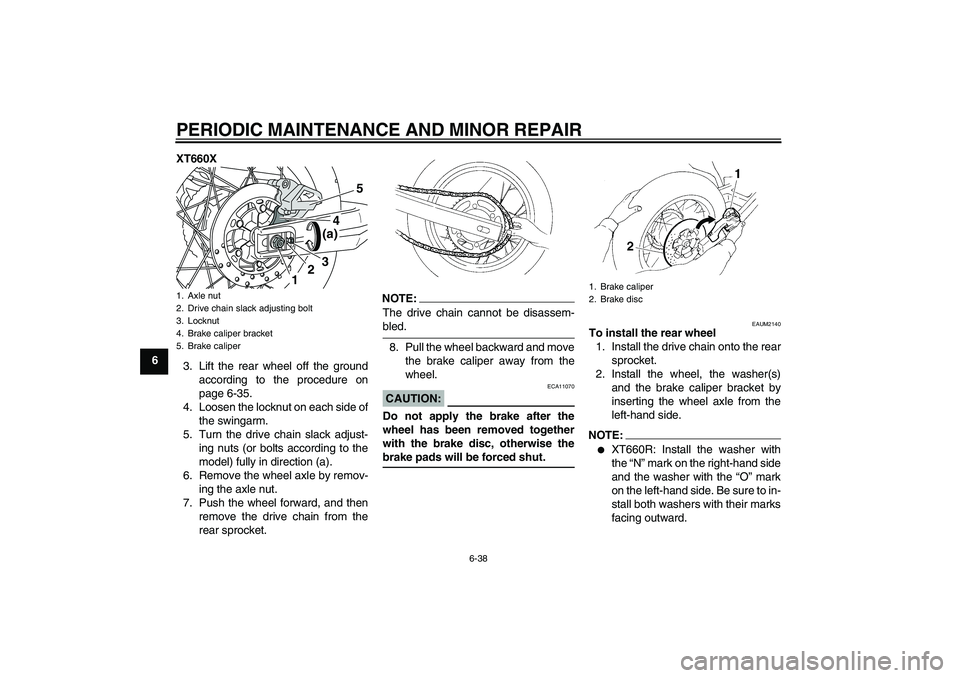

6XT660X
3. Lift the rear wheel off the ground
according to the procedure on
page 6-35.
4. Loosen the locknut on each side of
the swingarm.
5. Turn the drive chain slack adjust-
ing nuts (or bolts according to the
model) fully in direction (a).
6. Remove the wheel axle by remov-
ing the axle nut.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:The drive chain cannot be disassem-bled.
8. Pull the wheel backward and move
the brake caliper away from the
wheel.CAUTION:
ECA11070
Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise thebrake pads will be forced shut.
EAUM2140
To install the rear wheel
1. Install the drive chain onto the rear
sprocket.
2. Install the wheel, the washer(s)
and the brake caliper bracket by
inserting the wheel axle from the
left-hand side.NOTE:

XT660R: Install the washer with
the “N” mark on the right-hand side
and the washer with the “O” mark
on the left-hand side. Be sure to in-
stall both washers with their marks
facing outward.
1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Brake caliper bracket
5. Brake caliper
3
1245(a)
1. Brake caliper
2. Brake disc
U5VKE1E0.book Page 38 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6

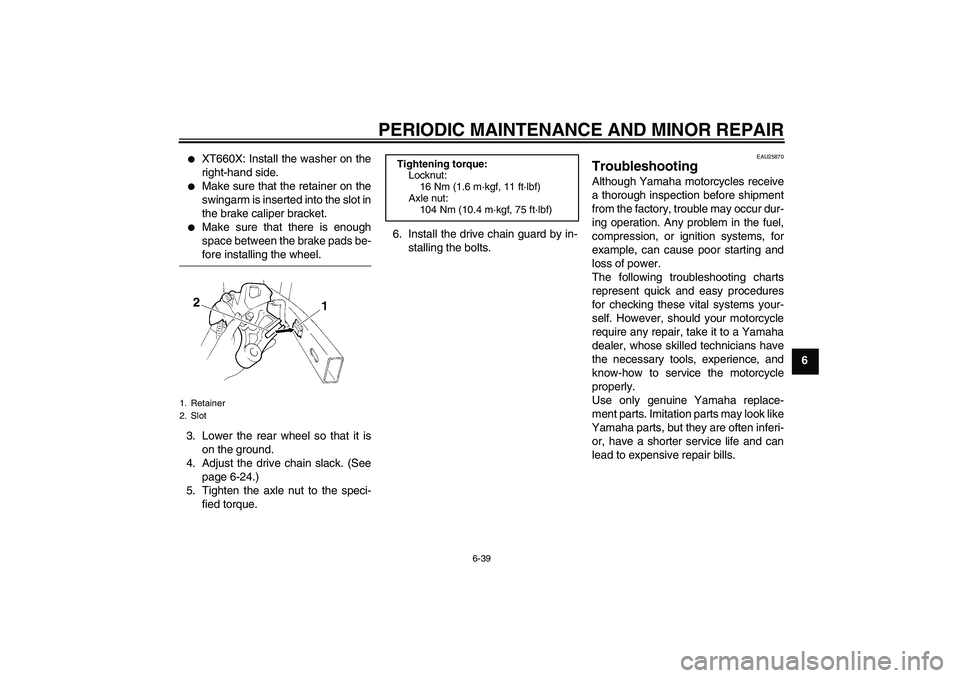

XT660X: Install the washer on the
right-hand side.


Make sure that the retainer on the
swingarm is inserted into the slot in
the brake caliper bracket.


Make sure that there is enough
space between the brake pads be-fore installing the wheel.
3. Lower the rear wheel so that it is
on the ground.
4. Adjust the drive chain slack. (See
page 6-24.)
5. Tighten the axle nut to the speci-
fied torque.6. Install the drive chain guard by in-
stalling the bolts.
EAU25870
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
1. Retainer
2. Slot
Tightening torque:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle nut:
104 Nm (10.4 m·kgf, 75 ft·lbf)
U5VKE1E0.book Page 39 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6
EAU25921

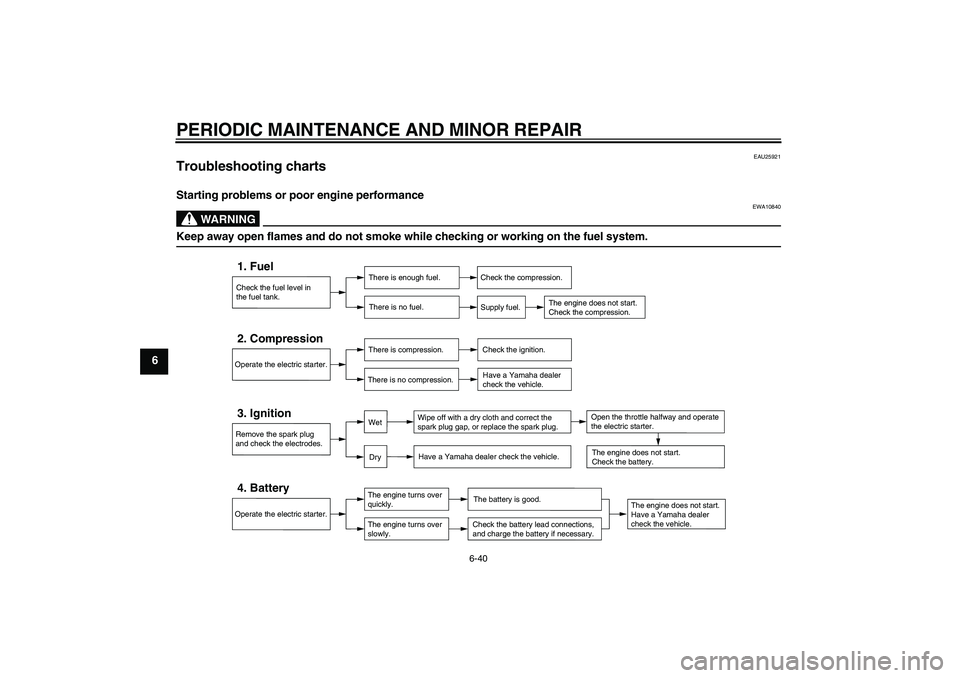

Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U5VKE1E0.book Page 40 Tuesday, July 18, 2006 1:00 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-41

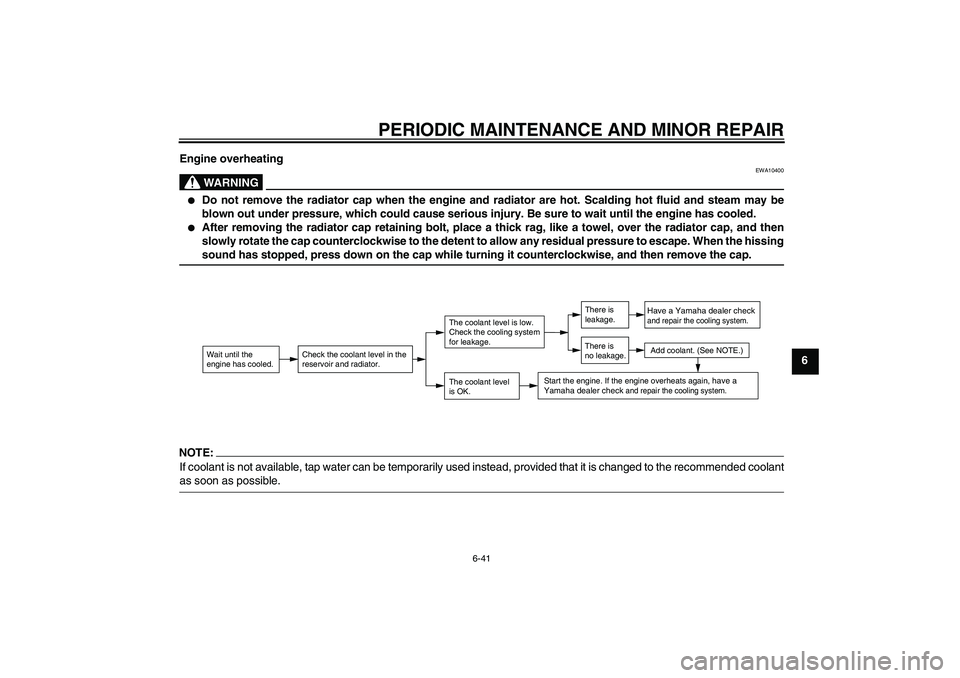

6 Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U5VKE1E0.book Page 41 Tuesday, July 18, 2006 1:00 PM

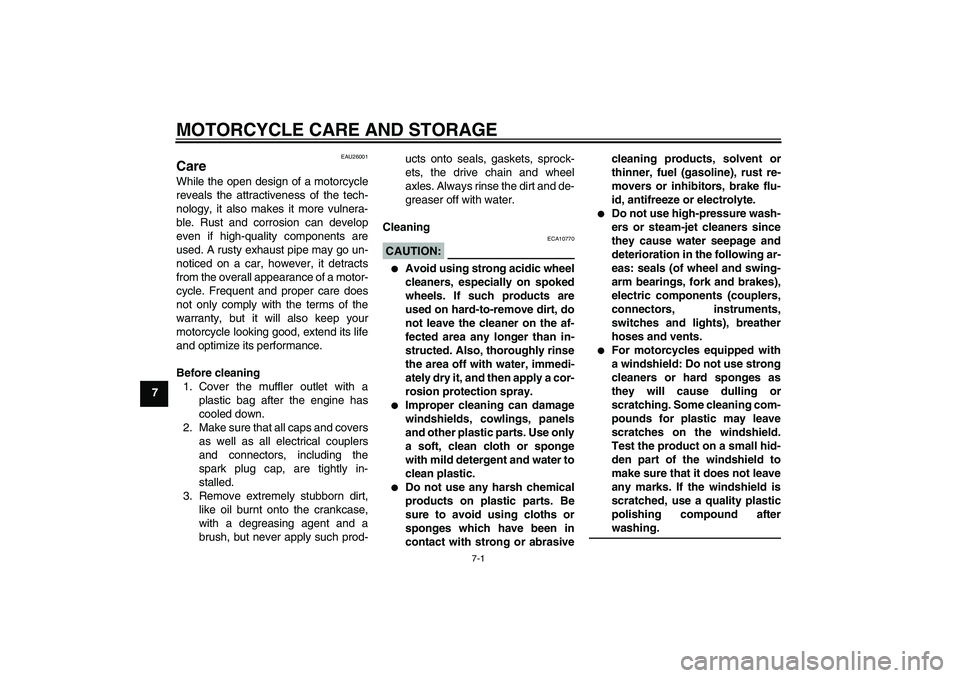

MOTORCYCLE CARE AND STORAGE
7-1
7
EAU26001
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:
ECA10770


Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.


Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge
with mild detergent and water to
clean plastic.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasivecleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound afterwashing.
U5VKE1E0.book Page 1 Tuesday, July 18, 2006 1:00 PM
