YAMAHA XT660Z 2011 Owners Manual

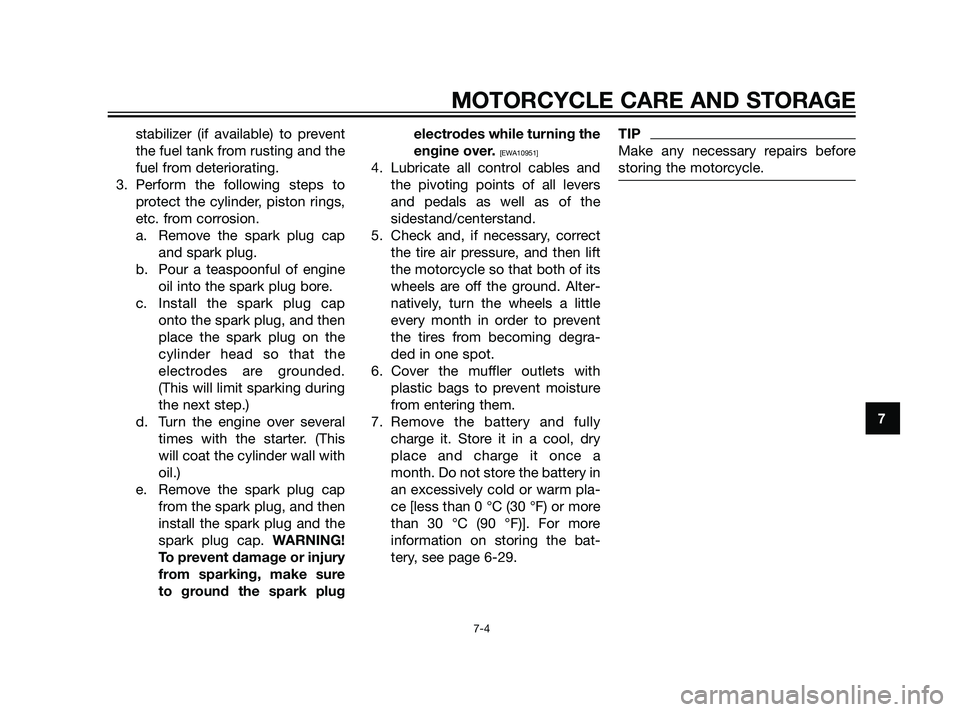

stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap
onto the spark plug, and then
place the spark plug on the
cylinder head so that the
electrodes are grounded.
(This will limit sparking during
the next step.)
d. Turn the engine over several
times with the starter. (This
will coat the cylinder wall with
oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING!
To prevent damage or injury
from sparking, make sure
to ground the spark plugelectrodes while turning the
engine over.
[EWA10951]
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
6. Cover the muffler outlets with
plastic bags to prevent moisture
from entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-29.
TIP
Make any necessary repairs before
storing the motorcycle.
MOTORCYCLE CARE AND STORAGE
7-4
7
56P-F8199-E0 30/6/10 09:24 Página 91

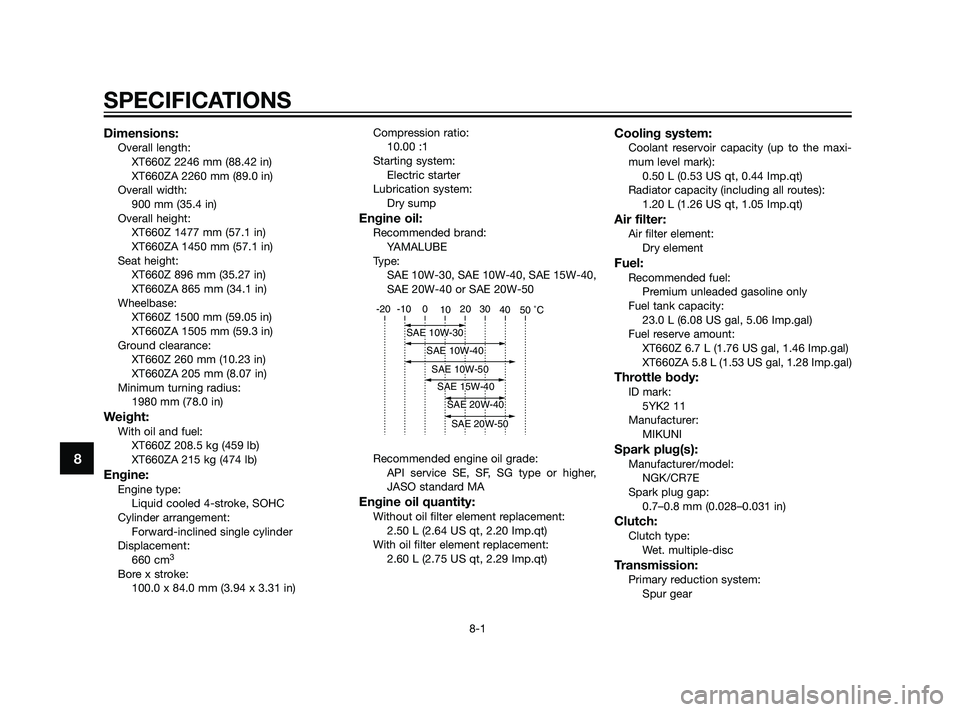

Dimensions:Overall length:
XT660Z 2246 mm (88.42 in)
XT660ZA 2260 mm (89.0 in)
Overall width:
900 mm (35.4 in)
Overall height:
XT660Z 1477 mm (57.1 in)
XT660ZA 1450 mm (57.1 in)
Seat height:
XT660Z 896 mm (35.27 in)
XT660ZA 865 mm (34.1 in)
Wheelbase:
XT660Z 1500 mm (59.05 in)
XT660ZA 1505 mm (59.3 in)
Ground clearance:
XT660Z 260 mm (10.23 in)
XT660ZA 205 mm (8.07 in)
Minimum turning radius:
1980 mm (78.0 in)
Weight:With oil and fuel:
XT660Z 208.5 kg (459 lb)
XT660ZA 215 kg (474 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
660 cm
3
Bore x stroke:
100.0 x 84.0 mm (3.94 x 3.31 in)Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SE, SF, SG type or higher,
JASO standard MA
Engine oil quantity:Without oil filter element replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter element replacement:
2.60 L (2.75 US qt, 2.29 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.50 L (0.53 US qt, 0.44 Imp.qt)
Radiator capacity (including all routes):
1.20 L (1.26 US qt, 1.05 Imp.qt)
Air filter:Air filter element:
Dry element
Fuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
23.0 L (6.08 US gal, 5.06 Imp.gal)
Fuel reserve amount:
XT660Z 6.7 L (1.76 US gal, 1.46 Imp.gal)
XT660ZA 5.8 L (1.53 US gal, 1.28 Imp.gal)
Throttle body:ID mark:
5YK2 11
Manufacturer:
MIKUNI
Spark plug(s):Manufacturer/model:
NGK/CR7E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:Clutch type:
Wet. multiple-disc
Transmission:Primary reduction system:
Spur gear
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
SPECIFICATIONS
8-1
8
56P-F8199-E0 30/6/10 09:24 Página 92

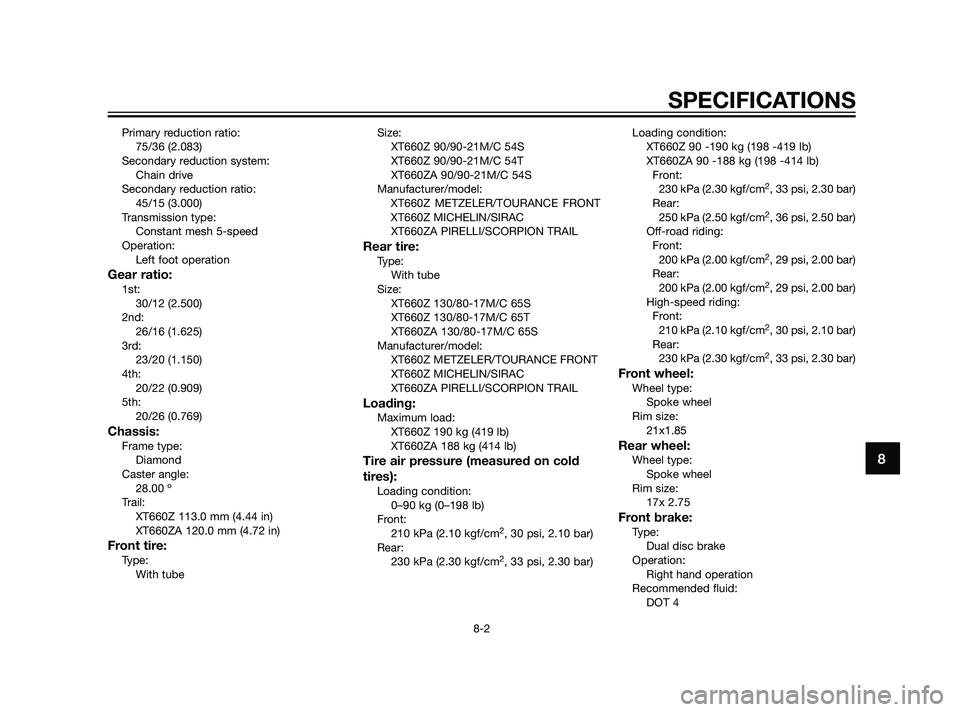

Primary reduction ratio:
75/36 (2.083)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
45/15 (3.000)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:1st:
30/12 (2.500)
2nd:
26/16 (1.625)
3rd:
23/20 (1.150)
4th:
20/22 (0.909)
5th:
20/26 (0.769)
Chassis:Frame type:
Diamond
Caster angle:
28.00 º
Trail:
XT660Z 113.0 mm (4.44 in)
XT660ZA 120.0 mm (4.72 in)
Front tire:Type:
With tubeSize:
XT660Z 90/90-21M/C 54S
XT660Z 90/90-21M/C 54T
XT660ZA 90/90-21M/C 54S
Manufacturer/model:
XT660Z METZELER/TOURANCE FRONT
XT660Z MICHELIN/SIRAC
XT660ZA PIRELLI/SCORPION TRAIL
Rear tire:Type:
With tube
Size:
XT660Z 130/80-17M/C 65S
XT660Z 130/80-17M/C 65T
XT660ZA 130/80-17M/C 65S
Manufacturer/model:
XT660Z METZELER/TOURANCE FRONT
XT660Z MICHELIN/SIRAC
XT660ZA PIRELLI/SCORPION TRAIL
Loading:Maximum load:
XT660Z 190 kg (419 lb)
XT660ZA 188 kg (414 lb)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
210 kPa (2.10 kgf/cm
2, 30 psi, 2.10 bar)
Rear:
230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)Loading condition:
XT660Z 90 -190 kg (198 -419 lb)
XT660ZA 90 -188 kg (198 -414 lb)
Front:
230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)
Rear:
250 kPa (2.50 kgf/cm
2, 36 psi, 2.50 bar)
Off-road riding:
Front:
200 kPa (2.00 kgf/cm
2, 29 psi, 2.00 bar)
Rear:
200 kPa (2.00 kgf/cm
2, 29 psi, 2.00 bar)
High-speed riding:
Front:
210 kPa (2.10 kgf/cm
2, 30 psi, 2.10 bar)
Rear:
230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)
Front wheel:Wheel type:
Spoke wheel
Rim size:
21x1.85
Rear wheel:Wheel type:
Spoke wheel
Rim size:
17x 2.75
Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
SPECIFICATIONS
8-2
8
56P-F8199-E0 30/6/10 09:24 Página 93

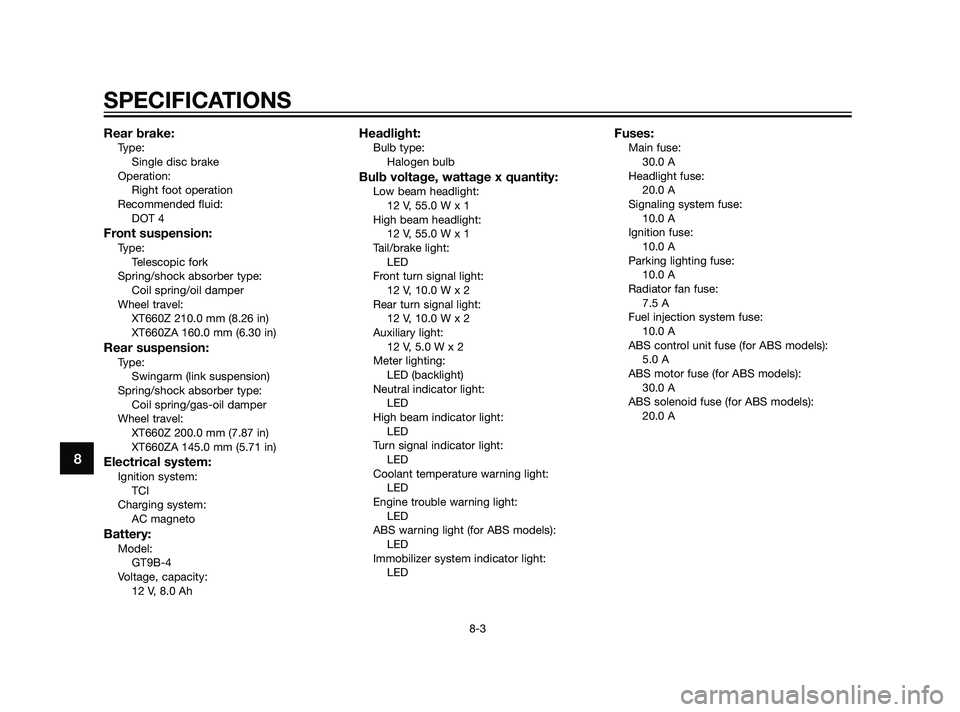

Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
XT660Z 210.0 mm (8.26 in)
XT660ZA 160.0 mm (6.30 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
XT660Z 200.0 mm (7.87 in)
XT660ZA 145.0 mm (5.71 in)
Electrical system:Ignition system:
TCI
Charging system:
AC magneto
Battery:Model:
GT9B-4
Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Low beam headlight:
12 V, 55.0 W x 1
High beam headlight:
12 V, 55.0 W x 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Auxiliary light:
12 V, 5.0 W x 2
Meter lighting:
LED (backlight)
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light (for ABS models):
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse (for ABS models):
5.0 A
ABS motor fuse (for ABS models):
30.0 A
ABS solenoid fuse (for ABS models):
20.0 A
SPECIFICATIONS
8-3
8
56P-F8199-E0 30/6/10 09:24 Página 94

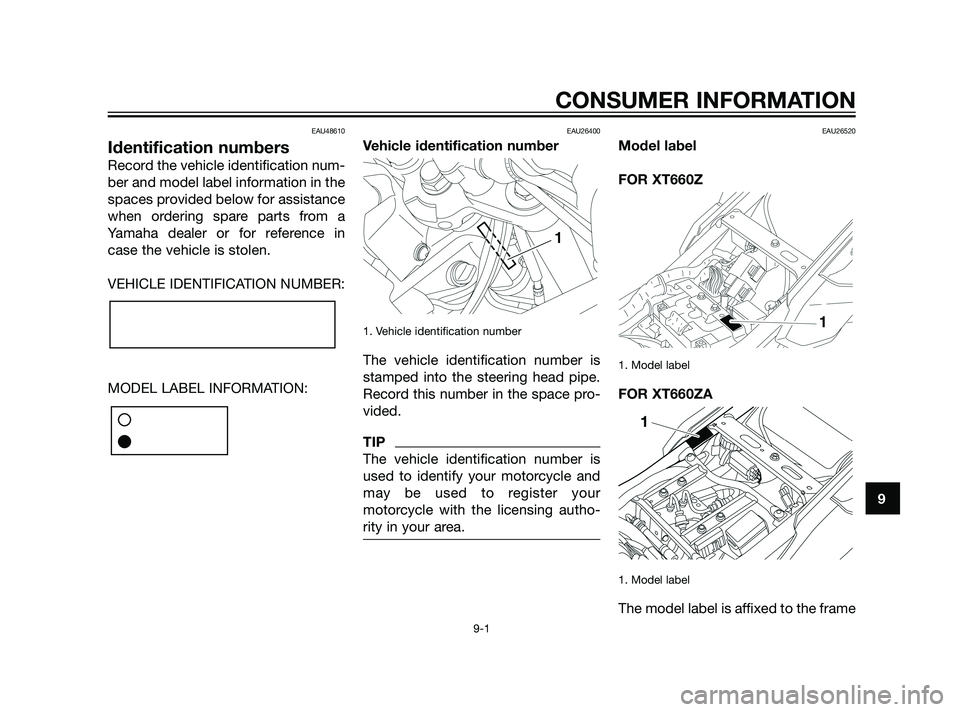

EAU48610
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in
case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
EAU26520
Model label
FOR XT660Z
1. Model label
FOR XT660ZA
1. Model label
The model label is affixed to the frame
CONSUMER INFORMATION
9-1
9
56P-F8199-E0 30/6/10 09:24 Página 95

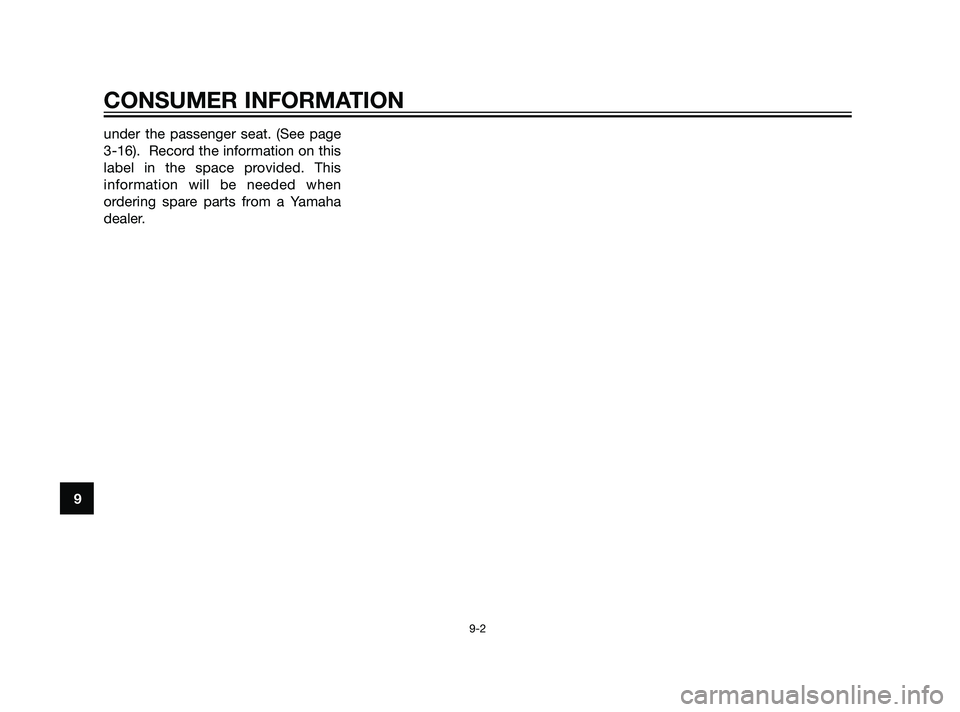

under the passenger seat. (See page
3-16). Record the information on this
label in the space provided. This
information will be needed when
ordering spare parts from a Yamaha
dealer.
CONSUMER INFORMATION
9-2
9
56P-F8199-E0 30/6/10 09:24 Página 96

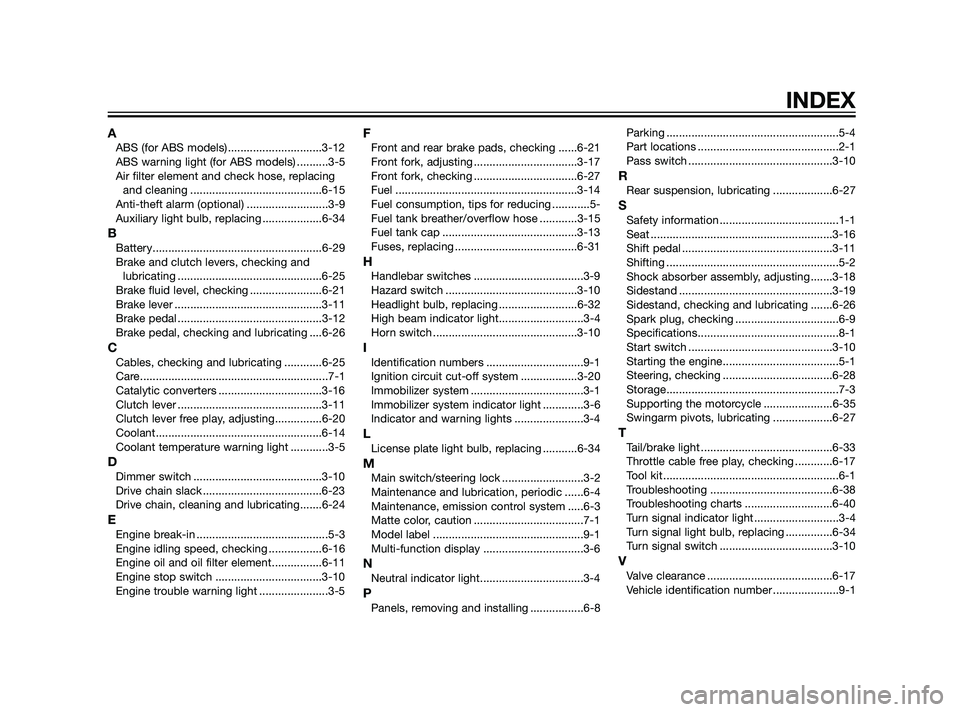

INDEX
AABS (for ABS models)..............................3-12
ABS warning light (for ABS models) ..........3-5
Air filter element and check hose, replacing
and cleaning ..........................................6-15
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-34
BBattery......................................................6-29
Brake and clutch levers, checking and
lubricating ..............................................6-25
Brake fluid level, checking .......................6-21
Brake lever ...............................................3-11
Brake pedal ..............................................3-12
Brake pedal, checking and lubricating ....6-26
CCables, checking and lubricating ............6-25
Care............................................................7-1
Catalytic converters .................................3-16
Clutch lever ..............................................3-11
Clutch lever free play, adjusting...............6-20
Coolant.....................................................6-14
Coolant temperature warning light ............3-5
DDimmer switch .........................................3-10
Drive chain slack ......................................6-23
Drive chain, cleaning and lubricating.......6-24
EEngine break-in ..........................................5-3
Engine idling speed, checking .................6-16
Engine oil and oil filter element................6-11
Engine stop switch ..................................3-10
Engine trouble warning light ......................3-5
FFront and rear brake pads, checking ......6-21
Front fork, adjusting .................................3-17
Front fork, checking .................................6-27
Fuel ..........................................................3-14
Fuel consumption, tips for reducing ............5-
Fuel tank breather/overflow hose ............3-15
Fuel tank cap ...........................................3-13
Fuses, replacing .......................................6-31
HHandlebar switches ...................................3-9
Hazard switch ..........................................3-10
Headlight bulb, replacing .........................6-32
High beam indicator light...........................3-4
Horn switch ..............................................3-10
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-20
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-6
Indicator and warning lights ......................3-4
LLicense plate light bulb, replacing ...........6-34
MMain switch/steering lock ..........................3-2
Maintenance and lubrication, periodic ......6-4
Maintenance, emission control system .....6-3
Matte color, caution ...................................7-1
Model label ................................................9-1
Multi-function display ................................3-6
NNeutral indicator light.................................3-4
PPanels, removing and installing .................6-8Parking .......................................................5-4
Part locations .............................................2-1
Pass switch ..............................................3-10
RRear suspension, lubricating ...................6-27
SSafety information ......................................1-1
Seat ..........................................................3-16
Shift pedal ................................................3-11
Shifting .......................................................5-2
Shock absorber assembly, adjusting.......3-18
Sidestand .................................................3-19
Sidestand, checking and lubricating .......6-26
Spark plug, checking .................................6-9
Specifications.............................................8-1
Start switch ..............................................3-10
Starting the engine.....................................5-1
Steering, checking ...................................6-28
Storage.......................................................7-3
Supporting the motorcycle ......................6-35
Swingarm pivots, lubricating ...................6-27
TTail/brake light ..........................................6-33
Throttle cable free play, checking ............6-17
Tool kit ........................................................6-1
Troubleshooting .......................................6-38
Troubleshooting charts ............................6-40
Turn signal indicator light ...........................3-4
Turn signal light bulb, replacing ...............6-34
Turn signal switch ....................................3-10
VValve clearance ........................................6-17
Vehicle identification number .....................9-1
56P-F8199-E0 30/6/10 09:24 Página 97

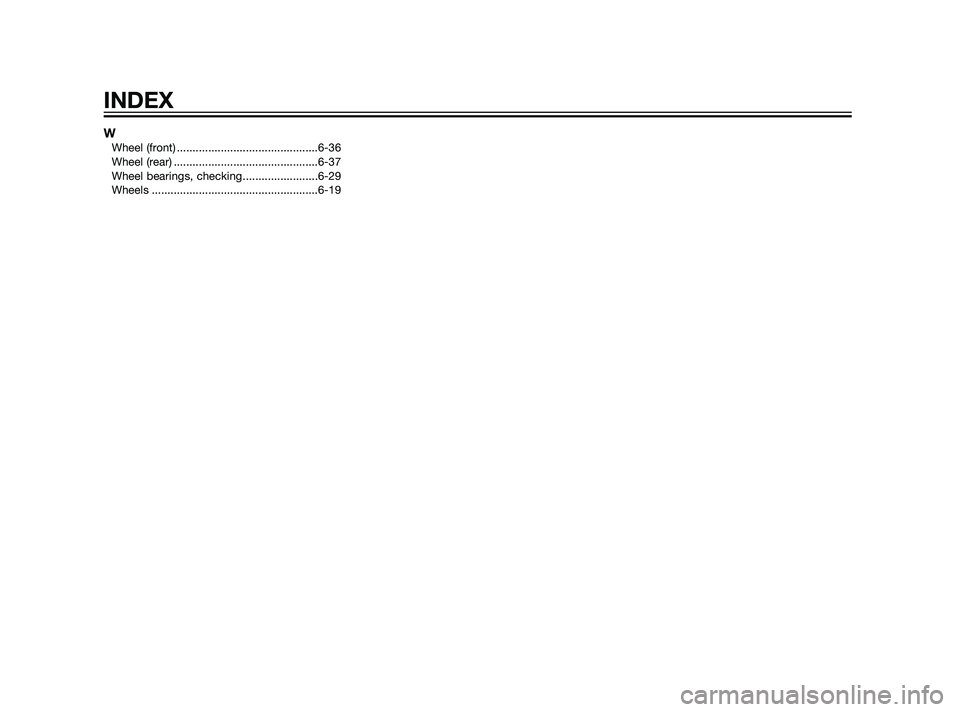

WWheel (front) .............................................6-36
Wheel (rear) ..............................................6-37
Wheel bearings, checking........................6-29
Wheels .....................................................6-19
INDEX
56P-F8199-E0 30/6/10 09:24 Página 98

56P-F8199-E0 30/6/10 09:24 Página 99

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2010.06
(E)
56P-F8199-E0 30/6/10 09:24 Página 100
