ECO mode YAMAHA XT660Z 2013 Owners Manual

Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
Do not run engine outdoors whe-
re engine exhaust can be drawn
into a building through openings
such as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect sta-
bility and handling if the weight distri-
bution of the motorcycle is changed.
To avoid the possibility of an acci-
dent, use extreme caution when
adding cargo or accessories to your
motorcycle. Use extra care when
riding a motorcycle that has added
cargo or accessories. Here, along
with the information about accesso-
ries below, are some general guideli-
nes to follow if loading cargo to your
motorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accidentWhen loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close
to the motorcycle as possible.
Securely pack your heaviest
items as close to the center of
the vehicle as possible and make
sure to distribute the weight as
evenly as possible on both sides
of the motorcycle to minimize
imbalance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the
motorcycle before riding. Check
accessory mounts and cargo res-
traints frequently.
• Properly adjust the suspension
for your load (suspension-
adjustable models only), and
check the condition and pres-
sure of your tires.• Never attach any large or
heavy items to the handlebar,
front fork, or front fender. The-
se items, including such cargo
as sleeping bags, duffel bags,
or tents, can create unstable
handling or a slow steering res-
ponse.
This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
Maximum load:
XT660Z: 190 kg (419 lb)
XT660ZA: 188 kg (414 lb)
1
SAFETY INFORMATION
1-3

EAU11444

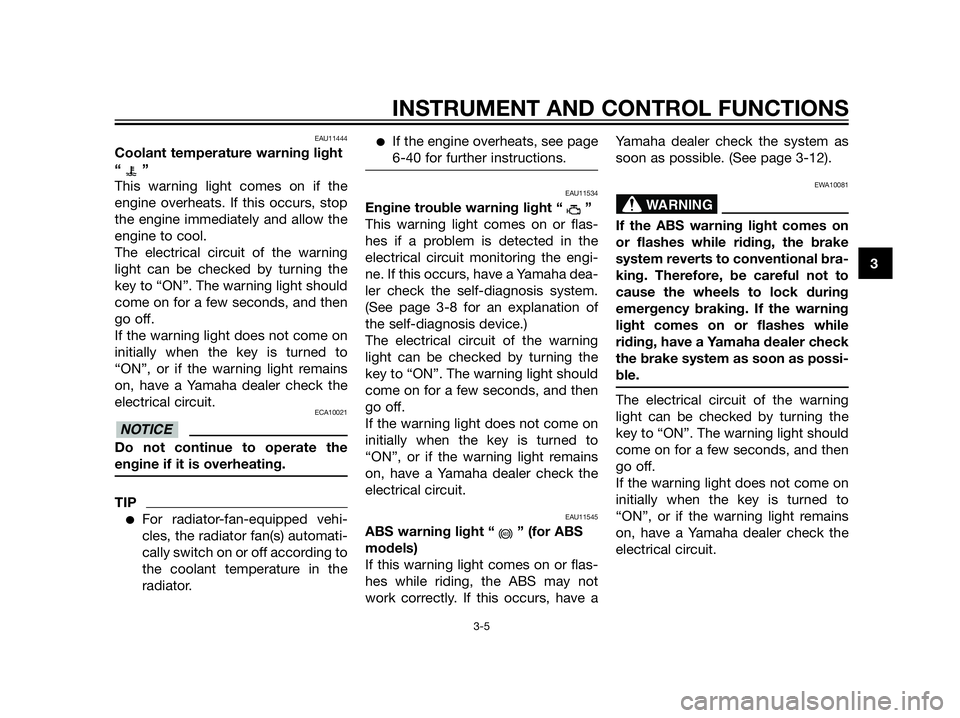

Coolant temperature warning light
“”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
ECA10021
Do not continue to operate the
engine if it is overheating.
TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the
radiator.
If the engine overheats, see page
6-40 for further instructions.
EAU11534
Engine trouble warning light “ ”
This warning light comes on or flas-
hes if a problem is detected in the
electrical circuit monitoring the engi-
ne. If this occurs, have a Yamaha dea-
ler check the self-diagnosis system.
(See page 3-8 for an explanation of
the self-diagnosis device.)
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
EAU11545
ABS warning light “ ” (for ABS
models)
If this warning light comes on or flas-
hes while riding, the ABS may not
work correctly. If this occurs, have aYamaha dealer check the system as
soon as possible. (See page 3-12).
EWA10081
If the ABS warning light comes on
or flashes while riding, the brake
system reverts to conventional bra-
king. Therefore, be careful not to
cause the wheels to lock during
emergency braking. If the warning
light comes on or flashes while
riding, have a Yamaha dealer check
the brake system as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
WARNING
ABS
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

buttons, turn the key to “ON”.
When the digits start flashing,
push the “SELECT” button to
change between kilometers and
miles.
Tachometer
1. Tachometer
2. Tachometer red zone
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the
tachometer needle sweeps once
across the r/min range and then
returns to zero r/min in order to test
the electrical circuit.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 7500 r/min and above
Tripmeter and tachometer modes
1. Odometer
2. Tripmeters/fuel reserve tripmeter
3. "SELECT" button
4. “RESET” button
Pushing the “SELECT” button swit-
ches the display between the tripme-
ter modes “TRIP 1” and “TRIP 2” in
the following order:
TRIP 1 TRIP 2 TRIP 1When the fuel amount in the fuel tank
decreases to XT660Z 6.7 L (1.76 US
gal, 1.46 Imp.gal) - XT660ZA 5.8 L
(1.53 US gal, 1.28 Imp.gal), the bot-
tom segment of the fuel meter starts
flashing, and the tripmeter display
automatically changes to the fuel
reserve tripmeter mode “F-TRIP” and
starts counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the
display between the various tripmeter
modes in the following order:
F-TRIP TRIP 1 TRIP 2 F-TRIP
To reset a tripmeter, select it by pus-
hing the “SELECT” button, and then
push the “RESET” button for at least
four seconds. If you do not reset the
fuel reserve tripmeter manually, it
resets itself automatically and the dis-
play returns to the prior mode after
refueling and traveling 5 km (3 mi).
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3

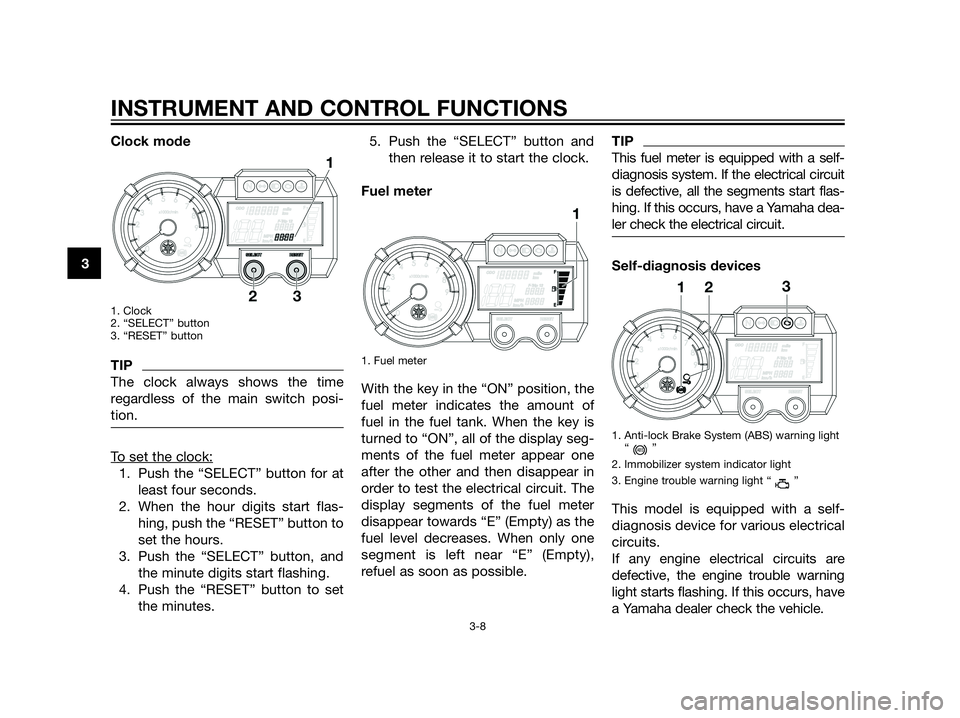

Clock mode
1. Clock
2. “SELECT” button
3. “RESET” button
TIP
The clock always shows the time
regardless of the main switch posi-
tion.
To set the clock:
1. Push the “SELECT” button for at
least four seconds.
2. When the hour digits start flas-
hing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and
the minute digits start flashing.
4. Push the “RESET” button to set
the minutes.5. Push the “SELECT” button and
then release it to start the clock.
Fuel meter
1. Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of
fuel in the fuel tank. When the key is
turned to “ON”, all of the display seg-
ments of the fuel meter appear one
after the other and then disappear in
order to test the electrical circuit. The
display segments of the fuel meter
disappear towards “E” (Empty) as the
fuel level decreases. When only one
segment is left near “E” (Empty),
refuel as soon as possible.
TIP
This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, all the segments start flas-
hing. If this occurs, have a Yamaha dea-
ler check the electrical circuit.
Self-diagnosis devices
1. Anti-lock Brake System (ABS) warning light
“”
2. Immobilizer system indicator light
3. Engine trouble warning light “ ”
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If any engine electrical circuits are
defective, the engine trouble warning
light starts flashing. If this occurs, have
a Yamaha dealer check the vehicle.
ABS
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3

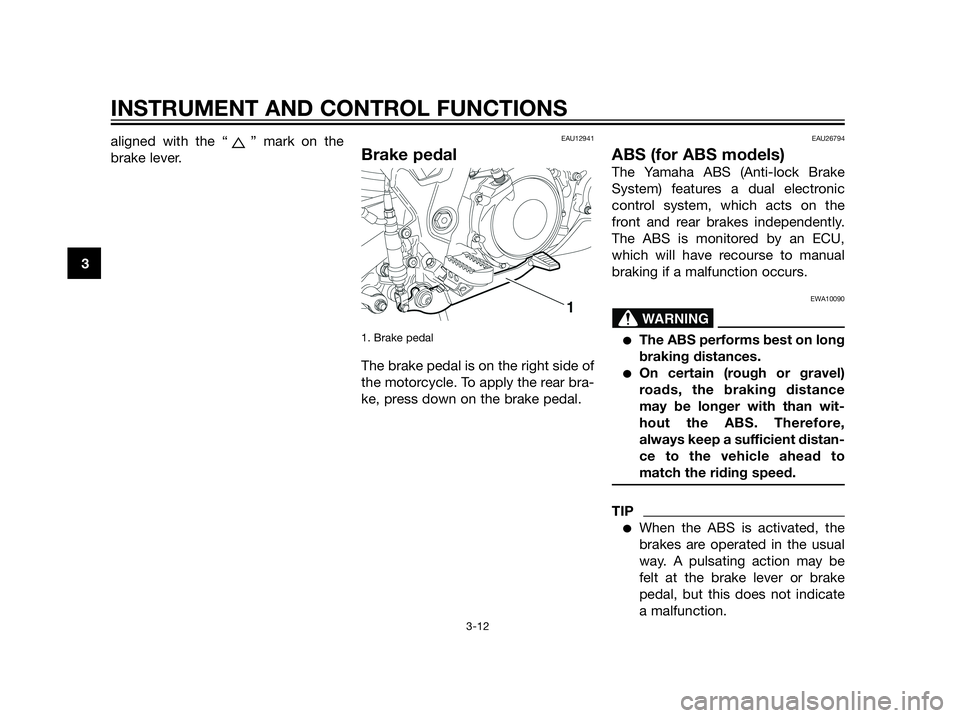

aligned with the “ ” mark on the
brake lever.EAU12941
Brake pedal
1. Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear bra-
ke, press down on the brake pedal.
EAU26794
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic
control system, which acts on the
front and rear brakes independently.
The ABS is monitored by an ECU,
which will have recourse to manual
braking if a malfunction occurs.
EWA10090
The ABS performs best on long
braking distances.
On certain (rough or gravel)
roads, the braking distance
may be longer with than wit-
hout the ABS. Therefore,
always keep a sufficient distan-
ce to the vehicle ahead to
match the riding speed.
TIP
When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be
felt at the brake lever or brake
pedal, but this does not indicate
a malfunction.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU45310
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. To start the engine
after a turnover, be sure to turn the
main switch to “OFF” and then to
“ON”. Failing to do so will prevent the
engine from starting even though the
engine will crank when pushing the
start switch.
EAUS1950
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-20.
Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch
is set to “ ”.
WARNING
WARNING
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

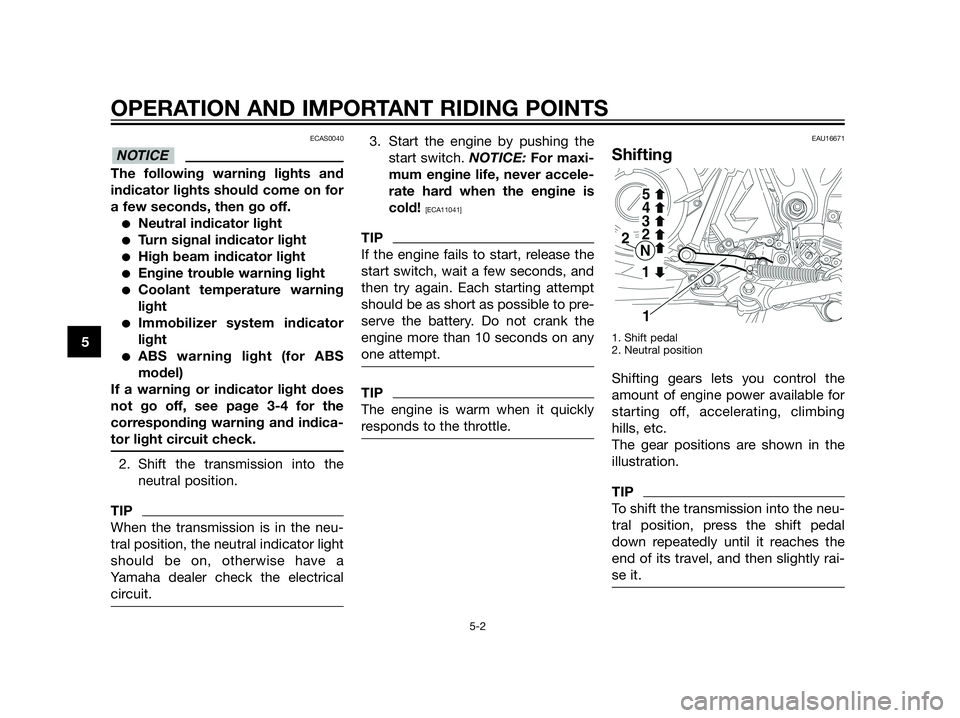

ECAS0040
The following warning lights and
indicator lights should come on for
a few seconds, then go off.
Neutral indicator light
Turn signal indicator light
High beam indicator light
Engine trouble warning light
Coolant temperature warning
light
Immobilizer system indicator
light
ABS warning light (for ABS
model)
If a warning or indicator light does
not go off, see page 3-4 for the
corresponding warning and indica-
tor light circuit check.
2. Shift the transmission into the
neutral position.
TIP
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.
3. Start the engine by pushing the
start switch. NOTICE: For maxi-
mum engine life, never accele-
rate hard when the engine is
cold!
[ECA11041]
TIP
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
TIP
The engine is warm when it quickly
responds to the throttle.
EAU16671
Shifting
1. Shift pedal
2. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the
illustration.
TIP
To shift the transmission into the neu-
tral position, press the shift pedal
down repeatedly until it reaches the
end of its travel, and then slightly rai-
se it.
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-2
5

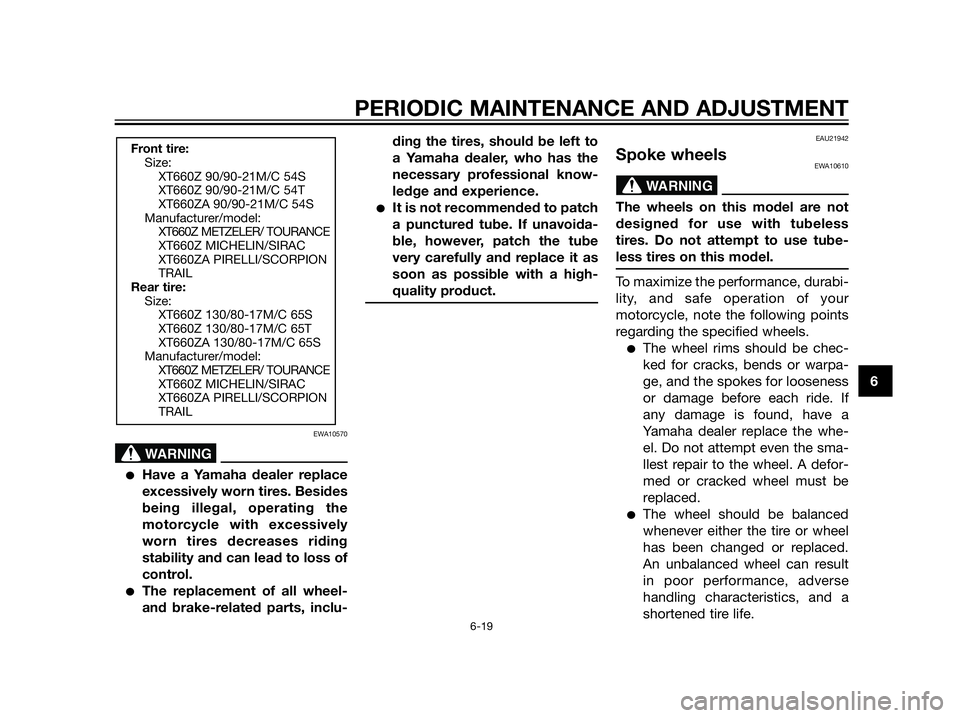

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EWA10570
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
motorcycle with excessively
worn tires decreases riding
stability and can lead to loss of
control.
The replacement of all wheel-
and brake-related parts, inclu-ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience.
It is not recommended to patch
a punctured tube. If unavoida-
ble, however, patch the tube
very carefully and replace it as
soon as possible with a high-
quality product.
EAU21942
Spoke wheelsEWA10610
The wheels on this model are not
designed for use with tubeless
tires. Do not attempt to use tube-
less tires on this model.
To maximize the performance, durabi-
lity, and safe operation of your
motorcycle, note the following points
regarding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends or warpa-
ge, and the spokes for looseness
or damage before each ride. If
any damage is found, have a
Yamaha dealer replace the whe-
el. Do not attempt even the sma-
llest repair to the wheel. A defor-
med or cracked wheel must be
replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
WARNING
WARNING
Front tire:
Size:
XT660Z 90/90-21M/C 54S
XT660Z 90/90-21M/C 54T
XT660ZA 90/90-21M/C 54S
Manufacturer/model:
XT660Z METZELER/ TOURANCE
XT660Z MICHELIN/SIRAC
XT660ZA PIRELLI/SCORPION
TRAIL
Rear tire:
Size:
XT660Z 130/80-17M/C 65S
XT660Z 130/80-17M/C 65T
XT660ZA 130/80-17M/C 65S
Manufacturer/model:
XT660Z METZELER/ TOURANCE
XT660Z MICHELIN/SIRAC
XT660ZA PIRELLI/SCORPION
TRAIL

EAUS1930
Replacing the fuses
To replace the fuses (XT660Z):
The main fuse and fuse box 1 (for
individual circuits) are located under
the seat. (See page 3-16).
1. Main fuse
2. Spare main fuse1. Fuse box 1
2. Parking lighting fuse
3. Signaling system fuse
4. Headlight fuse
5. Ignition fuse
6. ECU fuse
7. Radiator fan fuse
8. Backup fuse
9. Spare fuseTo replace the fuses (XT660ZA):
The main fuse and fuse box 1 (for
ABS model only),which are in a diffe-
rent and hard-to-reach location, must
be replaced by a Yamaha dealer.
Fuse box 2 (for ABS model only) and
fuse box 3 (for individual circuits) are
located under the seat. (See page
3-16).
To access fuse box 2, pull it upward
and then open it.
1. Fuse box 2
2. ABS control unit fuse
3. Spare fuse
4. Fuse box 3
5. Parking lighting fuse
6. Signaling system fuse
7. Headlight fuse
8. Ignition fuse
9. ECU fuse
10. Radiator fan fuse
11. Backup fuse
12. Spare fuse
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher ampera-
ge rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a fire.
[EWA15131]
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6

Dimensions:Overall length:
XT660Z 2246 mm (88.42 in)
XT660ZA 2260 mm (89.0 in)
Overall width:
900 mm (35.4 in)
Overall height:
XT660Z 1477 mm (57.1 in)
XT660ZA 1450 mm (57.1 in)
Seat height:
XT660Z 896 mm (35.27 in)
XT660ZA 865 mm (34.1 in)
Wheelbase:
XT660Z 1500 mm (59.05 in)
XT660ZA 1505 mm (59.3 in)
Ground clearance:
XT660Z 260 mm (10.23 in)
XT660ZA 205 mm (8.07 in)
Minimum turning radius:
1980 mm (78.0 in)
Weight:With oil and fuel:
XT660Z 208.5 kg (459 lb)
XT660ZA 215 kg (474 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
660 cm
3
Bore x stroke:
100.0 x 84.0 mm (3.94 x 3.31 in)Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SE, SF, SG type or higher,
JASO standard MA
Engine oil quantity:Without oil filter element replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter element replacement:
2.60 L (2.75 US qt, 2.29 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.50 L (0.53 US qt, 0.44 Imp.qt)
Radiator capacity (including all routes):
1.20 L (1.26 US qt, 1.05 Imp.qt)
Air filter:Air filter element:
Dry element
Fuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
23.0 L (6.08 US gal, 5.06 Imp.gal)
Fuel reserve amount:
XT660Z 6.7 L (1.76 US gal, 1.46 Imp.gal)
XT660ZA 5.8 L (1.53 US gal, 1.28 Imp.gal)
Throttle body:ID mark:
5YK2 11
Spark plug(s):Manufacturer/model:
NGK/CR7E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:Clutch type:
Wet. multiple-disc
Transmission:Primary reduction system:
Spur gear
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
SPECIFICATIONS
8-1
8
