SAFETY INFORMATION .....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments .................2-5
INSTRUMENT AND CONTROL
FUNCTIONS ........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-4
Multi-function display .......................3-6
Anti-theft alarm (optional) .................3-9
Handlebar switches ..........................3-9
Pass switch ....................................3-10
Dimmer switch ...............................3-10
Horn switch ...................................3-10
Turn signal switch ..........................3-10
Hazard switch ................................3-10
Engine stop switch ........................3-10
Start switch ....................................3-10
Clutch lever .....................................3-11
Shift pedal.......................................3-11
Brake lever ......................................3-11
Brake pedal.....................................3-12
ABS (for ABS models) ....................3-12
Fuel tank cap ..................................3-13
Fuel .................................................3-14
Fuel tank breather/overflow
hose .............................................3-15
Catalytic converters ........................3-16Seat.................................................3-16
Adjusting the front fork ...................3-17
Adjusting the shock absorber
assembly .....................................3-18
Sidestand ........................................3-19
Ignition circuit cut-off system .........3-20
FOR YOUR SAFETY – PRE-
OPERATION CHECKS ........................4-1
OPERATION AND IMPORTANT
RIDING POINTS ..................................5-1
Starting the engine ...........................5-1
Shifting ..............................................5-2
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ....................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance chart for
the emission control system .........6-3
General maintenance and
lubrication chart ............................6-4
Removing and installing panels........6-8
Checking the spark plug ..................6-9
Engine oil and oil filter element ......6-11
Coolant ...........................................6-14Replacing the air filter element
and cleaning the check hose ......6-15
Checking the engine idling speed ..6-16
Checking the throttle cable free
play ..............................................6-17
Valve clearance ...............................6-17
Tires ................................................6-17
Spoke wheels .................................6-19
Adjusting the clutch lever free
play ..............................................6-20
Checking the front and rear brake
pads.............................................6-21
Checking the brake fluid level ........6-21
Drive chain slack.............................6-23
Cleaning and lubricating the
drive chain ...................................6-24

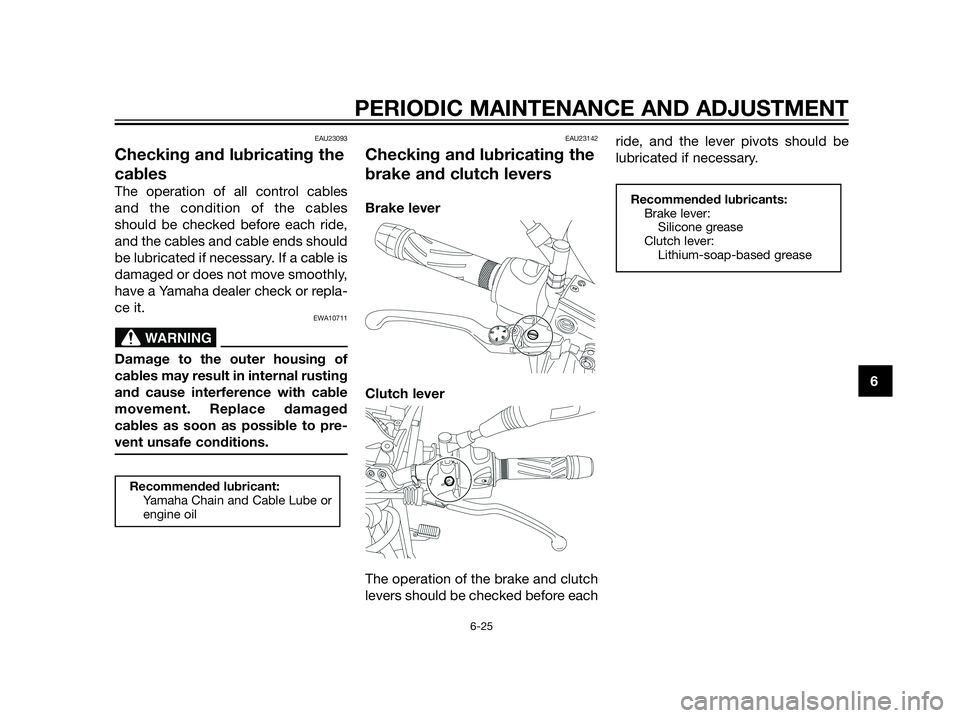

Checking and lubricating the
cables ..........................................6-25
Checking and lubricating the
brake and clutch levers ...............6-25
Checking and lubricating the
brake pedal .................................6-26
Checking and lubricating the
sidestand .....................................6-26

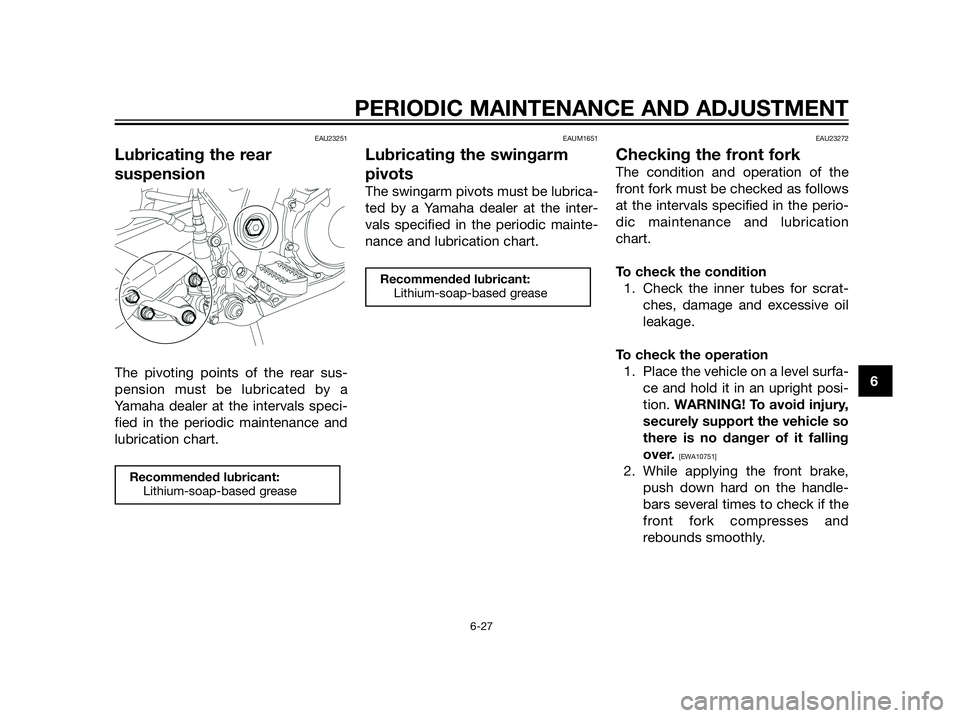

Lubricating the rear suspension .....6-27
Lubricating the swingarm pivots ....6-27
Checking the front fork ...................6-27
Checking the steering.....................6-28
Checking the wheel bearings .........6-29
Battery ............................................6-29
Replacing the fuses ........................6-31
Replacing a headlight bulb .............6-32
TABLE OF CONTENTS

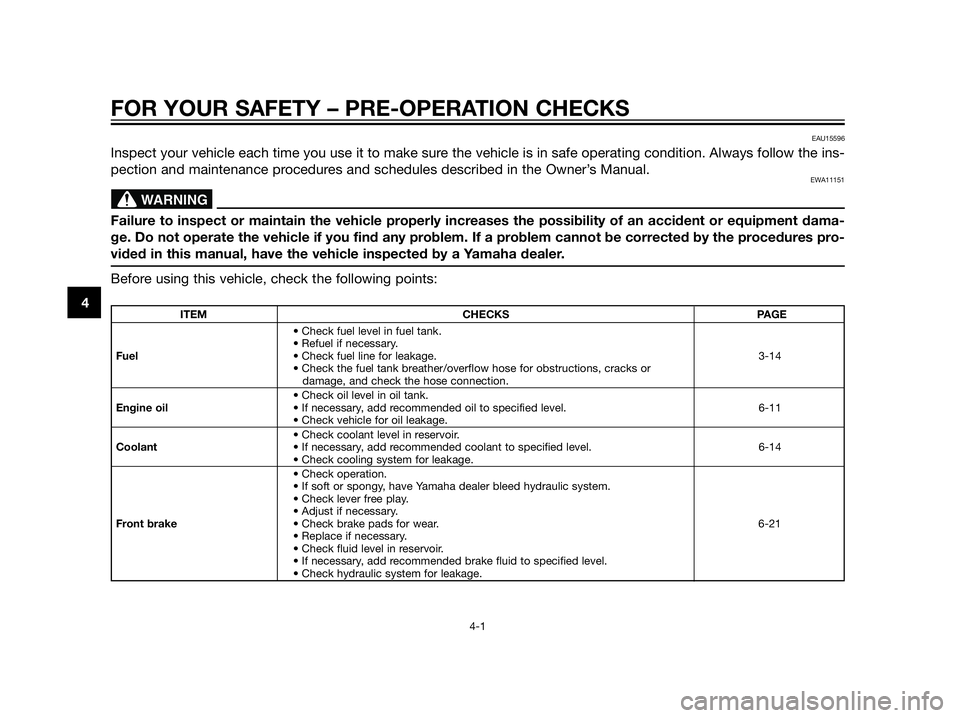

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
• Refuel if necessary.
Fuel• Check fuel line for leakage. 3-14
• Check the fuel tank breather/overflow hose for obstructions, cracks or
damage, and check the hose connection.
• Check oil level in oil tank.
Engine oil• If necessary, add recommended oil to specified level. 6-11
• Check vehicle for oil leakage.
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-14
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-21
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.

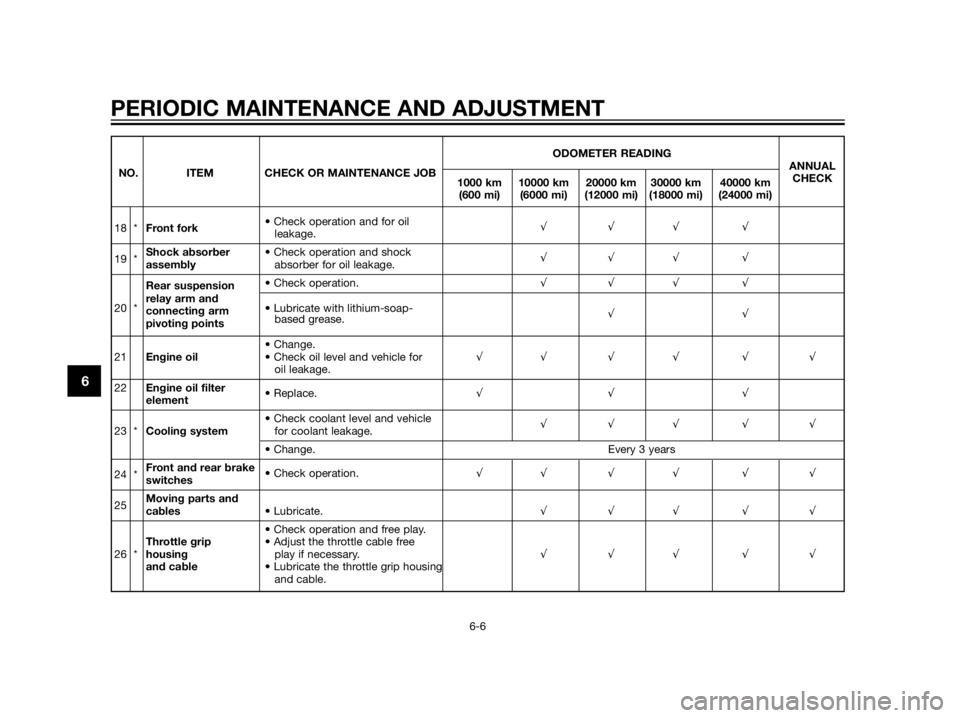

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
18 *Front fork• Check operation and for oil
leakage.333 3
19 *Shock absorber • Check operation and shock
assemblyabsorber for oil leakage.333 3
Rear suspension• Check operation.333 3
20 *relay arm and
• Lubricate with lithium-soap-
connecting arm
33
pivoting pointsbased grease.
• Change.
21Engine oil• Check oil level and vehicle for 33 3 3 3 3
oil leakage.
22Engine oil filter
element• Replace.33 3
• Check coolant level and vehicle
23 *Cooling systemfor coolant leakage.333 33
• Change. Every 3 years
24 *Front and rear brake
switches• Check operation.33 3 3 3 3
25Moving parts and
cables• Lubricate.333 33
• Check operation and free play.
Throttle grip • Adjust the throttle cable free
26 *housingplay if necessary.333 33
and cable• Lubricate the throttle grip housing
and cable.

EAUB1561

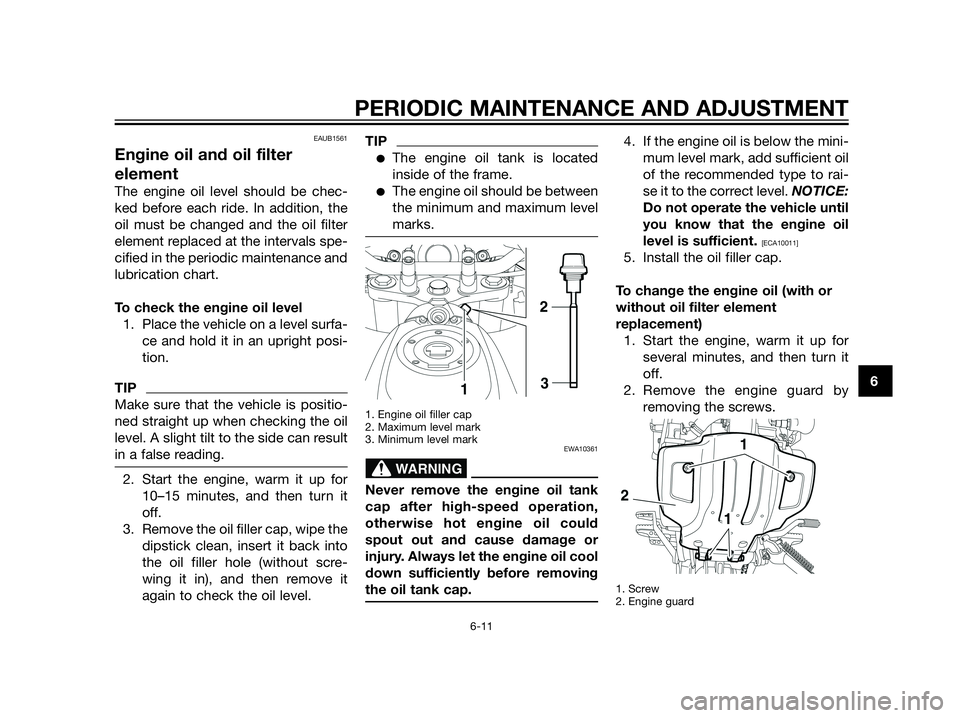

Engine oil and oil filter
element
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed and the oil filter
element replaced at the intervals spe-
cified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
Make sure that the vehicle is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
2. Start the engine, warm it up for
10–15 minutes, and then turn it
off.
3. Remove the oil filler cap, wipe the
dipstick clean, insert it back into
the oil filler hole (without scre-
wing it in), and then remove it
again to check the oil level.
TIP
The engine oil tank is located
inside of the frame.
The engine oil should be between
the minimum and maximum level
marks.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
EWA10361
Never remove the engine oil tank
cap after high-speed operation,
otherwise hot engine oil could
spout out and cause damage or
injury. Always let the engine oil cool
down sufficiently before removing
the oil tank cap.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to rai-
se it to the correct level. NOTICE:
Do not operate the vehicle until
you know that the engine oil
level is sufficient.
[ECA10011]
5. Install the oil filler cap.
To change the engine oil (with or
without oil filter element
replacement)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Remove the engine guard by
removing the screws.
1. Screw
2. Engine guard
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6

13. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil
filler cap.
ECAM1061
The engine oil tank must be filled in
2 steps. First, fill the engine oil tank
with 1.90 L (2.0 US qt, 1.67 Imp.qt)
of the recommended engine oil.
Then, start the engine, race it 5 or 6
times, turn it off, and then add the
remainder of the engine oil.
TIP
Be sure to wipe off spilled oil on any
parts after the engine and exhaust
system have cooled down.
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a hig-
her quality than specified. In
addition, do not use oils labe-
led “ENERGY CONSERVING II”
or higher.
Make sure that no foreign
material enters the crankcase.
14. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau-
se.
15. Turn the engine off, and then
check the oil level and correct it if
necessary.16. Install the engine guard by insta-
lling the screws.
NOTICE
Recommended engine oil:
See page 8-1
Without oil filter element
replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter element
replacement:
2.60 L (2.75 US qt, 2.29 Imp.qt
NOTICE
Tightening torques:
Engine oil drain bolt (crankcase):
30 Nm (3.0 m·kgf, 22 ft·lbf)
Engine oil drain bolt (oil tank):
18 Nm (1.8 m·kgf, 12.9 ft·lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6

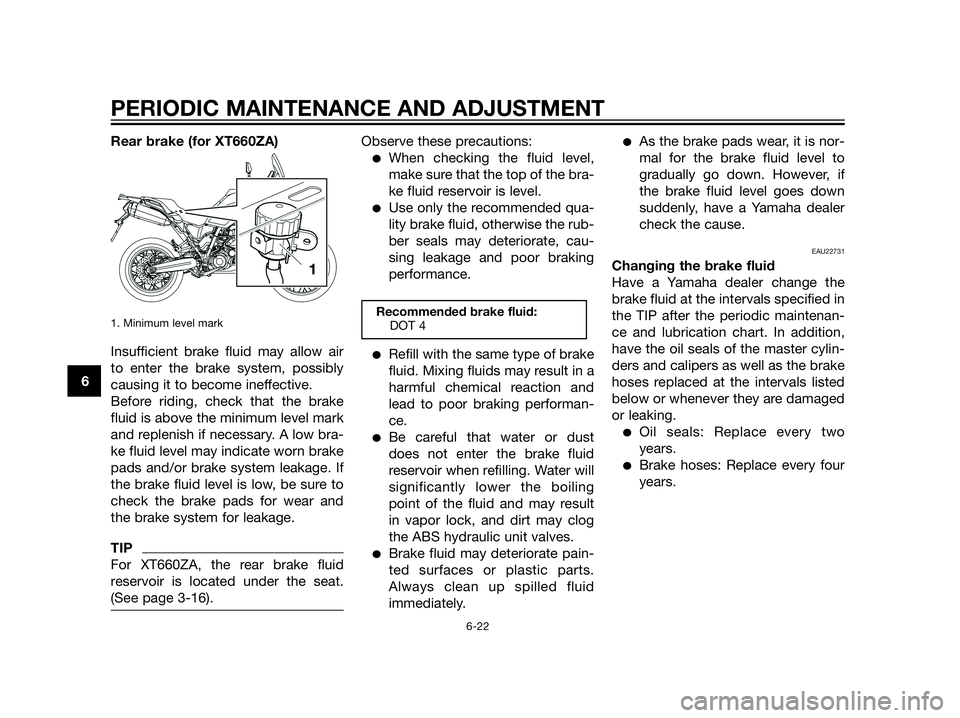

Rear brake (for XT660ZA)
1. Minimum level mark
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
TIP
For XT660ZA, the rear brake fluid
reservoir is located under the seat.
(See page 3-16).
Observe these precautions:
When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
Be careful that water or dust
does not enter the brake fluid
reservoir when refilling. Water will
significantly lower the boiling
point of the fluid and may result
in vapor lock, and dirt may clog
the ABS hydraulic unit valves.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22731
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenan-
ce and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
Recommended brake fluid:
DOT 4
PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6

EAU23093
Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it.
EWA10711
Damage to the outer housing of
cables may result in internal rusting
and cause interference with cable
movement. Replace damaged
cables as soon as possible to pre-
vent unsafe conditions.
EAU23142
Checking and lubricating the
brake and clutch levers
Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before eachride, and the lever pivots should be
lubricated if necessary.Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
EAU23251
Lubricating the rear
suspension
The pivoting points of the rear sus-
pension must be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
EAUM1651
Lubricating the swingarm
pivots
The swingarm pivots must be lubrica-
ted by a Yamaha dealer at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
EAU23272
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
1. Check the inner tubes for scrat-
ches, damage and excessive oil
leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease

3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUB1581
Replacing a headlight bulb
This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
ECA10650
Take care not to damage the follo-
wing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise the
transparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Headlight bulb cover
1. Remove the headlight bulb cover,
and then disconnect the head-
light coupler.
1. Headlight coupler
2. Headlight bulb holder
3. Headlight bulb
NOTICE
Specified fuses:
Main fuse:
30.0 A
Parking lighting fuse:
10.0 A
Signaling system fuse:
10.0 A
Headlight fuse:
20.0 A
Ignition fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Radiator fan fuse:
7.5 A
Backup fuse:
10.0 A
ABS motor fuse (for ABS model):
30.0 A
ABS solenoid fuse (for ABS
model):
20.0 A
ABS control unit fuse (for ABS
model):
5.0 A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6

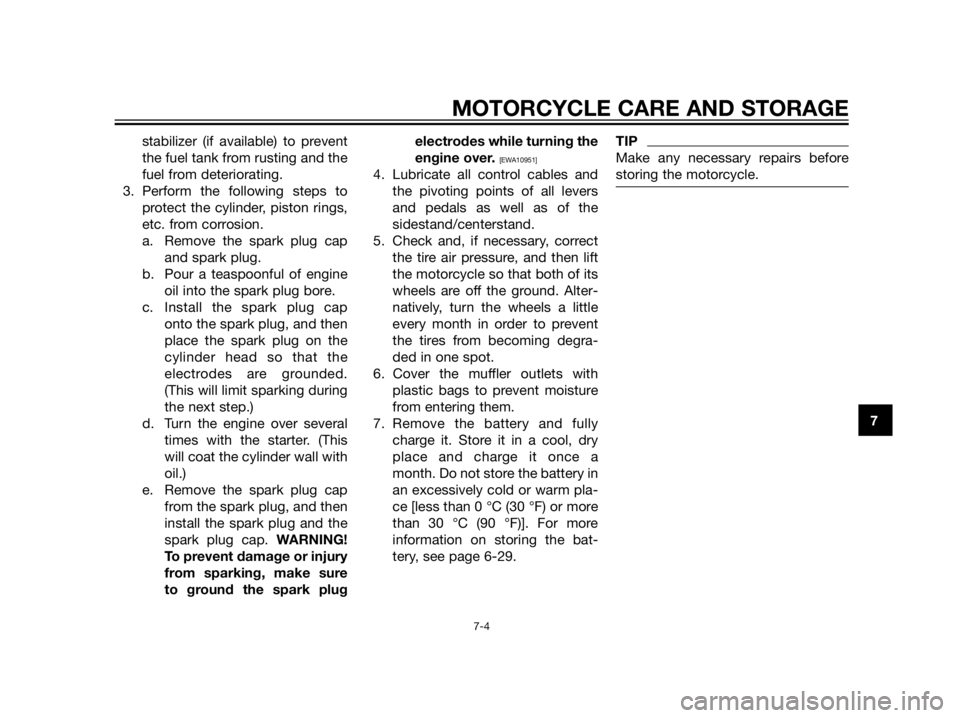

stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap
onto the spark plug, and then
place the spark plug on the
cylinder head so that the
electrodes are grounded.
(This will limit sparking during
the next step.)
d. Turn the engine over several
times with the starter. (This
will coat the cylinder wall with
oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING!
To prevent damage or injury
from sparking, make sure
to ground the spark plugelectrodes while turning the
engine over.
[EWA10951]
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
6. Cover the muffler outlets with
plastic bags to prevent moisture
from entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-29.
TIP
Make any necessary repairs before
storing the motorcycle.
MOTORCYCLE CARE AND STORAGE
7-4
7
