fuel cap YAMAHA XTZ125 2008 Owners Manual

XI
XI
ÍNDICE
DESCRIPTION XTZ 125K ................................... 1-1
DESCRIPTION XTZ 125E ................................... 1-2
MACHINE IDENTIFICATION ................................ 2-1
Vehicle identification number.................... 2-1
Engine serial number................................ 2-1
CONTROL FUNCTIONS...................................... 3-1
Main switch............................................... 3-1
Indicator lights........................................... 3-2
Speedometer ............................................ 3-3
Handlebar switches over left .................... 3-4
Handlebar switches over right .................. 3-5
Clutch lever............................................... 3-6
Shift pedal................................................. 3-6
Front brake lever ....................................... 3-7
Rear brake pedal...................................... 3-7
Fuel tank cap ............................................ 3-8
Fuel cock .................................................. 3-9
Starter lever.............................................. 3-10
Kick Starter............................................... 3-10
Steering lock............................................. 3-11
Seat ........................................................... 3-12
Side covers............................................... 3-13
Rear shock absorber................................ 3-14
Clutch switch operation check .................. 3-15PRE-OPERATION CHECKS ................................ 4-1
Brakes ....................................................... 4-3
Brake fluid leakage ................................... 4-4
Engine oil .................................................. 4-4
Tires .......................................................... 4-5
Clutch ........................................................ 4-8
Throttle grip............................................... 4-8
Fitting/Fasteners ....................................... 4-8
Switches .................................................... 4-8
Wheels ...................................................... 4-8
Fuel ........................................................... 4-9
OPERATION AND IMPORTANT RIDING
POINTS ................................................................. 5-1
Starting a cold engine ............................... 5-2
Starting a warm engine ............................. 5-5
Warming up the engine ............................. 5-5
Shifting ...................................................... 5-6
Tips for reducing fuel consumption ........... 5-7
Engine Break-in........................................ 5-7
Parking ...................................................... 5-8
PERIODIC MAINTENANCE AND MINOR
REPAIRS .............................................................. 6-1
ÍNDICE
DESCRIPTION XTZ 125K ................................... 1-1
DESCRIPTION XTZ 125E ................................... 1-2
MACHINE IDENTIFICATION ................................ 2-1
Vehicle identification number.................... 2-1
Engine serial number................................ 2-1
CONTROL FUNCTIONS...................................... 3-1
Main switch............................................... 3-1
Indicator lights........................................... 3-2
Speedometer ............................................ 3-3
Handlebar switches over left .................... 3-4
Handlebar switches over right .................. 3-5
Clutch lever............................................... 3-6
Shift pedal................................................. 3-6
Front brake lever ....................................... 3-7
Rear brake pedal...................................... 3-7
Fuel tank cap ............................................ 3-8
Fuel cock .................................................. 3-9
Starter lever.............................................. 3-10
Kick Starter............................................... 3-10
Steering lock............................................. 3-11
Seat ........................................................... 3-12
Side covers............................................... 3-13
Rear shock absorber................................ 3-14
Clutch switch operation check .................. 3-15PRE-OPERATION CHECKS ................................ 4-1
Brakes ....................................................... 4-3
Brake fluid leakage ................................... 4-4
Engine oil .................................................. 4-4
Tires .......................................................... 4-5
Clutch ........................................................ 4-8
Throttle grip............................................... 4-8
Fitting/Fasteners ....................................... 4-8
Switches .................................................... 4-8
Wheels ...................................................... 4-8
Fuel ........................................................... 4-9
OPERATION AND IMPORTANT RIDING
POINTS ................................................................. 5-1
Starting a cold engine ............................... 5-2
Starting a warm engine ............................. 5-5
Warming up the engine ............................. 5-5
Shifting ...................................................... 5-6
Tips for reducing fuel consumption ........... 5-7
Engine Break-in........................................ 5-7
Parking ...................................................... 5-8
PERIODIC MAINTENANCE AND MINOR
REPAIRS .............................................................. 6-1

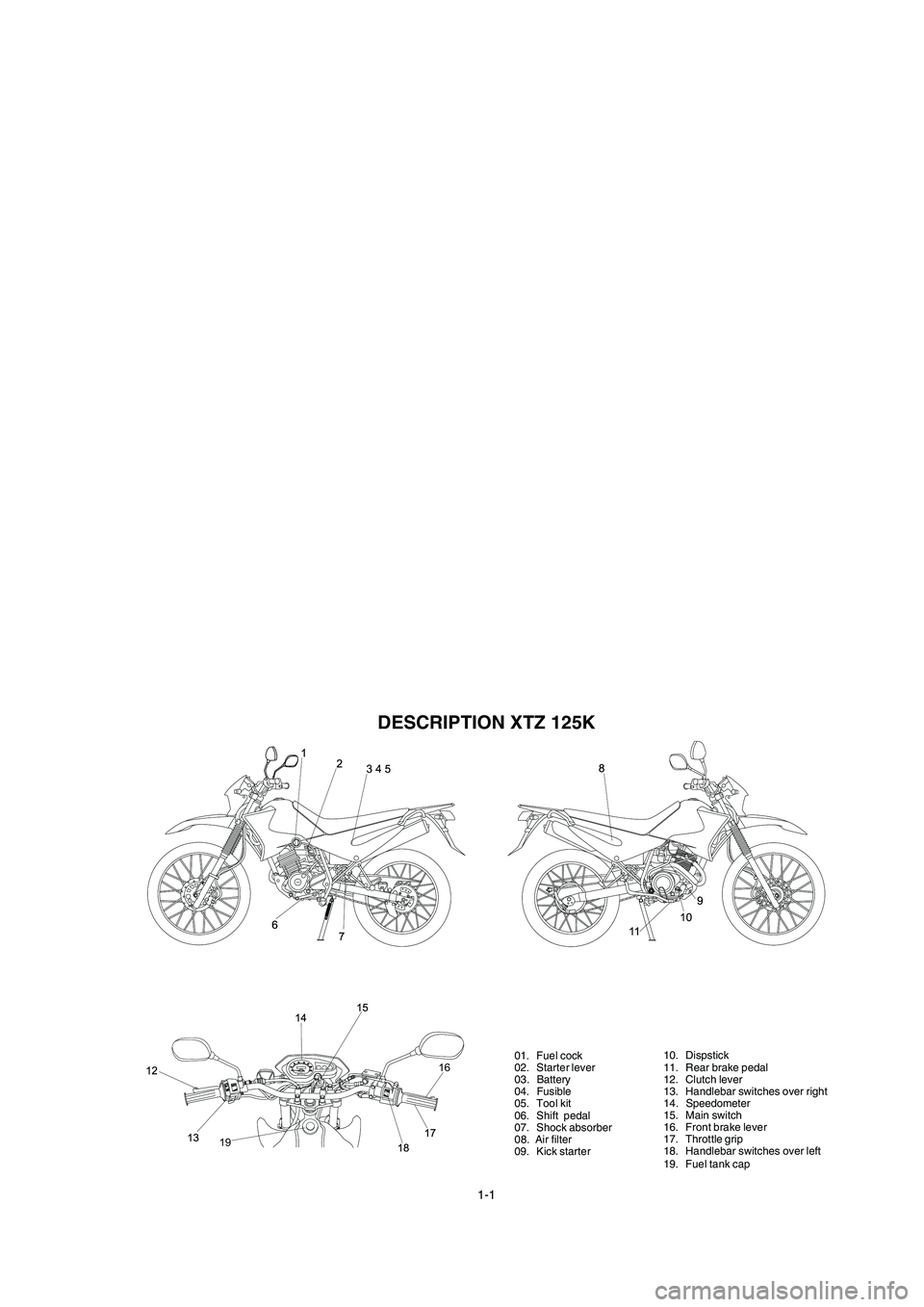

1-1
1-1
DESCRIPTION XTZ 125K
10. Dispstick
11. Rear brake pedal
12. Clutch lever
13. Handlebar switches over right
14. Speedometer
15. Main switch
16. Front brake lever
17. Throttle grip
18. Handlebar switches over left
19. Fuel tank cap
01. Fuel cock
02. Starter lever
03. Battery
04. Fusible
05. Tool kit
06. Shift pedal
07. Shock absorber
08. Air filter
09. Kick starter
19
16
DESCRIPTION XTZ 125K
10. Dispstick
11. Rear brake pedal
12. Clutch lever
13. Handlebar switches over right
14. Speedometer
15. Main switch
16. Front brake lever
17. Throttle grip
18. Handlebar switches over left
19. Fuel tank cap
01. Fuel cock
02. Starter lever
03. Battery
04. Fusible
05. Tool kit
06. Shift pedal
07. Shock absorber
08. Air filter
09. Kick starter
19
16

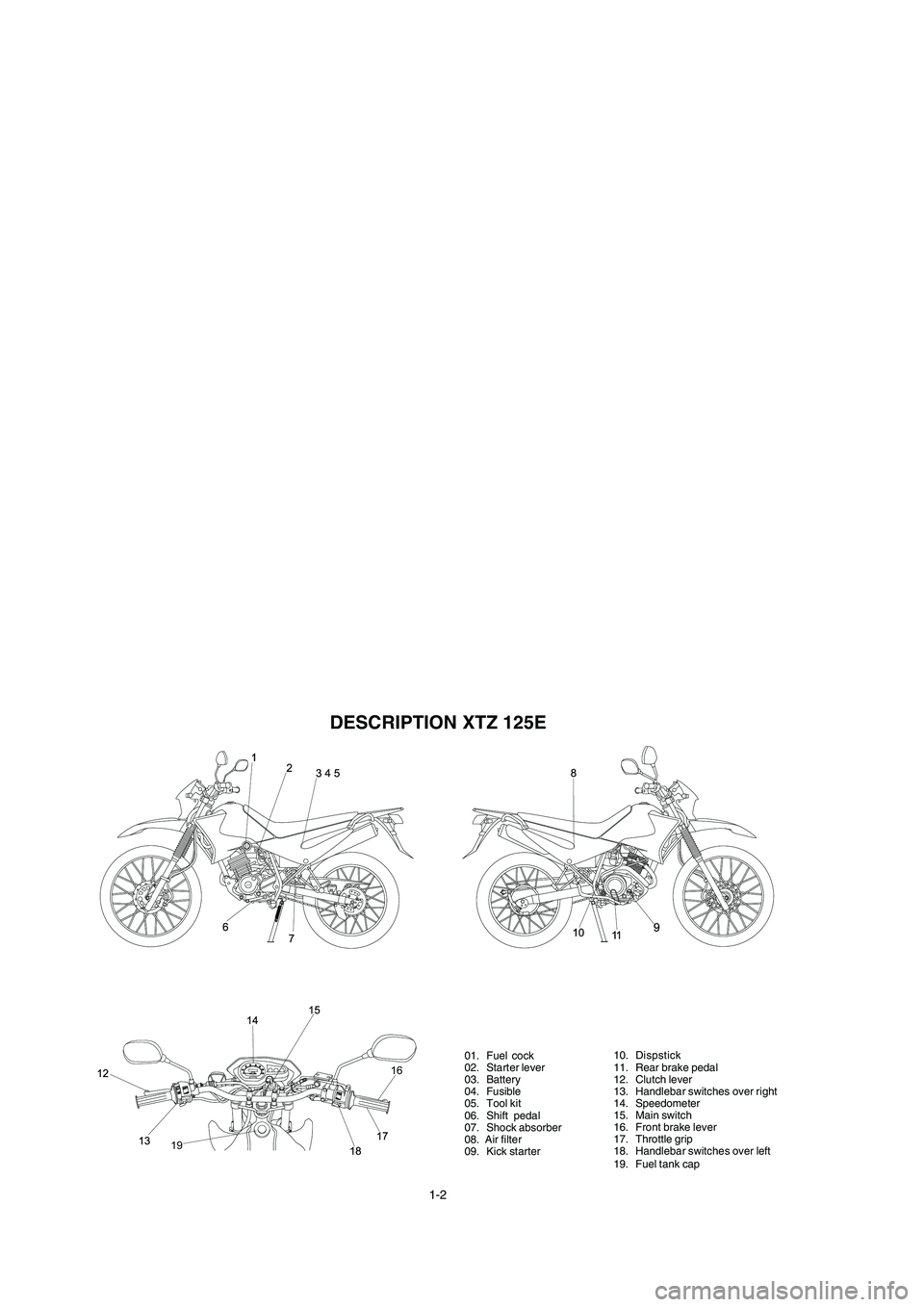

1-2
1-2
DESCRIPTION XTZ 125E
19
1610. Dispstick
11. Rear brake pedal
12. Clutch lever
13. Handlebar switches over right
14. Speedometer
15. Main switch
16. Front brake lever
17. Throttle grip
18. Handlebar switches over left
19. Fuel tank cap
01. Fuel cock
02. Starter lever
03. Battery
04. Fusible
05. Tool kit
06. Shift pedal
07. Shock absorber
08. Air filter
09. Kick starter
DESCRIPTION XTZ 125E
19
1610. Dispstick
11. Rear brake pedal
12. Clutch lever
13. Handlebar switches over right
14. Speedometer
15. Main switch
16. Front brake lever
17. Throttle grip
18. Handlebar switches over left
19. Fuel tank cap
01. Fuel cock
02. Starter lever
03. Battery
04. Fusible
05. Tool kit
06. Shift pedal
07. Shock absorber
08. Air filter
09. Kick starter

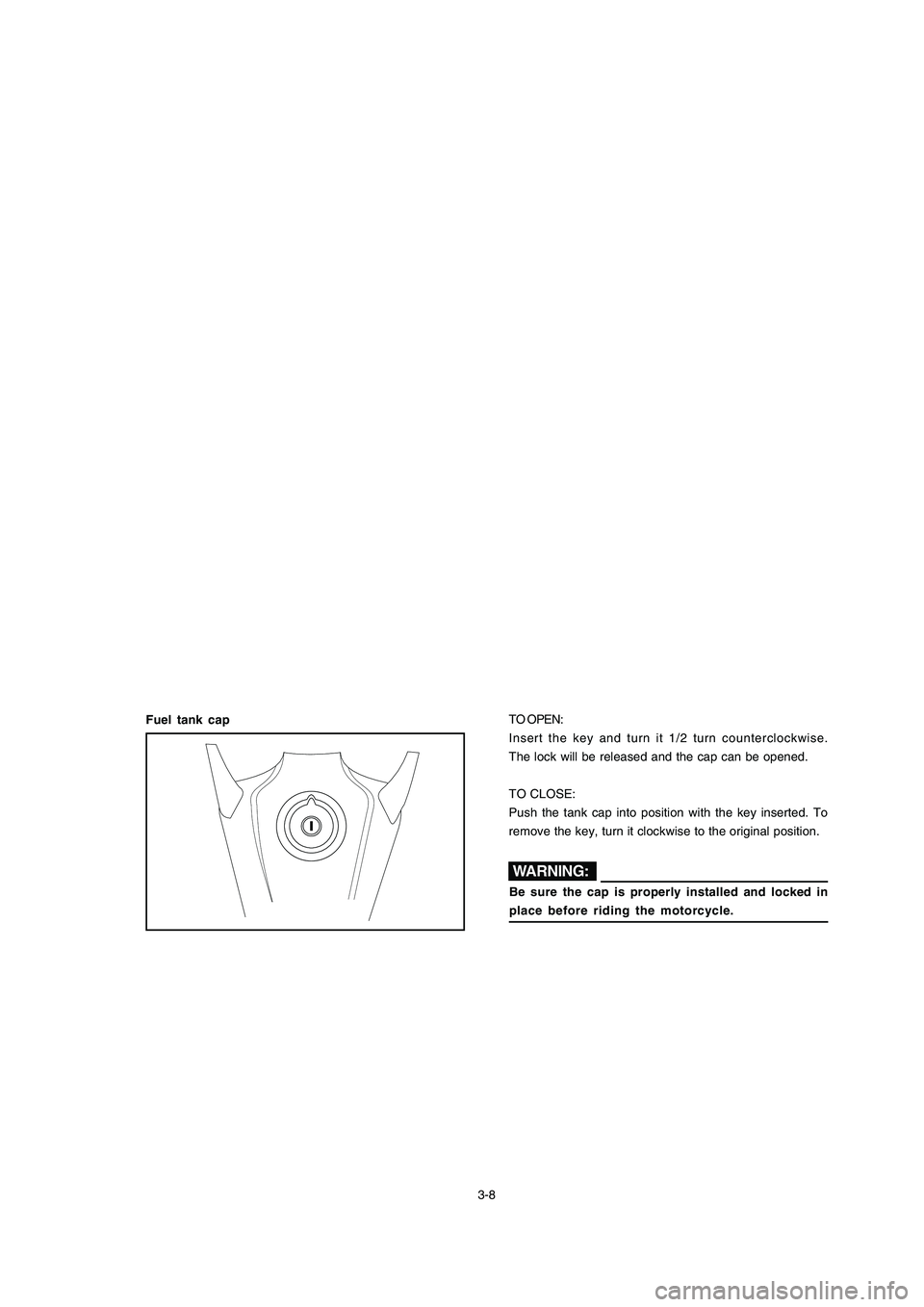

3-8
3-8
Fuel tank cap
Be sure the cap is properly installed and locked in
place before riding the motorcycle.
TO OPEN:
Insert the key and turn it 1/2 turn counterclockwise.
The lock will be released and the cap can be opened.
TO CLOSE:
Push the tank cap into position with the key inserted. To
remove the key, turn it clockwise to the original position.
WARNING:
Fuel tank cap
Be sure the cap is properly installed and locked in
place before riding the motorcycle.
TO OPEN:
Insert the key and turn it 1/2 turn counterclockwise.
The lock will be released and the cap can be opened.
TO CLOSE:
Push the tank cap into position with the key inserted. To
remove the key, turn it clockwise to the original position.
WARNING:

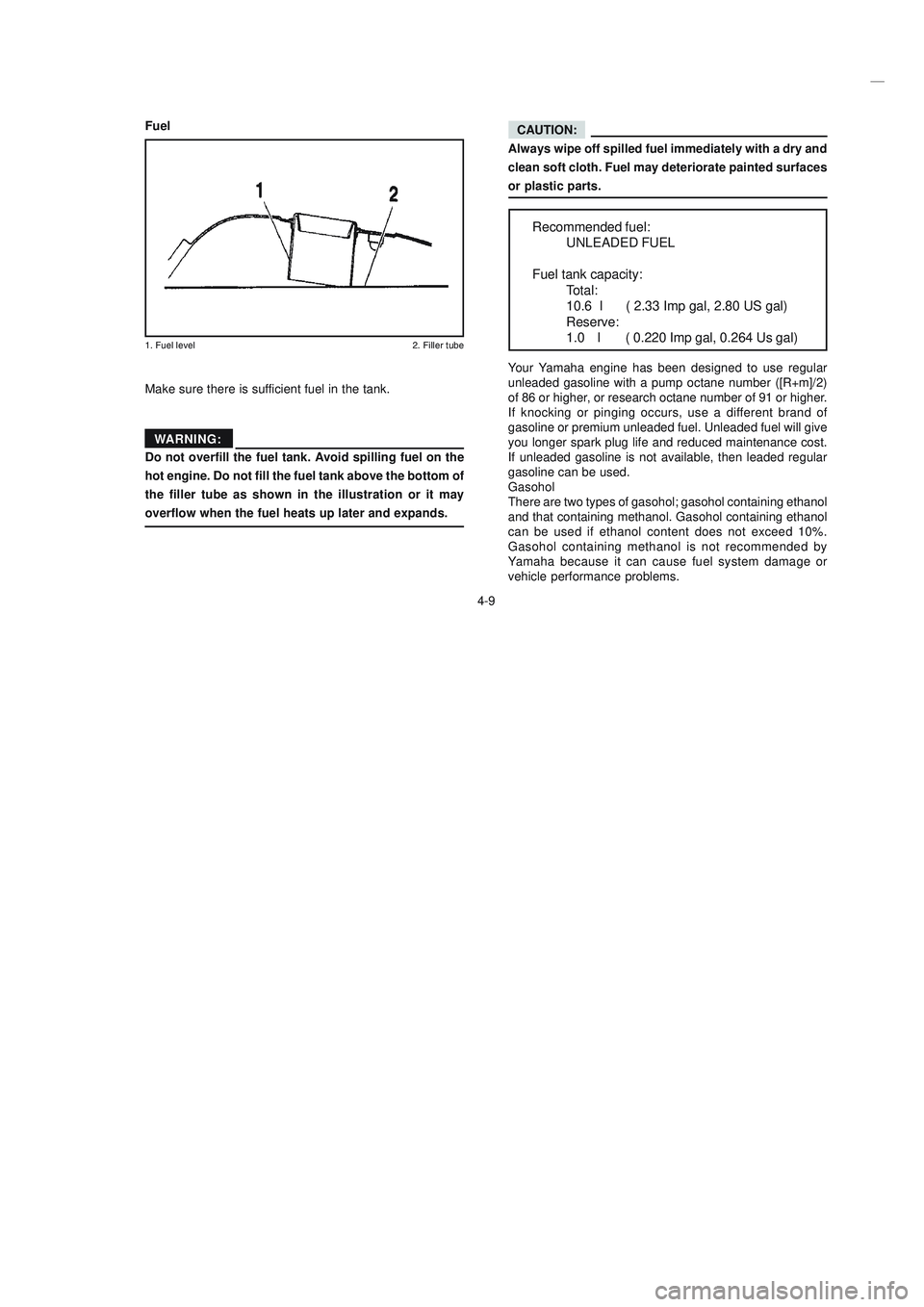

4-9
4-9
CAUTION:
Always wipe off spilled fuel immediately with a dry and
clean soft cloth. Fuel may deteriorate painted surfaces
or plastic parts.
Fuel
-./ - .0
Make sure there is sufficient fuel in the tank.
Do not overfill the fuel tank. Avoid spilling fuel on the
hot engine. Do not fill the fuel tank above the bottom of
the filler tube as shown in the illustration or it may
overflow when the fuel heats up later and expands.
Recommended fuel:
UNLEADED FUEL
Fuel tank capacity:
Total:
10.6 l ( 2.33 Imp gal, 2.80 US gal)
Reserve:
1.0 l ( 0.220 Imp gal, 0.264 Us gal)
Your Yamaha engine has been designed to use regular
unleaded gasoline with a pump octane number ([R+m]/2)
of 86 or higher, or research octane number of 91 or higher.
If knocking or pinging occurs, use a different brand of
gasoline or premium unleaded fuel. Unleaded fuel will give
you longer spark plug life and reduced maintenance cost.
If unleaded gasoline is not available, then leaded regular
gasoline can be used.
Gasohol
There are two types of gasohol; gasohol containing ethanol
and that containing methanol. Gasohol containing ethanol
can be used if ethanol content does not exceed 10%.
Gasohol containing methanol is not recommended by
Yamaha because it can cause fuel system damage or
vehicle performance problems.
WARNING:
CAUTION:
Always wipe off spilled fuel immediately with a dry and
clean soft cloth. Fuel may deteriorate painted surfaces
or plastic parts.
Fuel
-./ - .0
Make sure there is sufficient fuel in the tank.
Do not overfill the fuel tank. Avoid spilling fuel on the
hot engine. Do not fill the fuel tank above the bottom of
the filler tube as shown in the illustration or it may
overflow when the fuel heats up later and expands.
Recommended fuel:
UNLEADED FUEL
Fuel tank capacity:
Total:
10.6 l ( 2.33 Imp gal, 2.80 US gal)
Reserve:
1.0 l ( 0.220 Imp gal, 0.264 Us gal)
Your Yamaha engine has been designed to use regular
unleaded gasoline with a pump octane number ([R+m]/2)
of 86 or higher, or research octane number of 91 or higher.
If knocking or pinging occurs, use a different brand of
gasoline or premium unleaded fuel. Unleaded fuel will give
you longer spark plug life and reduced maintenance cost.
If unleaded gasoline is not available, then leaded regular
gasoline can be used.
Gasohol
There are two types of gasohol; gasohol containing ethanol
and that containing methanol. Gasohol containing ethanol
can be used if ethanol content does not exceed 10%.
Gasohol containing methanol is not recommended by
Yamaha because it can cause fuel system damage or
vehicle performance problems.
WARNING:

8-2
8-2
MODEL XTZ 125E and XTZ 125K
Engine oil:
Air filter:
Fuel:
Type
Tank capacity
Reserve amount
Carburetor:
Type / manufacturer
Spark plug:
Type / manufacturer
Gap
Clutch type: Capacity:
Periódic oil change
Total amount
TypeYAMALUBE 4 or SAE 20W50 type SH
Wet type element
CR7HSA / NGK or U22FSR-U / DENSO
0.7 mm (0.028 in)
Wet, multi-disc Regular unleaded gasoline
10,6
l ( 2.33 Imp gal, 2.80 US gal)
1,0
l ( 0.220 Imp gal, 0.264 US gal) 1,0
l ( 0,220 Imp gal, 0.264 US gal)
1,2 l ( 0,264 Imp gal, 0.317 US gal)
VM 20SS / Mikuni
MODELXTZ 125E and XTZ 125K
Engine oil:
Air filter:
Fuel:
Type
Tank capacity
Reserve amount
Carburetor:
Type / manufacturer
Spark plug:
Type / manufacturer
Gap
Clutch type: Capacity:
Periódic oil change
Total amount
TypeYAMALUBE 4 or SAE 20W50 type SH
Wet type element
CR7HSA / NGK or U22FSR-U / DENSO
0.7 mm (0.028 in)
Wet, multi-disc Regular unleaded gasoline
10,6
l ( 2.33 Imp gal, 2.80 US gal)
1,0 l ( 0.220 Imp gal, 0.264 US gal) 1,0
l ( 0,220 Imp gal, 0.264 US gal)
1,2 l ( 0,264 Imp gal, 0.317 US gal)
VM 20SS / Mikuni
