4-8
4-8Wheels
To ensure maximum performance, long service, and safe
operation, note the following:
1. Always inspect the wheels before a ride. Check for
cracks, bends, or warpage of the wheel; be sure the
spokes are tight and undamaged. If any abnormal
condition exists in a wheel, consult a Yamaha dealer or
other qualified mechanic. Do not attempt even small
repairs to the wheel. If a wheel is deformed or cracked,
it must be replaced.
2. Tires and wheels should be balanced whenever either
one is changed or replaced. Failure to have a wheel
balanced can result in poor performance, adverse
handling characteristics, and shortened tire life.
3. After installing a tire, ride conservatively to allow the
tire to seat itself on the rim properly. Failure to allow
proper seating may cause tire failure, resulting in
damage to the motorcycle and injury to the rider. Clutch ( See page 6-16 for details)
Check the free play in the clutch lever, and make sure the
lever operates properly. If the free play is incorrect, adjust
it.
Throttle grip (See page 6-14 for details)
Turn the throttle grip to see if it operates properly, and check
the free play.
Make sure the grip returns by spring force when released.
Ask a Yamaha dealer or other qualified mechanic to make
any necessary adjustments.
Fitting/Fasteners
Alway check the tightness of chassis fittings and fasteners
before a ride. Use the chart on page 6-5 to find the correct
torque.
Switches
Check the operation of the starter switch, main switch,
“Engine Stop” switch.
Wheels
To ensure maximum performance, long service, and safe
operation, note the following:
1. Always inspect the wheels before a ride. Check for
cracks, bends, or warpage of the wheel; be sure the
spokes are tight and undamaged. If any abnormal
condition exists in a wheel, consult a Yamaha dealer or
other qualified mechanic. Do not attempt even small
repairs to the wheel. If a wheel is deformed or cracked,
it must be replaced.
2. Tires and wheels should be balanced whenever either
one is changed or replaced. Failure to have a wheel
balanced can result in poor performance, adverse
handling characteristics, and shortened tire life.
3. After installing a tire, ride conservatively to allow the
tire to seat itself on the rim properly. Failure to allow
proper seating may cause tire failure, resulting in
damage to the motorcycle and injury to the rider. Clutch ( See page 6-16 for details)
Check the free play in the clutch lever, and make sure the
lever operates properly. If the free play is incorrect, adjust
it.
Throttle grip (See page 6-14 for details)
Turn the throttle grip to see if it operates properly, and check
the free play.
Make sure the grip returns by spring force when released.
Ask a Yamaha dealer or other qualified mechanic to make
any necessary adjustments.
Fitting/Fasteners
Alway check the tightness of chassis fittings and fasteners
before a ride. Use the chart on page 6-5 to find the correct
torque.
Switches
Check the operation of the starter switch, main switch,
“Engine Stop” switch.

6-5
6-5
Spark plug12.5 1.25 9.0
Engine oil drain plug20 2.0 14.5
Oil check bolt 7 0.7 5.0
Front wheel axle nut 80 8.0 58
Rear wheel axle nut 80 8.0 58
Use a torque wrench to tighten these items. It is
recommended that these items be checked occasionally,
specially before a long trip. Always check the tightness of
these items whenever they are loosened for any reason.
A
(Nut)
10 mm
12 mm
14 mm
17 mm
19 mm
22 mmB
(Bolt)
6 mm
8 mm
10 mm
12 mm
14 mm
16 mmGeneral torque especifications
Nm
6
15
30
55
85
130kgf.m
0,6
1,5
3,0
5,5
8,5
13,0lbf. ft
4,3
11
22
40
61
94 Torque specifications
Torque
Nm
kgfm Item
Nm
Spark plug12.5 1.25 9.0
Engine oil drain plug20 2.0 14.5
Oil check bolt 7 0.7 5.0
Front wheel axle nut 80 8.0 58
Rear wheel axle nut 80 8.0 58
Use a torque wrench to tighten these items. It is
recommended that these items be checked occasionally,
specially before a long trip. Always check the tightness of
these items whenever they are loosened for any reason.
A
(Nut)
10 mm
12 mm
14 mm
17 mm
19 mm
22 mmB
(Bolt)
6 mm
8 mm
10 mm
12 mm
14 mm
16 mmGeneral torque especifications
Nm
6
15
30
55
85
130kgf.m
0,6
1,5
3,0
5,5
8,5
13,0lbf. ft
4,3
11
22
40
61
94 Torque specifications
Torque
Nm
kgfm Item
Nm

6-25
6-25
CAUTION:
Too little chain slack will overload the engine and other
vital parts. Keep the slack within the specified limits.
Axle nut torque:
80 N.m (8.0 Kgf.m, 58 lbf.ft)
5. Adjust the free play in the brake pedal.
CAUTION:
Check the operation of the brake light after adjusting
the rear brake.1. Loosen the rear brake adjuster.
2. Loosen the axle nut.
3. Turn both left and right chain puller the same
amount.Make sure that they are in the same position

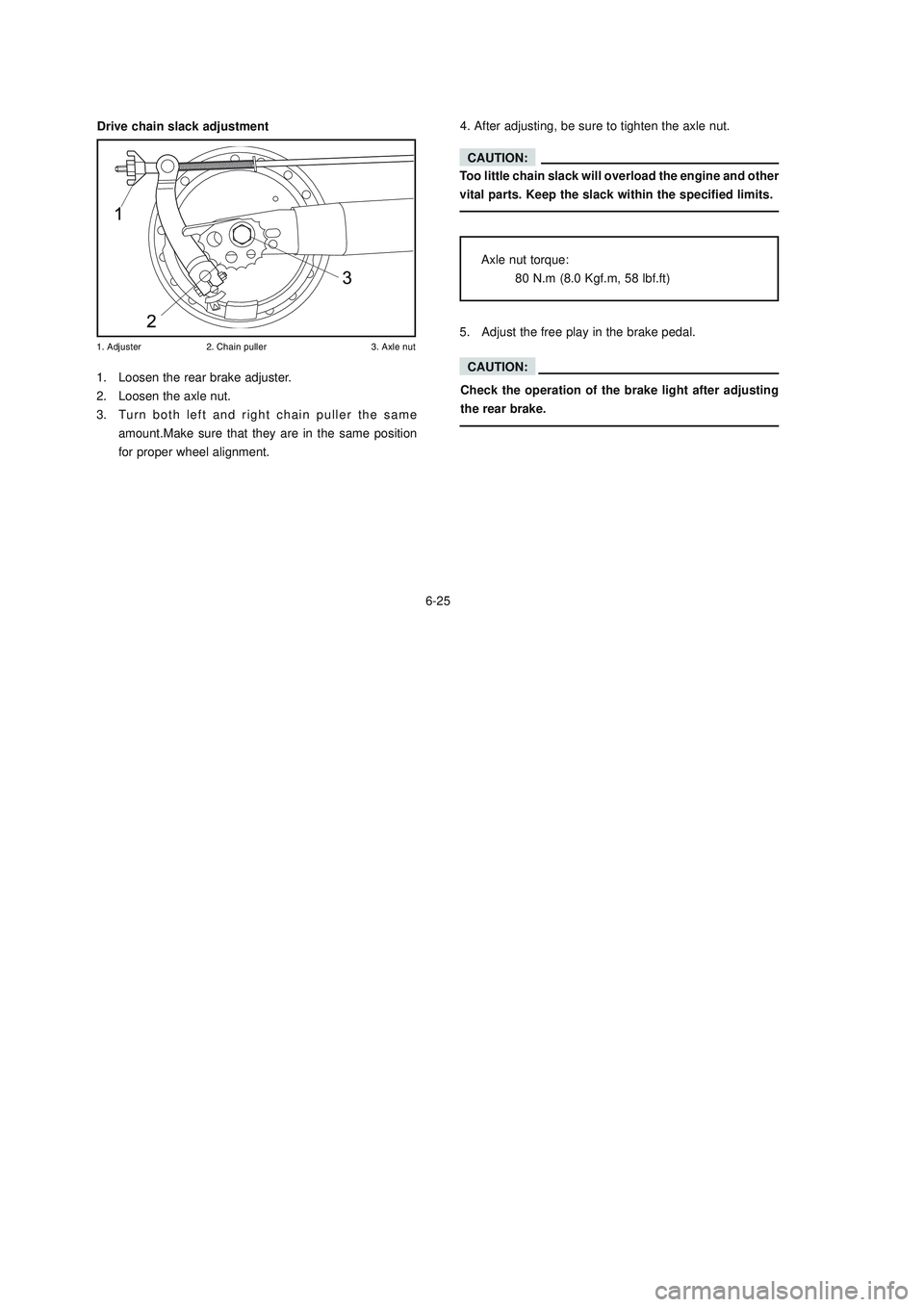

for proper wheel alignment. Drive chain slack adjustment

!&

 .!

4. After adjusting, be sure to tighten the axle nut.
CAUTION:
Too little chain slack will overload the engine and other
vital parts. Keep the slack within the specified limits.
Axle nut torque:
80 N.m (8.0 Kgf.m, 58 lbf.ft)
5. Adjust the free play in the brake pedal.
CAUTION:
Check the operation of the brake light after adjusting
the rear brake.1. Loosen the rear brake adjuster.
2. Loosen the axle nut.
3. Turn both left and right chain puller the same
amount.Make sure that they are in the same position
for proper wheel alignment. Drive chain slack adjustment

!&

 .!

4. After adjusting, be sure to tighten the axle nut.

6-38
6-38

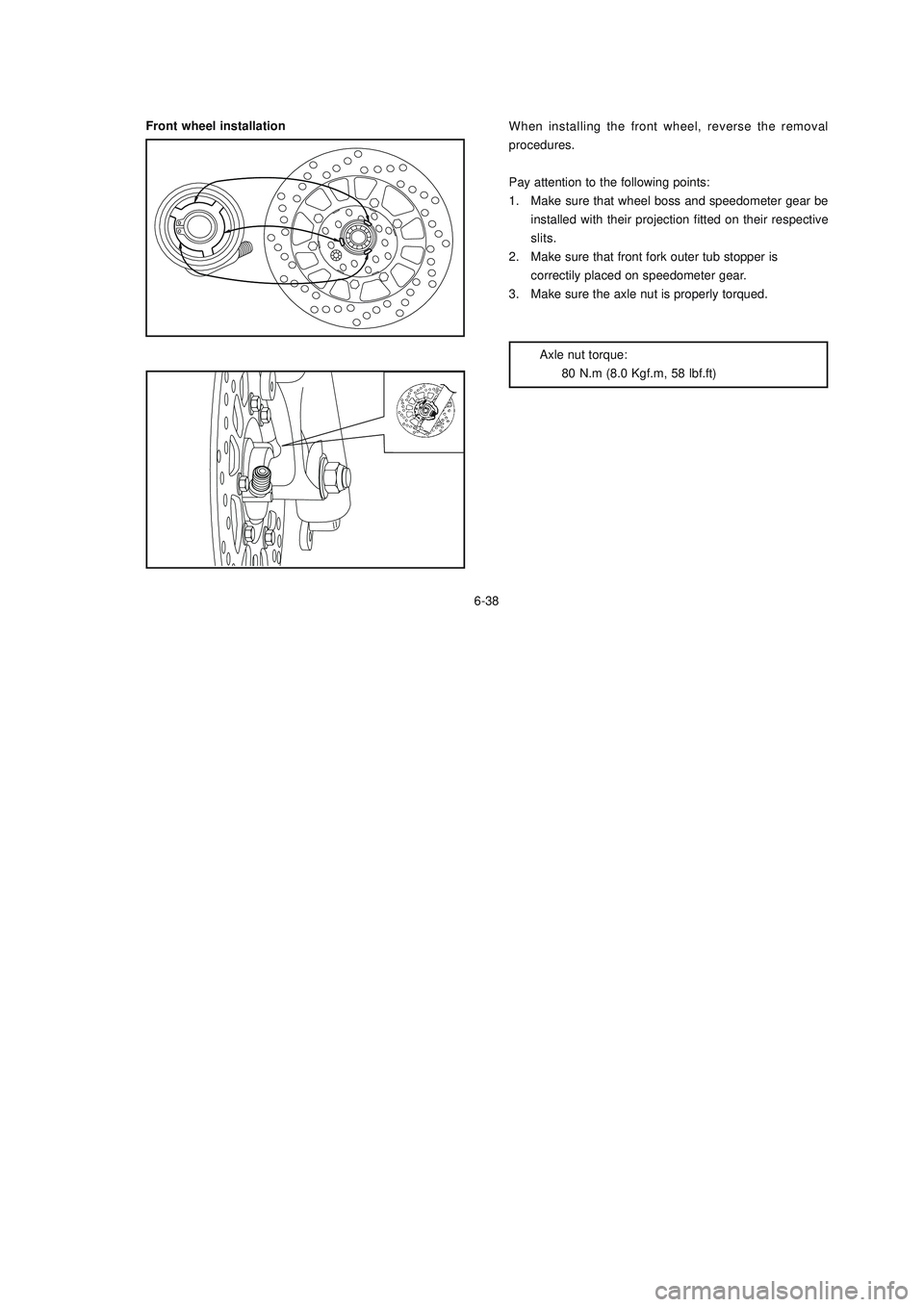

Front wheel installationWhen installing the front wheel, reverse the removal
procedures.
Pay attention to the following points:
1. Make sure that wheel boss and speedometer gear be
installed with their projection fitted on their respective
slits.
2. Make sure that front fork outer tub stopper is
correctily placed on speedometer gear.
3. Make sure the axle nut is properly torqued.
Axle nut torque:
80 N.m (8.0 Kgf.m, 58 lbf.ft)
Front wheel installationWhen installing the front wheel, reverse the removal
procedures.
Pay attention to the following points:
1. Make sure that wheel boss and speedometer gear be
installed with their projection fitted on their respective
slits.
2. Make sure that front fork outer tub stopper is
correctily placed on speedometer gear.
3. Make sure the axle nut is properly torqued.
Axle nut torque:
80 N.m (8.0 Kgf.m, 58 lbf.ft)

6-40
6-40
Rear wheel installationWhen installing the rear wheel, reverse the removal
procedures. Pay attention to the following points:
1. Be sure the slot in the brake shoe plate is fit over the
stopper on the rear arm.
2. Make sure the rear wheel axl is inserted from the right-
hand side and that the chain pullers are installed with
the punched side outward.
3. Adjust the drive chain.
4. Make sure the axle nut is properly torqued.
Axle nut torque:
80 N.m ( 8.0 Kgf.m, 58 lbf.ft)
5. Adjust the rear brake.(See page 6-18)
Check the operation of the brake light after adjusting
the rear brake
WARNING:
Rear wheel installationWhen installing the rear wheel, reverse the removal
procedures. Pay attention to the following points:
1. Be sure the slot in the brake shoe plate is fit over the
stopper on the rear arm.
2. Make sure the rear wheel axl is inserted from the right-
hand side and that the chain pullers are installed with
the punched side outward.
3. Adjust the drive chain.
4. Make sure the axle nut is properly torqued.
Axle nut torque:
80 N.m ( 8.0 Kgf.m, 58 lbf.ft)
5. Adjust the rear brake.(See page 6-18)
Check the operation of the brake light after adjusting
the rear brake
WARNING:
