2-1
2
EAU00026

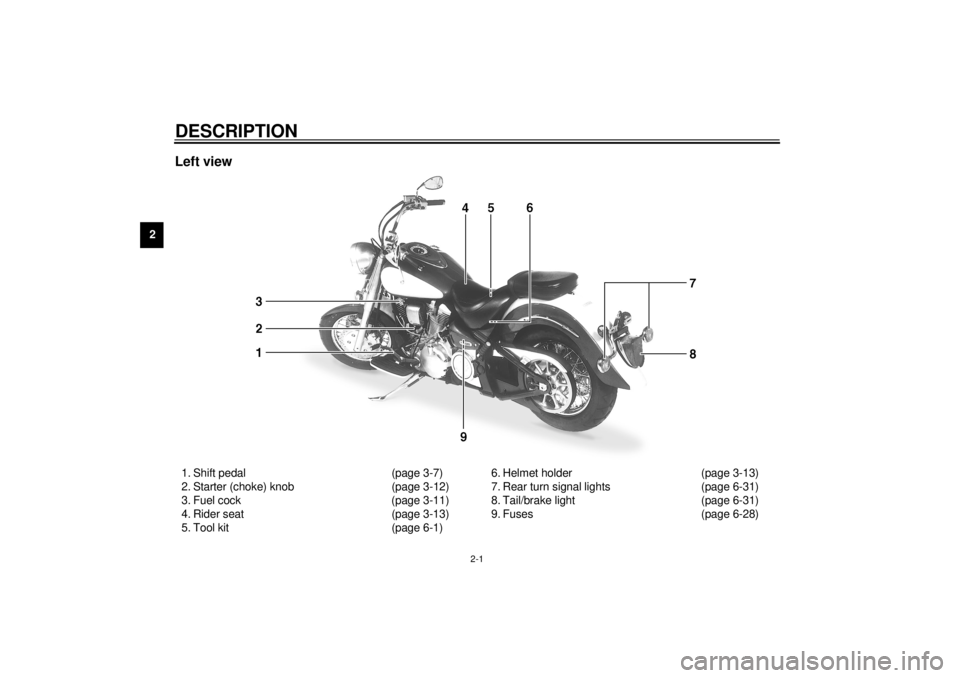

2-DESCRIPTIONLeft view1. Shift pedal (page 3-7)
2. Starter (choke) knob (page 3-12)
3. Fuel cock (page 3-11)
4. Rider seat (page 3-13)
5. Tool kit (page 6-1)6. Helmet holder (page 3-13)
7. Rear turn signal lights (page 6-31)
8. Tail/brake light (page 6-31)
9. Fuses (page 6-28)
E_5ja_Description.fm Page 1 Saturday, October 16, 1999 10:10 AM

DESCRIPTION
2-2
2

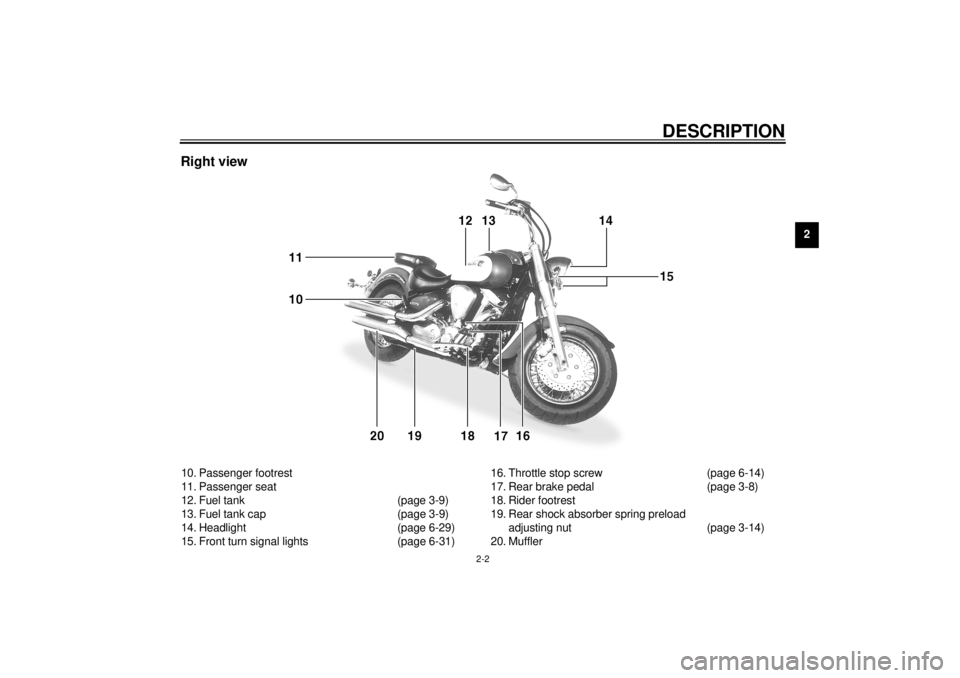

Right view10. Passenger footrest
11. Passenger seat
12. Fuel tank (page 3-9)
13. Fuel tank cap (page 3-9)
14. Headlight (page 6-29)
15. Front turn signal lights (page 6-31)16. Throttle stop screw (page 6-14)
17. Rear brake pedal (page 3-8)
18. Rider footrest
19. Rear shock absorber spring preload
adjusting nut (page 3-14)
20. Muffler
E_5ja_Description.fm Page 2 Saturday, October 16, 1999 10:10 AM

DESCRIPTION
2-3
2

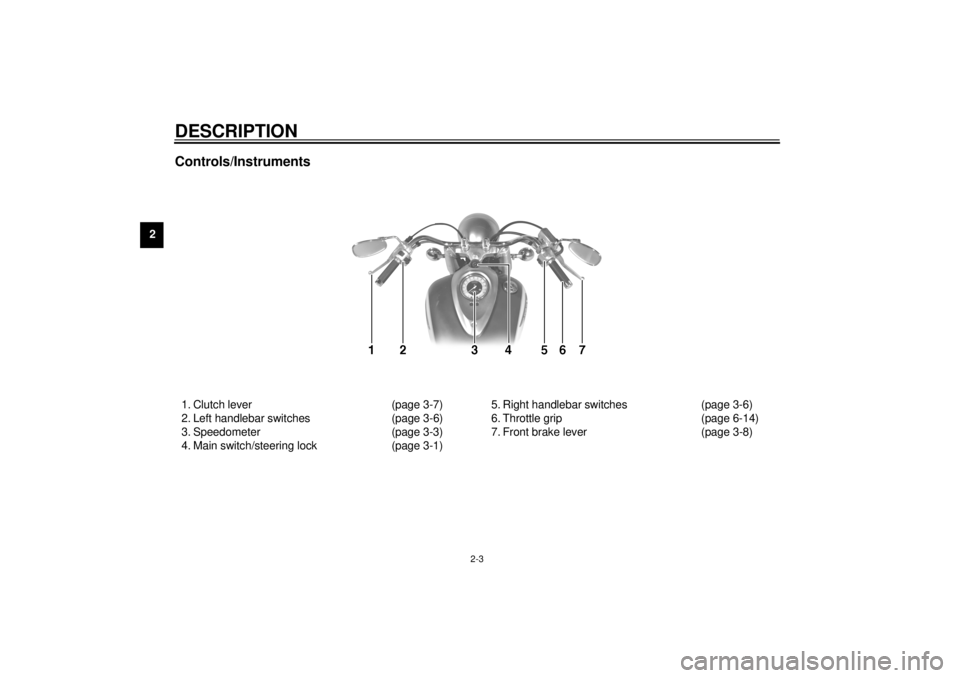

Controls/Instruments1. Clutch lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Speedometer (page 3-3)
4. Main switch/steering lock (page 3-1)5. Right handlebar switches (page 3-6)
6. Throttle grip (page 6-14)
7. Front brake lever (page 3-8)
E_5ja_Description.fm Page 3 Saturday, October 16, 1999 10:10 AM

3

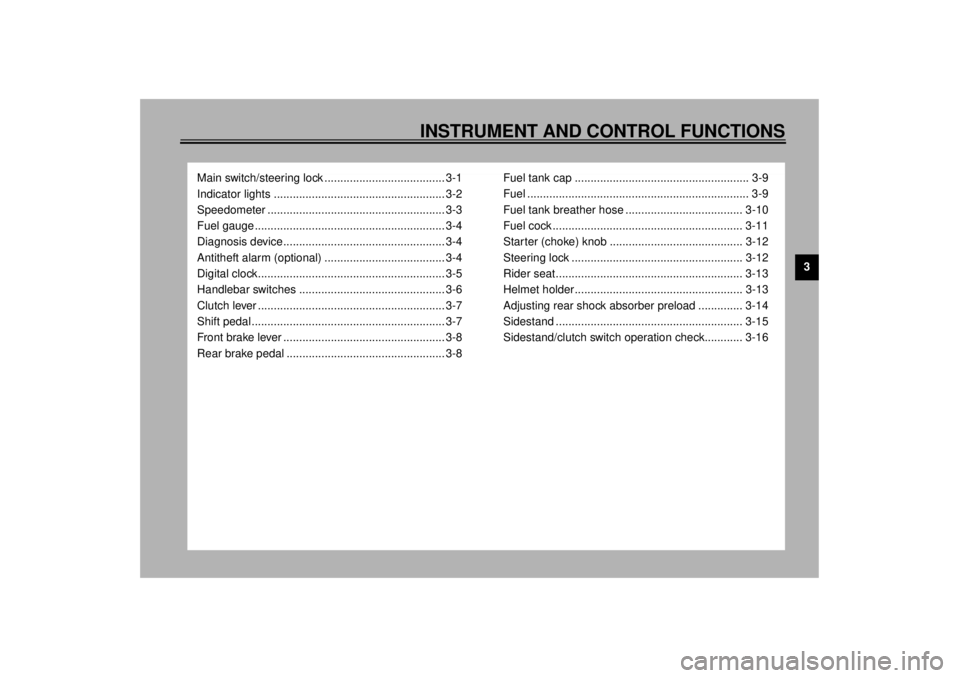

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................... 3-1
Indicator lights ...................................................... 3-2
Speedometer ........................................................ 3-3
Fuel gauge ............................................................ 3-4
Diagnosis device................................................... 3-4
Antitheft alarm (optional) ...................................... 3-4
Digital clock........................................................... 3-5
Handlebar switches .............................................. 3-6
Clutch lever ........................................................... 3-7
Shift pedal ............................................................. 3-7
Front brake lever ................................................... 3-8
Rear brake pedal .................................................. 3-8Fuel tank cap ....................................................... 3-9
Fuel ...................................................................... 3-9
Fuel tank breather hose ..................................... 3-10
Fuel cock ............................................................ 3-11
Starter (choke) knob .......................................... 3-12
Steering lock ...................................................... 3-12
Rider seat........................................................... 3-13
Helmet holder..................................................... 3-13
Adjusting rear shock absorber preload .............. 3-14
Sidestand ........................................................... 3-15
Sidestand/clutch switch operation check............ 3-16
E_5ja_FunctionsTOC.fm Page 1 Saturday, October 16, 1999 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU00158
Front brake leverThe front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. Front brake lever
1. Rear brake pedal
E_5ja_Functions.fm Page 8 Saturday, October 16, 1999 10:10 AM

4-1
4
EAU01114
4-PRE-OPERATION CHECKSOwners are personally responsible for their vehicle’s condition. Your motorcycle’s vital functions can start to deteriorate
quickly and unexpectedly, even if it remains unused (for instance, if it is exposed to the elements). Any damage, fluid leak or
loss of tire pressure could have serious consequences. Therefore, it is very important that, in addition to a thorough visual in-
spection, you check the following points before each ride.
EAU00340
PRE-OPERATION CHECK LIST
ITEM CHECKS PAGE
Front brake• Check operation, fluid level and vehicle for fluid leakage.
• Fill with DOT 4 brake fluid if necessary.
6-18 ~ 6-22
Rear brake• Check operation, fluid level and vehicle for fluid leakage.
• Fill with DOT 4 brake fluid if necessary.
Clutch• Check operation, condition and free play.
• Adjust if necessary.6-17 ~ 6-18
Throttle grip and housing• Check for smooth operation.
• Lubricate if necessary.6-14
Engine oil• Check oil level.
• Fill with oil if necessary.6-7 ~ 6-10
Wheels and tires• Check tire pressure, wear, damage and spoke tightness.
• Tighten spokes necessary.6-15 ~ 6-17
Brake and shift pedal
shafts• Check for smooth operation.
• Lubricate if necessary.6-24
Brake and clutch lever
pivots• Check for smooth operation.
• Lubricate if necessary.6-25
Sidestand pivot• Check for smooth operation.
• Lubricate if necessary.6-25
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
E_5ja_Preop.fm Page 1 Saturday, October 16, 1999 10:11 AM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Tool kit................................................................... 6-1
Periodic maintenance and lubrication ................... 6-3
Spark plug inspection ........................................... 6-6
Engine oil .............................................................. 6-7
Transfer case oil .................................................. 6-10
Air filter ............................................................... 6-11
Carburetor adjustment ........................................ 6-13
Idle speed adjustment ........................................ 6-13
Throttle cable free play inspection ...................... 6-14
Valve clearance adjustment ................................ 6-14
Tires .................................................................... 6-15
Wheels ................................................................ 6-17
Clutch lever free play adjustment........................ 6-17
Front brake lever free play adjustment ................ 6-18
Rear brake pedal height adjustment ................... 6-19
Brake light switch adjustment ............................. 6-19
Checking the front and rear brake pads.............. 6-20Inspecting the brake fluid level ........................... 6-21
Brake fluid replacement ..................................... 6-22
Drive belt slack check ........................................ 6-22
Drive belt slack adjustment ................................ 6-23
Brake and shift pedal lubrication ........................ 6-24
Brake and clutch lever lubrication ...................... 6-25
Sidestand lubrication.......................................... 6-25
Front fork inspection ........................................... 6-26
Steering inspection ............................................ 6-26
Wheel bearings .................................................. 6-27
Battery................................................................ 6-27
Fuse replacement .............................................. 6-28
Headlight bulb replacement ............................... 6-29
Turn signal and tail/brake light bulb
replacement ..................................................... 6-31
Troubleshooting .................................................. 6-31
Troubleshooting chart ......................................... 6-32
E_5ja_PeriodicTOC.fm Page 1 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU00473
PERIODIC MAINTENANCE AND LUBRICATION
CP-01ENO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
1
*Fuel line• Check fuel hoses for cracks or damage.
• Replace if necessary.ÖÖ
2*Fuel filter• Check condition.
• Replace if necessary.Ö
3 Spark plugs• Check condition.
• Clean, regap or replace if necessary.ÖÖÖ
4*Valves• Check valve clearance.
• Adjust if necessary.Every 24,000 km or 24 months
(whichever comes first)
5 Air filter• Clean or replace if necessary.ÖÖ
6Clutch• Check operation.
• Adjust or replace cable.ÖÖÖ
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)
• Correct accordingly.
• Replace brake pads if necessary.ÖÖÖ
8*Rear brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)
• Correct accordingly.
• Replace brake pads if necessary.ÖÖÖ
9*Wheels• Check balance, runout, spoke tightness and for damage.
• Tighten spokes and rebalance, replace if necessary.ÖÖ
10*Tires• Check tread depth and for damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.ÖÖ
E_5ja_Periodic.fm Page 3 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
* Since these items require special tools, data and technical skills, they should be serviced by a Yamaha dealer.
EAU02970
NOTE:@ l
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
l
Hydraulic brake system
• When disassembling the master cylinder or caliper, always replace the brake fluid. Check the brake fluid level regu-
larly and fill as required.
• Replace the oil seals on the inner parts of the master cylinder and caliper every two years.
• Replace the brake hoses every four years or if cracked or damaged.
@22 Engine oil• Check oil level and vehicle for oil leakage.
• Correct if necessary.
• Change. (Warm engine before draining.)ÖÖÖ
23 Engine oil filter cartridge•Replace.ÖÖ
24
*Transfer case oil• Check for leakage.
• Replace oil at initial 1,000 km and thereafter every 24,000 km or
24 months (whichever comes first).ÖÖ NO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
E_5ja_Periodic.fm Page 5 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 Tire inspection
Always check the tires before operating
the motorcycle. If center tread depth
reaches the limit as shown, if the tire
has a nail or glass fragments in it, or if
the side wall is cracked, contact a
Yamaha dealer immediately and have
the tire replaced.
CE-10E
CE-11ENOTE:@ These limits may be different by regula-
tion from country to country. If so, con-
form to the limits specified by the
regulations of your own country. @
EAU00681
WARNING
@ l
Operating the motorcycle with
excessively worn tires decrease
riding stability and can lead to
loss of control. Have excessive-
ly worn tires replaced by a
Yamaha dealer immediately.
Brakes, tires, and related wheel
parts replacement should be
left to a Yamaha Service Techni-
cian.
l
Patching a punctured tube is
not recommended. If it is abso-
lutely necessary to do so, use
great care and replace the tube
as soon as possible with a good
quality replacement.
@
1. Sidewall
a. Tread depth
FRONT
Manufacturer Size Type
Dunlop 130/90-16 67H D404FL
Bridgestone 130/90-16 67H G703F
REAR
Manufacturer Size Type
Dunlop 150/80B-16 71H D404
Bridgestone 150/80B-16 71H G702
Minimum tire tread
depth (front and rear)1.6 mm
