PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU03238
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the brake master cylinder and caliper
as well as the brake hose replaced at
the intervals listed below or whenever
they are damaged or leaking.l
Oil seals: Replace every two
years.
l
Brake hose: Replace every four
years.
EAU01830
Drive belt slack The drive belt slack should be checked
before each ride and adjusted if neces-
sary.
To check the drive belt slack
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. Note the current position of the
drive belt using the marks near the
check hole.
NOTE:@ The marks near the drive belt check
hole are 5 mm apart. @3. Note the position of the drive belt
with a force of 45 N (4.5 kg) ap-
plied to the belt with a belt tension
gauge as shown.
4. Calculate the drive belt slack by
subtracting the measurement not-
ed in step 2 from the measure-
ment noted in step 3.
1. Drive belt
2. Marks
a. Drive belt slack
1. Belt tension gauge
E_5JA.book Page 26 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
65. If the drive belt slack is incorrect,
adjust it as follows.
EAU01748
To adjust the drive belt slack
1. Loosen the rear wheel axle nut
and the brake caliper bracket bolt.2. Loosen the drive belt puller lock-
nut on each side of the swingarm. Drive belt slack:
7.5–13 mm1. Wheel axle nut
1. Brake caliper bracket bolt
E_5JA.book Page 27 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6 3. To tighten the drive belt, turn the
adjusting bolt on each side of the
swingarm in direction
a. To loos-
en the drive belt, turn the adjusting
bolt on each side of the swingarm
in direction
b, and then push the
rear wheel forward.
NOTE:@ Turn each adjusting bolt the same
amount for proper wheel alignment. @4. Tighten the locknuts.
ECA00025
CAUTION:@ Improper drive belt slack will over-
load the engine. Keep the drive belt
slack within the specified range. @
5. Tighten the axle nut and the brake
caliper bracket bolt to the specified
torques.
EAU03370
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
1. Drive belt slack adjusting bolt (´ 2)
2. Drive belt puller locknut (´ 2)
3. Wheel axleTightening torques:
Axle nut:
150 Nm (15 m·kg)
Brake caliper bracket bolt:
48 Nm (4.8 m·kg)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
E_5JA.book Page 28 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
EAU03164
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
E_5JA.book Page 29 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU03165
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
EW000113
WARNING
@ If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. @
EAU02939
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:@ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. @
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
E_5JA.book Page 30 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the
steering.
EAU01144
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
E_5JA.book Page 31 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU00800
Battery This motorcycle is equipped with a
sealed-type (MF) battery, which does
not require any maintenance. There is
no need to check the electrolyte or to
add distilled water.
EC000101
CAUTION:@ Never attempt to remove the battery
cell seals, as this would permanent-
ly damage the battery. @
EW000116
WARNING
@ l
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
• EYES: Flush with water for
15 minutes and seek prompt
medical attention.
l
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
l
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
@To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the motorcycle is equipped with op-
tional electrical accessories.

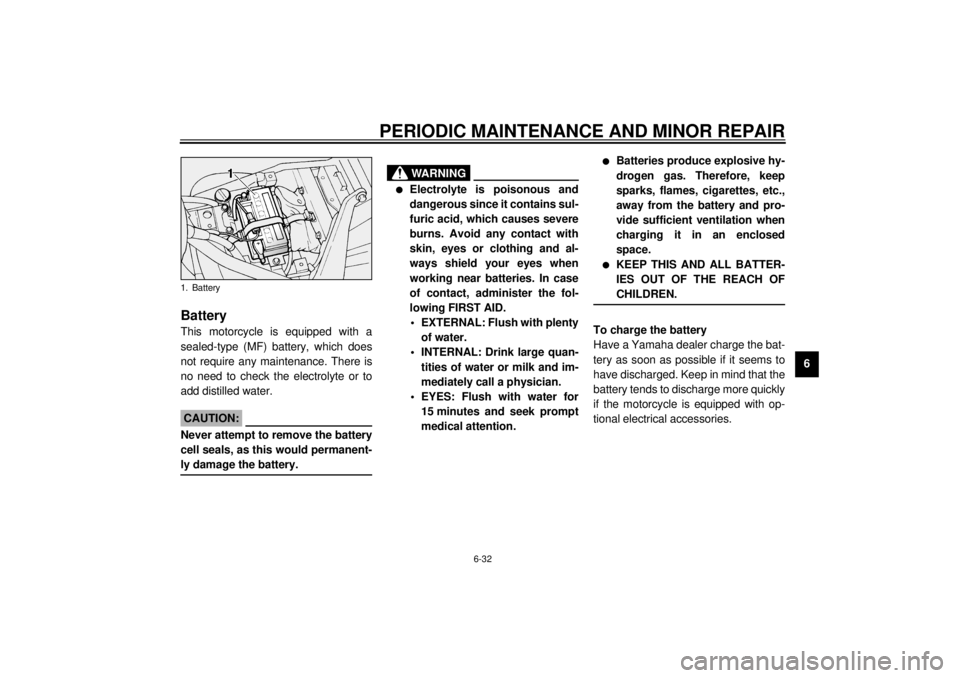

1. Battery
E_5JA.book Page 32 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6To store the battery
1. If the motorcycle will not be used
for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
EC000102
CAUTION:@ l
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
l
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is re-
quired. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
@
EAU01749

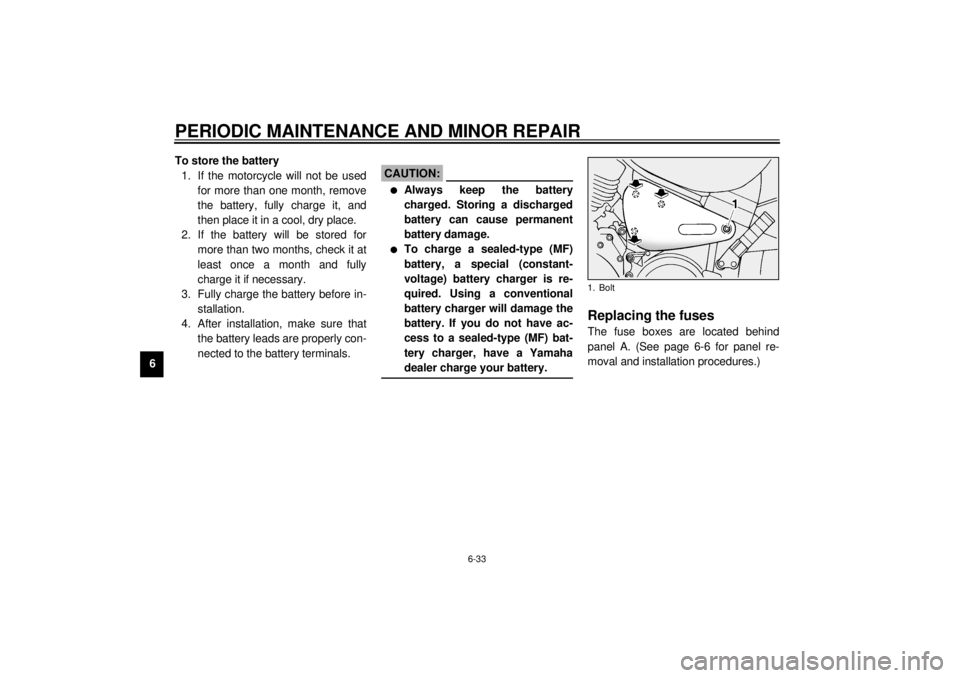

Replacing the fuses The fuse boxes are located behind
panel A. (See page 6-6 for panel re-
moval and installation procedures.)1. Bolt
E_5JA.book Page 33 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:@ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. @
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

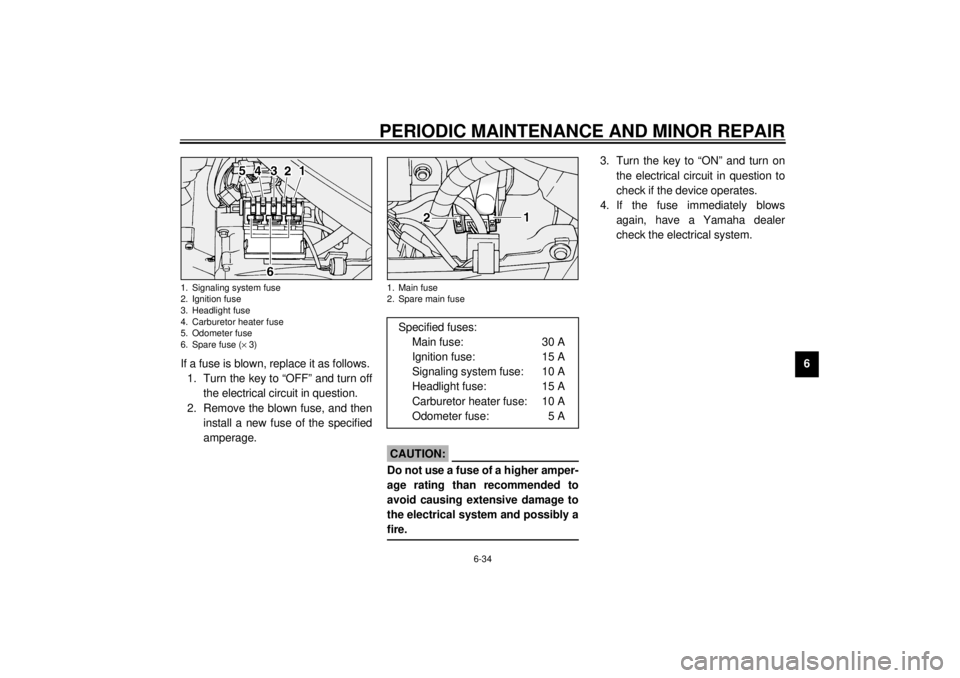

1. Signaling system fuse
2. Ignition fuse
3. Headlight fuse
4. Carburetor heater fuse
5. Odometer fuse
6. Spare fuse (´ 3)
1. Main fuse
2. Spare main fuseSpecified fuses:
Main fuse: 30 A
Ignition fuse: 15 A
Signaling system fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 10 A
Odometer fuse: 5 A
E_5JA.book Page 34 Wednesday, September 13, 2000 6:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU03188
Replacing the headlight bulb This motorcycle is equipped with a
quartz bulb headlight. If the headlight
bulb burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.2. Disconnect the headlight coupler,
and then remove the headlight unit
and bulb cover.3. Unhook the headlight bulb holder,
and then remove the defective

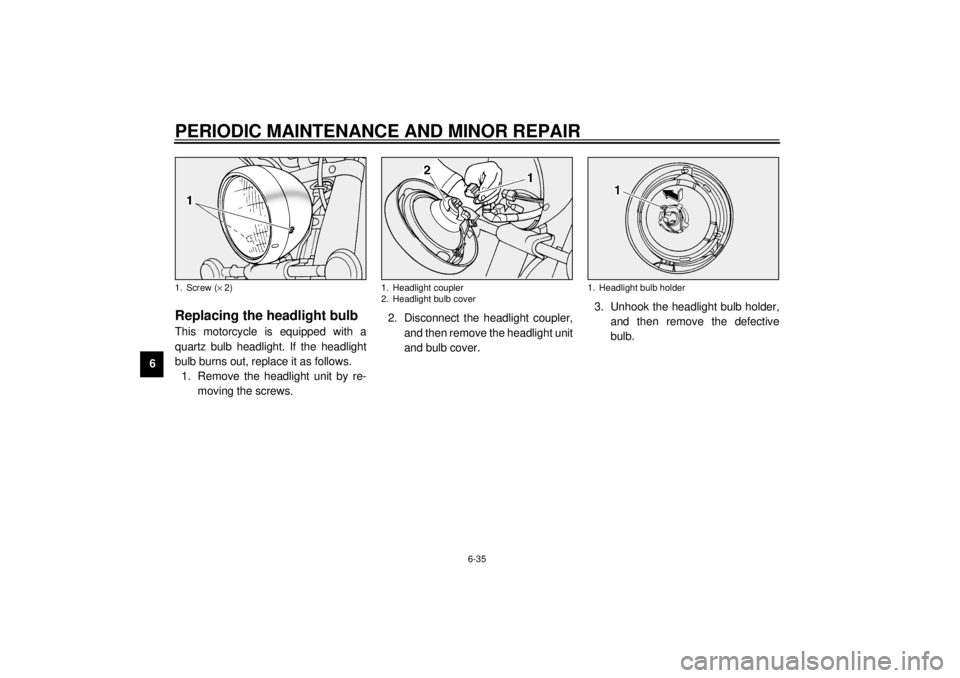

bulb.1. Screw (´ 2)
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
