INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU03393
Speedometer unit The speedometer unit is equipped with
a speedometer, an odometer and two
tripmeters. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeters
show the distance traveled since they
were last set to zero.Pushing the mode button (left) switch-
es the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP A” and “TRIP B” in the following
order:
CB-27E
To reset a tripmeter, select it by push-
ing the mode button (left), and then
hold down the set button (right) for at
least one second. The tripmeters can
be used to estimate the distance that
can be traveled with a full tank of fuel.
This information will enable you to plan
future fuel stops.NOTE:@ This motorcycle is not equipped with a
tachometer; however, it has a built-in
engine speed limiter, which prevents
the engine speed from exceeding ap-
proximately 4,400 r/min. @
1. Odometer/tripmeter/clock
2. Speedometer
3. Fuel gauge
4. Set button
5. Mode button
ODO TRIP A TRIP B
E_5JA.book Page 3 Saturday, August 18, 2001 3:52 PM

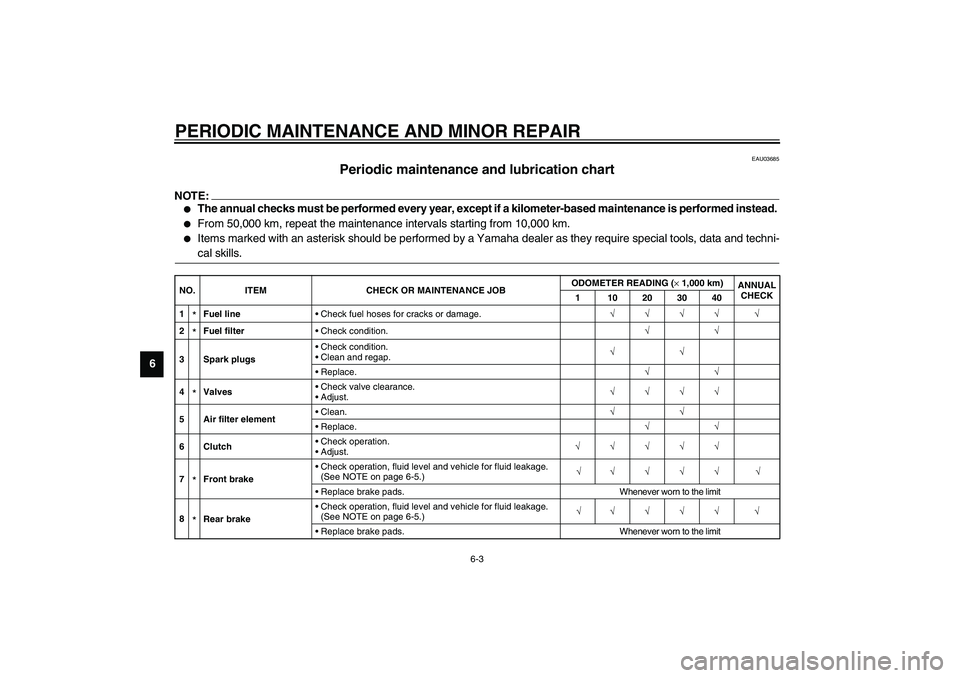

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_

The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.


From 50,000 km, repeat the maintenance intervals starting from 10,000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-01ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses for cracks or damage.√√√√ √
2*Fuel filter Check condition.√√
3 Spark plugs Check condition.
 Clean and regap.√√
Replace.√√
4*Valves Check valve clearance.
 Adjust.√√√√
5 Air filter element Clean.√√
Replace.√√
6Clutch Check operation.
 Adjust.√√√√√
7*Front brake Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√ √ √ √ √
 Replace brake pads. Whenever worn to the limit
8*Rear brake Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√ √ √ √ √
 Replace brake pads. Whenever worn to the limit
E_5JA_Periodic.fm Page 3 Saturday, August 18, 2001 5:37 PM

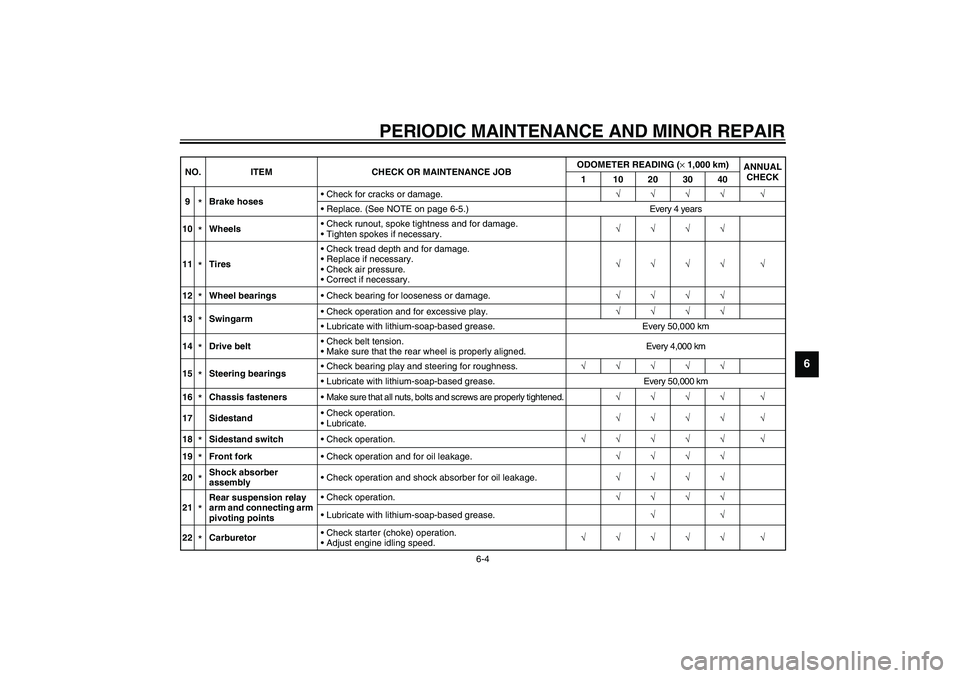

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
9
*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-5.) Every 4 years
10*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√√
11*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
12*Wheel bearingsCheck bearing for looseness or damage.√√√√
13*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
14*Drive beltCheck belt tension.
Make sure that the rear wheel is properly aligned.Every 4,000 km
15*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
16*Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.√√√√ √
17 SidestandCheck operation.
Lubricate.√√√√ √
18*Sidestand switchCheck operation.√√√√√ √
19*Front forkCheck operation and for oil leakage.√√√√
20*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
21*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based grease.√√
22*CarburetorCheck starter (choke) operation.
Adjust engine idling speed.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
E_5JA_Periodic.fm Page 4 Saturday, August 18, 2001 5:37 PM

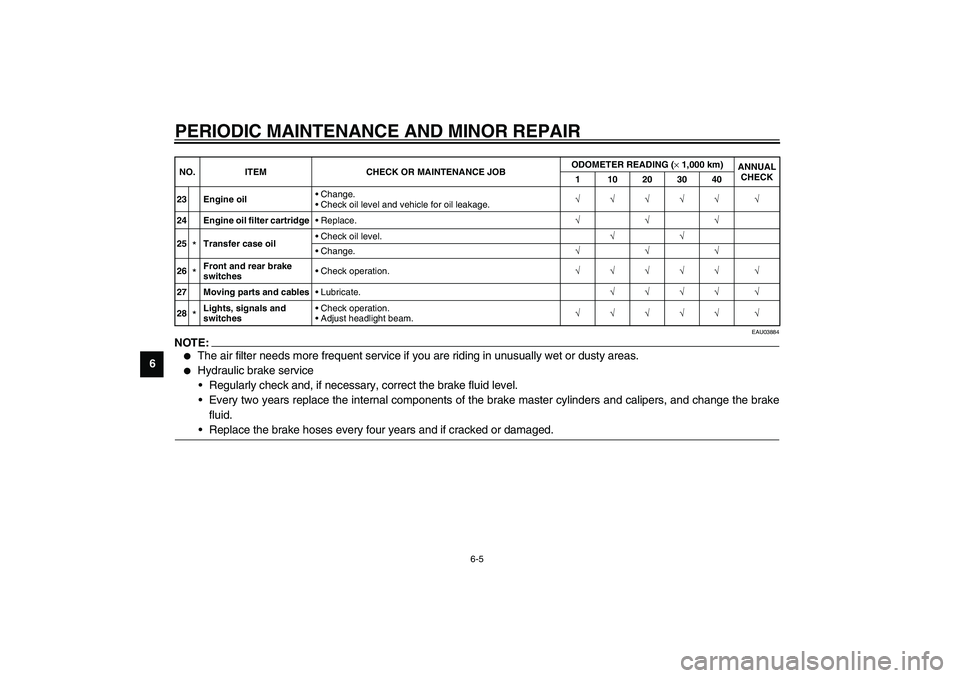

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU03884
NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_23 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
24 Engine oil filter cartridgeReplace.√√√
25
*Transfer case oilCheck oil level.√√
Change.√√√
26*Front and rear brake
switchesCheck operation.√√√√√ √
27 Moving parts and cablesLubricate.√√√√ √
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
E_5JA_Periodic.fm Page 5 Saturday, August 18, 2001 5:37 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU04245*
Replacing the fuses The main fuse box is located behind
panel A. (See page 6-6 for panel re-
moval and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel A. (See page 6-6 for panel
removal and installation procedures.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Bolt
1. Signaling system fuse
2. Ignition fuse
3. Headlight fuse
4. Carburetor heater fuse
5. Backup fuse (odometer)
6. Spare fuse (× 3)
1. Main fuse
2. Spare main fuse
Specified fuses:
Main fuse: 30 A
Ignition fuse: 15 A
Signaling system fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 10 A
Backup fuse (odometer): 5 A
E_5JA.book Page 35 Saturday, August 18, 2001 3:52 PM

SPECIFICATIONS
8-4
8
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Tail/brake light 12 V, 5/21 W × 1
Turn signal lights 12 V, 21 W × 4
Auxiliary light 12 V, 4 W × 1
Meter lighting 14 V, 0.6 W × 4
Neutral indicator light 12 V, 1 W × 1
High beam indicator light 12 V, 1 W × 1
Turn indicator light 12 V, 1 W × 1
Fuel level warning light LED × 1
Engine trouble warning light LED × 1
Fuses
Main fuse 30 A
Ignition fuse 15 A
Signaling system fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 10 A
Backup fuse (odometer) 5 A
