INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU03393

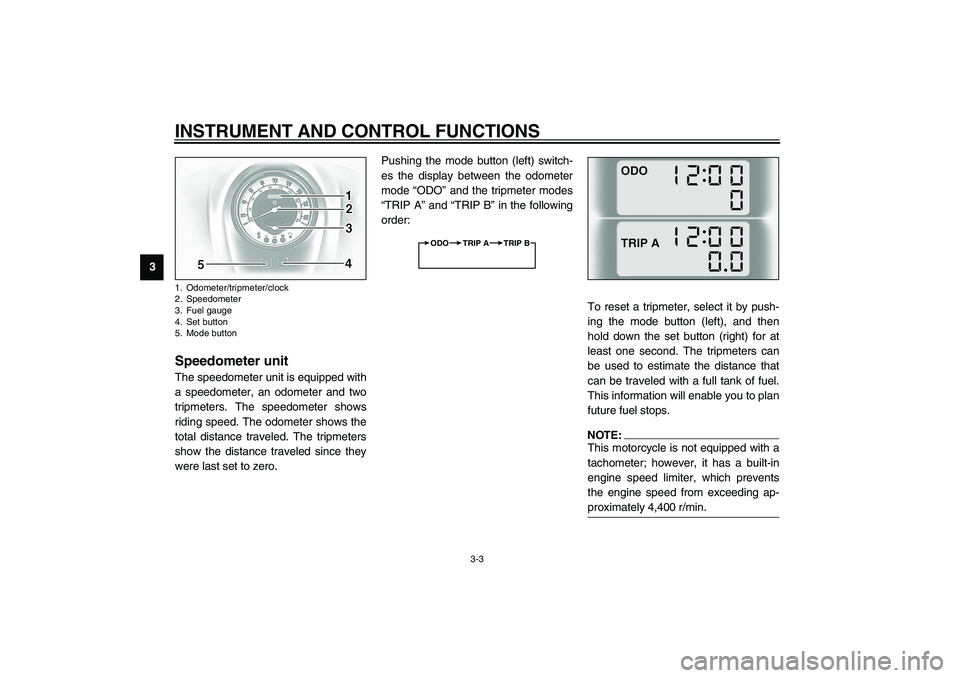

Speedometer unit The speedometer unit is equipped with
a speedometer, an odometer and two
tripmeters. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeters
show the distance traveled since they
were last set to zero.Pushing the mode button (left) switch-
es the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP A” and “TRIP B” in the following
order:
CB-27E
To reset a tripmeter, select it by push-
ing the mode button (left), and then
hold down the set button (right) for at
least one second. The tripmeters can
be used to estimate the distance that
can be traveled with a full tank of fuel.
This information will enable you to plan
future fuel stops.NOTE:@ This motorcycle is not equipped with a
tachometer; however, it has a built-in
engine speed limiter, which prevents
the engine speed from exceeding ap-
proximately 4,400 r/min. @
1. Odometer/tripmeter/clock
2. Speedometer
3. Fuel gauge
4. Set button
5. Mode button
ODO TRIP A TRIP B
E_5JA.book Page 3 Saturday, August 18, 2001 3:52 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU01736

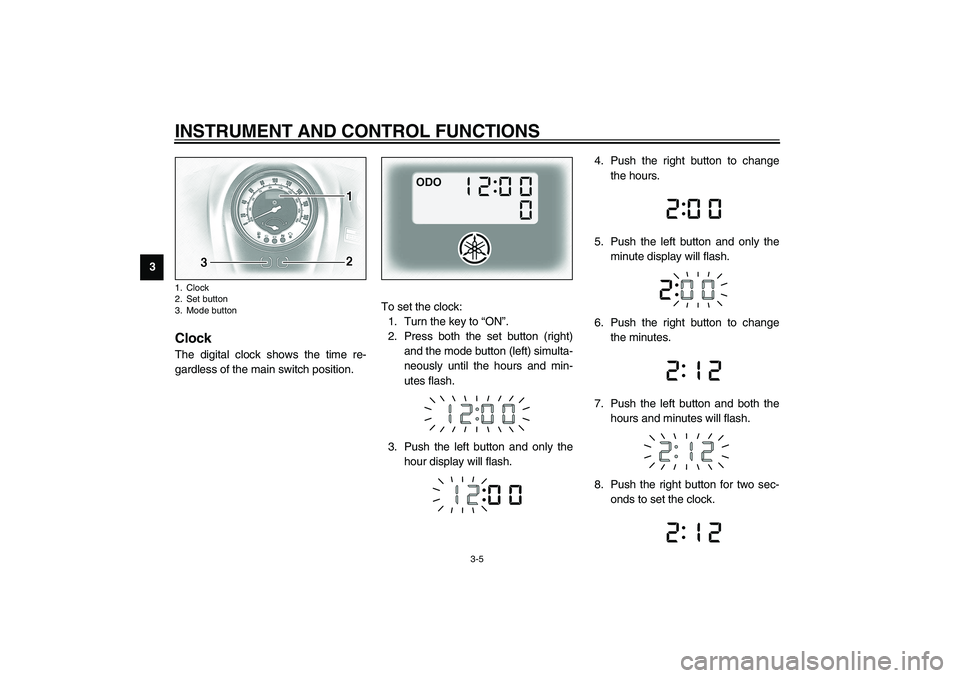

Clock The digital clock shows the time re-
gardless of the main switch position.To set the clock:
1. Turn the key to “ON”.
2. Press both the set button (right)
and the mode button (left) simulta-
neously until the hours and min-
utes flash.
3. Push the left button and only the
hour display will flash.4. Push the right button to change
the hours.
5. Push the left button and only the
minute display will flash.
6. Push the right button to change
the minutes.
7. Push the left button and both the
hours and minutes will flash.
8. Push the right button for two sec-
onds to set the clock.1. Clock
2. Set button
3. Mode buttonE_5JA.book Page 5 Saturday, August 18, 2001 3:52 PM
