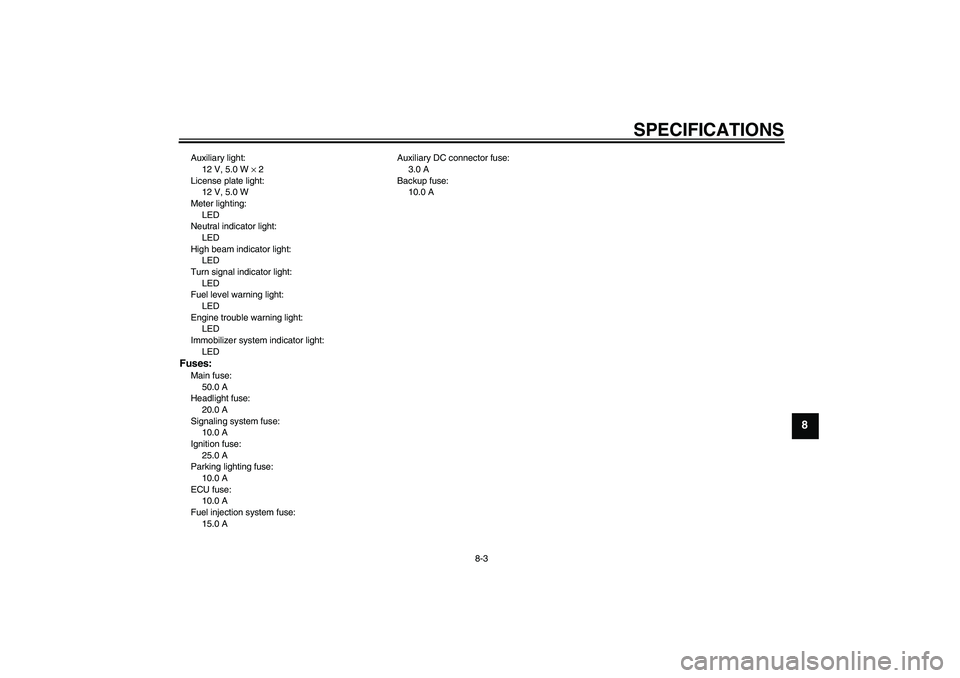

SPECIFICATIONS
8-3
8
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 A
ECU fuse:
10.0 A
Fuel injection system fuse:
15.0 AAuxiliary DC connector fuse:
3.0 A
Backup fuse:
10.0 A
U5C4E1E0.book Page 3 Monday, November 13, 2006 1:14 PM

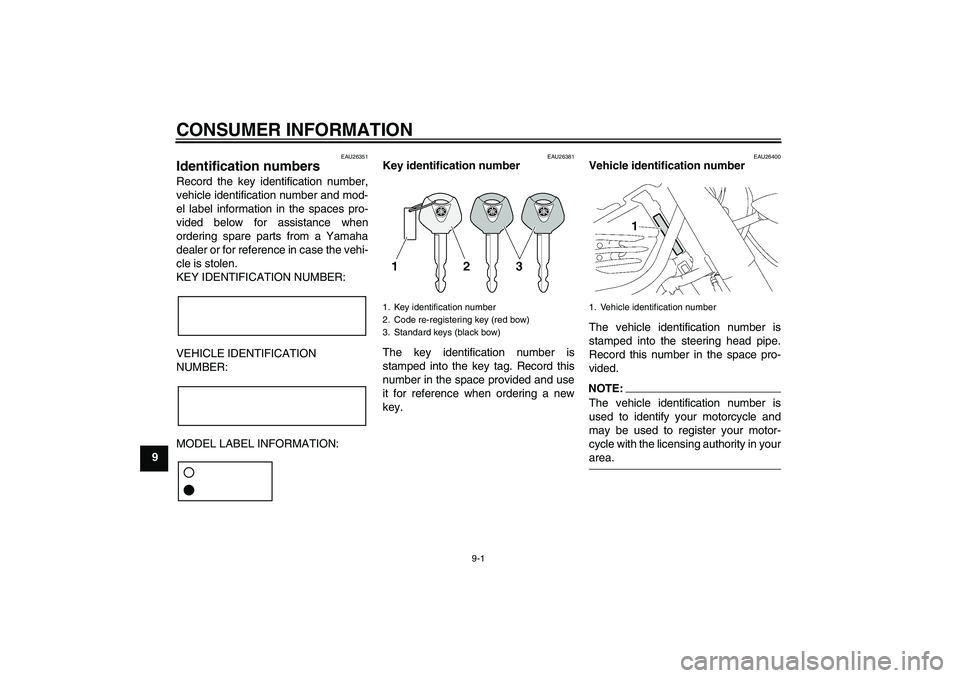

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM

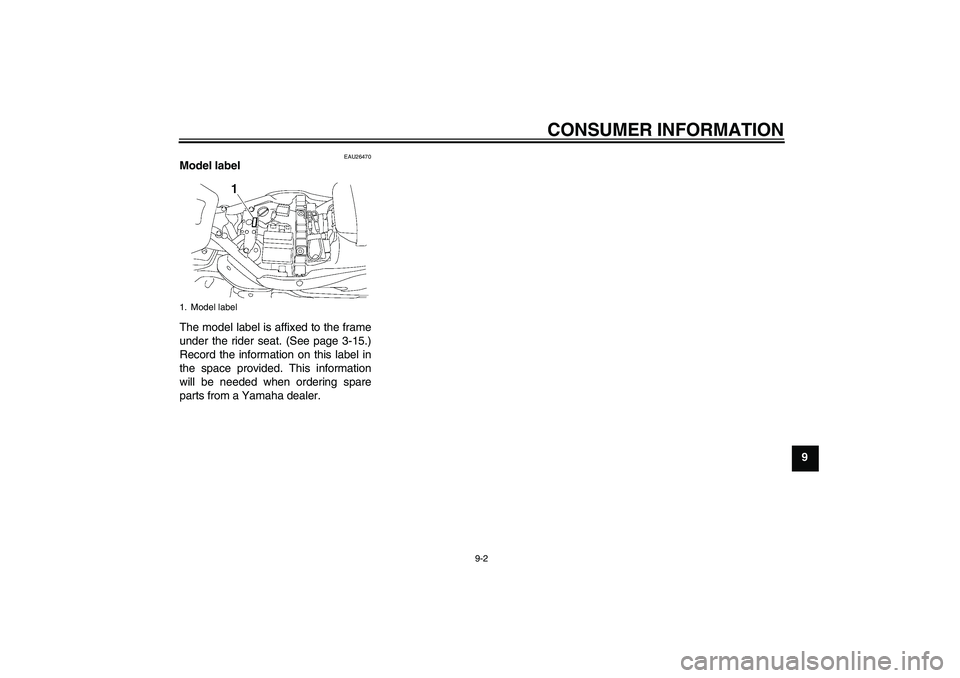

CONSUMER INFORMATION
9-2
9
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-15.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U5C4E1E0.book Page 2 Monday, November 13, 2006 1:14 PM

INDEXAAir filter element .................................... 6-10
Anti-theft alarm (optional)...................... 3-10
Auxiliary DC connector ......................... 3-22
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-22
Brake and clutch fluid levels,
checking ............................................. 6-15
Brake and clutch fluids, changing ......... 6-16
Brake and clutch levers, checking
and lubricating .................................... 6-19
Brake and shift pedals, checking
and lubricating .................................... 6-18
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-13CCables, checking and lubricating .......... 6-17
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever .................................. 3-12, 6-14DDimmer switch ...................................... 3-11
Drive belt slack...................................... 6-17EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-7
Engine stop switch ................................ 3-11
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-19FFront and rear brake pads, checking .... 6-14
Front fork, checking .............................. 6-20
Fuel ....................................................... 3-14Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose........................ 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-23
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-24
Helmet holder ....................................... 3-16
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-11IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light ................................. 6-28MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-14
Rear suspension, lubricating ................. 6-20
Rider seat .............................................. 3-15SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-19
Sidestand, checking and lubricating...... 6-19
Spark plugs, checking ............................. 6-6
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-11
Steering, checking................................. 6-21
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-29TTail/brake light ....................................... 6-27
Throttle cable free play, checking ......... 6-11
Throttle grip and cable, checking
and lubricating .................................... 6-18
Tires ...................................................... 6-11
Tool kit..................................................... 6-1
Transfer case oil.................................... 6-10
Troubleshooting .................................... 6-30
Troubleshooting chart ........................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-28
Turn signal switch ................................. 3-11VValve clearance..................................... 6-11
U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM

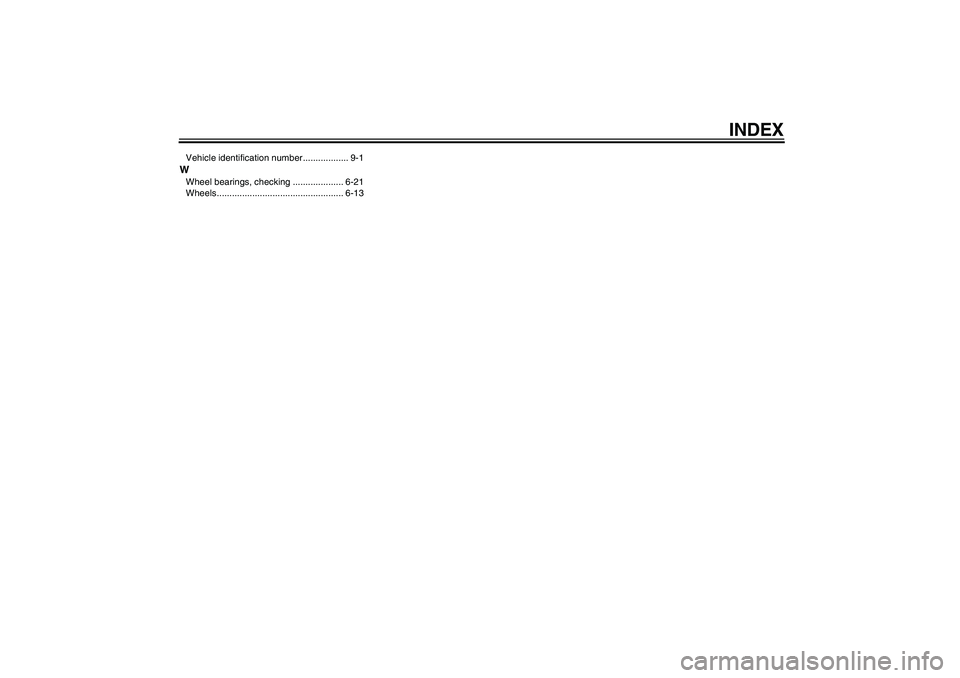

INDEX
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-21
Wheels.................................................. 6-13
U5C4E1E0.book Page 2 Monday, November 13, 2006 1:14 PM
