TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function meter unit .................3-5
Anti-theft alarm (optional) .............3-10
Handlebar switches ......................3-10
Clutch lever ...................................3-12
Shift pedal .....................................3-12
Brake lever ...................................3-12
Brake pedal ..................................3-13
Fuel tank cap ................................3-13
Fuel ...............................................3-14
Fuel tank breather hose ................3-15
Catalytic converter ........................3-15
Rider seat .....................................3-15
Helmet holder ...............................3-16
Adjusting the shock absorber
assembly ...................................3-17
EXUP system ...............................3-19
Sidestand ......................................3-19
Ignition circuit cut-off system ........3-20
Auxiliary DC connector .................3-22PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Checking the spark plugs ............... 6-6
Engine oil and oil filter cartridge ..... 6-7
Transfer case oil ........................... 6-10
Air filter element ........................... 6-10
Checking the throttle cable
free play .................................... 6-11
Valve clearance ............................ 6-11
Tires ............................................. 6-11
Cast wheels .................................. 6-13
Clutch lever .................................. 6-14
Adjusting the rear brake light
switch ........................................ 6-14
Checking the front and rear
brake pads ................................ 6-14Checking the brake and clutch
fluid levels ................................. 6-15
Changing the brake and clutch
fluids ......................................... 6-16
Drive belt slack ............................ 6-17
Checking and lubricating the
cables ....................................... 6-17
Checking and lubricating the
throttle grip and cable ............... 6-18
Checking and lubricating the
brake and shift pedals .............. 6-18
Checking and lubricating the
brake and clutch levers ............ 6-19
Checking and lubricating the
sidestand .................................. 6-19
Lubricating the rear suspension ... 6-20
Checking the front fork ................. 6-20
Checking the steering .................. 6-21
Checking the wheel bearings ....... 6-21
Battery ......................................... 6-22
Replacing the fuses ..................... 6-23
Replacing a headlight bulb .......... 6-24
Tail/brake light ............................. 6-27
Replacing a turn signal light
bulb ........................................... 6-28
License plate light ........................ 6-28
Replacing an auxiliary light
bulb ........................................... 6-28
Supporting the motorcycle ........... 6-29
Troubleshooting ........................... 6-30
Troubleshooting chart .................. 6-31U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM
Page 18 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11361
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal) (0.66 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the elec-
trical circuit.NOTE:This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning lightwill flash eight times, and then go off for
3.0 seconds. If this occurs, have a
Yamaha dealer check the vehicle.
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-5 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
1. Neutral indicator light “”
2. Immobilizer system indicator light
3. High beam indicator light “”
4. Right turn signal indicator light “”
5. Left turn signal indicator light “”
6. Engine trouble warning light “”
7. Fuel level warning light “”U5C4E1E0.book Page 4 Monday, November 13, 2006 1:14 PM
Page 22 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-8
31. Push the “SELECT” switch to
change the display to the clock
mode.
2. Push the “SELECT” and “RESET”
switches together for at least two
seconds.
3. When the hour digits start flashing,
push the “RESET” switch to set the
hours.
4. Push the “SELECT” switch, and
the minute digits will start flashing.
5. Push the “RESET” switch to set
the minutes.
6. Push the “SELECT” switch and
then release it to start the clock.
Self-diagnosis devices
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripme-
ter/clock display will indicate a two-digit
error code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.
NOTE:If the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
CAUTION:
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
U5C4E1E0.book Page 8 Monday, November 13, 2006 1:14 PM
Page 40 of 88
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU36740
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-20.
Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA15070
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.
Fuel level warning light
Engine trouble warning light
Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM
Page 42 of 88
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17111
0–1000 km (0–600 mi)
Avoid prolonged operation above 2500
r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 3000
r/min.
CAUTION:
ECA10891
After 1000 km (600 mi) of operation,
the engine oil and transfer case oil
must be changed, and the oil filtercartridge or element replaced.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-cle.
U5C4E1E0.book Page 3 Monday, November 13, 2006 1:14 PM
Page 47 of 88

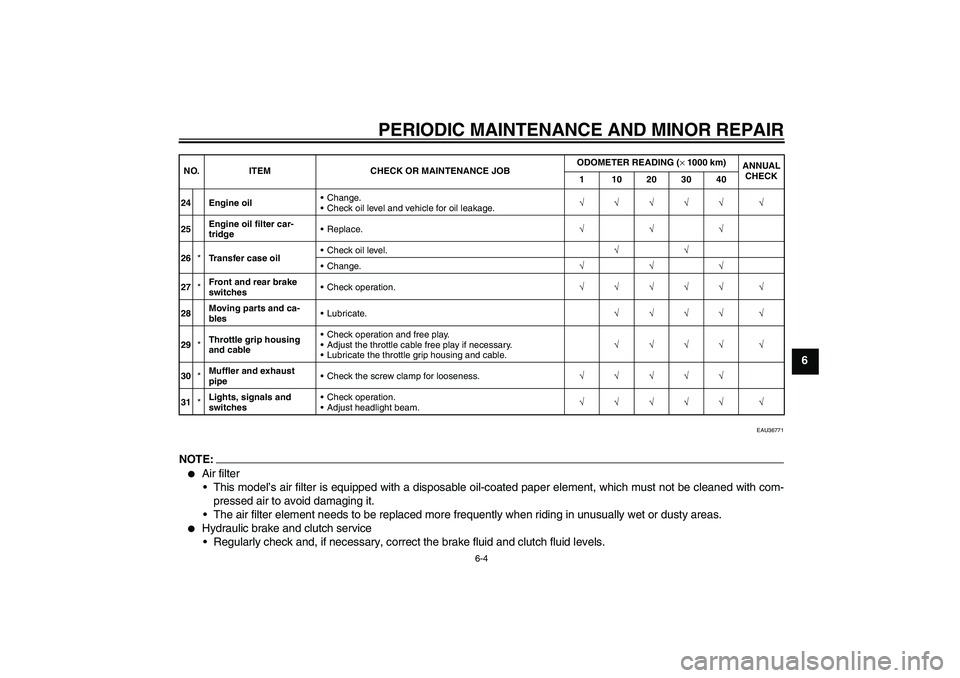

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU36771
NOTE:
Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
24 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
25Engine oil filter car-
tridgeReplace.√√√
26*Transfer case oilCheck oil level.√√
Change.√√√
27*Front and rear brake
switchesCheck operation.√√√√√ √
28Moving parts and ca-
blesLubricate.√√√√ √
29*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
30*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
31*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U5C4E1E0.book Page 4 Monday, November 13, 2006 1:14 PM
Page 49 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
Specified spark plug:
NGK/DPR8EA-9
DENSO/X24EPR-U9
1. Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U5C4E1E0.book Page 6 Monday, November 13, 2006 1:14 PM
Page 50 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU38361
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Remove the rider seat. (See page
3-15.)
3. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.
NOTE:To achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down, and then
warmed up again for several minutes tonormal operating temperature.
4. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.NOTE:The engine oil should be between theminimum and maximum level marks.5. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
NOTE:When adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portionon the dipstick.
6. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
7. Install the rider seat.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Dipstick
U5C4E1E0.book Page 7 Monday, November 13, 2006 1:14 PM
Page 72 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
64. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulbU5C4E1E0.book Page 29 Monday, November 13, 2006 1:14 PM
Page 84 of 88
INDEXAAir filter element .................................... 6-10
Anti-theft alarm (optional)...................... 3-10
Auxiliary DC connector ......................... 3-22
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-22
Brake and clutch fluid levels,
checking ............................................. 6-15
Brake and clutch fluids, changing ......... 6-16
Brake and clutch levers, checking
and lubricating .................................... 6-19
Brake and shift pedals, checking
and lubricating .................................... 6-18
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-13CCables, checking and lubricating .......... 6-17
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever .................................. 3-12, 6-14DDimmer switch ...................................... 3-11
Drive belt slack...................................... 6-17EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-7
Engine stop switch ................................ 3-11
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-19FFront and rear brake pads, checking .... 6-14
Front fork, checking .............................. 6-20
Fuel ....................................................... 3-14Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose........................ 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-23
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-24
Helmet holder ....................................... 3-16
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-11IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light ................................. 6-28MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-14
Rear suspension, lubricating ................. 6-20
Rider seat .............................................. 3-15SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-19
Sidestand, checking and lubricating...... 6-19
Spark plugs, checking ............................. 6-6
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-11
Steering, checking................................. 6-21
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-29TTail/brake light ....................................... 6-27
Throttle cable free play, checking ......... 6-11
Throttle grip and cable, checking
and lubricating .................................... 6-18
Tires ...................................................... 6-11
Tool kit..................................................... 6-1
Transfer case oil.................................... 6-10
Troubleshooting .................................... 6-30
Troubleshooting chart ........................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-28
Turn signal switch ................................. 3-11VValve clearance..................................... 6-11
U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM
