Page 6 of 88

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function meter unit .................3-5
Anti-theft alarm (optional) .............3-10
Handlebar switches ......................3-10
Clutch lever ...................................3-12
Shift pedal .....................................3-12
Brake lever ...................................3-12
Brake pedal ..................................3-13
Fuel tank cap ................................3-13
Fuel ...............................................3-14
Fuel tank breather hose ................3-15
Catalytic converter ........................3-15
Rider seat .....................................3-15
Helmet holder ...............................3-16
Adjusting the shock absorber
assembly ...................................3-17
EXUP system ...............................3-19
Sidestand ......................................3-19
Ignition circuit cut-off system ........3-20
Auxiliary DC connector .................3-22PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Checking the spark plugs ............... 6-6
Engine oil and oil filter cartridge ..... 6-7
Transfer case oil ........................... 6-10
Air filter element ........................... 6-10
Checking the throttle cable
free play .................................... 6-11
Valve clearance ............................ 6-11
Tires ............................................. 6-11
Cast wheels .................................. 6-13
Clutch lever .................................. 6-14
Adjusting the rear brake light
switch ........................................ 6-14
Checking the front and rear
brake pads ................................ 6-14Checking the brake and clutch
fluid levels ................................. 6-15
Changing the brake and clutch
fluids ......................................... 6-16
Drive belt slack ............................ 6-17
Checking and lubricating the
cables ....................................... 6-17
Checking and lubricating the
throttle grip and cable ............... 6-18
Checking and lubricating the
brake and shift pedals .............. 6-18
Checking and lubricating the
brake and clutch levers ............ 6-19
Checking and lubricating the
sidestand .................................. 6-19
Lubricating the rear suspension ... 6-20
Checking the front fork ................. 6-20
Checking the steering .................. 6-21
Checking the wheel bearings ....... 6-21
Battery ......................................... 6-22
Replacing the fuses ..................... 6-23
Replacing a headlight bulb .......... 6-24
Tail/brake light ............................. 6-27
Replacing a turn signal light
bulb ........................................... 6-28
License plate light ........................ 6-28
Replacing an auxiliary light
bulb ........................................... 6-28
Supporting the motorcycle ........... 6-29
Troubleshooting ........................... 6-30
Troubleshooting chart .................. 6-31U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM
Page 67 of 88

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU41190
Replacing a headlight bulb This model features a headlight
equipped with two quartz bulbs. If the
high beam or the low beam bulb burns
out, replace it as follows.
Removing the headlight unit
1. Remove the headlight cover by re-
moving the bolts.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
ECU fuse:
10.0 A
Auxiliary DC connector fuse:
3.0 A
Parking lighting fuse:
10.0 A
Backup fuse:
10.0 A
1. Low beam headlight bulb
2. High beam headlight bulb
U5C4E1E0.book Page 24 Monday, November 13, 2006 1:14 PM
Page 71 of 88

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU38380
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw, and then
turning the lens counterclockwise.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by turning it clock-
wise, and then installing the screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU24330
License plate light If the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU40760
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the headlight unit. (See
page 6-24.)
2. Remove the auxiliary light socket
(together with the coupler) by turn-
ing the socket counterclockwise.
3. Remove the defective bulb by pull-
ing it out.
1. Screw
1. Auxiliary light bulb socket
U5C4E1E0.book Page 28 Monday, November 13, 2006 1:14 PM
Page 80 of 88

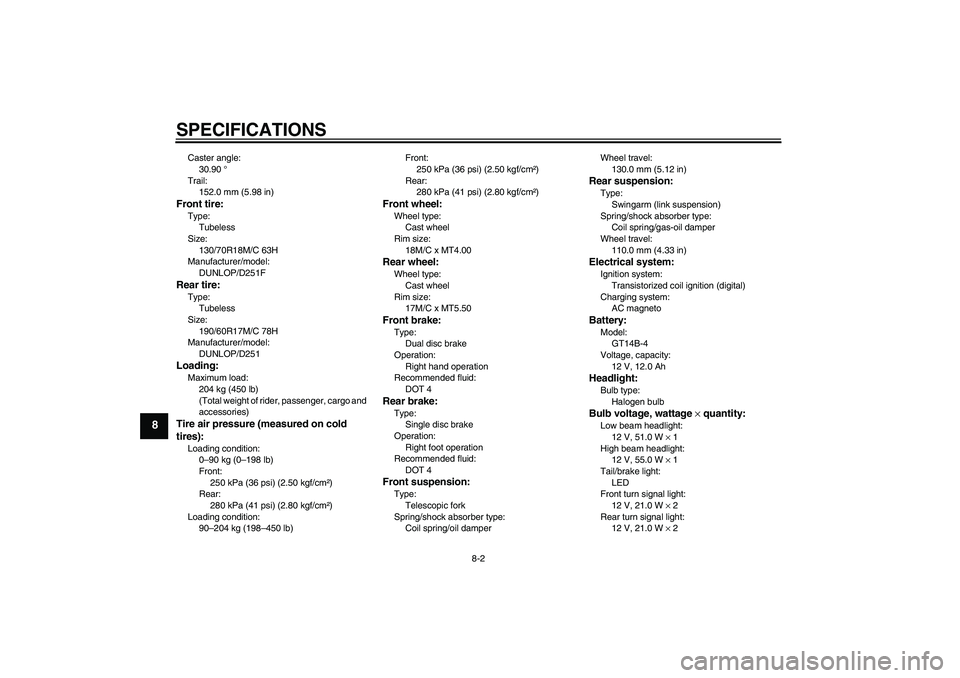

SPECIFICATIONS
8-2
8
Caster angle:
30.90 °
Trail:
152.0 mm (5.98 in)Front tire:Type:
Tubeless
Size:
130/70R18M/C 63H
Manufacturer/model:
DUNLOP/D251FRear tire:Type:
Tubeless
Size:
190/60R17M/C 78H
Manufacturer/model:
DUNLOP/D251Loading:Maximum load:
204 kg (450 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
280 kPa (41 psi) (2.80 kgf/cm²)
Loading condition:
90–204 kg (198–450 lb)Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
280 kPa (41 psi) (2.80 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
18M/C x MT4.00Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damperWheel travel:
130.0 mm (5.12 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
110.0 mm (4.33 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 51.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
U5C4E1E0.book Page 2 Monday, November 13, 2006 1:14 PM
Page 84 of 88

INDEXAAir filter element .................................... 6-10
Anti-theft alarm (optional)...................... 3-10
Auxiliary DC connector ......................... 3-22
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-22
Brake and clutch fluid levels,
checking ............................................. 6-15
Brake and clutch fluids, changing ......... 6-16
Brake and clutch levers, checking
and lubricating .................................... 6-19
Brake and shift pedals, checking
and lubricating .................................... 6-18
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-13CCables, checking and lubricating .......... 6-17
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever .................................. 3-12, 6-14DDimmer switch ...................................... 3-11
Drive belt slack...................................... 6-17EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-7
Engine stop switch ................................ 3-11
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-19FFront and rear brake pads, checking .... 6-14
Front fork, checking .............................. 6-20
Fuel ....................................................... 3-14Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose........................ 3-15
Fuel tank cap ........................................ 3-13
Fuses, replacing ................................... 6-23
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-24
Helmet holder ....................................... 3-16
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-11IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light ................................. 6-28MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5NNeutral indicator light .............................. 3-4PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-14
Rear suspension, lubricating ................. 6-20
Rider seat .............................................. 3-15SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-19
Sidestand, checking and lubricating...... 6-19
Spark plugs, checking ............................. 6-6
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-11
Steering, checking................................. 6-21
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-29TTail/brake light ....................................... 6-27
Throttle cable free play, checking ......... 6-11
Throttle grip and cable, checking
and lubricating .................................... 6-18
Tires ...................................................... 6-11
Tool kit..................................................... 6-1
Transfer case oil.................................... 6-10
Troubleshooting .................................... 6-30
Troubleshooting chart ........................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-28
Turn signal switch ................................. 3-11VValve clearance..................................... 6-11
U5C4E1E0.book Page 1 Monday, November 13, 2006 1:14 PM
