PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6

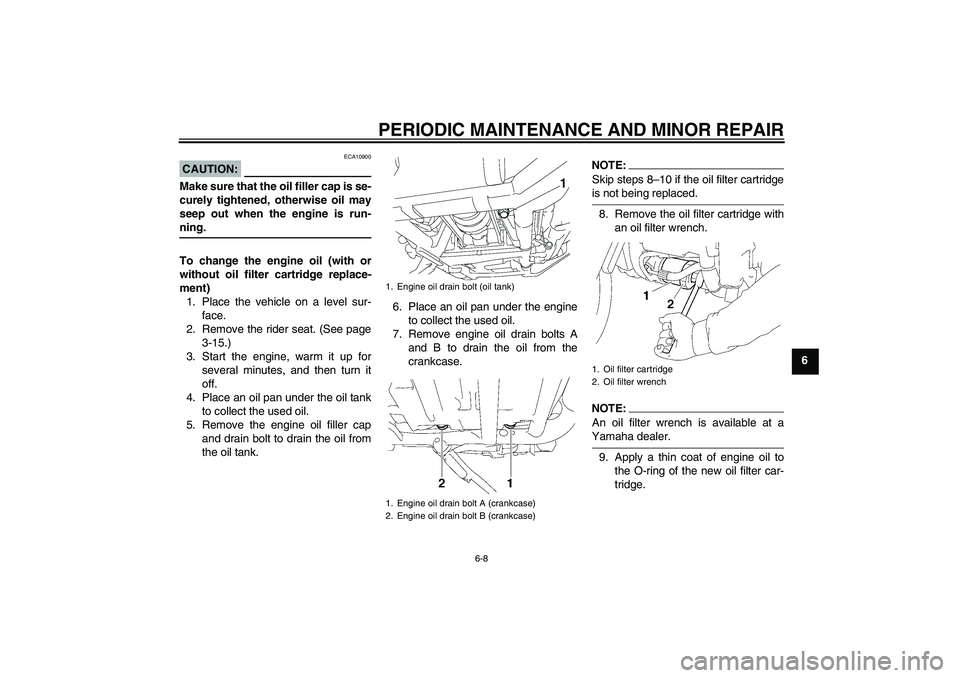

CAUTION:
ECA10900
Make sure that the oil filler cap is se-
curely tightened, otherwise oil may
seep out when the engine is run-ning.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Remove the rider seat. (See page
3-15.)
3. Start the engine, warm it up for
several minutes, and then turn it
off.
4. Place an oil pan under the oil tank
to collect the used oil.
5. Remove the engine oil filler cap
and drain bolt to drain the oil from
the oil tank.6. Place an oil pan under the engine
to collect the used oil.
7. Remove engine oil drain bolts A
and B to drain the oil from the
crankcase.
NOTE:Skip steps 8–10 if the oil filter cartridgeis not being replaced.
8. Remove the oil filter cartridge with
an oil filter wrench.NOTE:An oil filter wrench is available at aYamaha dealer.
9. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
1. Engine oil drain bolt (oil tank)
1. Engine oil drain bolt A (crankcase)
2. Engine oil drain bolt B (crankcase)
1. Oil filter cartridge
2. Oil filter wrench
U5C4E2E0.book Page 8 Friday, September 7, 2007 4:17 PM
Page 52 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
NOTE:
Make sure that the O-ring is properlyseated.
10. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.11. Install the engine oil drain bolts,
and then tighten them to the spec-
ified torques.12. Pour only 2.5 L (2.6 US qt) (2.2
Imp.qt) of the specified amount of
recommended engine oil through
the filler hole, insert the dipstick,
and then tighten the oil filler cap.
13. Start the engine, rev it several
times, and then turn it off.
14. Remove the engine oil filler cap,
and then gradually fill the oil tank
with the remaining oil quantity
while regularly checking the oil lev-
el on the dipstick.
NOTE:Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.
1. O-ring
1. Oil filter cartridge
2. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torques:
Engine oil drain bolt A (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt B (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt (oil tank):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
4.10 L (4.33 US qt) (3.61 Imp.qt)
With oil filter cartridge replacement:
4.90 L (5.18 US qt) (4.31 Imp.qt)
U5C4E2E0.book Page 9 Friday, September 7, 2007 4:17 PM
Page 53 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
CAUTION:
ECA15080
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the oil tank.
15. Install the engine oil filler cap.16. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
17. Turn the engine off, and then
check the oil level and correct it if
necessary.
18. Install the rider seat.
EAU20051
Transfer case oil The transfer case must be checked for
oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the vehicle. In addi-
tion, the transfer case oil level should
be checked and the oil must be
changed by a Yamaha dealer at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U5C4E2E0.book Page 10 Friday, September 7, 2007 4:17 PM
Page 54 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EAU36762
Air filter element The air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Throttle cable free play
U5C4E2E0.book Page 11 Friday, September 7, 2007 4:17 PM
Page 55 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
EAU21561

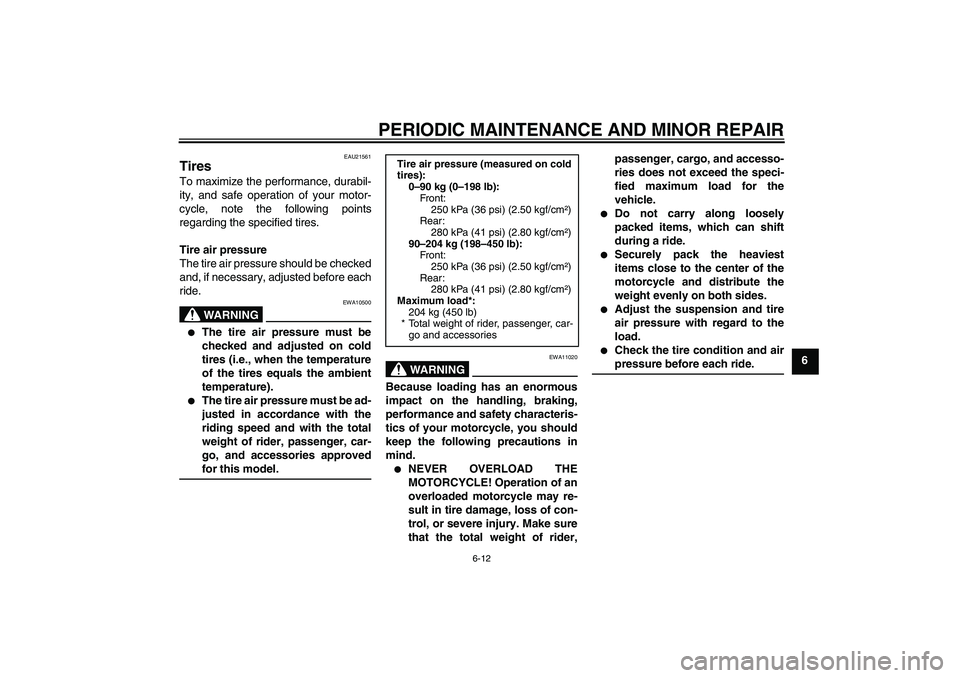

Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and airpressure before each ride.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Fr o nt :
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
280 kPa (41 psi) (2.80 kgf/cm²)
90–204 kg (198–450 lb):
Fr o nt :
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
280 kPa (41 psi) (2.80 kgf/cm²)
Maximum load*:
204 kg (450 lb)
* Total weight of rider, passenger, car-
go and accessories
U5C4E2E0.book Page 12 Friday, September 7, 2007 4:17 PM
Page 56 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13

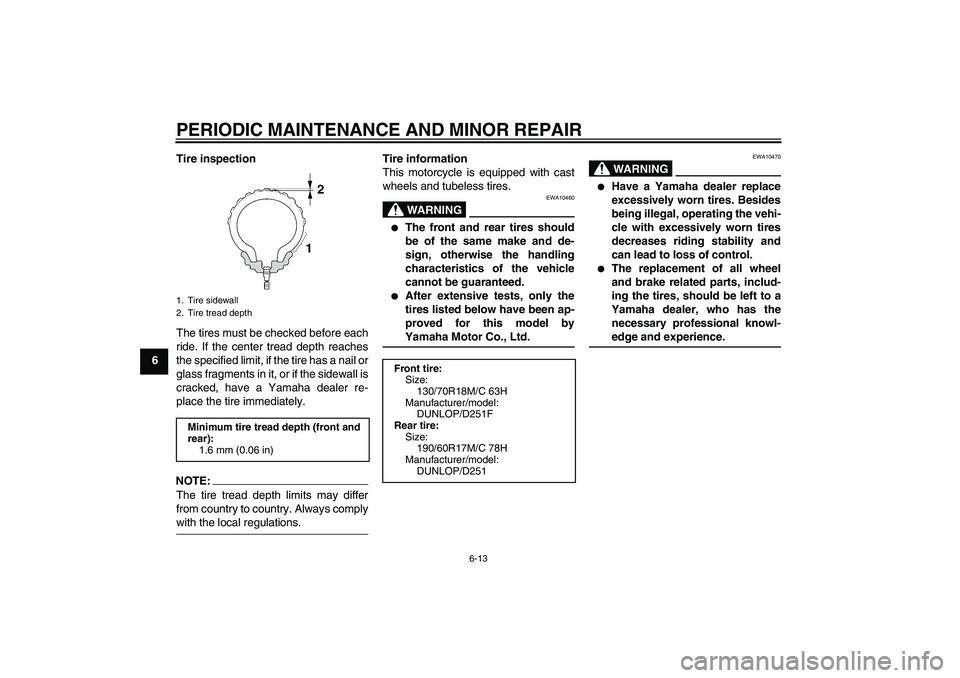

6Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.Tire information
This motorcycle is equipped with cast
wheels and tubeless tires.
WARNING
EWA10460
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model byYamaha Motor Co., Ltd.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
Front tire:
Size:
130/70R18M/C 63H
Manufacturer/model:
DUNLOP/D251F
Rear tire:
Size:
190/60R17M/C 78H
Manufacturer/model:
DUNLOP/D251
U5C4E2E0.book Page 13 Friday, September 7, 2007 4:17 PM
Page 57 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
EAU21960

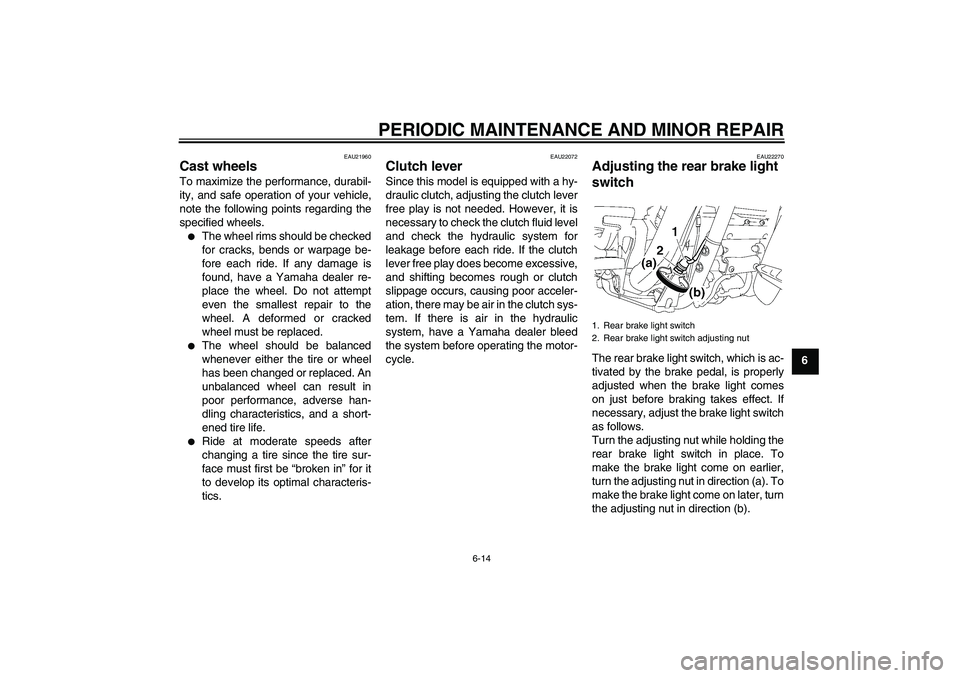

Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU22072
Clutch lever Since this model is equipped with a hy-
draulic clutch, adjusting the clutch lever
free play is not needed. However, it is
necessary to check the clutch fluid level
and check the hydraulic system for
leakage before each ride. If the clutch
lever free play does become excessive,
and shifting becomes rough or clutch
slippage occurs, causing poor acceler-
ation, there may be air in the clutch sys-
tem. If there is air in the hydraulic
system, have a Yamaha dealer bleed
the system before operating the motor-
cycle.
EAU22270
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction (a). To
make the brake light come on later, turn
the adjusting nut in direction (b).1. Rear brake light switch
2. Rear brake light switch adjusting nut
U5C4E2E0.book Page 14 Friday, September 7, 2007 4:17 PM
Page 58 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU22390

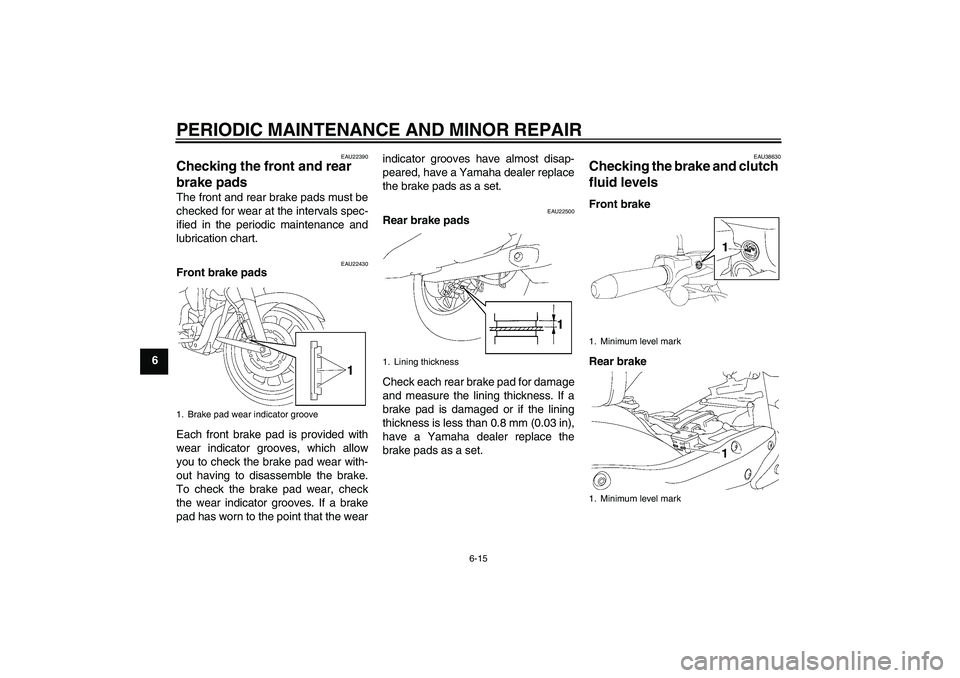

Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU38630
Checking the brake and clutch
fluid levels Front brake
Rear brake
1. Brake pad wear indicator groove
1. Lining thickness
1. Minimum level mark
1. Minimum level mark
U5C4E2E0.book Page 15 Friday, September 7, 2007 4:17 PM
Page 59 of 88

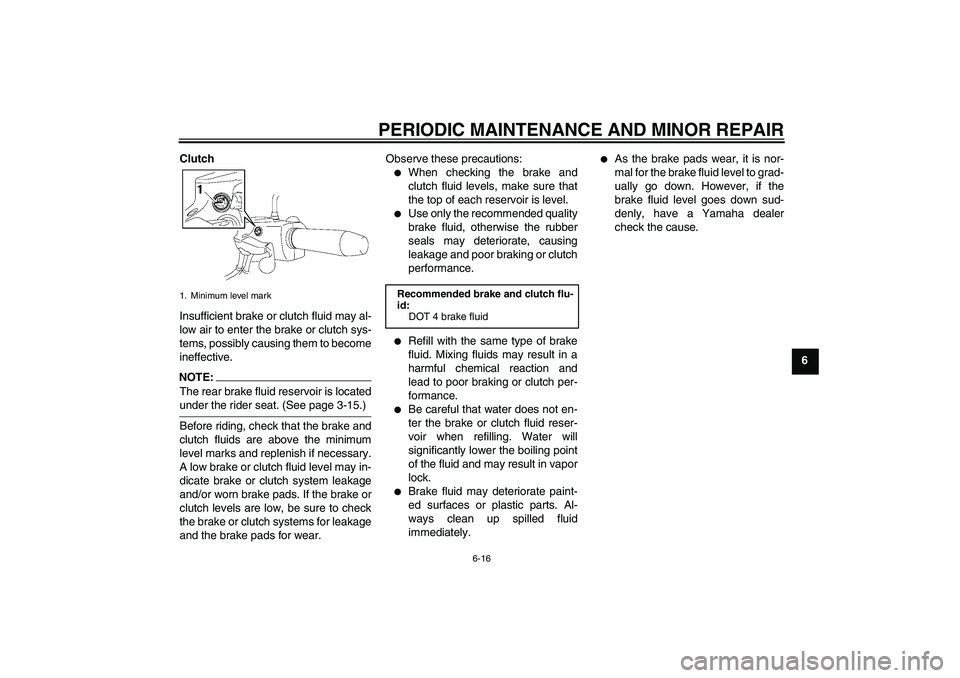

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 Clutch
Insufficient brake or clutch fluid may al-
low air to enter the brake or clutch sys-
tems, possibly causing them to become
ineffective.
NOTE:The rear brake fluid reservoir is locatedunder the rider seat. (See page 3-15.)
Before riding, check that the brake and
clutch fluids are above the minimum
level marks and replenish if necessary.
A low brake or clutch fluid level may in-
dicate brake or clutch system leakage
and/or worn brake pads. If the brake or
clutch levels are low, be sure to check
the brake or clutch systems for leakage
and the brake pads for wear.Observe these precautions:
When checking the brake and
clutch fluid levels, make sure that
the top of each reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.
Be careful that water does not en-
ter the brake or clutch fluid reser-
voir when refilling. Water will
significantly lower the boiling point
of the fluid and may result in vapor
lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level mark
Recommended brake and clutch flu-
id:
DOT 4 brake fluid
U5C4E2E0.book Page 16 Friday, September 7, 2007 4:17 PM
Page 60 of 88

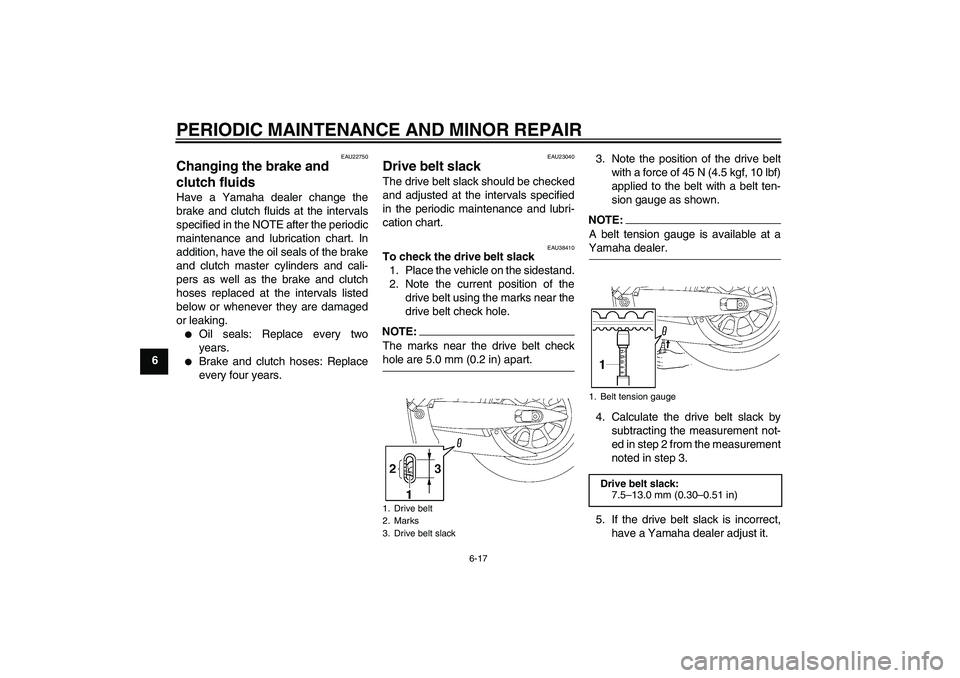

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU22750
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the NOTE after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake and clutch hoses: Replace
every four years.
EAU23040
Drive belt slack The drive belt slack should be checked
and adjusted at the intervals specified
in the periodic maintenance and lubri-
cation chart.
EAU38410
To check the drive belt slack
1. Place the vehicle on the sidestand.
2. Note the current position of the
drive belt using the marks near the
drive belt check hole.NOTE:The marks near the drive belt checkhole are 5.0 mm (0.2 in) apart.3. Note the position of the drive belt
with a force of 45 N (4.5 kgf, 10 lbf)
applied to the belt with a belt ten-
sion gauge as shown.
NOTE:A belt tension gauge is available at aYamaha dealer.
4. Calculate the drive belt slack by
subtracting the measurement not-
ed in step 2 from the measurement
noted in step 3.
5. If the drive belt slack is incorrect,
have a Yamaha dealer adjust it.
1. Drive belt
2. Marks
3. Drive belt slack
1. Belt tension gaugeDrive belt slack:
7.5–13.0 mm (0.30–0.51 in)
U5C4E2E0.book Page 17 Friday, September 7, 2007 4:17 PM
