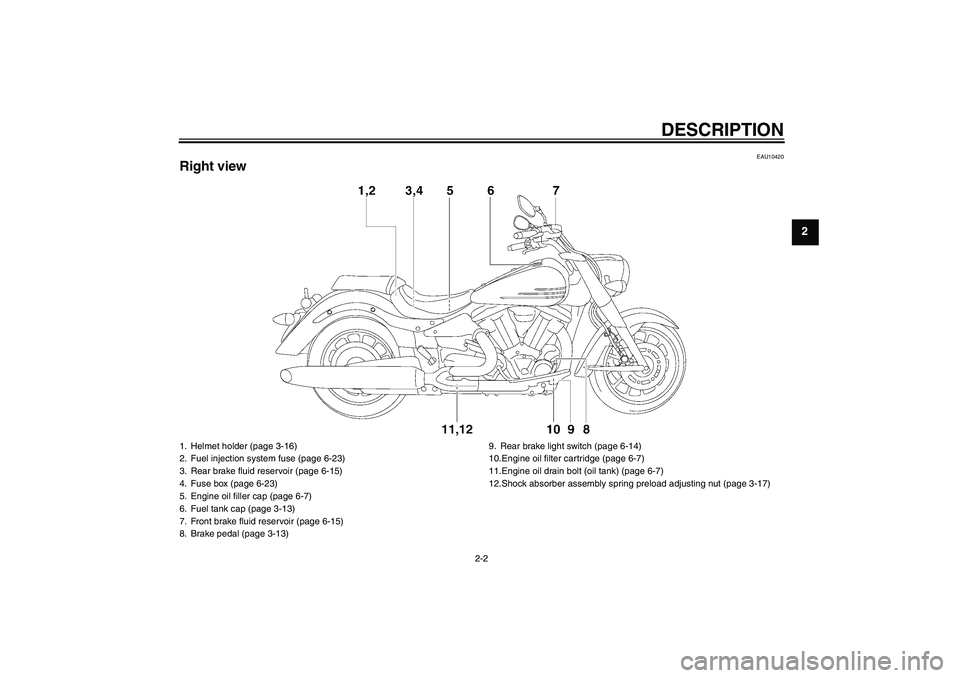

DESCRIPTION
2-2
2
EAU10420
Right view1. Helmet holder (page 3-16)
2. Fuel injection system fuse (page 6-23)
3. Rear brake fluid reservoir (page 6-15)
4. Fuse box (page 6-23)
5. Engine oil filler cap (page 6-7)
6. Fuel tank cap (page 3-13)
7. Front brake fluid reservoir (page 6-15)
8. Brake pedal (page 3-13)9. Rear brake light switch (page 6-14)
10.Engine oil filter cartridge (page 6-7)
11.Engine oil drain bolt (oil tank) (page 6-7)
12.Shock absorber assembly spring preload adjusting nut (page 3-17)
U5C4E2E0.book Page 2 Friday, September 7, 2007 4:17 PM

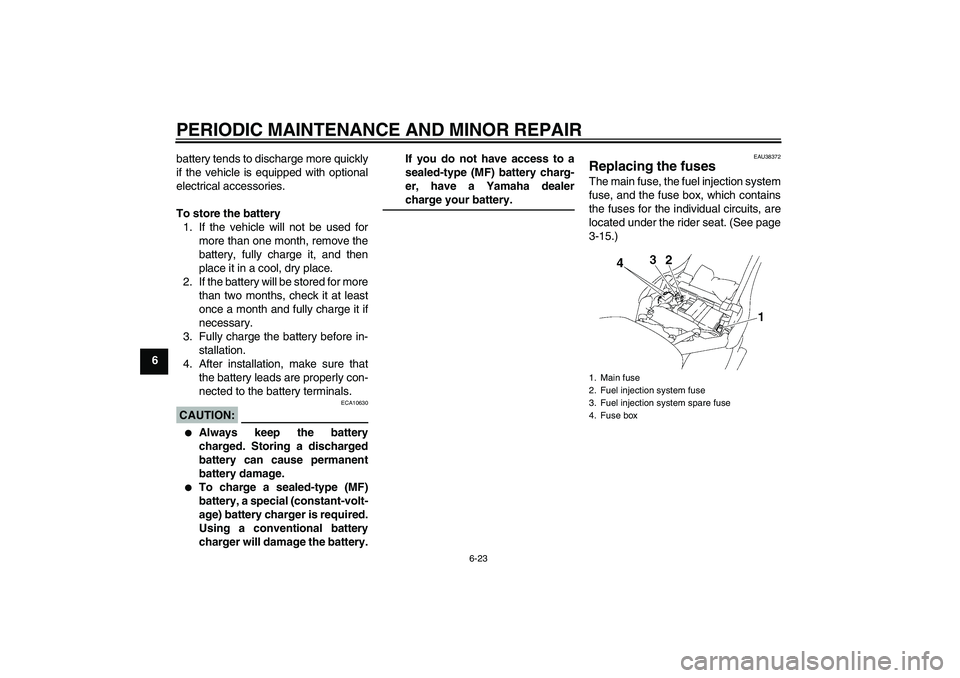

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU38372
Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the rider seat. (See page
3-15.)1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
U5C4E2E0.book Page 23 Friday, September 7, 2007 4:17 PM

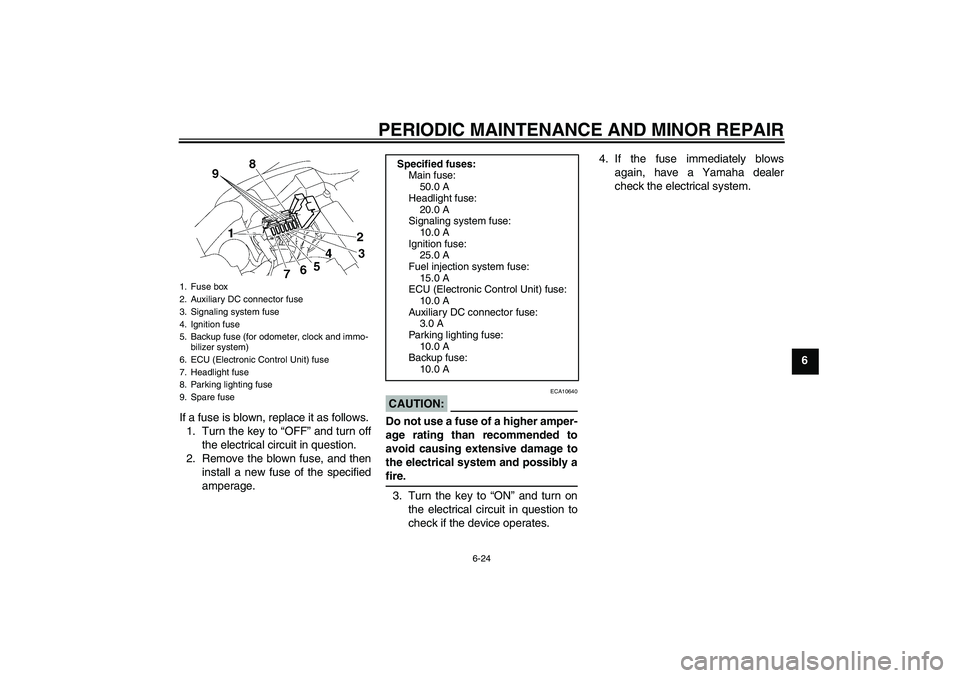

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Auxiliary DC connector fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. ECU (Electronic Control Unit) fuse
7. Headlight fuse
8. Parking lighting fuse
9. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
ECU (Electronic Control Unit) fuse:
10.0 A
Auxiliary DC connector fuse:
3.0 A
Parking lighting fuse:
10.0 A
Backup fuse:
10.0 A
