Page 15 of 96

3

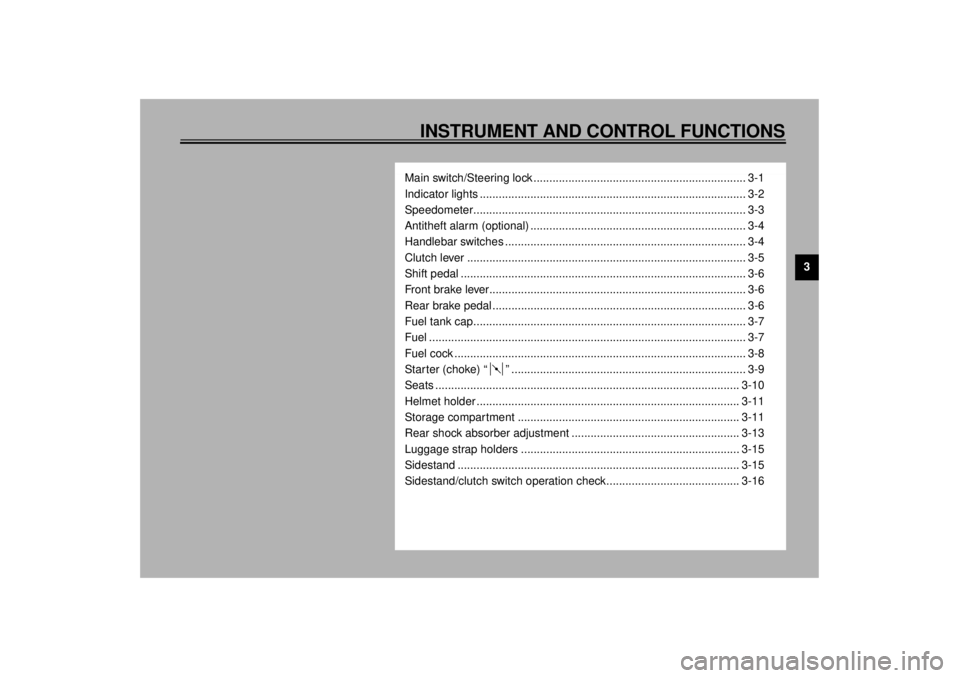

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/Steering lock ................................................................... 3-1
Indicator lights .................................................................................... 3-2
Speedometer...................................................................................... 3-3
Antitheft alarm (optional) .................................................................... 3-4
Handlebar switches ............................................................................ 3-4
Clutch lever ........................................................................................ 3-5
Shift pedal .......................................................................................... 3-6
Front brake lever................................................................................. 3-6
Rear brake pedal ................................................................................ 3-6
Fuel tank cap...................................................................................... 3-7
Fuel .................................................................................................... 3-7
Fuel cock ............................................................................................ 3-8
Starter (choke) “ ” .......................................................................... 3-9
Seats ................................................................................................ 3-10
Helmet holder ................................................................................... 3-11
Storage compartment ...................................................................... 3-11
Rear shock absorber adjustment ..................................................... 3-13
Luggage strap holders ..................................................................... 3-15
Sidestand ......................................................................................... 3-15
Sidestand/clutch switch operation check.......................................... 3-16
E_5el_FunctionsTOC.fm Page 1 Monday, May 1, 2000 9:37 AM
Page 17 of 96

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01590
(Parking)
The steering is locked in this position,
and the taillight and auxiliary light come
on but all other circuits are off. The key
can be removed in this position.
To use the parking position, first lock
the steering, then turn the key to “ ”.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
EAU00056
Indicator lights
EAU01680*
1. Oil level indicator light “ ”
This indicator light will come on if the oil
level is low. To check that the oil level
indicator light is working properly:
Turn the main switch to “ON”. If the oil
level indicator light does not come on,
have a Yamaha dealer inspect the
electrical circuit.
NOTE:@ Even if the oil is filled to the specified
level, the oil level indicator light may
flicker when riding on a slope or during
sudden acceleration or deceleration,
but this is normal. @
EAU00061
2. Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
EAU00057
3. Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
1. Oil level indicator light “ ”
2. Neutral indicator light “ ”
3. Turn indicator light “ ”
4. Engine trouble indicator light “ ”
5. High beam indicator light “ ”
E_5el_Functions.fm Page 2 Monday, May 1, 2000 9:38 AM
Page 20 of 96

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00138
1. Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
2. Lights switch
Turning the light switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
“ ” turns the headlight on also.
EAU00143
3. Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:@ See starting instructions prior to
starting the engine. @
EAU00152
Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)
1. Engine stop switch
2. Lights switch
3. Start switch “ ”E_5el_Functions.fm Page 5 Monday, May 1, 2000 9:38 AM
Page 35 of 96

PRE-OPERATION CHECKS
4-2
4
NOTE:Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be thoroughly accom-
plished in a very short time; and the added safety it assures is more than worth the time involved.
WARNING
If any item in the PRE-OPERATION CHECK is not working properly, have it inspected and repaired before operating
the motorcycle.Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Fuel• Check fuel level.
• Fill with fuel if necessary.3-7 ~ 3-8
Lights, signals and switches• Check for proper operation. 6-27 ~ 6-28 ITEM CHECKS PAGE
E_5el_Preop.fm Page 2 Monday, May 1, 2000 9:39 AM
Page 43 of 96

OPERATION AND IMPORTANT RIDING POINTS
5-6
5
EAU00424
Tips for reducing fuel
consumptionYour motorcycle’s fuel consumption
depends to a large extent on your
riding style. The following tips can help
reduce fuel consumption:l
Warm up the engine before riding.
l
Turn off the starter (choke) as
soon as possible.
l
Shift up swiftly and avoid high en-
gine speeds during acceleration.
l
Do not double-clutch or rev the en-
gine while shifting down and avoid
high engine speeds with no load
on the engine.
l
Turn off the engine instead of let-
ting it idle for an extended length
of time, i.e. in traffic jams, at traffic
lights or railroad crossings.
EAU01128
Engine break-inThere is never a more important period
in the life of your motorcycle than the
period between zero and 1,600 km. For
this reason we ask that you carefully
read the following material. Because
the engine is brand new, you must not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full throttle oper-
ation, or any condition which might re-
sult in excessive heating of the engine,
must be avoided.
EAU01171
0 ~ 1,000 km
Avoid operation above 1/3 throttle.
1,000 ~ 1,600 km
Avoid cruising speeds in excess of
1/2 throttle.
EC000056
CAUTION:@ After 1,000 km of operation, be sure
to replace the engine oil, oil filter
and final gear oil. @1,600 km and beyond
Proceed with normal riding.
EC000049
CAUTION:@ If any engine trouble should occur
during the break-in period, consult a
Yamaha dealer immediately. @
E_5el_Operation.fm Page 6 Monday, May 1, 2000 9:43 AM
Page 79 of 96

MOTORCYCLE CARE AND STORAGE
7-2
7
ECA00010
CAUTION:@ l
Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If you do use such
products for hard-to-remove
dirt, do not leave it on any long-
er than instructed, then thor-
oughly rinse it off with water,
immediately dry the area and
apply a corrosion protection
spray.
l
Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or
sponge with mild detergent and
water to clean plastic.
l
Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.
l
Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel bearings,
swingarm bearings, forks and
brakes), electric components
(couplers, connectors, instru-
ments, switches and lights),
breather hoses and vents.
l
For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic may
leave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure they do not
leave any marks. If the wind-
shield is scratched, use a quali-
ty plastic polishing compound
after washing.
@After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on the
roads in the winter are extremely corro-
sive in combination with water, carry
out the following steps after each ride
in the rain, near the sea or on salt-
sprayed roads. (Salt sprayed in the
winter may remain on the roads well
into spring.)
E_5el_Cleaning.fm Page 2 Monday, May 1, 2000 9:46 AM
Page 92 of 96

10-INDEXAAir filter .................................................. 6-10
Antitheft alarm (optional) ..........................3-4BBattery ................................................... 6-23
Brake and clutch lever lubrication........... 6-21
Brake and shift pedal lubrication ............ 6-21
Brake fluid replacement ......................... 6-20
Brake light switch adjustment ................. 6-17CCable inspection and lubrication ............ 6-20
Carburetor adjustment ........................... 6-11
Care.........................................................7-1
Checking the front and rear brake
pads .................................................... 6-18
Clutch lever ..............................................3-5
Clutch lever free play adjustment ........... 6-15
Controls/Instruments ................................2-3DDimmer switch ........................................... 3-4EEngine break-in........................................5-6
Engine oil .................................................6-7
Engine stop switch ...................................3-5
Engine trouble indicator light ....................3-3
FFinal gear oil ............................................ 6-9
Front brake lever ..................................... 3-6
Front brake lever free play adjustment ... 6-16
Front fork inspection .............................. 6-22
Fuel ......................................................... 3-7
Fuel cock ................................................. 3-8
Fuel tank cap ........................................... 3-7
Fuse replacement.................................. 6-25GGive safety the right of way ...................... 1-1HHandlebar switches ................................. 3-4
Dimmer switch ................................... 3-4
Engine stop switch ............................. 3-5
Horn switch ........................................ 3-4
Lights switch ...................................... 3-5
Pass switch ........................................ 3-4
Start switch ........................................ 3-5
Turn signal switch .............................. 3-4
Headlight bulb replacement ................... 6-27
Helmet holder ........................................ 3-11
High beam indicator light ......................... 3-3
Horn switch ............................................. 3-4IIdentification number records................... 9-1
Idle speed adjustment ........................... 6-11
Indicator lights ......................................... 3-2
Engine trouble indicator light .............. 3-3
High beam indicator light ....................3-3
Neutral indicator light ..........................3-2
Oil level indicator light .........................3-2
Turn indicator light ..............................3-2
Inspecting the brake fluid level ...............6-19
KKey identification number .........................9-1LLeft view...................................................2-1
Lights switch ............................................3-5
Luggage strap holders ...........................3-15MMain switch/Steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level indicator light ..............................3-2PPanel A ....................................................6-5
Panel removal and installation..................6-5
Parking.....................................................5-7
Pass switch ..............................................3-4
Periodic maintenance and lubrication .......6-2
Pre-operation check list ............................4-1
E_5elIX.fm Page 1 Monday, May 1, 2000 9:48 AM
