INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU01869
Storage compartment The storage compartment is located on
the left side of the motorcycle.To open the storage compartment
1. Slide the lock cover open, insert
the key into the lock, and then turn
it clockwise.2. Pull the storage compartment cov-
er out as shown.1. Storage compartment cover
2. Storage compartment lock
1. Storage compartment lock cover
1. Storage compartment cover
E_5pb.book Page 14 Thursday, October 5, 2000 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
To close the storage compartment
1. Place the storage compartment
cover in its original position as
shown.
2. Turn the key counterclockwise, re-
move it, and then close the lock
cover.
EAU03194
Adjusting the shock absorber
assembly The shock absorber assembly is locat-
ed under the rider seat and is equipped
with a spring preload adjusting ring.
EC000015
CAUTION:@ Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings. @Adjust the spring preload as follows.
1. Remove the rider seat. (See
page 3-11 [XVS1100] or 3-13
[XVS1100A] for rider seat removal
and installation procedures.)2. Remove each quick fastener from
the ignitor unit panel by pushing
the center in with a screwdriver,
then pulling the fastener out.
1. Storage compartment cover
1. Quick fastener (´ 3)
E_5pb.book Page 15 Thursday, October 5, 2000 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
3. Pull the ignitor unit panel out to the
right.4. Remove the mudguard by remov-
ing each quick fastener.
1. Ignitor unit panel
1. Quick fastener (´ 3)
2. MudguardXVS1100
1. Quick fastener (´ 2)
2. MudguardXVS1100A
E_5pb.book Page 16 Thursday, October 5, 2000 10:10 AM

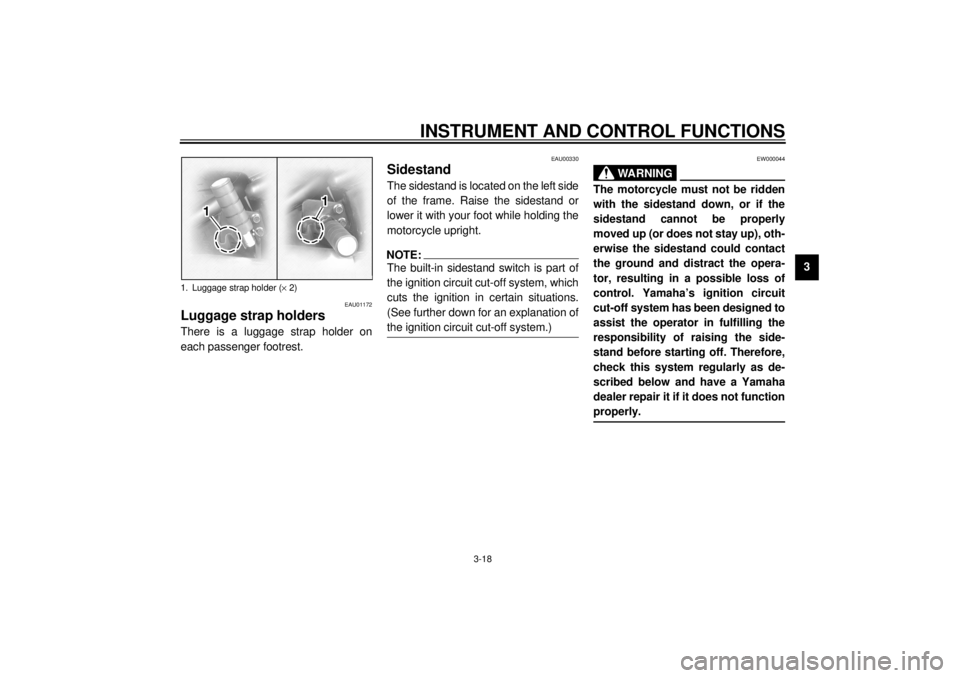

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
5. To increase the spring preload
and thereby harden the suspen-
sion, turn the adjusting ring in di-
rection
a. To decrease the spring
preload and thereby soften the
suspension, turn the adjusting ring
in direction
b.
NOTE:@ l
Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
l
Use the special wrench included in
the owner’s tool kit to make the ad-
justment.
CI-01E6. Install the mudguard and ignitor
unit panel by installing the quick
fasteners.NOTE:@ To install a quick fastener, push the pin
back so that it will protrude from the
fastener head, and then insert the fas-
tener and push the protruding pin in un-
til it is flush with the fastener head. @7. Install the rider seat.
EAU00315
WARNING
@ This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.l
Do not tamper with or attempt to
open the gas cylinder.
l
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
l
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
l
Always have a Yamaha dealer
service the shock absorber.
@
1. Spring preload adjusting ring
2. Position indicator
3. Special wrench
1. Quick fastener
2. Pin
Minimum
(soft)Stan-
dardMaximum (hard)
Setting12 3 4567
After removal
Before installation
E_5pb.book Page 17 Thursday, October 5, 2000 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU01172
Luggage strap holders There is a luggage strap holder on
each passenger footrest.
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:@ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) @
EW000044
WARNING
@ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. @
1. Luggage strap holder (´ 2)
E_5pb.book Page 18 Thursday, October 5, 2000 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.l
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
l
It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.
l
It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _
E_5pb.book Page 19 Thursday, October 5, 2000 10:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “ ”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
