INSTRUMENT AND CONTROL FUNCTIONS
3
Immobilizer system ........................................................................... 3-1
Main switch/steering lock .................................................................. 3-2
Indicator and warning lights ............................................................. 3-4
Speedometer unit .............................................................................. 3-6
Anti-theft alarm (optional) .................................................................. 3-6
Handlebar switches ........................................................................... 3-7
Clutch lever ....................................................................................... 3-8
Shift pedal .......................................................................................... 3-8
Brake lever ........................................................................................ 3-9
Brake pedal ....................................................................................... 3-9
Fuel tank cap ..................................................................................... 3-9
Fuel ................................................................................................. 3-10
Fuel cock ......................................................................................... 3-11
Starter (choke) lever ........................................................................ 3-12
Seats ................................................................................................ 3-13
Helmet holder .................................................................................. 3-14
Storage compartment ..................................................................... 3-15
Adjusting the shock absorber assembly .......................................... 3-16
Luggage strap holders .................................................................... 3-18
Sidestand ........................................................................................ 3-19
Ignition circuit cut-off system ........................................................... 3-19
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

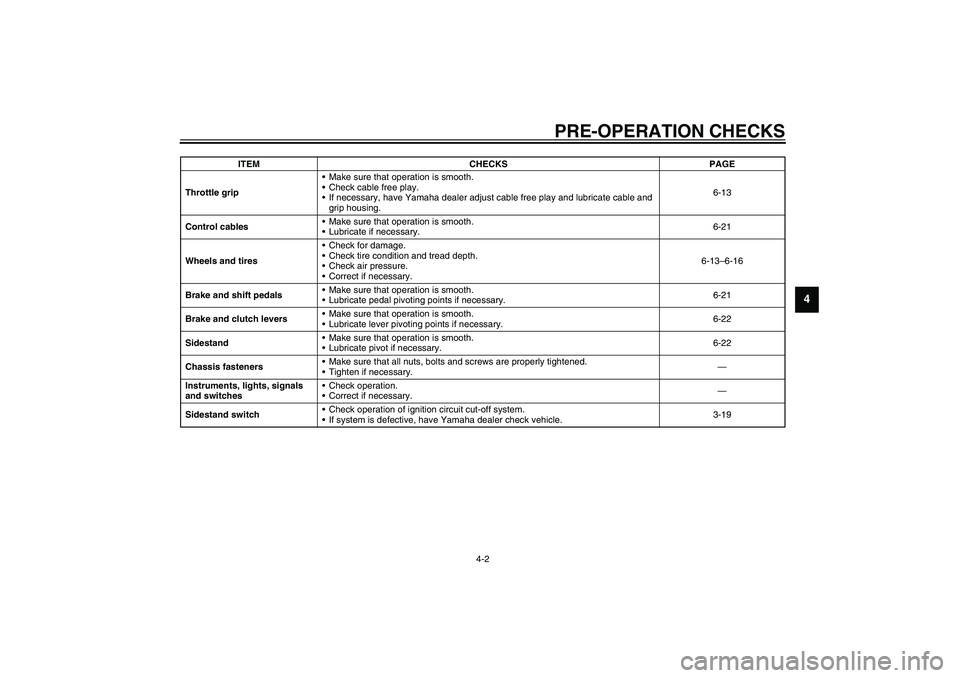

PRE-OPERATION CHECKS
4-2
4
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-13
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-13–6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-21
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-22
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-22
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-19 ITEM CHECKS PAGE
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing the panel ....................... 6-5
Checking the spark plugs .................................... 6-6
Engine oil ............................................................. 6-7
Final gear oil ........................................................ 6-9
Cleaning the air filter element ............................ 6-11
Adjusting the carburetors ................................... 6-12
Adjusting the engine idling speed ...................... 6-12
Adjusting the throttle cable free play .................. 6-13
Adjusting the valve clearance ............................ 6-13
Tires ................................................................... 6-13
Spoke wheels .................................................... 6-16
Adjusting the clutch lever free play .................... 6-16
Adjusting the brake lever free play ..................... 6-17
Adjusting the brake pedal position ..................... 6-18
Adjusting the rear brake light switch .................. 6-18
Checking the front and rear brake pads ............. 6-19
Checking the brake fluid level ............................ 6-19
Changing the brake fluid .................................... 6-20Checking and lubricating the cables ................. 6-21
Checking and lubricating the throttle grip and
cable ............................................................... 6-21
Checking and lubricating the brake and
shift pedals ...................................................... 6-21
Checking and lubricating the brake and
clutch levers .................................................... 6-22
Checking and lubricating the sidestand ............ 6-22
Checking the front fork ...................................... 6-23
Checking the steering ....................................... 6-23
Checking the wheel bearings ............................ 6-24
Battery ............................................................... 6-25
Replacing the fuses .......................................... 6-27
Replacing the headlight bulb ............................. 6-29
Replacing a turn signal light bulb or
the tail/brake light bulb .................................... 6-31
Supporting the motorcycle ................................ 6-31
Troubleshooting ................................................. 6-32
Troubleshooting chart ........................................ 6-33
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03884
NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_22
*Engine oil filter elementReplace.√√√
23 Final gear oilCheck oil level and vehicle for oil leakage.√√ √
Change.√√√
24*Front and rear brake
switchesCheck operation.√√√√√ √
25 Moving parts and cablesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Muffler and exhaust pipeCheck the screw clamp for looseness.√√√√√
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1,000 km)
ANNUAL
CHECK
1 10203040
U5KSE4.book Page 4 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU01746
Adjusting the brake pedal
position The top of the brake pedal should be
positioned approximately 98.5 mm
above the top of the footrest as shown.
Periodically check the brake pedal po-
sition and, if necessary, have a
Yamaha dealer adjust it.
EW000109
WARNING
@ A soft or spongy feeling in the brake
pedal can indicate the presence of
air in the hydraulic system. If there
is air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the motorcycle. Air in
the hydraulic system will diminish
the braking performance, which
may result in loss of control and an
accident. @
EAU00713
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction
a. To
make the brake light come on later,
turn the adjusting nut in direction
b.
a. Distance between brake pedal and footrest
1. Rear brake light switch
2. Rear brake light switch adjusting nut
U5KSE4.book Page 18 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU00855
Replacing a turn signal light
bulb or the tail/brake light
bulb 1. Remove the lens by removing the
screws.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
EC000108
CAUTION:@ Do not overtighten the screws, oth-
erwise the lens may break. @
EAU01579
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motor-
cycle is in a stable and level position
before starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
1. Screw (× 2)
1. Screw (× 3)
U5KSE4.book Page 31 Wednesday, September 11, 2002 11:55 AM

MOTORCYCLE CARE AND STORAGE
7-2
7 thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments, switch-
es and lights), breather hoses
and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic may
leave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure that it does
not leave any marks. If the wind-shield is scratched, use a quali-
ty plastic polishing compound
after washing.
_
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:_ Salt sprayed on roads in the winter may
remain well into spring. _
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM

SPECIFICATIONS
8-3
8
Tire air pressure (measured
on cold tires)
Up to 90 kg*
Front 225 kPa (2.25 kgf/cm
2, 2.25 bar)
Rear 225 kPa (2.25 kgf/cm2, 2.25 bar)
90 kg–maximum*
Front 225 kPa (2.25 kgf/cm2, 2.25 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Spoke wheel
Size 16 M/C × MT 3.00
Rear
Type Spoke wheel
Size 15 M/C × MT 4.50
Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 140 mm
Rear 113 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 305 W@ 5,000 r/min
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeHalogen bulb
U5KSE4.book Page 3 Wednesday, September 11, 2002 11:55 AM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Auxiliary light 12 V, 4 W × 1
Tail/brake light 12 V, 5/21 W × 1
Turn signal light 12 V, 21 W × 4
Meter lighting 14 V, 1.4 W × 2
Oil level warning light 12 V, 1.7 W × 1
Neutral indicator light 12 V, 1.7 W × 1
Turn signal indicator light 12 V, 1.7 W × 1
Engine trouble warning light 12 V, 1.7 W × 1
High beam indicator light 12 V, 1.7 W × 1
Fuses
Main fuse 30 A
Signaling system fuse 10 A
Odometer and immobilizer
system fuse (backup fuse) 10 A
Ignition fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 15 A
Ignitor unit fuse 5 A
Turn signal light, taillight,
auxiliary light and hazard fuse 10 A
U5KSE4.book Page 4 Wednesday, September 11, 2002 11:55 AM

10-INDEXAAir filter element, cleaning ...................... 6-11
Anti-theft alarm (optional) .........................3-6BBattery ................................................... 6-25
Brake and clutch levers,
checking and lubricating ...................... 6-22
Brake and shift pedals,
checking and lubricating ...................... 6-21
Brake fluid, changing ............................. 6-20
Brake fluid level, checking...................... 6-19
Brake lever...............................................3-9
Brake lever free play, adjusting .............. 6-17
Brake light switch, adjusting ................... 6-18
Brake pads, checking............................. 6-19
Brake pedal..............................................3-9
Brake pedal position, adjusting .............. 6-18CCables, checking and lubricating............ 6-21
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Clutch lever ..............................................3-8
Clutch lever free play, adjusting ............. 6-16
Conversion table ......................................8-5DDimmer switch .........................................3-7EEngine break-in........................................5-5
Engine idling speed................................ 6-12
Engine oil .................................................6-7
Engine stop switch ...................................3-7
Engine trouble warning light .................... 3-4FFinal gear oil ............................................ 6-9
Front fork, checking ............................... 6-23
Fuel ....................................................... 3-10
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ......... 5-4
Fuel tank cap ........................................... 3-9
Fuses, replacing .................................... 6-27HHandlebar switches ................................. 3-7
Hazard switch .......................................... 3-8
Headlight bulb, replacing ....................... 6-29
Helmet holder ........................................ 3-14
High beam indicator light ......................... 3-5
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system.................. 3-19
Immobilizer system .................................. 3-1
Immobilizer system indicator light ............ 3-5
Indicator and warning lights ..................... 3-4KKey identification number ........................ 9-1LLuggage strap holders ........................... 3-18MMain switch/steering lock ......................... 3-2
Model label .............................................. 9-2
NNeutral indicator light ...............................3-4OOil level warning light ...............................3-4PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-7
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seats .....................................................3-13
Passenger seat.................................3-13
Rider seat .........................................3-13
Shifting .....................................................5-3
Shift pedal ................................................3-8
Shift points (for Switzerland only) .............5-4
Shock absorber assembly, adjusting ......3-16
Sidestand ...............................................3-19
Sidestand, checking and lubricating .......6-22
Spark plugs, checking ..............................6-6
Specifications ...........................................8-1
Speedometer unit.....................................3-6
Starter (choke) lever...............................3-12
Starting a cold engine ..............................5-1
Starting a warm engine ............................5-3
Start switch ..............................................3-8
Steering, checking..................................6-23
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM
