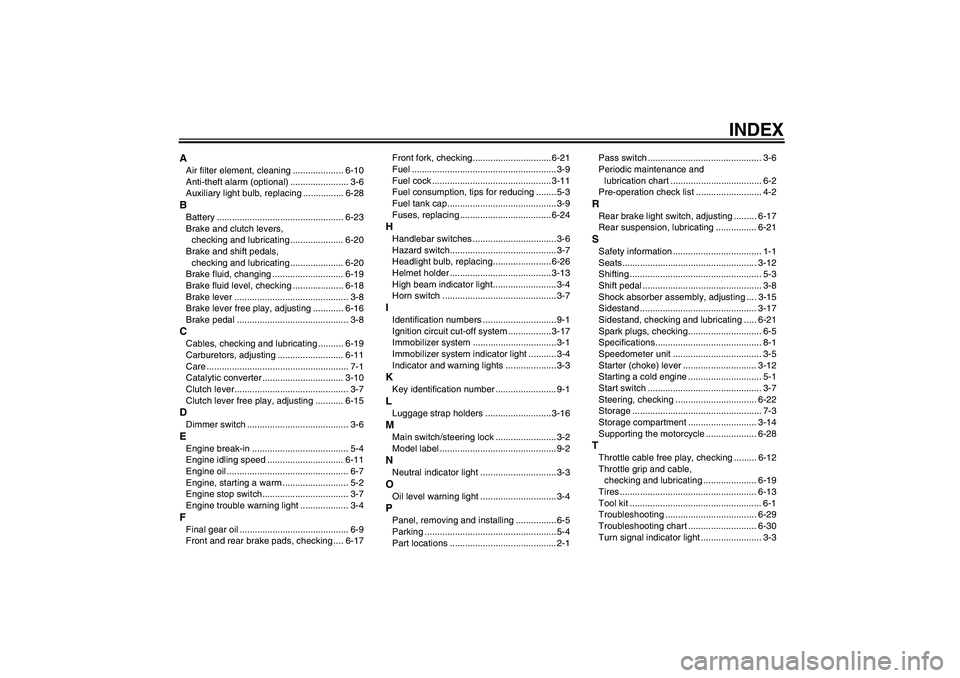

INDEX
AAir filter element, cleaning .................... 6-10
Anti-theft alarm (optional) ....................... 3-6
Auxiliary light bulb, replacing ................ 6-28BBattery .................................................. 6-23
Brake and clutch levers,
checking and lubricating ..................... 6-20
Brake and shift pedals,
checking and lubricating ..................... 6-20
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ............................................. 3-8
Brake lever free play, adjusting ............ 6-16
Brake pedal ............................................ 3-8CCables, checking and lubricating .......... 6-19
Carburetors, adjusting .......................... 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-10
Clutch lever............................................. 3-7
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-6EEngine break-in ...................................... 5-4
Engine idling speed .............................. 6-11
Engine oil ................................................ 6-7
Engine, starting a warm .......................... 5-2
Engine stop switch.................................. 3-7
Engine trouble warning light ................... 3-4FFinal gear oil ........................................... 6-9
Front and rear brake pads, checking .... 6-17Front fork, checking...............................6-21
Fuel ......................................................... 3-9
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ........ 5-3
Fuel tank cap........................................... 3-9
Fuses, replacing .................................... 6-24
HHandlebar switches ................................. 3-6
Hazard switch.......................................... 3-7
Headlight bulb, replacing....................... 6-26
Helmet holder ........................................ 3-13
High beam indicator light......................... 3-4
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-17
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLuggage strap holders .......................... 3-16MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-5
Parking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-6
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17
Rear suspension, lubricating ................ 6-21SSafety information ................................... 1-1
Seats..................................................... 3-12
Shifting .................................................... 5-3
Shift pedal ............................................... 3-8
Shock absorber assembly, adjusting .... 3-15
Sidestand .............................................. 3-17
Sidestand, checking and lubricating ..... 6-21
Spark plugs, checking............................. 6-5
Specifications.......................................... 8-1
Speedometer unit ................................... 3-5
Starter (choke) lever ............................. 3-12
Starting a cold engine ............................. 5-1
Start switch ............................................. 3-7
Steering, checking ................................ 6-22
Storage ................................................... 7-3
Storage compartment ........................... 3-14
Supporting the motorcycle .................... 6-28TThrottle cable free play, checking ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-19
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-30
Turn signal indicator light ........................ 3-3
