EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
3
3-1
EAU00029

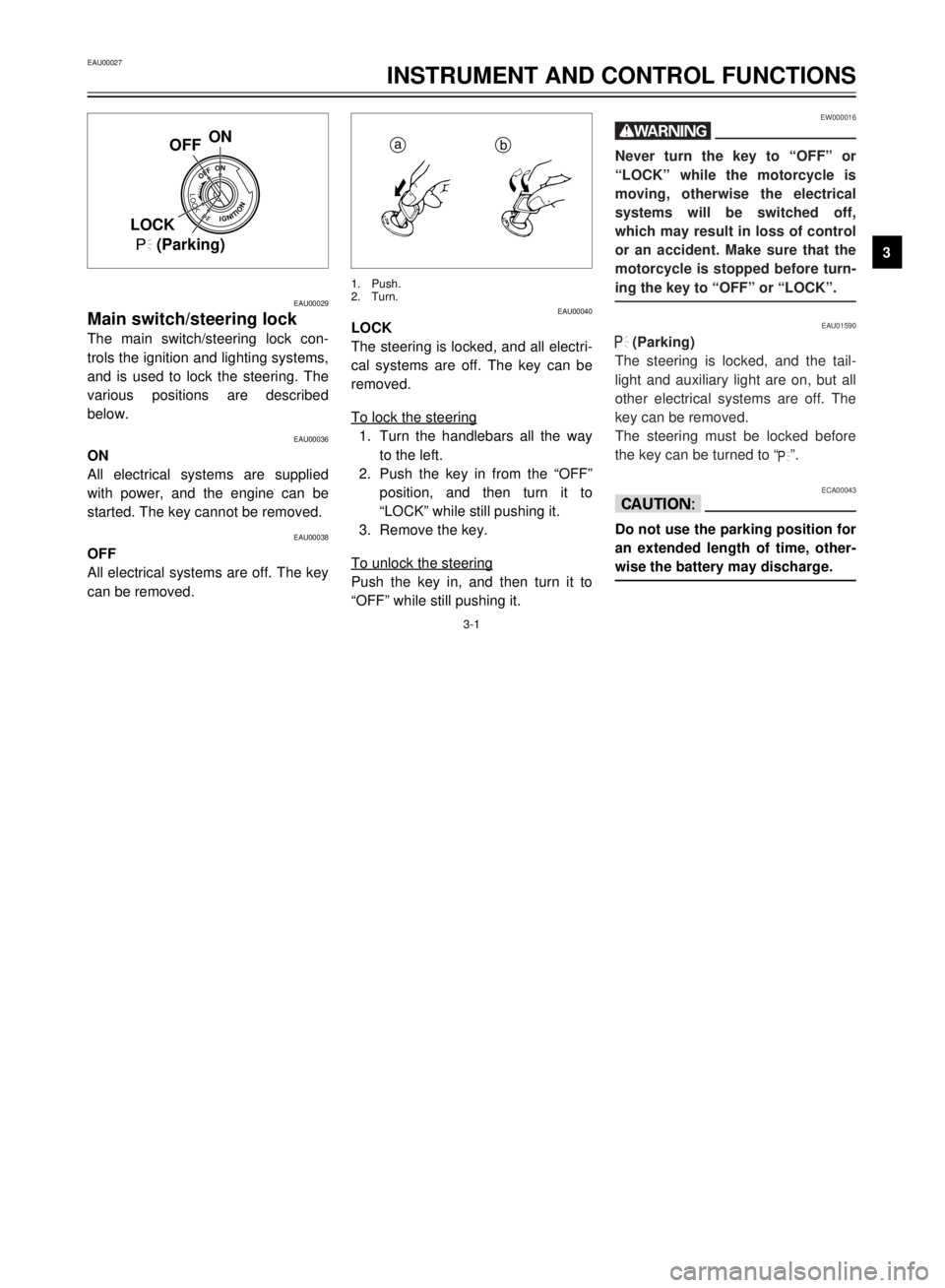

Main switch/steering lockThe main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU00036
ON
All electrical systems are supplied
with power, and the engine can be
started. The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
To lock the steering1.Turn the handlebars all the way
to the left.
2.Push the key in from the ÒOFFÓ
position, and then turn it to
ÒLOCKÓ while still pushing it.
3.Remove the key.
To unlock the steeringPush the key in, and then turn it to
ÒOFFÓ while still pushing it.
OFFON
LOCKPPUSH
IGNITION
ON
OFF
LOCK
(Parking)
.
EW000016
wNever turn the key to ÒOFFÓ or
ÒLOCKÓ while the motorcycle is
moving, otherwise the electrical
systems will be switched off,
which may result in loss of control
or an accident. Make sure that the
motorcycle is stopped before turn-
ing the key to ÒOFFÓ or ÒLOCKÓ.
EAU01590
.
(Parking)
The steering is locked, and the tail-
light and auxiliary light are on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before
the key can be turned to Ò
.Ó.
ECA00043
cCDo not use the parking position for
an extended length of time, other-
wise the battery may discharge.
1.Push.
2.Turn.
ab
5JX-9-E1 9/27/00 10:45 AM Page 11

3-4
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00134
Light switch
Set this switch to Ò
'
Ó to turn on the
auxiliary light, meter lighting and tail-
light. Set the switch to Ò:Ó to turn on
the headlight also.
EAU00138
Engine stop switch
Set this switch to Ò$Ó to stop the
engine in case of an emergency,
such as when the motorcycle over-
turns or when the throttle cable is
stuck.1.Engine stop switch
2.Light switch
3.Start switch Ò,Ó
1
2
3
EAU00143
Start switch Ò,Ó
Push this switch to crank the engine
with the starter.
EC000005
cCSee page 5-1 for starting instruc-
tions prior to starting the engine.
EAU00127
Turn signal switch
To signal a right-hand turn, push this
switch to Ò6Ó. To signal a left-hand
turn, push this switch to Ò4Ó. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after
it has returned to the center position.
EAU00129
Horn switch Ò*Ó
Press this switch to sound the horn.1.Pass switch
2.Dimmer switch
3.Turn signal switch
4.Horn switch Ò*Ó
1
2
3
4
5JX-9-E1 9/27/00 10:45 AM Page 14

INSTRUMENT AND CONTROL FUNCTIONS
3
3-11
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to Ò
#Ó.
3. Turn the key to ÒONÓ.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYESNO
The system is OK.
The motorcycle can be ridden.
YESNO
5JX-9-E1 9/27/00 10:45 AM Page 21

EAU00372
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
45
6
7
8
9
5-1
EAU00373
w8Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thorough-
ly understand.
8Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
8Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU03515
Starting the engineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
8The transmission is in the neutral
position.
8The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EW000054
w8Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-11.
8Never ride with the sidestand
down.
1.Turn the fuel cock lever to ÒONÓ.
2.Turn the key to ÒONÓ and make
sure that the engine stop switch
is set to Ò#Ó.
3.Shift the transmission into the
neutral position.NOTE:
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.1.Arrow mark positioned over ÒONÓ
1
5JX-9-E1 9/27/00 10:45 AM Page 25

1
2
3
4
56
7
8
9
6-14
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01168
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.NOTE:
A diagnostic tachometer is needed to
make this adjustment.1.Attach the tachometer to the
spark plug lead.
2.Start the engine and warm it up
for several minutes at 1,000Ð
2,000 r/min while occasionally
revving it to 4,000Ð5,000 r/min.NOTE:
The engine is warm when it quickly
responds to the throttle.
EAU00629
Adjusting the carburetorThe carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most
carburetor adjustments should be left
to a Yamaha dealer, who has the
necessary professional knowledge
and experience. The adjustment
described in the following section,
however, may be serviced by the
owner as part of routine mainte-
nance.
EC000094
cCThe carburetor has been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
3.Check the engine idling speed
and, if necessary, adjust it to
specification by turning the throt-
tle stop screw. To increase the
engine idling speed, turn the
screw in direction a. To
decrease the engine idling speed,
turn the screw in direction b.NOTE:
If the specified idling speed cannot
be obtained as described above,
have a Yamaha dealer make the
adjustment.1.Throttle stop screw
1b
a
Engine idling speed:
1,250Ð1,450 r/min
