Page 6 of 88
TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Multi-function meter unit .................3-5
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-11
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather hose ................3-14
Catalytic converter ........................3-14
Rider seat .....................................3-14
Helmet holder ...............................3-15
Adjusting the shock absorber
assembly ...................................3-16
Sidestand ......................................3-17
Ignition circuit cut-off system ........3-17PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-6
Checking the spark plugs ............... 6-7
Engine oil and oil filter cartridge ..... 6-9
Coolant ......................................... 6-11
Replacing the air filter element ..... 6-13
Checking the throttle cable free
play ........................................... 6-14
Valve clearance ............................ 6-14
Tires ............................................. 6-14
Cast wheels .................................. 6-16
Adjusting the clutch lever free
play ........................................... 6-17

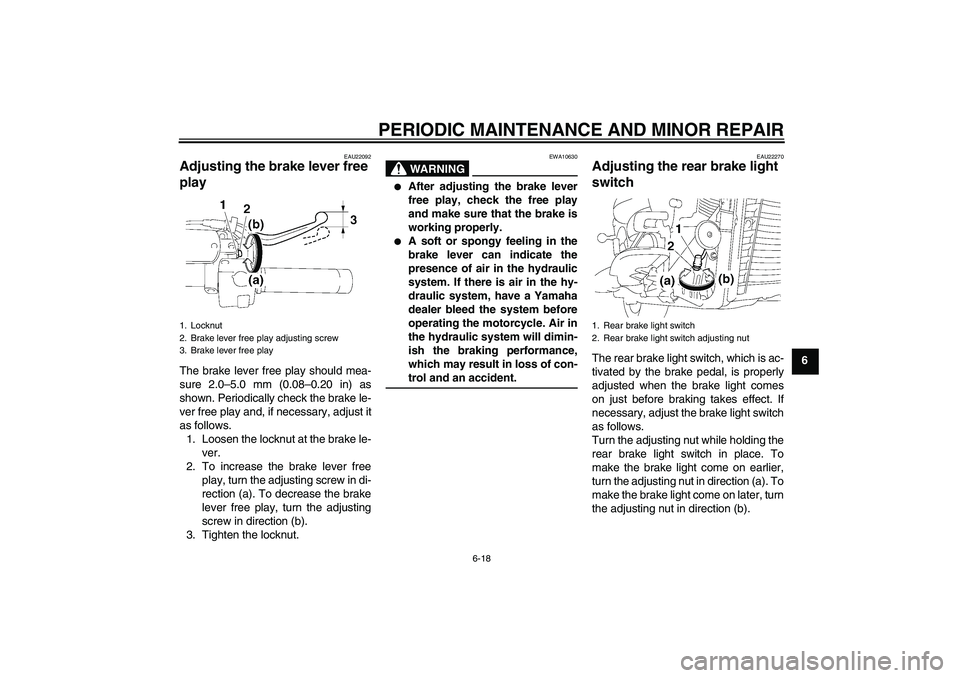

Adjusting the brake lever free
play ........................................... 6-18Adjusting the rear brake light
switch ....................................... 6-18
Checking the front and rear
brake pads ................................ 6-19
Checking the brake fluid level ...... 6-19
Changing the brake fluid .............. 6-20
Drive belt slack ............................ 6-21
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
sidestand .................................. 6-23
Lubricating the swingarm
pivots ........................................ 6-24
Lubricating the rear suspension ... 6-24
Checking the front fork ................. 6-24
Checking the steering .................. 6-25
Checking the wheel bearings ....... 6-26
Battery ......................................... 6-26
Replacing the fuses ..................... 6-27
Replacing the headlight bulb ....... 6-29
Replacing the tail/brake light
bulb ........................................... 6-31
Replacing a turn signal light
bulb ........................................... 6-31U11CE0E0.book Page 1 Friday, September 15, 2006 11:59 AM
Page 17 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3 To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU34341
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary light are
on. The hazard lights and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
1. Push.
2. Turn.
1. Neutral indicator light “”
2. Coolant temperature warning light “”
3. Engine trouble warning light “”
4. High beam indicator light “”
5. Turn signal indicator light “”
6. Oil level warning light “”
7. Fuel level warning light “”
8. Immobilizer system indicator light
U11CE0E0.book Page 3 Friday, September 15, 2006 11:59 AM
Page 18 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11250
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:
Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.
This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated un-
til the malfunction is corrected: Theoil level warning light will flash ten
times, then go off for 2.5 seconds.
If this occurs, have a Yamaha
dealer check the vehicle.
EAU42740
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.7 L (0.98 US gal) (0.81 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the elec-
trical circuit.NOTE:
The vehicle must be on a level sur-
face and positioned upright, other-
wise the fuel level warning light
may not come on and go off at the
appropriate times.
This model is also equipped with a
self-diagnosis device for the fuel
level detection circuit. If the fuellevel detection circuit is defective,
the following cycle will be repeated
until the malfunction is corrected:
The fuel level warning light will
flash eight times, and then go off
for 3.0 seconds. If this occurs,
have a Yamaha dealer check the
vehicle.
EAU11440
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
U11CE0E0.book Page 4 Friday, September 15, 2006 11:59 AM
Page 19 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU42770
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system. (See page 3-5 for an expla-
nation of the self-diagnosis device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-5 for an explana-
tion of the self-diagnosis device.)
EAU42900
Multi-function meter unit
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to themulti-function meter unit.
The multi-function meter unit is
equipped with the following:
a speedometer (which shows the
riding speed)
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
1. Speedometer
2. Odometer/tripmeter/fuel reserve tripme-
ter/clock
U11CE0E0.book Page 5 Friday, September 15, 2006 11:59 AM
Page 20 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
a clock
a self-diagnosis device
a brightness control mode
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” switch “/”
and “RESET” switch, except for settingthe brightness control mode.Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.Odometer, tripmeter and fuel re-
serve tripmeter modes
Push the “” side of the “SELECT”
switch to switch the display between
the odometer mode “ODO”, the tripme-
ter modes “TRIP 1” and “TRIP 2” and
the clock mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock →
ODO
NOTE:Push the “” side of the “SELECT”
switch to switch the display in the re-verse order.
If the fuel level warning light comes on
(see page 3-3), the odometer display
will automatically change to the fuel re-
1.“SELECT” switch “/”
2.“RESET” switch
1. Speedometer
1. Odometer/tripmeter/fuel reserve tripme-
ter/clock
U11CE0E0.book Page 6 Friday, September 15, 2006 11:59 AM
Page 21 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, push the
“” side of the “SELECT” switch to
switch the display between the various
tripmeter, odometer, and clock modes
in the following order:
F-TRIP → TRIP 1 → TRIP 2 → Clock
→ ODO → F-TRIP
NOTE:Push the “” side of the “SELECT”
switch to switch the display in the re-verse order.
To reset a tripmeter, select it by push-
ing the “” or “” side of the “SE-
LECT” switch, and then push the
“RESET” switch for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically, and the display will return
to the prior mode after refueling and
traveling 5 km (3 mi).Clock mode
Push the “RESET” switch for less than
one second to display the clock for five
seconds, regardless of the currently se-
lected display mode.
To set the clock:
1. Push the “” or “” side of the
“SELECT” switch to change the
display to the clock mode.
2. Push the “” side of the “SE-
LECT” switch and the “RESET”
switch together for at least two
seconds.
3. When the hour digits start flashing,
push the “” or “” side of the
“SELECT” switch to set the hours.4. Push the “RESET” switch, and the
minute digits will start flashing.
5. Push the “” or “” side of the
“SELECT” switch to set the min-
utes.
6. Push the “RESET” switch and then
release it to start the clock.
Self-diagnosis devices
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripme-
ter/clock display will indicate a two-digit
error code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.1. Clock
U11CE0E0.book Page 7 Friday, September 15, 2006 11:59 AM
Page 24 of 88
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU42522
“SELECT” switch “/”
This switch is used to perform selec-
tions in the odometer, tripmeter and
clock mode of the multi-function meter
unit.
See “Multi-function meter unit” on page
3-5 for detailed information.
EAU42531
“RESET” switch
This switch is used to perform selec-
tions in the odometer, tripmeter and
clock mode of the multi-function meter
unit.
See “Multi-function meter unit” on page
3-5 for detailed information.
U11CE0E0.book Page 10 Friday, September 15, 2006 11:59 AM
Page 36 of 88
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU42880
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-17.
Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA15680
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.
Oil level warning light
Fuel level warning light
Coolant temperature warning
light
Engine trouble warning light
Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
U11CE0E0.book Page 1 Friday, September 15, 2006 11:59 AM
Page 50 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42630
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
3.20 L (3.38 US qt) (2.82 Imp.qt)
With oil filter cartridge replacement:
3.40 L (3.59 US qt) (2.99 Imp.qt)
U11CE0E0.book Page 11 Friday, September 15, 2006 11:59 AM
Page 57 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU22092
Adjusting the brake lever free
play The brake lever free play should mea-
sure 2.0–5.0 mm (0.08–0.20 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the adjusting screw in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
screw in direction (b).
3. Tighten the locknut.
WARNING
EWA10630
After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha
dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-trol and an accident.
EAU22270
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction (a). To
make the brake light come on later, turn
the adjusting nut in direction (b).
1. Locknut
2. Brake lever free play adjusting screw
3. Brake lever free play
1. Rear brake light switch
2. Rear brake light switch adjusting nut
U11CE0E0.book Page 18 Friday, September 15, 2006 11:59 AM
