Page 51 of 88

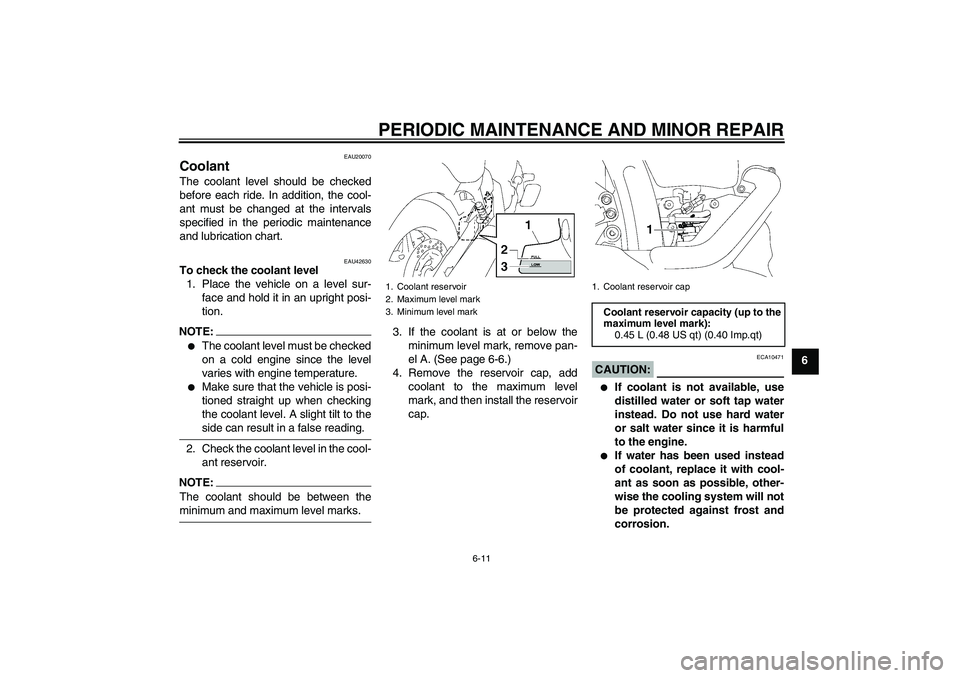

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42630
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove pan-
el A. (See page 6-6.)
4. Remove the reservoir cap, add
coolant to the maximum level
mark, and then install the reservoir
cap.
CAUTION:
ECA10471
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.45 L (0.48 US qt) (0.40 Imp.qt)
U11CE1E0.book Page 11 Friday, August 31, 2007 1:25 PM
Page 72 of 88

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
64. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulbU11CE1E0.book Page 32 Friday, August 31, 2007 1:25 PM
Page 85 of 88

INDEX
AAir filter element, replacing ................... 6-12
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-25
Brake and clutch levers,
checking and lubricating ..................... 6-22
Brake and shift pedals,
checking and lubricating ..................... 6-21
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ........................................... 3-12
Brake lever free play, adjusting ............ 6-17
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-16
Coolant ................................................. 6-11
Coolant temperature warning light.......... 3-5DDimmer switch ...................................... 3-10
Drive belt slack ..................................... 6-20EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking .... 6-18
Front fork, checking .............................. 6-23Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather hose ........................ 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-26
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-28
Helmet holder ........................................ 3-15
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-18
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30MMain switch/steering lock ........................ 3-2
Matte color, caution .................................7-1
Model label .............................................. 9-2
Multi-function meter unit .......................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-6Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17
Rear suspension, lubricating ................ 6-23
RESET switch ....................................... 3-11
Rider seat ............................................. 3-15SSafety information ................................... 1-1
SELECT switch ..................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-16
Sidestand .............................................. 3-17
Sidestand, checking and lubricating ..... 6-22
Spark plugs, checking............................. 6-6
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-23TTail/brake light bulb, replacing .............. 6-30
Throttle cable free play, checking ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-21
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
