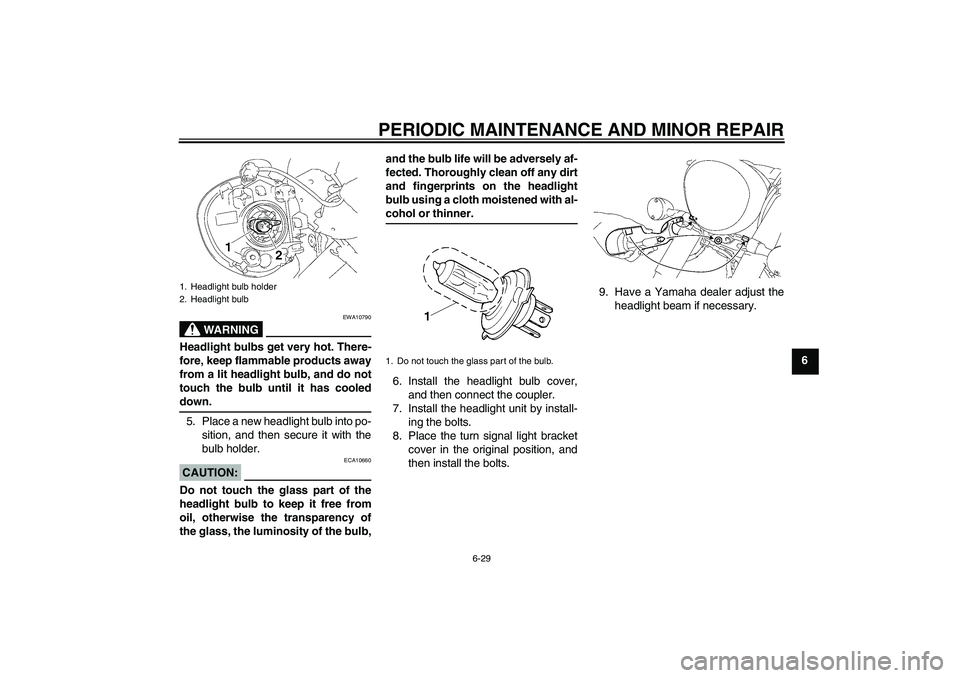

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
5. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
6. Install the headlight bulb cover,
and then connect the coupler.
7. Install the headlight unit by install-
ing the bolts.
8. Place the turn signal light bracket
cover in the original position, and
then install the bolts.9. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight bulb holder
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U11CE1E0.book Page 29 Friday, August 31, 2007 1:25 PM

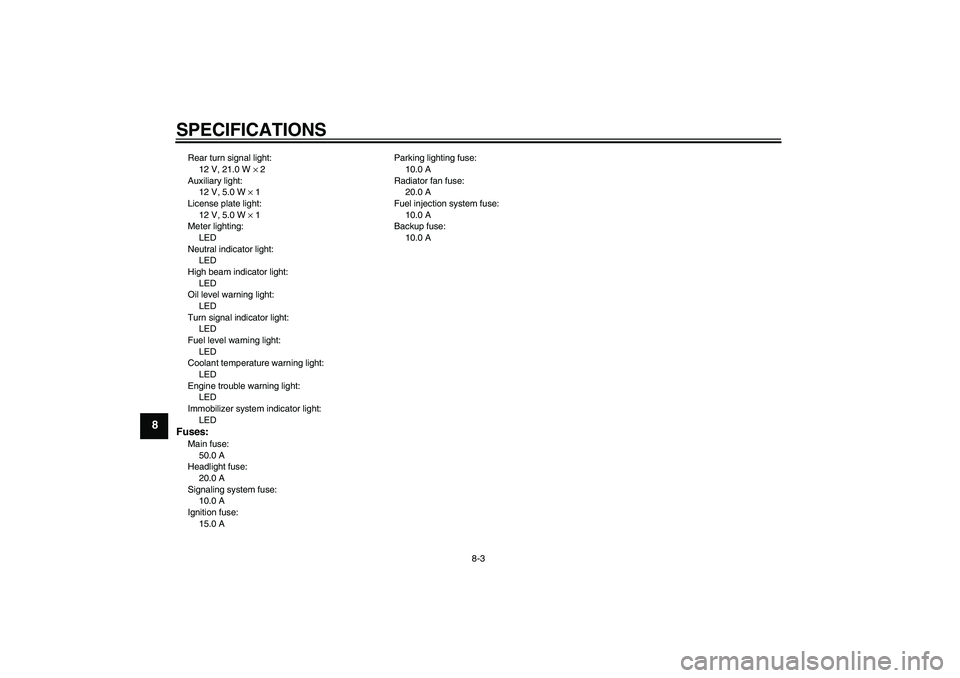

SPECIFICATIONS
8-3
8
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 AParking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U11CE1E0.book Page 3 Friday, August 31, 2007 1:25 PM

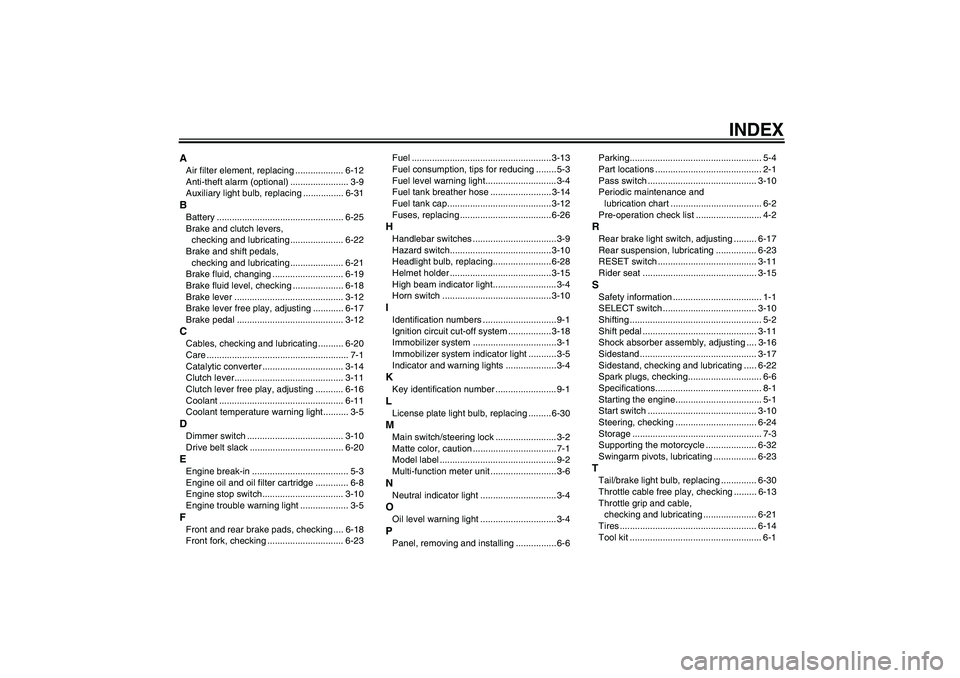

INDEX
AAir filter element, replacing ................... 6-12
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-25
Brake and clutch levers,
checking and lubricating ..................... 6-22
Brake and shift pedals,
checking and lubricating ..................... 6-21
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ........................................... 3-12
Brake lever free play, adjusting ............ 6-17
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-16
Coolant ................................................. 6-11
Coolant temperature warning light.......... 3-5DDimmer switch ...................................... 3-10
Drive belt slack ..................................... 6-20EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking .... 6-18
Front fork, checking .............................. 6-23Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather hose ........................ 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-26
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-28
Helmet holder ........................................ 3-15
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-18
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30MMain switch/steering lock ........................ 3-2
Matte color, caution .................................7-1
Model label .............................................. 9-2
Multi-function meter unit .......................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-6Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17
Rear suspension, lubricating ................ 6-23
RESET switch ....................................... 3-11
Rider seat ............................................. 3-15SSafety information ................................... 1-1
SELECT switch ..................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-16
Sidestand .............................................. 3-17
Sidestand, checking and lubricating ..... 6-22
Spark plugs, checking............................. 6-6
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-23TTail/brake light bulb, replacing .............. 6-30
Throttle cable free play, checking ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-21
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
