INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU42901
Multi-function meter unit
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to themulti-function meter unit.
The multi-function meter unit is
equipped with the following:

a speedometer (which shows the
riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a self-diagnosis device


a brightness control mode
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” switch“/”
and “RESET” switch, except for settingthe brightness control mode.Speedometer
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
1. Speedometer
2. Odometer/tripmeter/fuel reserve tripme-
ter/clock
1.“SELECT” switch“/”
2.“RESET” switch
1. Speedometer
U11CE1E0.book Page 6 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Odometer, tripmeters, fuel reserve
tripmeter and clock
Push the“” side of the “SELECT”
switch to switch the display between
the odometer mode “ODO”, the tripme-
ter modes “TRIP 1” and “TRIP 2” and
the clock mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock →
ODO
NOTE:

Push the“” side of the “SE-
LECT” switch to switch the display
in the reverse order.


Push the “RESET” switch for less
than one second to display the
clock for five seconds, regardless
of the currently selected displaymode.
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, push
the“” side of the “SELECT” switch to
switch the display between the various
tripmeter, odometer, and clock modes
in the following order:
F-TRIP → TRIP 1 → TRIP 2 → Clock
→ ODO → F-TRIP
NOTE:Push the“” side of the “SELECT”
switch to switch the display in the re-verse order.
To reset a tripmeter, select it by push-
ing the“” or“” side of the “SE-
LECT” switch, and then push the
“RESET” switch for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-tomatically, and the display will return
to the prior mode after refueling and
traveling 5 km (3 mi).
To set the clock:
1. Push the“” or“” side of the
“SELECT” switch to change the
display to the clock mode.
2. Push the“” side of the “SE-
LECT” switch and the “RESET”
switch together for at least two
seconds.
3. When the hour digits start flashing,
push the“” or“” side of the
“SELECT” switch to set the hours.
4. Push the “RESET” switch, and the
minute digits will start flashing.
1. Odometer/tripmeter/fuel reserve tripme-
ter/clock
1. Clock
U11CE1E0.book Page 7 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
35. Push the“” or“” side of the
“SELECT” switch to set the min-
utes.
6. Push the “RESET” switch and then
release it to start the clock.
Self-diagnosis devices
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripme-
ter/clock display will indicate a two-digit
error code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.
NOTE:If the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.1. Use the code re-registering key to
start the engine.
NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
CAUTION:
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
Brightness control mode
This function allows you to adjust the
brightness of the speedometer panel to
suit the outside lighting conditions.
To set the brightness1. Turn the key to “OFF”.
2. Push and hold the“” side of the
“SELECT” switch.1. Speedometer panel
2. Brightness level
U11CE1E0.book Page 8 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 3. Turn the key to “ON”, and then re-
lease the “SELECT” switch after
five seconds or more.
4. Push the“” or“” side of the
“SELECT” switch to select the de-
sired brightness level.
5. Push the “RESET” switch to con-
firm the selected brightness level.
The display will return to the odom-
eter, tripmeter or clock mode.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches Left1. Pass switch“”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
U11CE1E0.book Page 9 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3Right
EAU12350
Pass switch“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch“”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU42522
“SELECT” switch“/”
This switch is used to perform selec-
tions in the odometer, tripmeter and
clock mode of the multi-function meter
unit.
See “Multi-function meter unit” on page
3-6 for detailed information.
1. Engine stop switch“/”
2. Hazard switch“”
3.“SELECT” switch“/”
4.“RESET” switch
5. Start switch“”U11CE1E0.book Page 10 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU42531
“RESET” switch
This switch is used to perform selec-
tions in the odometer, tripmeter and
clock mode of the multi-function meter
unit.
See “Multi-function meter unit” on page
3-6 for detailed information.
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-18.)
EAU12880
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.NOTE:Use your toes or heel to shift up andyour toes to shift down.
1. Clutch lever
1. Shift pedal
U11CE1E0.book Page 11 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13090
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/8 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
1. Brake lever
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.
U11CE1E0.book Page 12 Friday, August 31, 2007 1:25 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU42750

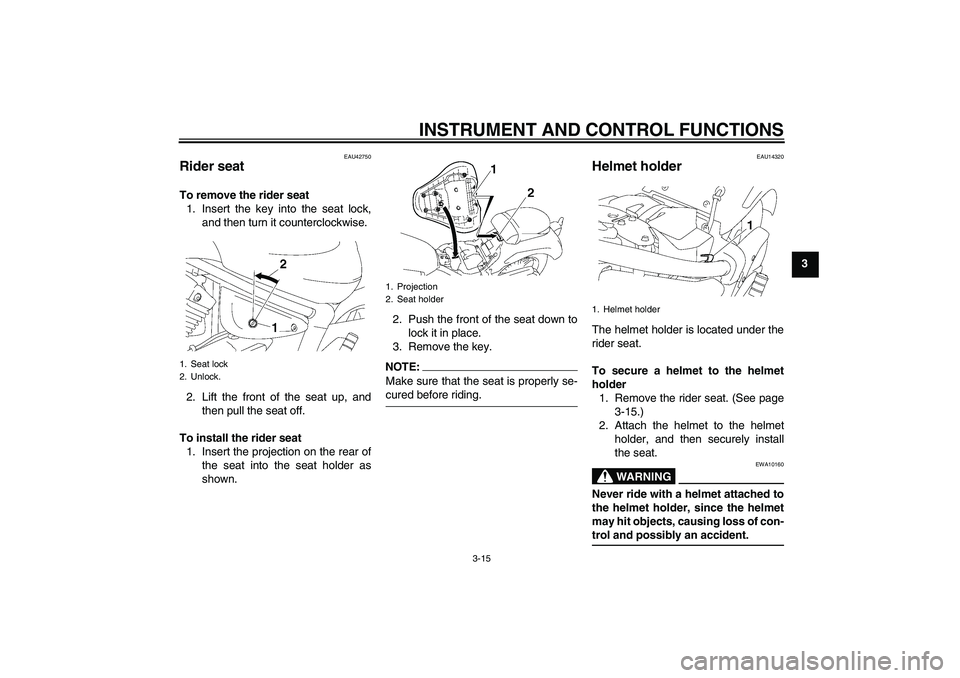

Rider seat To remove the rider seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. Lift the front of the seat up, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the rear of
the seat into the seat holder as
shown.2. Push the front of the seat down to
lock it in place.
3. Remove the key.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU14320
Helmet holder The helmet holder is located under the
rider seat.
To secure a helmet to the helmet
holder
1. Remove the rider seat. (See page
3-15.)
2. Attach the helmet to the helmet
holder, and then securely install
the seat.
WARNING
EWA10160
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-trol and possibly an accident.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1. Helmet holder
U11CE1E0.book Page 15 Friday, August 31, 2007 1:25 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
4. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
5. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Fuse box
3. Fuel injection system fuse
4. Fuel injection system spare fuse
1. Signaling system fuse
2. Ignition fuse
3. Parking lighting fuse
4. Radiator fan fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. Headlight fuse
7. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
Radiator fan fuse:
20.0 A
U11CE1E0.book Page 27 Friday, August 31, 2007 1:25 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24131
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.CAUTION:
ECA10680
Do not overtighten the screws, oth-erwise the lens may break.
EAU24210
Replacing a turn signal light
bulb 1. Remove the turn signal lens by re-
moving the screws.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.CAUTION:
ECA10680
Do not overtighten the screws, oth-erwise the lens may break.
EAU42482
Replacing the license plate
light bulb 1. Remove the license plate light cov-
er by removing the bolts.
2. Pull the license plate light unit up
as shown.
1. Screw
1. Screw
1. License plate light cover
2. Bolt
1. License plate light unit
U11CE1E0.book Page 30 Friday, August 31, 2007 1:25 PM
