PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.3. Install the spark plug cap.
4. Install the spark plug cover by in-
stalling the bolts.
EAU42597
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the engine oil level check
window located at the bottom-left
side of the crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
U11CE3E0.book Page 9 Thursday, October 29, 2009 1:09 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6 8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.TIPAfter the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient.NOTICE
ECA10401
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.11. Turn the engine off, wait a few min-
utes until the oil settles, and then
check the oil level and correct it if
necessary.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
3.20 L (3.38 US qt, 2.82 Imp.qt)
With oil filter cartridge replacement:
3.40 L (3.59 US qt, 2.99 Imp.qt)
U11CE3E0.book Page 11 Thursday, October 29, 2009 1:09 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42632
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove pan-
el A. (See page 6-7.)
4. Remove the coolant reservoir cap,
add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used insteadof coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
5. Install the panel.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1. Coolant reservoir capCoolant reservoir capacity (up to
the maximum level mark):
0.45 L (0.48 US qt, 0.40 Imp.qt)
1
U11CE3E0.book Page 12 Thursday, October 29, 2009 1:09 PM

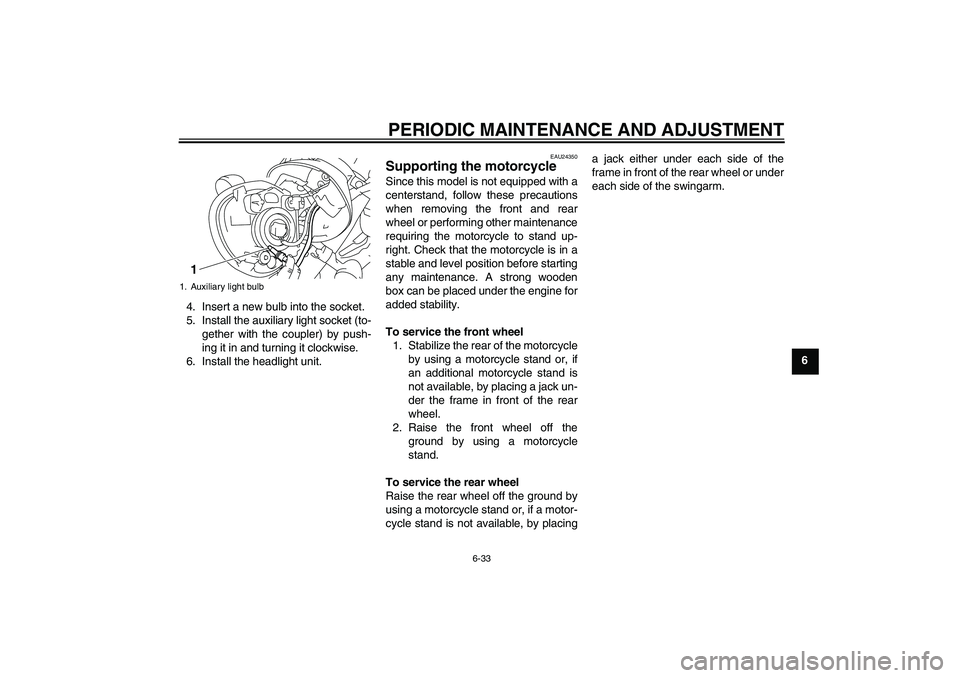

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6 4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulb1
U11CE3E0.book Page 33 Thursday, October 29, 2009 1:09 PM

INDEX
AAir filter element, replacing ................... 6-13
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-25
Brake and clutch levers,
checking and lubricating ..................... 6-22
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake fluid, changing ............................ 6-20
Brake fluid level, checking .................... 6-19
Brake lever ........................................... 3-12
Brake lever free play, checking ............ 6-17
Brake light switches .............................. 6-18
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-16
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-5DDimmer switch ...................................... 3-10
Drive belt slack ..................................... 6-20EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-9
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking .... 6-18Front fork, checking...............................6-24
Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-27
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-29
Helmet holder ........................................ 3-16
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-18
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator and warning lights .................... 3-4LLicense plate light bulb, replacing ......... 6-31MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-1
Multi-function meter unit .......................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4
PPanel, removing and installing ................ 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10RRear suspension, lubricating ................ 6-24
RESET switch ....................................... 3-11
Rider seat ............................................. 3-15SSafety information ................................... 1-1
SELECT switch ..................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-18
Sidestand, checking and lubricating ..... 6-23
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-25
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-33
Swingarm pivots, lubricating ................. 6-23TTail/brake light bulb, replacing .............. 6-31
Throttle cable free play, checking ......... 6-14
Throttle grip and cable,
checking and lubricating ..................... 6-21
Tires ...................................................... 6-14
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-34
Troubleshooting charts ......................... 6-35
