turn signal bulb YAMAHA XVS1300A 2010 Owners Manual

TABLE OF CONTENTS
Replacing a turn signal light
bulb ........................................... 6-31
Replacing the license plate light
bulb ........................................... 6-31
Replacing the auxiliary light
bulb ........................................... 6-32
Supporting the motorcycle ............ 6-33
Troubleshooting ............................ 6-34
Troubleshooting charts ................. 6-35
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U11CE3E0.book Page 2 Thursday, October 29, 2009 1:09 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
4. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
5. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
6. Install the battery cover, and then
hook the battery band onto the
holder.
EAU42892
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the turn signal light brack-
et cover by removing the bolts.
2. Remove the headlight unit by re-
moving the bolts on each side.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
Radiator fan fuse:
20.0 A
1. Do not touch the glass part of the bulb.
1. Turn signal light bracket cover
2. Bolt
1
2
2
U11CE3E0.book Page 29 Thursday, October 29, 2009 1:09 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
63. Disconnect the headlight coupler,
and then remove the bulb cover.
4. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.5. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
6. Install the headlight bulb cover,
and then connect the coupler.
7. Install the headlight unit by install-
ing the bolts.
8. Place the turn signal light bracket
cover in the original position, and
then install the bolts.9. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Bolt
1. Headlight bulb cover
2. Headlight coupler
1
2
1. Headlight bulb holder
2. Headlight bulb
1
2
U11CE3E0.book Page 30 Thursday, October 29, 2009 1:09 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU24133
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]EAU24212
Replacing a turn signal light
bulb 1. Remove the turn signal lens by re-
moving the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]EAU42484
Replacing the license plate
light bulb 1. Remove the license plate light cov-
er by removing the bolts.
2. Pull the license plate light unit up
as shown.
1. Screw
1. Screw
1. License plate light cover
2. Bolt
1. License plate light unit
U11CE3E0.book Page 31 Thursday, October 29, 2009 1:09 PM

SPECIFICATIONS
8-3
8
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LEDImmobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U11CE3E0.book Page 3 Thursday, October 29, 2009 1:09 PM

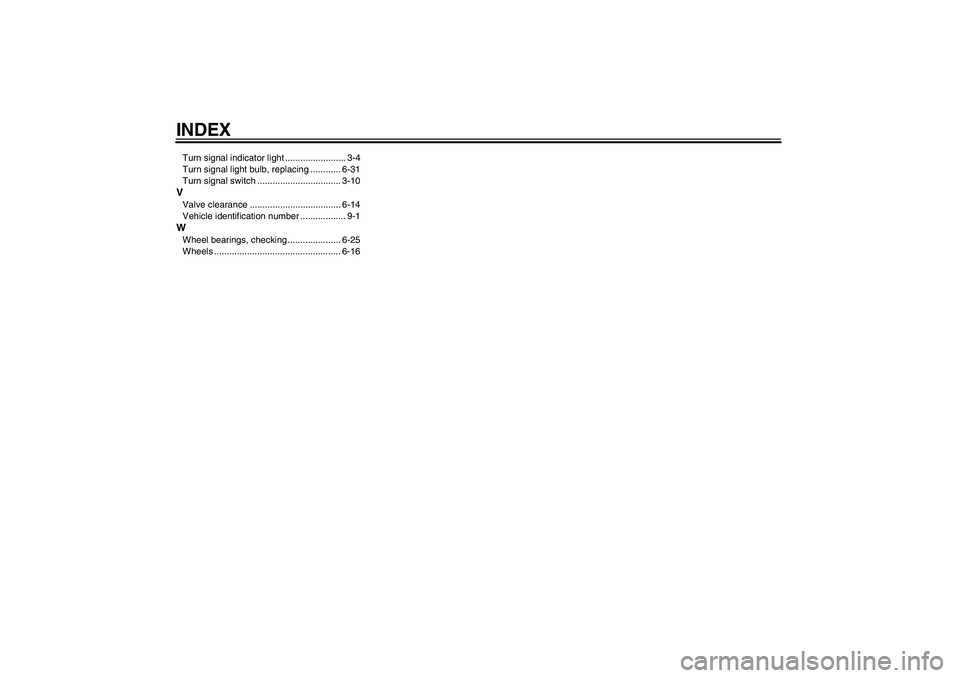

INDEXTurn signal indicator light ........................ 3-4
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................. 3-10VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-25
Wheels .................................................. 6-16
