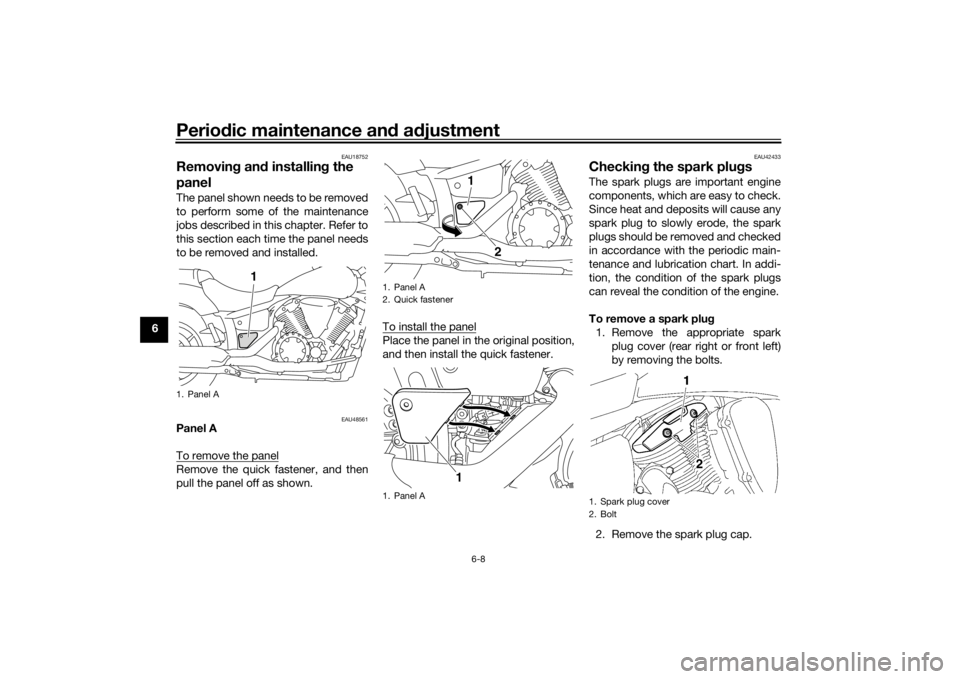

Removin g an d installin g the
panelThe panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time the panel needs
to be removed and installed.
EAU48561
Panel A
To remove the panelRemove the quick fastener, and then
pull the panel off as shown. To install the panel
Place the panel in the original position,
and then install the quick fastener.
EAU42433
Checkin
g the spark plu gsThe spark plugs are important engine
components, which are easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plugs should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plugs
can reveal the condition of the engine.
To remove a spark plu g
1. Remove the appropriate spark plug cover (rear right or front left)
by removing the bolts.
2. Remove the spark plug cap.
1. Panel A
1
1. Panel A
2. Quick fastener
1. Panel A
1 2
1
1. Spark plug cover
2. Bolt
U1CSE2E0.book Page 8 Monday, July 20, 2015 2:08 PM

Periodic maintenance an d a djustment
6-9
6
3. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the additional tool kit, which
was handed out separately at the
purchase of the vehicle. To check the spark plu
gs
1. Check that the porcelain insulator around the center electrode on
each spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
2. Check that all spark plugs in- stalled in the engine have the
same color.
TIPIf any spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.3. Check each spark plug for elec-trode erosion and excessive car-
bon or other deposits, and replace
it if necessary.
4. Measure the spark plug gap with a wire thickness gauge and, if nec-
essary, adjust the gap to specifi-
cation. To install a spark plu
g
1. Clean the surface of the spark plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
1. Spark plug cap
1. Spark plug wrench
1
Specified spark plu g:
NGK/LMAR7A-9
1. Spark plug gap
Spark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U1CSE2E0.book Page 9 Monday, July 20, 2015 2:08 PM

Periodic maintenance an d a djustment
6-36
6
EAU42505
Trou bleshootin g chartsStartin g pro blems or poor en gine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The engine does not start.
Check the ignition.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
U1CSE2E0.book Page 36 Monday, July 20, 2015 2:08 PM

Motorcycle care and stora ge
7-4
7
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then pla-
ce the spark plugs on the cylin-
der head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turning the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully char- ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30°F) or more than 30
°C (90°F)]. For more information
on storing the battery, see page
6-27.
TIPMake any necessary repairs before
storing the motorcycle.
U1CSE2E0.book Page 4 Monday, July 20, 2015 2:08 PM

10-1
10
Index
AAir filter element, replacing ................... 6-14
Auxiliary light bulb, replacing ............... 6-32BBattery .................................................. 6-27
Brake and clutch levers, checking and
lubricating........................................... 6-24
Brake and shift pedals, checking and lubricating........................................... 6-24
Brake fluid, changing............................ 6-22
Brake fluid level, checking.................... 6-20
Brake lever............................................ 3-12
Brake lever free play, checking ............ 6-18
Brake light switches ............................. 6-19
Brake pedal .......................................... 3-12CCables, checking and lubricating ......... 6-23
Care ........................................................ 7-1
Catalytic converter ............................... 3-15
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-17
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-5DDimmer switch...................................... 3-10
Drive belt slack ..................................... 6-22EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ........... 6-10
Engine serial number .............................. 9-1
Engine stop switch ............................... 3-10
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking ... 6-19 Front fork, checking ............................. 6-26
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light........................... 3-4
Fuel tank breather hose and overflow
hose ................................................... 3-15
Fuel tank cap........................................ 3-13
Fuses, replacing ................................... 6-29
HHandlebar switches ............................. 3-10
Hazard switch ...................................... 3-11
Headlight bulb, replacing ..................... 6-30
Helmet holder....................................... 3-16
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-10IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-19
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-5
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-33MMain switch/steering lock ...................... 3-2
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function meter unit ........................ 3-6NNeutral indicator light ............................. 3-4
OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-8
Parking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch........................................... 3-10RRear suspension, lubricating ................ 6-25
RESET switch ....................................... 3-11
Rider seat.............................................. 3-16SSafety information................................... 1-1
SELECT switch ..................................... 3-11
Shifting.................................................... 5-2
Shift pedal............................................. 3-12
Shock absorber assembly, adjusting ... 3-17
Sidestand.............................................. 3-18
Sidestand, checking and lubricating .... 6-25
Spark plugs, checking ............................ 6-8
Specifications ......................................... 8-1
Starting the engine ................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-34
Swingarm pivots, lubricating ................ 6-26TThrottle grip and cable, checking and lubricating ........................................... 6-23
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-35
U1CSE2E0.book Page 1 Monday, July 20, 2015 2:08 PM
