engine YAMAHA XVS1300CU 2014 Owner's Guide

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU42505

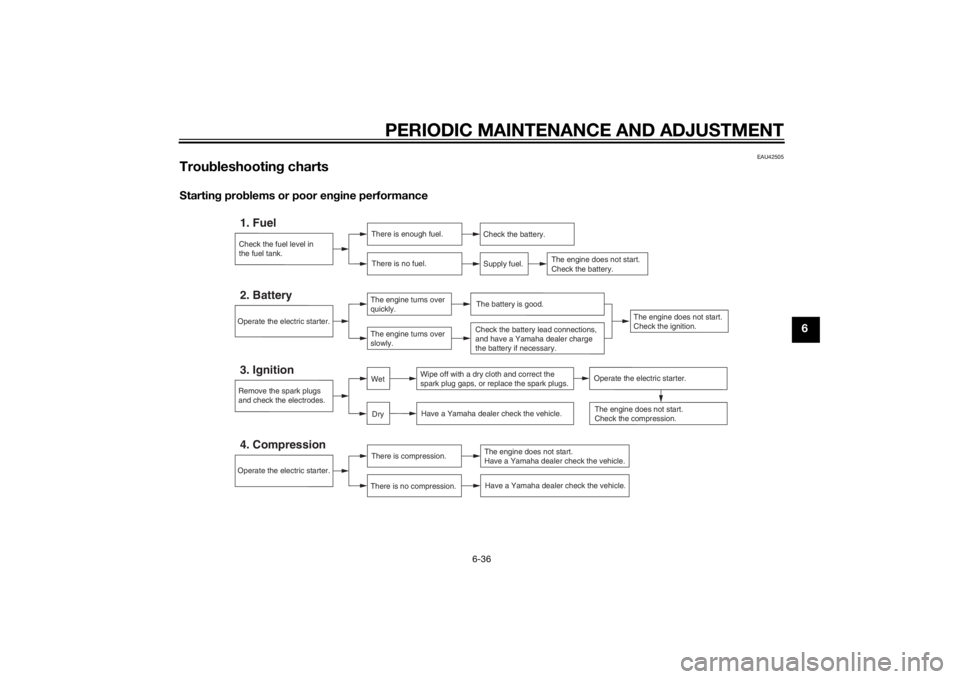

Troubleshootin g chartsStartin g prob lems or poor en gine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The engine does not start.
Check the ignition.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
U2SSE0E0.book Page 36 Monday, November 18, 2013 3:20 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
6En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2SSE0E0.book Page 37 Monday, November 18, 2013 3:20 PM

MOTORCYCLE CARE AND STORAGE7-1
7
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
a d vice on what prod ucts to use be-
fore cleanin g the vehicle. Usin g a
b rush, harsh chemical pro ducts or
cleanin g compoun ds when cleanin g
these parts will scratch or damag e
their surface. Wax also shoul d not
b e applie d to any matte colored fin-
ishe d parts.
EAU32935
CareWhile the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a mo-
torcycle. Frequent and proper care
does not only comply with the terms of
the warranty, but it will also keep your
motorcycle looking good, extend its
life and optimize its performance.
Before cleanin g
1. Cover the muffler outlets with plastic bags after the engine has
cooled down.
2. Make sure that all caps and cov- ers as well as all electrical cou-
plers and connectors, including
the spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, the drive
belt and wheel axles. Always rinse
the dirt and degreaser off with wa-
ter.
Cleanin g
NOTICE
ECA10773
Avoi d usin g stron g aci dic wheel
cleaners, especially on spoked
wheels. If such pro ducts are
use d on har d-to-remove dirt, do
not leave the cleaner on the af-
fected area any lon ger than in-
structed . Also, thorou ghly rinse
the area off with water, immed i-
ately dry it, an d then apply a cor-
rosion protection spray.
 Improper cleanin g can d amage
plastic parts (such as cowlin gs,
panels, win dshiel ds, hea dlig ht
lenses, meter lenses, etc.) an d
the mufflers. Use only a soft,
clean cloth or spon ge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
ou ghly cleaned with water, di-
lute d mil d d eter gent with water
may be used . Be sure to rinse
U2SSE0E0.book Page 1 Monday, November 18, 2013 3:20 PM

MOTORCYCLE CARE AND STORAGE
7-2
7off any d
etergent resi due usin g
plenty of water, as it is harmful
to plastic parts.
 Do not use any harsh chemical
prod ucts on plastic parts. Be
sure to avoi d using cloths or
spon ges which have been in
contact with stron g or a brasive
cleanin g prod ucts, solvent or
thinner, fuel ( gasoline), rust re-
movers or inhi bitors, brake flui d,
antifreeze or electrolyte.
 Do not use hi gh-pressure wash-
ers or steam-jet cleaners since
they cause water seepa ge an d
d eterioration in the followin g ar-
eas: seals (of wheel an d swin g-
arm bearin gs, fork an d b rakes),
electric components (couplers,
connectors, instruments,
switches an d lig hts), breather
hoses an d vents.
 For motorcycles equippe d with
a win dshield : Do not use stron g
cleaners or har d spon ges as
they will cause dullin g
or
scrat

ching . Some cleanin g
compoun ds for plastic may
leave scratches on the win d- shield
. Test the pro duct on a
small hidden part of the win d-
shield to make sure that it does
not leave any marks. If the win d-
shield is scratche d, use a quality
plastic polishin g compoun d af-
ter washin g.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive
in combination with water, carry out
the following steps after each ride in
the rain, near the sea or on salt-
sprayed roads.
TIPSalt sprayed on roads in the winter
may remain well into spring.1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.
NOTICE: Do not use warm wa-
ter since it increases the corro-
sive action of the salt.
[ECA10792]
2. After drying the motorcycle, apply a corrosion protection spray on all
metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleanin g
1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
U2SSE0E0.book Page 2 Monday, November 18, 2013 3:20 PM

MOTORCYCLE CARE AND STORAGE7-3
7
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean- er to remove any remaining dirt.
5. Touch up minor paint damage caused by stones, etc.
6. Wax all painted and chrome-plat- ed surfaces. Avoid combination
cleaner waxes, many of which
contain abrasives that may mar
the paint or protective finish.
7. Let the motorcycle dry completely before storing or covering it.
WARNING
EWA11132
Contaminants on the b rakes or tires
can cause loss of control.  Make sure that there is no oil or
wax on the brakes or tires.
 If necessary, clean the brake
d iscs an d b rake linin gs with a
re gular brake disc cleaner or
acetone, an d wash the tires with
warm water an d a mil d d eter-
g ent. Before rid ing at hi gher spee
ds, test the motorcycle’s
b rakin g performance an d cor-
nerin g b ehavior.
NOTICE
ECA10951
 Apply spray oil an d wax spar-
in gly an d make sure to wipe off
any excess.
 Never apply oil or wax to the
drive belt.
 Never apply oil or wax to any
rubber an d plastic parts, b ut
treat them with a suita ble care
prod uct.
 Avoi d using abrasive polishin g
compoun ds as they will wear
away the paint.TIP Consult a Yamaha dealer for ad-
vice on what products to use.
 Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU44454
Stora geShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.NOTICE
ECA10811
 Storin g the motorcycle in a
poorly ventilated room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, stab les (because
of the presence of ammonia)
an d areas where stron g chemi-
cals are stored .Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
U2SSE0E0.book Page 3 Monday, November 18, 2013 3:20 PM

MOTORCYCLE CARE AND STORAGE
7-4
72. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent d am-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover each muffler outlet with a plastic bag to prevent moisture
from entering them.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30°F) or more than 30
°C (90°F)]. For more information
on storing the battery, see page
6-28.
TIPMake any necessary repairs before
storing the motorcycle.
U2SSE0E0.book Page 4 Monday, November 18, 2013 3:20 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2535 mm (99.8 in)
Overall width:
860 mm (33.9 in)
Overall height: 1130 mm (44.5 in)
Seat height: 670 mm (26.4 in)
Wheelbase:
1755 mm (69.1 in)
Ground clearance: 150 mm (5.91 in)
Minimum turning radius: 3400 mm (133.9 in)Wei ght:Curb weight:
293 kg (646 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement: V-type 2-cylinder
Displacement: 1304 cm³
Bore × stroke:
100.0 × 83.0 mm (3.94 × 3.27 in)
Compression ratio: 9.50 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.20 L (3.38 US qt, 2.82 Imp.qt)
With oil filter cartridge replacement:
3.40 L (3.59 US qt, 2.99 Imp.qt)Coolin g system:Coolant reservoir capacity (up to the
maximum level mark):
0.45 L (0.48 US qt, 0.40 Imp.qt)
Radiator capacity (including all routes): 2.10 L (2.22 US qt, 1.85 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
5.0 L (1.32 US gal, 1.10 Imp.gal)Fuel injection:Throttle body:ID mark:3D8D 40Spark plu g(s):Manufacturer/model:
NGK/LMAR7A-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:1.556 (70/45)
Final drive:
Belt
Secondary reduction ratio: 2.258 (70/31)
Transmission type: Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio: 1st:
2.769 (36/13)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U2SSE0E0.book Page 1 Monday, November 18, 2013 3:20 PM

SPECIFICATIONS
8-3
8
Tail/brake light:LED
Front turn signal light: 12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light: 12 V, 5.0 W × 1
License plate light: 12 V, 5.0 W × 2
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Oil level warning light:
LED
Turn signal indicator light: LED
Fuel level warning light: LED
Coolant temperature warning light:
LED
Engine trouble warning light: LEDFuses:Main fuse:
50.0 A
Headlight fuse: 20.0 A
Signaling system fuse: 10.0 A Ignition fuse:
15.0 A
Parking lighting fuse: 10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse: 10.0 A
Backup fuse: 10.0 A
U2SSE0E0.book Page 3 Monday, November 18, 2013 3:20 PM

CONSUMER INFORMATION
9-1
9
EAU53562
Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26441
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26481
Mo del la bel
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
U2SSE0E0.book Page 1 Monday, November 18, 2013 3:20 PM

10-1
10
INDEXAAir filter element, replacing ................... 6-14
Auxiliary light bulb, replacing ................ 6-33BBattery .................................................. 6-28
Brake and clutch levers, checking and lubricating ........................................... 6-24
Brake and shift pedals, checking and lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-20
Brake lever .............................................. 3-9
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-19
Brake pedal........................................... 3-10CCables, checking and lubricating ......... 6-23
Care ........................................................ 7-1
Catalytic converter ................................ 3-12
Clutch lever ............................................. 3-9
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-3DDimmer switch ........................................ 3-7
Drive belt slack ..................................... 6-22EEngine break-in....................................... 5-3
Engine oil and oil filter cartridge ........... 6-10
Engine serial number .............................. 9-1
Engine stop switch ................................. 3-8
Engine trouble warning light ................... 3-3FFront and rear brake pads, checking.... 6-20 Front fork, checking ............................. 6-26
Fuel ....................................................... 3-11
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light ........................... 3-3
Fuel tank breather/overflow hose ......... 3-12
Fuel tank cap ........................................ 3-10
Fuses, replacing ................................... 6-29
HHandlebar switches ................................ 3-7
Hazard switch......................................... 3-8
Headlight bulb, replacing ..................... 6-30
Helmet holder ....................................... 3-14
High beam indicator light ....................... 3-2
Horn switch ............................................ 3-8IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-16
Indicator lights and warning lights ......... 3-2LLicense plate light ................................ 6-33MMain switch/steering lock....................... 3-1
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-4NNeutral indicator light ............................. 3-2OOil level warning light ............................. 3-2PPanel, removing and installing ............... 6-8 Parking ....................................................5-4
Part locations ..........................................2-1
Pass switch .............................................3-7
RRear suspension, lubricating ................6-25
RESET switch .........................................3-8SSafety information ...................................1-1
Seat .......................................................3-13
SELECT switch .......................................3-8
Shifting ....................................................5-2
Shift pedal ...............................................3-9
Shock absorber assembly, adjusting ....3-15
Sidestand ..............................................3-16
Sidestand, checking and lubricating.....6-25
Spark plugs, checking ............................6-8
Specifications .........................................8-1
Starting the engine ..................................5-1
Start switch .............................................3-8
Steering, checking ................................6-27
Storage ...................................................7-3
Supporting the motorcycle ...................6-34
Swingarm pivots, lubricating ................6-26TTail/brake light ......................................6-32
Throttle grip and cable, checking and
lubricating ...........................................6-23
Throttle grip free play, checking ...........6-15
Tires ......................................................6-15
Tool kit ....................................................6-2
Troubleshooting ....................................6-34
Troubleshooting charts .........................6-36
Turn signal indicator light........................3-2
Turn signal light bulb, replacing ............6-32
U2SSE0E0.book Page 1 Monday, November 18, 2013 3:20 PM
