DESCRIPTION
2-1
2
EAU10411

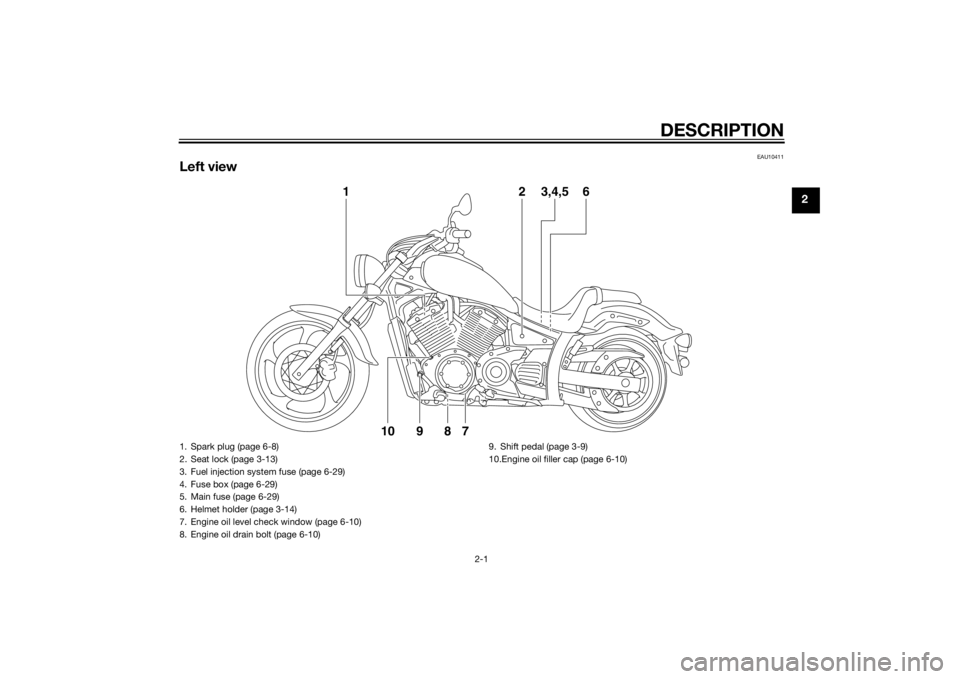

Left view
2
3,4,5
6
1
9
10
7
8
1. Spark plug (page 6-8)
2. Seat lock (page 3-13)
3. Fuel injection system fuse (page 6-29)
4. Fuse box (page 6-29)
5. Main fuse (page 6-29)
6. Helmet holder (page 3-14)
7. Engine oil level check window (page 6-10)
8. Engine oil drain bolt (page 6-10)9. Shift pedal (page 3-9)
10.Engine oil filler cap (page 6-10)
U2SSE0E0.book Page 1 Monday, November 18, 2013 3:20 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6turne
d to “OFF”, then discon-
nect the neg ative lead b efore
d isconnectin g the positive lea d.
[ECA16303]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-
in g the b attery, be sure the key
is turne d to “OFF”, then connect
the positive lea d before con-
nectin g the ne gative lea d.
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the b attery charged .
Storin g a d ischar ged battery can
cause permanent battery dama ge.
EAU50811

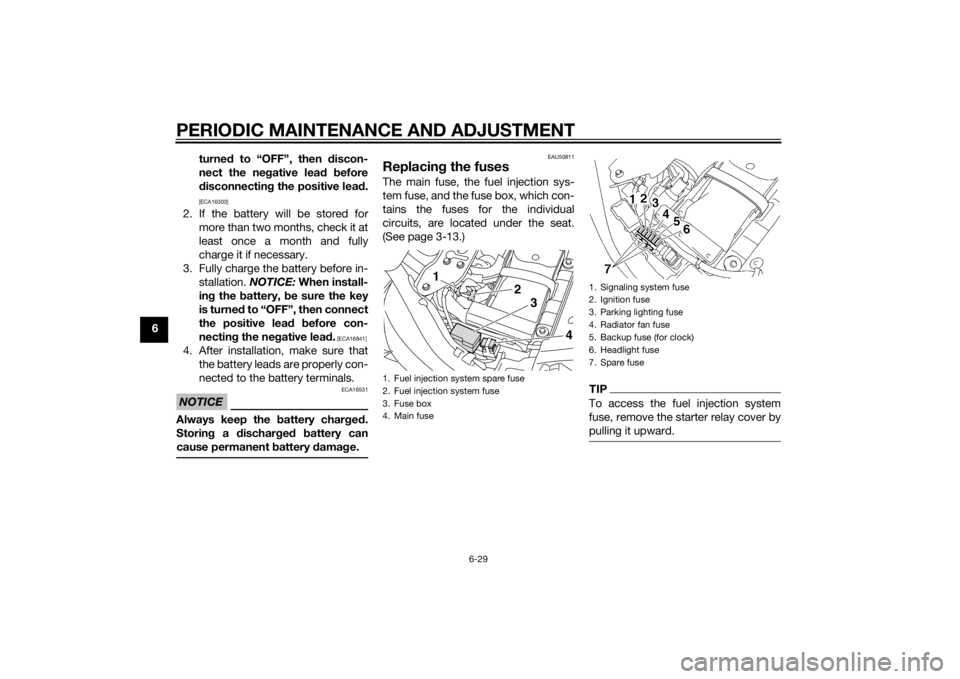

Replacin g the fusesThe main fuse, the fuel injection sys-
tem fuse, and the fuse box, which con-
tains the fuses for the individual
circuits, are located under the seat.
(See page 3-13.)
TIPTo access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Fuse box
4. Main fuse
1
2
3
4
1. Signaling system fuse
2. Ignition fuse
3. Parking lighting fuse
4. Radiator fan fuse
5. Backup fuse (for clock)
6. Headlight fuse
7. Spare fuse
U2SSE0E0.book Page 29 Monday, November 18, 2013 3:20 PM
