DESCRIPTION
2
Left view (XVS650) ............................................................................ 2-1
Right view (XVS650) .......................................................................... 2-2
Left view (XVS650A) .......................................................................... 2-3
Right view (XVS650A) ........................................................................ 2-4
Controls and instruments (XVS650/XVS650A) .................................. 2-5
E_5bn.book Page 1 Wednesday, October 4, 2000 7:51 PM

2-1
2
EAU00026
2-DESCRIPTION Left view (XVS650)1. Shift pedal (page 3-5)
2. Fuel cock (page 3-8)
3. Starter (choke) knob (page 3-9)
4. Shock absorber spring preload
adjusting ring (page 3-14)5. Helmet holder (page 3-12)
6. Storage compartment (page 3-13)
7. Owner’s tool kit (page 6-1)
E_5bn.book Page 1 Wednesday, October 4, 2000 7:51 PM

DESCRIPTION
2-2
2

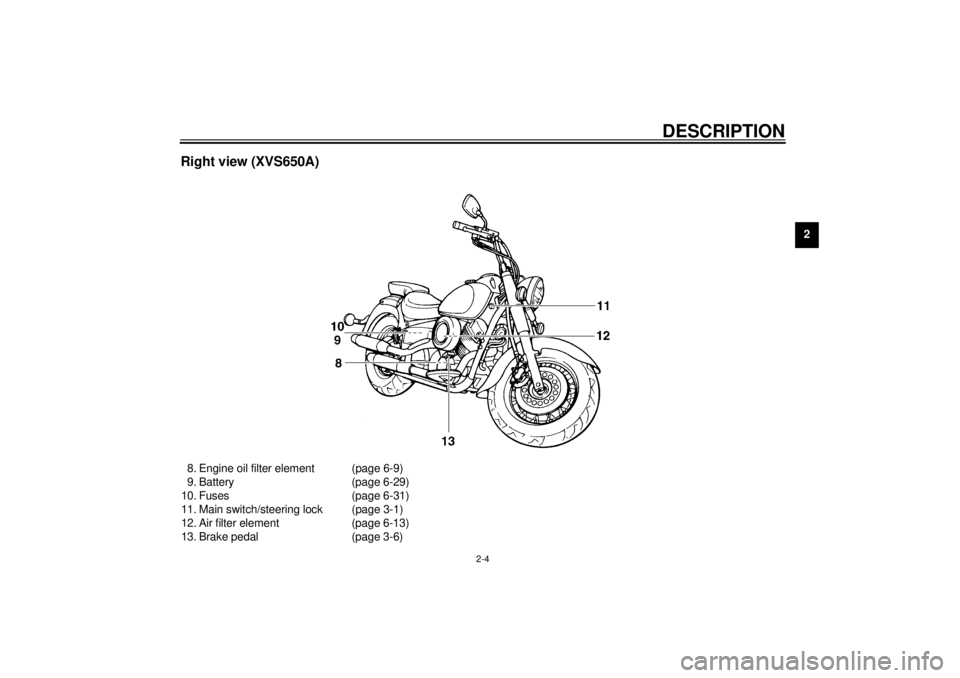

Right view (XVS650)8. Engine oil filter element (page 6-9)
9. Battery (page 6-29)
10. Fuses (page 6-31)
11. Main switch/steering lock (page 3-1)
12. Air filter element (page 6-13)
13. Brake pedal (page 3-6)
E_5bn.book Page 2 Wednesday, October 4, 2000 7:51 PM

DESCRIPTION
2-3
2
Left view (XVS650A)1. Shift pedal (page 3-5)
2. Fuel cock (page 3-8)
3. Starter (choke) knob (page 3-9)
4. Shock absorber spring preload
adjusting ring (page 3-14)5. Helmet holder (page 3-12)
6. Storage compartment (page 3-13)
7. Owner’s tool kit (page 6-1)
E_5bn.book Page 3 Wednesday, October 4, 2000 7:51 PM

DESCRIPTION
2-4
2
Right view (XVS650A)8. Engine oil filter element (page 6-9)
9. Battery (page 6-29)
10. Fuses (page 6-31)
11. Main switch/steering lock (page 3-1)
12. Air filter element (page 6-13)
13. Brake pedal (page 3-6)
E_5bn.book Page 4 Wednesday, October 4, 2000 7:51 PM

DESCRIPTION
2-5
2
Controls and instruments (XVS650/XVS650A)1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-3)
3. Speedometer unit (page 3-3)
4. Fuel tank cap (page 3-7)
5. Right handlebar switches (page 3-4)
6. Throttle grip (page 6-15)
7. Brake lever (page 3-6)
E_5bn.book Page 5 Wednesday, October 4, 2000 7:51 PM

INSTRUMENT AND CONTROL FUNCTIONS
3
Main switch/steering lock .................................................................. 3-1
Indicator and warning lights ............................................................. 3-2
Speedometer unit .............................................................................. 3-3
Anti-theft alarm (optional) .................................................................. 3-3
Handlebar switches ........................................................................... 3-3
Clutch lever ....................................................................................... 3-5
Shift pedal (XVS650).......................................................................... 3-5
Shift pedal (XVS650A) ....................................................................... 3-5
Brake lever ........................................................................................ 3-6
Brake pedal ....................................................................................... 3-6
Fuel tank cap ..................................................................................... 3-7
Fuel ................................................................................................... 3-7
Fuel cock ........................................................................................... 3-8
Starter (choke) knob .......................................................................... 3-9
Seats (XVS650) ............................................................................... 3-10
Seats (XVS650A) ............................................................................. 3-11
Helmet holder .................................................................................. 3-12
Storage compartment ..................................................................... 3-13
Adjusting the shock absorber assembly .......................................... 3-14
Luggage strap holders .................................................................... 3-15
Sidestand ........................................................................................ 3-15
Ignition circuit cut-off system ........................................................... 3-16
E_5bn.book Page 1 Wednesday, October 4, 2000 7:51 PM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU00036
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF” or “LOCK”. @1. Push.
2. Turn.
E_5bn.book Page 1 Wednesday, October 4, 2000 7:51 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00044
(Parking)
The steering is locked, and the taillight
is on, but all other electrical systems
are off. The key can be removed.
The steering must be locked before the
key can be turned to “ ”.
ECA00043
CAUTION:@ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. @
EAU03034
Indicator and warning lights
EAU00057
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU00061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU00063
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU03182
Engine trouble warning light “ ”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have the Yamaha dealer check
the self-diagnosis system.NOTE:@ This warning light comes on for a few
seconds when the key is turned to
“ON”, but this does not indicate a mal-
function. @
1. High beam indicator light “ ”
2. Turn signal indicator light “ ”
3. Neutral indicator light “ ”
4. Engine trouble warning light “ ”
E_5bn.book Page 2 Wednesday, October 4, 2000 7:51 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00095
Speedometer unit The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU00109
Anti-theft alarm (optional) This motorcycle can be equipped with
an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU00118
Handlebar switches
EAU00127
Turn signal switch
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
1. Tripmeter reset knob
2. Speedometer
3. Odometer
4. Tripmeter
1. Turn signal switch
2. Pass switch “ ”
3. Dimmer switch
4. Horn switch “ ”
