air filter YAMAHA XVS650A 2001 Owners Manual

DESCRIPTION
2-2
2
Right view (XVS650)8. Engine oil filter element (page 6-9)
9. Battery (page 6-29)
10. Fuses (page 6-31)
11. Main switch/steering lock (page 3-1)
12. Air filter element (page 6-13)
13. Brake pedal (page 3-6)
E_5bn.book Page 2 Wednesday, October 4, 2000 7:51 PM

DESCRIPTION
2-4
2
Right view (XVS650A)8. Engine oil filter element (page 6-9)
9. Battery (page 6-29)
10. Fuses (page 6-31)
11. Main switch/steering lock (page 3-1)
12. Air filter element (page 6-13)
13. Brake pedal (page 3-6)
E_5bn.book Page 4 Wednesday, October 4, 2000 7:51 PM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing panels ........................... 6-5
Checking the spark plugs .................................... 6-7
Engine oil and oil filter element ............................ 6-9
Final gear oil ...................................................... 6-11
Cleaning the air filter element ............................ 6-13
Adjusting the carburetors ................................... 6-14
Adjusting the engine idling speed ...................... 6-15
Adjusting the throttle cable free play .................. 6-15
Adjusting the valve clearance ............................ 6-16
Tires ................................................................... 6-16
Spoke wheels .................................................... 6-19
Adjusting the clutch lever free play .................... 6-19
Adjusting the brake lever free play ..................... 6-20
Adjusting the brake pedal position and
free play ........................................................... 6-21
Adjusting the rear brake light switch .................. 6-22
Checking the front brake pads and
rear brake shoes .............................................. 6-23
Checking the brake fluid level ............................ 6-24
Changing the brake fluid .................................... 6-25Checking and lubricating the cables ................. 6-25
Checking and lubricating the throttle grip and
cable ............................................................... 6-25
Checking and lubricating the brake and
shift pedals ...................................................... 6-26
Checking and lubricating the brake and
clutch levers .................................................... 6-26
Checking and lubricating the sidestand ............ 6-27
Checking the front fork ...................................... 6-27
Checking the steering ....................................... 6-28
Checking the wheel bearings ............................ 6-29
Battery ............................................................... 6-29
Replacing the fuses .......................................... 6-31
Replacing the headlight bulb ............................. 6-32
Replacing a turn signal light bulb or the tail/
brake light bulb ................................................ 6-33
Supporting the motorcycle ................................ 6-34
Front wheel ....................................................... 6-35
Rear wheel ........................................................ 6-36
Troubleshooting ................................................. 6-38
Troubleshooting chart ........................................ 6-39
E_5bn.book Page 1 Wednesday, October 4, 2000 7:51 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_ l
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
l
From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
l
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses for cracks or damage.ÖÖÖÖ Ö
2*Fuel filter• Check condition.ÖÖ
3 Spark plugs• Check condition.
• Clean and regap.ÖÖ
• Replace.ÖÖ
4*Valves• Check valve clearance.
•Adjust.ÖÖÖÖ
5 Air filter element•Clean.ÖÖ
• Replace.ÖÖ
6Clutch• Check operation.
•Adjust.ÖÖÖÖÖ
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)ÖÖÖÖÖ Ö
• Replace brake pads. Whenever worn to the limit
8*Rear brake• Check operation and adjust brake pedal freeplay.ÖÖÖÖÖ Ö
• Replace brake shoes. Whenever worn to the limit
9*Brake hose• Check for cracks or damage.ÖÖÖÖ Ö
• Replace. (See NOTE on page 6-4.) Every 4 years
E_5bn_Periodic.fm Page 2 Thursday, December 14, 2000 1:31 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10
*Wheels• Check runout, spoke tightness and for damage.
• Tighten spokes if necessary.ÖÖÖÖ
11*Tires• Check tread depth and for damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.ÖÖÖÖ
12*Wheel bearings• Check bearing for looseness or damage.ÖÖÖÖ
13*Swingarm• Check operation and for excessive play.ÖÖÖÖ
• Lubricate with molybdenum disulfide grease. Every 50,000 km
14*Steering bearings• Check bearing play and steering for roughness.ÖÖÖÖÖ
• Lubricate with lithium-soap-based grease. Every 20,000 km
15*Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.ÖÖÖÖ Ö
16 Sidestand• Check operation.
• Lubricate.ÖÖÖÖ Ö
17*Sidestand switch• Check operation.ÖÖÖÖÖ Ö
18*Front fork• Check operation and for oil leakage.ÖÖÖÖ
19*Rear shock absorber
assembly• Check operation and shock absorber for oil leakage.ÖÖÖÖ
20*Carburetors• Check starter (choke) operation.
• Adjust engine idling speed and synchronization.ÖÖÖÖÖ Ö
21 Engine oil• Change.ÖÖÖÖÖ Ö
22 Engine oil filter element•Replace.ÖÖÖ
23 Final gear oil• Check oil level and vehicle for oil leakage.ÖÖ Ö
• Change.ÖÖÖ
24*Front and rear brake
switches• Check operation.ÖÖÖÖÖ Ö
25 Moving parts and cables• Lubricate.ÖÖÖÖ Ö NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
E_5bn_Periodic.fm Page 3 Thursday, December 14, 2000 1:31 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03541
NOTE:@l
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
l
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
@26
*Lights, signals and
switches• Check operation.
• Adjust headlight beam.ÖÖÖÖÖ Ö NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
E_5bn_Periodic.fm Page 4 Thursday, December 14, 2000 1:31 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
EAU03835
Engine oil and oil filter
element The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _2. Start the engine, warm it up for
several minutes, and then turn it
off.3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.To change the engine oil (with or
without oil filter element replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler capLeft side
1. Engine oil drain bolt
2. Oil pan
E_5bn.book Page 9 Wednesday, October 4, 2000 7:51 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:_ Skip steps 4–7 if the oil filter element is
not being replaced. _4. Remove the outer and inner oil fil-
ter element covers by removing
the bolts.5. Remove the oil filter element and
O-ring.
6. Install a new oil filter element and
the O-ring.
7. Install the oil filter element covers
by installing the bolts.
8. Install the engine oil drain bolt, and
then tighten it to the specified
torque.1. Outer oil filter element cover
2. Bolt (´ 3)Right side
1. Inner oil filter element cover
2. Bolt (´ 5)
1. Oil filter element
2. O-ringTightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kg)
E_5bn.book Page 10 Wednesday, October 4, 2000 7:51 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
69. Add the specified amount of the
recommended oil, and then install
and tighten the oil filler cap.
EC000072
CAUTION:_ l
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of a higher
grade than “CD”. In addition, do
not use oils labeled “ENERGY
CONSERVING II” or higher.
l
Make sure that no foreign mate-
rial enters the crankcase.
_10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
11. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU02943*
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil level must be
checked and the oil changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
EW000066
WARNING
@ l
Make sure that no foreign mate-
rial enters the final gear case.
l
Make sure that no oil gets on
the tire or wheel.
@To check the final gear oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position. Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element
replacement:
2.6 L
With oil filter element
replacement:
2.8 L
Total amount (dry engine):
3.2 L
E_5bn.book Page 11 Wednesday, October 4, 2000 7:51 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU00586*

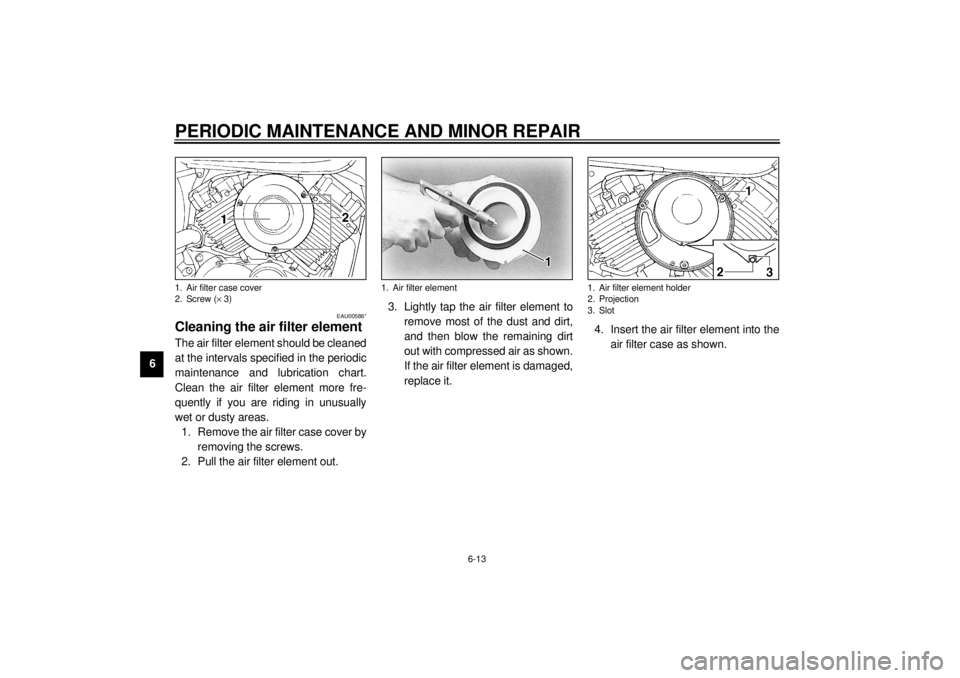

Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.3. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.4. Insert the air filter element into the
air filter case as shown.1. Air filter case cover
2. Screw (´ 3)
1. Air filter element
1. Air filter element holder
2. Projection
3. Slot
E_5bn.book Page 13 Wednesday, October 4, 2000 7:51 PM
