YAMAHA XVS650A 2006 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2006, Model line: XVS650A, Model: YAMAHA XVS650A 2006Pages: 86, PDF Size: 10.95 MB
Page 21 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-16.)
EAU12880
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.NOTE:Use your toes or heel to shift up andyour toes to shift down.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1. Shift pedal
1. Brake lever
U4C5E0E0.book Page 7 Friday, August 5, 2005 1:08 PM
Page 22 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13020
Fuel tank cap To remove the fuel tank cap
Insert the key into the lock and turn it
1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be re-
moved.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the “” mark
facing forward.
2. Turn the key counterclockwise to
the original position, and then re-
move it.
NOTE:The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA10130
Make sure that the fuel tank cap isproperly installed before riding.
1. Brake pedal
1.“” mark
2. Unlock.
U4C5E0E0.book Page 8 Friday, August 5, 2005 1:08 PM
Page 23 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU13220
Fuel Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fill the tank to the bot-
tom of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13320
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brandor premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
16.0 L (4.23 US gal) (3.52 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal) (0.66 Imp.gal)
U4C5E0E0.book Page 9 Friday, August 5, 2005 1:08 PM
Page 24 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU13441
Catalytic converter This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idletoo long.
EAU13550
Fuel cock The fuel cock supplies fuel from the
tank to the carburetors while also filter-
ing it.
The fuel cock lever positions are ex-
plained as follows and shown in the il-
lustrations.
OFF
With the fuel cock lever in this position,
fuel will not flow. Always turn the fuel
cock lever to this position when the en-
gine is not running.ON
With the fuel cock lever in this position,
fuel flows to the carburetors. Turn the
fuel cock lever to this position when
starting the engine and riding.
RES1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U4C5E0E0.book Page 10 Friday, August 5, 2005 1:08 PM

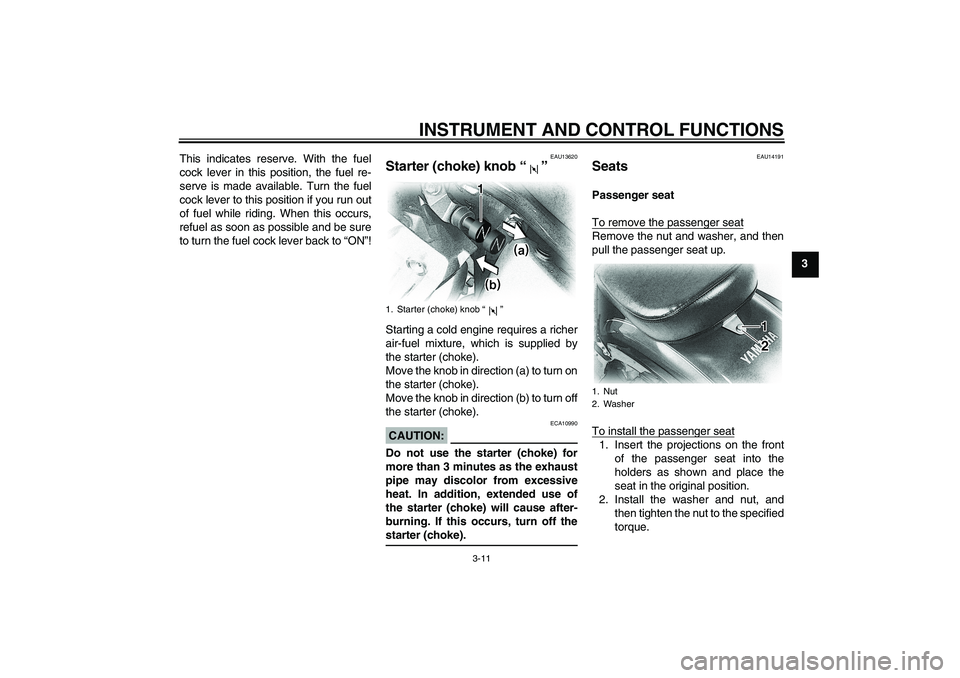

Page 25 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 This indicates reserve. With the fuel
cock lever in this position, the fuel re-
serve is made available. Turn the fuel
cock lever to this position if you run out
of fuel while riding. When this occurs,
refuel as soon as possible and be sure
to turn the fuel cock lever back to “ON”!
EAU13620
Starter (choke) knob “” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).CAUTION:
ECA10990
Do not use the starter (choke) for
more than 3 minutes as the exhaust
pipe may discolor from excessive
heat. In addition, extended use of
the starter (choke) will cause after-
burning. If this occurs, turn off thestarter (choke).
EAU14191
Seats Passenger seat
To remove the passenger seatRemove the nut and washer, and then
pull the passenger seat up.
To install the passenger seat1. Insert the projections on the front
of the passenger seat into the
holders as shown and place the
seat in the original position.
2. Install the washer and nut, and
then tighten the nut to the specified
torque.
1. Starter (choke) knob “”
1. Nut
2. Washer
U4C5E0E0.book Page 11 Friday, August 5, 2005 1:08 PM

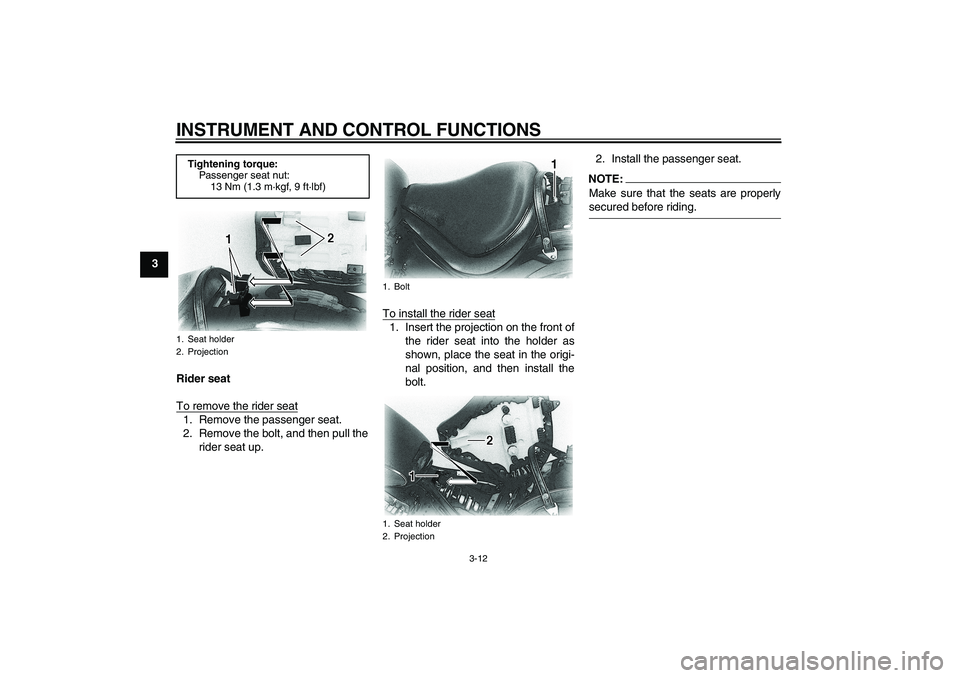

Page 26 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolt, and then pull the
rider seat up.To install the rider seat
1. Insert the projection on the front of
the rider seat into the holder as
shown, place the seat in the origi-
nal position, and then install the
bolt.2. Install the passenger seat.
NOTE:Make sure that the seats are properlysecured before riding.
Tightening torque:
Passenger seat nut:
13 Nm (1.3 m·kgf, 9 ft·lbf)1. Seat holder
2. Projection
1. Bolt
1. Seat holder
2. Projection
U4C5E0E0.book Page 12 Friday, August 5, 2005 1:08 PM
Page 27 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU14281
Helmet holder To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key.
WARNING
EWA10160
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-trol and possibly an accident.
EAU14481
Storage compartment The storage compartment is located on
the left side of the vehicle.
To open the storage compartment
1. Slide the lock cover open, insert
the key into the lock, and then turn
it clockwise.
2. Pull the storage compartment cov-
er out as shown.To close the storage compartment
1. Place the storage compartment
cover in its original position as
shown.
2. Turn the key counterclockwise, re-
move it, and then close the lock
cover.
1. Helmet holder
2. Unlock.
1. Storage compartment cover
2. Storage compartment lock cover
3. Storage compartment lock
1. Storage compartment
2. Storage compartment cover
U4C5E0E0.book Page 13 Friday, August 5, 2005 1:08 PM
Page 28 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU14860
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Adjust the spring preload as follows.
1. Remove the passenger and rider
seats. (See page 3-11.)2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting ring in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting ring in
direction (b).
NOTE:
Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
Use the special wrench and exten-
sion bar included in the owner’stool kit to make the adjustment.
3. Install the passenger and rider
seats.
WARNING
EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealerservice the shock absorber.
1. Position indicator
2. Spring preload adjusting ring
3. Extension bar
4. Special wrench
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
7
U4C5E0E0.book Page 14 Friday, August 5, 2005 1:08 PM
Page 29 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU15150
Luggage strap holders There is a luggage strap holder on each
passenger footrest.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
1. Luggage strap holder
U4C5E0E0.book Page 15 Friday, August 5, 2005 1:08 PM
Page 30 of 86
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU15311
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.
It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.U4C5E0E0.book Page 16 Friday, August 5, 2005 1:08 PM
