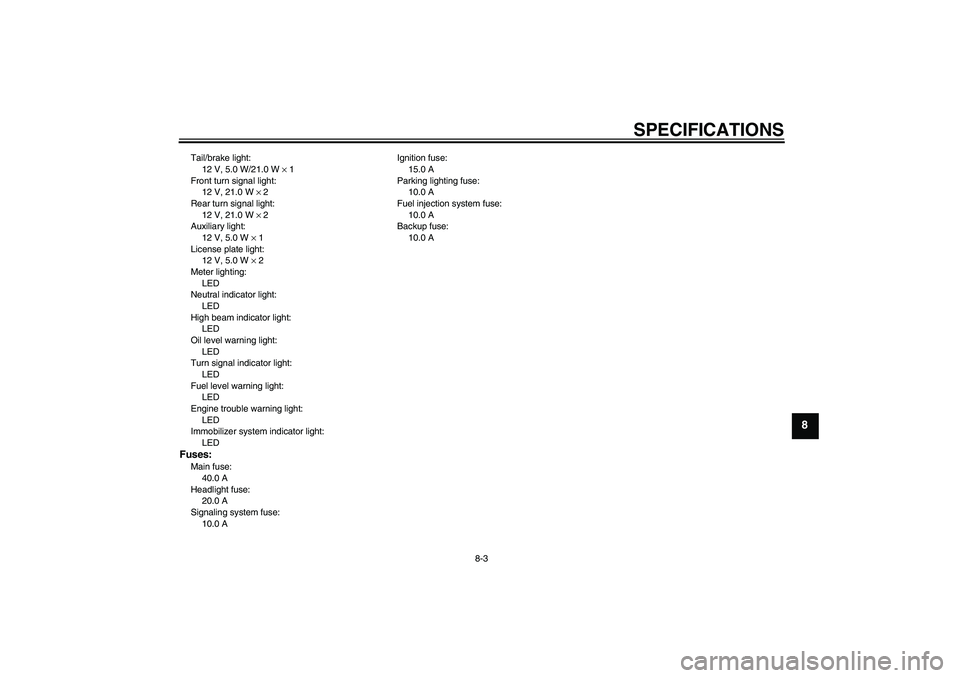

SPECIFICATIONS
8-3
8
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 2
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 AIgnition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U26PE2E0.book Page 3 Thursday, May 13, 2010 5:38 PM

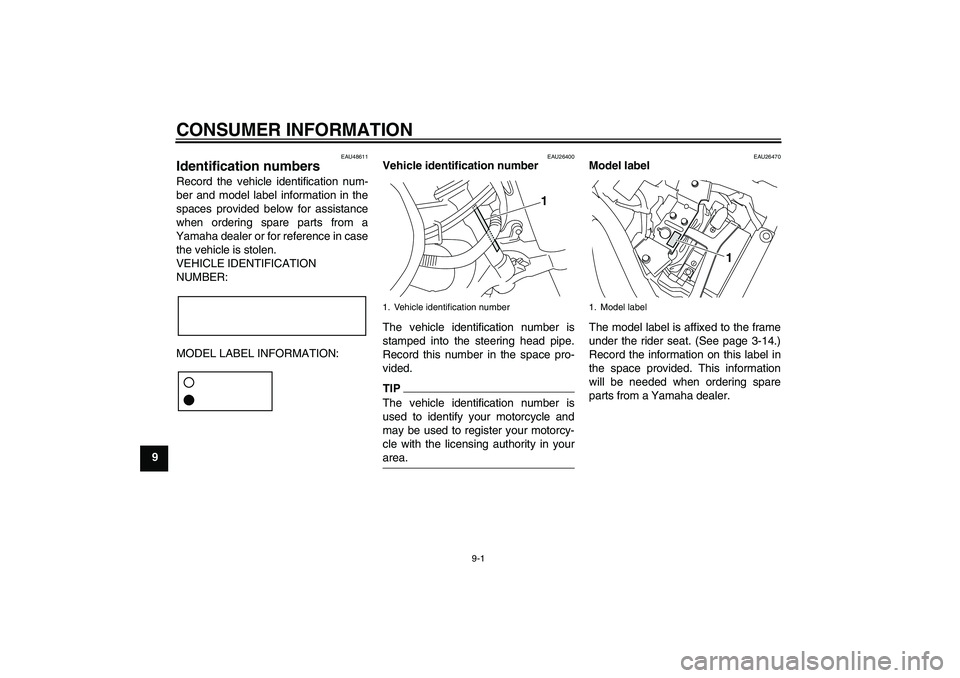

CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U26PE2E0.book Page 1 Thursday, May 13, 2010 5:38 PM

INDEX
AAir filter element, replacing ................... 6-12
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-24
Brake and clutch levers, checking and
lubricating ........................................... 6-21
Brake and shift pedals, checking and
lubricating ........................................... 6-21
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ........................................... 3-11
Brake lever free play, adjusting ............ 6-16
Brake light switches .............................. 6-17
Brake pedal .......................................... 3-11CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever........................................... 3-10
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-9
Drive belt slack ..................................... 6-19EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-9
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking .... 6-17
Front fork, checking .............................. 6-23
Fuel....................................................... 3-12
Fuel consumption, tips for reducing........ 5-3Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-13
Fuel tank cap......................................... 3-11
Fuses, replacing .................................... 6-26
HHandlebar switches ................................. 3-8
Hazard switch.......................................... 3-9
Headlight bulb, replacing....................... 6-27
Helmet holder ........................................ 3-15
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-18
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-30MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1
Model label .............................................. 9-1
Multi-function meter unit .......................... 3-5NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-8
Parking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-9
RRear suspension, lubricating ................ 6-23
RESET switch ....................................... 3-10
Rider seat ............................................. 3-14SSafety information ................................... 1-1
SELECT switch ....................................... 3-9
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-16
Sidestand .............................................. 3-17
Sidestand, checking and lubricating ..... 6-22
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-31
Swingarm pivots, lubricating ................. 6-22TTail/brake light bulb, replacing .............. 6-28
Throttle grip and cable, checking and
lubricating ........................................... 6-20
Throttle grip free play, checking............ 6-13
Tires ...................................................... 6-13
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-32
Troubleshooting chart ........................... 6-33
Turn signal indicator light ........................ 3-4
Turn signal light bulb, replacing ............ 6-29
Turn signal switch ................................... 3-9
U26PE2E0.book Page 1 Thursday, May 13, 2010 5:38 PM

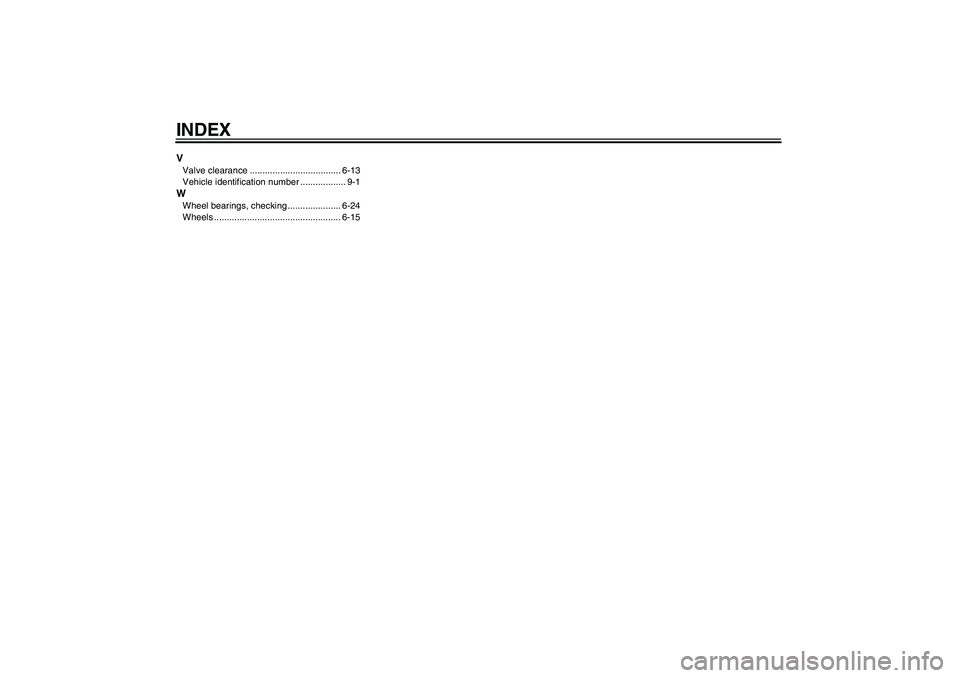

INDEXVValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-24
Wheels .................................................. 6-15
U26PE2E0.book Page 2 Thursday, May 13, 2010 5:38 PM

U26PE2E0.book Page 3 Thursday, May 13, 2010 5:38 PM
