8-1
8
EAU01038
8-SPECIFICATIONSSpecifications
Model XVZ1300A
Dimensions
Overall length 2,480 mm
Overall width 950 mm
Overall height 1,160 mm
Seat height 715 mm
Wheelbase 1,695 mm
Ground clearance 150 mm
Minimum turning radius 3,400 mm
Basic weight (with oil and full
fuel tank)
330 kg
Engine
Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement V type 4-cylinder
Displacement 1,294 cm
3
Bore ´ stroke 79 ´ 66 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Periodic oil change 3.5 L
With oil filter replacement 3.7 L
Total amount 4.3 L
-20˚ -10˚ 0˚
10˚20˚ 30˚
40˚50˚C
SAE 10W/30
SAE 15W/40SAE 20W/40SAE 20W/50
SAE 10W/40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“Energy Conserving”) contain anti-friction additives which
will cause clutch and/or starter clutch slippage, resulting in
reduced component life and poor engine performance.
E_4YP_Spec.fm Page 1 Wednesday, October 6, 1999 10:06 AM

SPECIFICATIONS
8-2
8
Final gear oil
Type SAE80API “GL-4” Hypoid Gear
Oil
Quantity 0.2 L
Radiator
capacity (including all routes) 2.9 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 18 L
Reserve amount 3.5 L
Carburetor
Type ´ quantity BDS28 ´ 4
Manufacturer MIKUNI
Spark plug
Manufacturer/Type NGK / DPR7EA-9 or
DENSO / X22EPR-U9
Gap 0.8 ~ 0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.667
Secondary reduction system Shaft drive
Secondary reduction ratio 2.567Transmission type Constant mesh 5-speed
Operation Left foot operation
Gear ratio
1st 2.438
2nd 1.579
3rd 1.160
4th 0.906
5th 0.750
Chassis
Frame type Double cradle
Caster angle 30°
Trail 126 mm
Tires
Front
Type Tubeless
Size 150/80-16 71H
Manufacturer /
modelDunlop / D404F
Rear
Type Tubeless
Size 150/90B15M/C 74H
Manufacturer /
modelDunlop / D404
E_4YP_Spec.fm Page 2 Wednesday, October 6, 1999 10:06 AM

SPECIFICATIONS
8-3
8
Maximum load* 203 kg
Air pressure (cold tire)
Up to 90 kg load*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg load ~ maximum load*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 280 kPa (2.80 kg/cm2, 2.80 bar)
* Load is the total weight of cargo, rider, passenger and accesso-
ries.
Wheels
Front
Ty p e C a s t
Size 16 ´ MT3.50
Rear
Ty p e C a s t
Size 15M/C ´ MT4.00
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspension)
Shock absorber
Front Coil-air spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 140 mm
Rear 95 mm
Electrical sysyem
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 23 A @ 5,000 r/min
Battery
Type YTX20L-BS
Voltage, capacity 12 V, 18 AH
E_4YP_Spec.fm Page 3 Wednesday, October 6, 1999 10:06 AM

SPECIFICATIONS
8-4
8
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Auxiliary light 12 V, 4 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal lights 12 V, 21 W ´ 4
Meter light 14 V, 1.4 W ´ 2
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Oil level indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 1
Fuel level indicator light 14 V, 3 W ´ 1
Engine overheat indicator light 12 V, 1.7 W ´ 1
Overdrive / Engine trouble
indicator light 12 V, 1.7 W ´ 1
Fuses
Main fuse 30 A
Ignition fuse 10 A
Signaling system fuse 20 A
Headlight fuse 20 A
Fan fuse 10 A
Odometer fuse 5 A
E_4YP_Spec.fm Page 4 Wednesday, October 6, 1999 10:06 AM

SPECIFICATIONS
8-5
8
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_4YP_Spec.fm Page 5 Wednesday, October 6, 1999 10:06 AM

9
CONSUMER INFORMATION
Identification number records ............................................................. 9-1
Key identification number ................................................................... 9-1
Vehicle identification number.............................................................. 9-1
Model label ......................................................................................... 9-2
E_4YP_ConsumerTOC.fm Page 1 Wednesday, October 6, 1999 10:07 AM

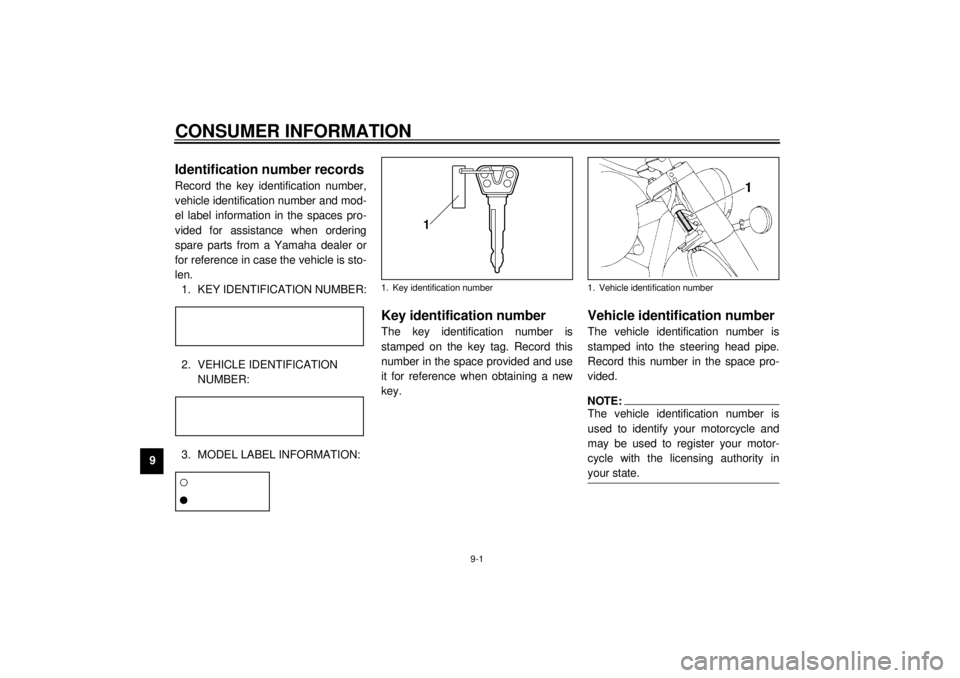

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number
E_4YP_Consumer.fm Page 1 Wednesday, October 6, 1999 10:07 AM

CONSUMER INFORMATION
9-2
9
EAU01050
Model labelThe model label is affixed to the frame
under the seat. (See page 3-10 for seat
removal procedures.) Record the infor-
mation on this label in the space pro-
vided. This information will be needed
to order spare parts from your Yamaha
dealer.1. Model label
E_4YP_Consumer.fm Page 2 Wednesday, October 6, 1999 10:07 AM

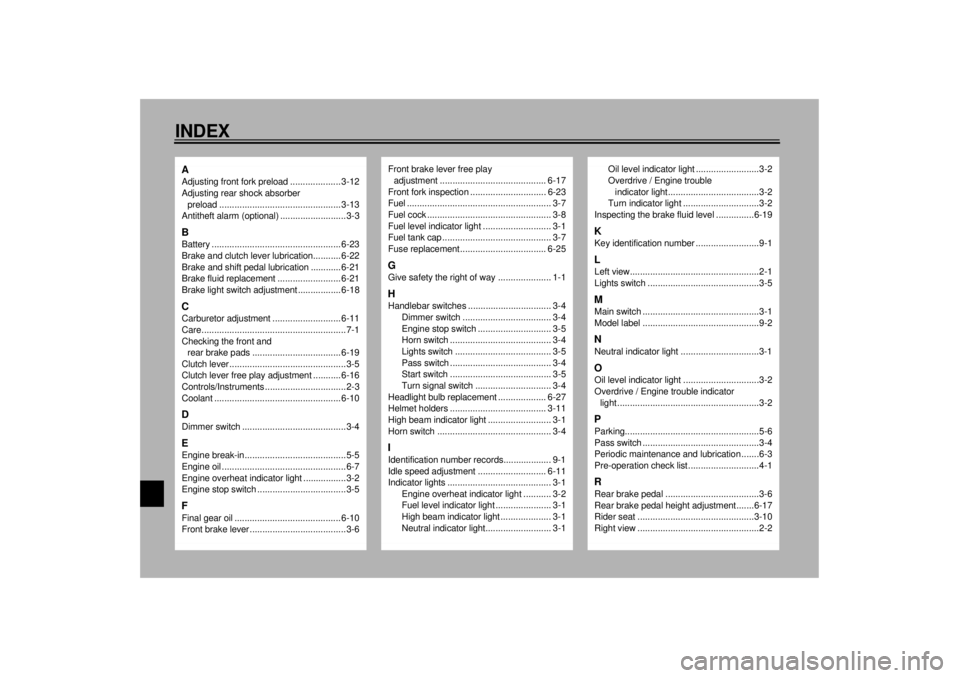

10-INDEXAAdjusting front fork preload .................... 3-12
Adjusting rear shock absorber
preload ................................................ 3-13
Antitheft alarm (optional) ..........................3-3BBattery ................................................... 6-23
Brake and clutch lever lubrication........... 6-22
Brake and shift pedal lubrication ............ 6-21
Brake fluid replacement ......................... 6-21
Brake light switch adjustment ................. 6-18CCarburetor adjustment ........................... 6-11
Care.........................................................7-1
Checking the front and
rear brake pads ................................... 6-19
Clutch lever ..............................................3-5
Clutch lever free play adjustment ........... 6-16
Controls/Instruments ................................2-3
Coolant .................................................. 6-10DDimmer switch .........................................3-4EEngine break-in........................................5-5
Engine oil .................................................6-7
Engine overheat indicator light .................3-2
Engine stop switch ...................................3-5FFinal gear oil .......................................... 6-10
Front brake lever ......................................3-6
Front brake lever free play
adjustment .......................................... 6-17
Front fork inspection .............................. 6-23
Fuel ......................................................... 3-7
Fuel cock ................................................. 3-8
Fuel level indicator light ........................... 3-1
Fuel tank cap ........................................... 3-7
Fuse replacement.................................. 6-25GGive safety the right of way ..................... 1-1HHandlebar switches ................................. 3-4
Dimmer switch ................................... 3-4
Engine stop switch ............................. 3-5
Horn switch ........................................ 3-4
Lights switch ...................................... 3-5
Pass switch ........................................ 3-4
Start switch ........................................ 3-5
Turn signal switch .............................. 3-4
Headlight bulb replacement ................... 6-27
Helmet holders ...................................... 3-11
High beam indicator light ......................... 3-1
Horn switch ............................................. 3-4IIdentification number records................... 9-1
Idle speed adjustment ........................... 6-11
Indicator lights ......................................... 3-1
Engine overheat indicator light ........... 3-2
Fuel level indicator light ...................... 3-1
High beam indicator light .................... 3-1
Neutral indicator light.......................... 3-1
Oil level indicator light .........................3-2
Overdrive / Engine trouble
indicator light....................................3-2
Turn indicator light ..............................3-2
Inspecting the brake fluid level ...............6-19
KKey identification number .........................9-1LLeft view...................................................2-1
Lights switch ............................................3-5MMain switch ..............................................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-1OOil level indicator light ..............................3-2
Overdrive / Engine trouble indicator
light ........................................................3-2PParking.....................................................5-6
Pass switch ..............................................3-4
Periodic maintenance and lubrication .......6-3
Pre-operation check list ............................4-1RRear brake pedal .....................................3-6
Rear brake pedal height adjustment.......6-17
Rider seat ..............................................3-10
Right view ................................................2-2
E_4YPIX.fm Page 1 Wednesday, October 6, 1999 10:07 AM

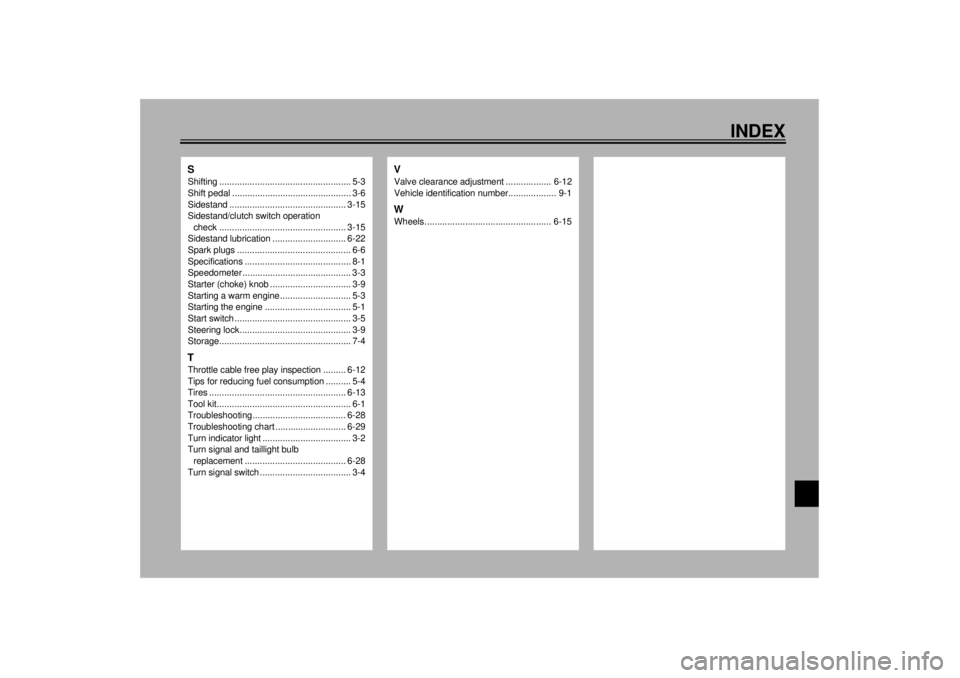

INDEX
SShifting .................................................... 5-3
Shift pedal ............................................... 3-6
Sidestand .............................................. 3-15
Sidestand/clutch switch operation
check .................................................. 3-15
Sidestand lubrication ............................. 6-22
Spark plugs ............................................. 6-6
Specifications .......................................... 8-1
Speedometer ........................................... 3-3
Starter (choke) knob ................................ 3-9
Starting a warm engine ............................ 5-3
Starting the engine .................................. 5-1
Start switch .............................................. 3-5
Steering lock............................................ 3-9
Storage.................................................... 7-4TThrottle cable free play inspection ......... 6-12
Tips for reducing fuel consumption .......... 5-4
Tires ...................................................... 6-13
Tool kit..................................................... 6-1
Troubleshooting..................................... 6-28
Troubleshooting chart ............................ 6-29
Turn indicator light ................................... 3-2
Turn signal and taillight bulb
replacement ........................................ 6-28
Turn signal switch .................................... 3-4
VValve clearance adjustment .................. 6-12
Vehicle identification number................... 9-1WWheels .................................................. 6-15
E_4YPIX.fm Page 2 Wednesday, October 6, 1999 10:07 AM
