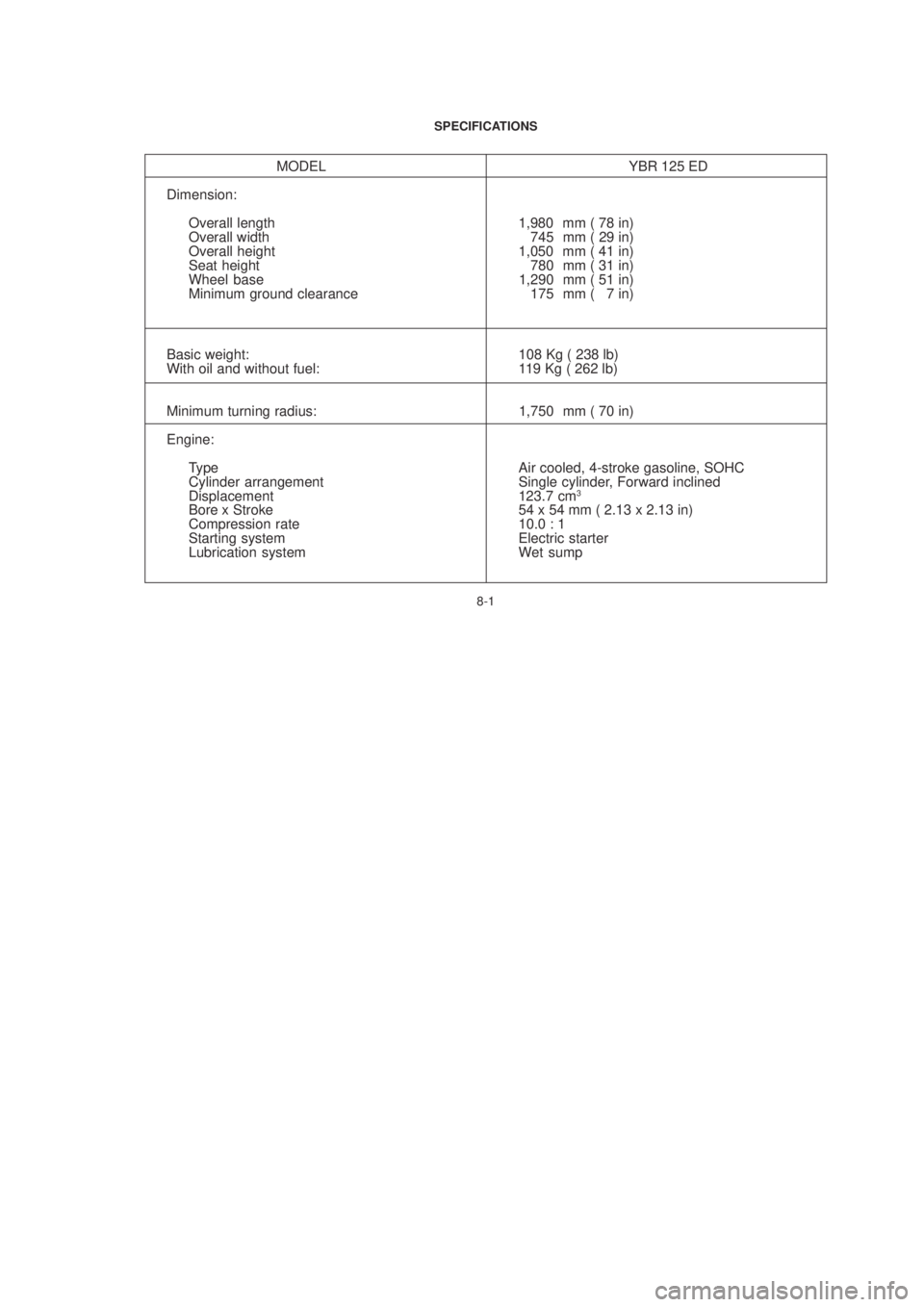

8-1
SPECIFICATIONS
MODEL YBR 125 ED
Dimension: Overall length 1,980 mm ( 78 in)
Overall width 745 mm ( 29 in)
Overall height 1,050 mm ( 41 in)
Seat height 780 mm ( 31 in)
Wheel base 1,290 mm ( 51 in)
Minimum ground clearance 175 mm ( 7 in)
Basic weight: 108 Kg ( 238 lb)
With oil and without fuel: 119 Kg ( 262 lb)
Minimum turning radius: 1,750 mm ( 70 in)
Engine: Type Air cooled, 4-stroke gasoline, SOHC
Cylinder arrangement Single cylinder, Forward inclined
Displacement 123.7 cm
3
Bore x Stroke 54 x 54 mm ( 2.13 x 2.13 in)
Compression rate 10.0 : 1
Starting system Electric starter
Lubrication system Wet sump
