TABLE OF CONTENTSSAFETY INFORMATION.................. 1-1
DESCRIPTION .................................. 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments ............... 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ...................................... 3-1
Main switch/steering lock............... 3-1
Indicator lights and warning light ... 3-2
Speedometer unit ........................... 3-3
Tachometer .................................... 3-3
Self-diagnosis device ..................... 3-3
Fuel gauge ...................................... 3-4
Handlebar switches ........................ 3-4
Clutch lever .................................... 3-5
Shift pedal ...................................... 3-5
Brake lever...................................... 3-5
Brake pedal .................................... 3-6
Fuel tank cap .................................. 3-6
Fuel ................................................. 3-7
Catalytic converters........................ 3-8
Kickstarter ...................................... 3-9
Adjusting the shock absorber assemblies .................................. 3-9
Carrier ........................................... 3-10
Sidestand ..................................... 3-10
Ignition circuit cut-off system ....... 3-11 FOR YOUR SAFETY –
PRE-OPERATION CHECKS
............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS ................................ 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for the emission control system .............. 6-3
General maintenance and lubrication chart ........................... 6-4
Removing and installing panels ...... 6-7
Checking the spark plug ................. 6-8
Engine oil....................................... 6-10
Cleaning the air filter element ....... 6-11
Checking the engine idling
speed ......................................... 6-13
Checking the throttle grip free
play ............................................ 6-13
Valve clearance ............................. 6-14
Tires .............................................. 6-14
Cast wheels................................... 6-16 Adjusting the clutch lever free
play ............................................ 6-16
Checking the brake lever free play ............................................ 6-17
Adjusting the brake pedal free
play ............................................ 6-18
Checking the shift pedal ............... 6-18
Brake light switches ..................... 6-19
Checking the front brake pads and rear brake shoes ............... 6-19
Checking the brake fluid level ...... 6-20
Changing the brake fluid .............. 6-21
Drive chain slack........................... 6-21
Cleaning and lubricating the drive
chain.......................................... 6-23
Checking and lubricating the cables ........................................ 6-24
Checking and lubricating the throttle grip and cable ............... 6-24
Checking and lubricating the
brake and clutch levers ............. 6-24
Checking and lubricating the brake pedal ............................... 6-25
Checking and lubricating the centerstand and sidestand........ 6-25
Lubricating the swingarm
pivots......................................... 6-26
Checking the front fork ................. 6-26
Checking the steering................... 6-27
Checking the wheel bearings ....... 6-27
Battery .......................................... 6-28U51DE1E0.book Page 1 Thursday, August 29, 2013 4:41 PM
Page 7 of 84
TABLE OF CONTENTS
Replacing the fuse.........................6-29
Replacing the headlight bulb.........6-30
Replacing the tail/brake light bulb ............................................6-31
Replacing a turn signal light
bulb ............................................6-32
Replacing the auxiliary light bulb ...........................................6-32
Front wheel....................................6-33
Rear wheel.....................................6-35
Troubleshooting ............................6-36
Troubleshooting chart ...................6-38
MOTORCYCLE CARE AND
STORAGE ..........................................7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-4
SPECIFICATIONS ..............................8-1
CONSUMER INFORMATION ............9-1
Identification numbers .....................9-1
INDEX ...............................................10-1
U51DE1E0.book Page 2 Thursday, August 29, 2013 4:41 PM
Page 39 of 84
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18661
TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.20 *Shock a
bsor ber as-
sem blies • Check operation and shock ab-
sorbers for oil leakage. √√√√
21 En gine oil • Change.
• Check oil level and vehicle for oil
leakage. √√√√√√
22 *Front an
d rear
b rake switches • Check operation.
√√√√√√
23 Movin
g parts an d
ca bles • Lubricate.
√√√√√
24 *Throttle g rip • Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing. √√√√√
25 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
U51DE1E0.book Page 6 Thursday, August 29, 2013 4:41 PM
Page 52 of 84
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU22295

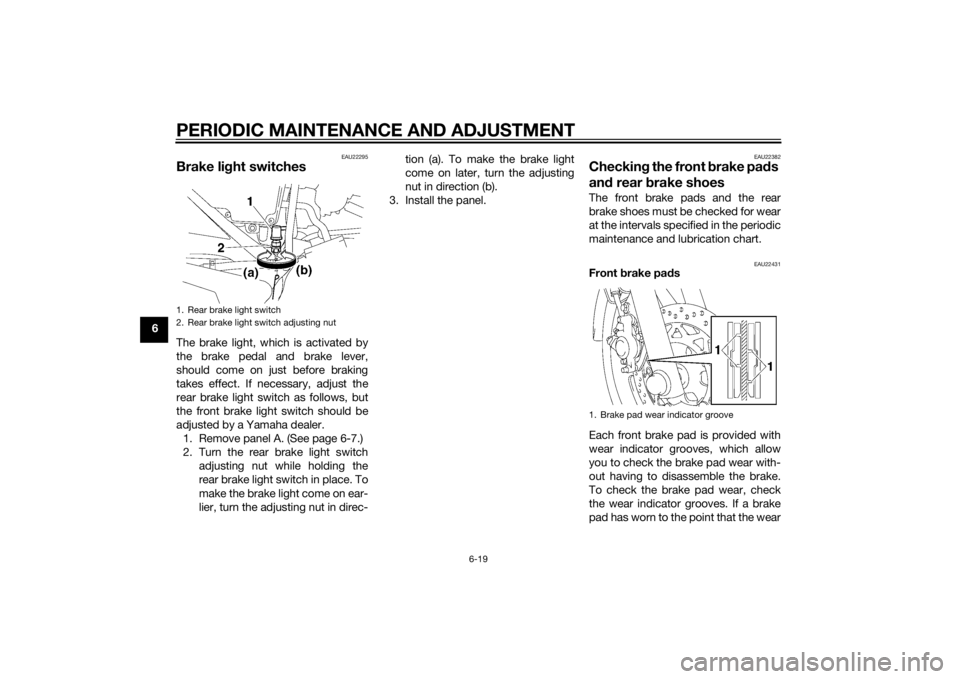

Brake light switchesThe brake light, which is activated by
the brake pedal and brake lever,
should come on just before braking
takes effect. If necessary, adjust the
rear brake light switch as follows, but
the front brake light switch should be
adjusted by a Yamaha dealer.
1. Remove panel A. (See page 6-7.)
2. Turn the rear brake light switch adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on ear-
lier, turn the adjusting nut in direc- tion (a). To make the brake light
come on later, turn the adjusting
nut in direction (b).
3. Install the panel.
EAU22382
Checkin g the front brake pa ds
an d rear brake shoes The front brake pads and the rear
brake shoes must be checked for wear
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU22431
Front brake pa ds
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator groove
U51DE1E0.book Page 19 Thursday, August 29, 2013 4:41 PM
Page 64 of 84
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
62. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Unhook the headlight bulb holder, and then remove the burnt-out
bulb. 4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
5. Install the headlight bulb cover, and then connect the coupler.
6. Install the headlight cowling (to- gether with the headlight unit) by
placing it in the original position,
and then installing the bolts.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
EAU24134

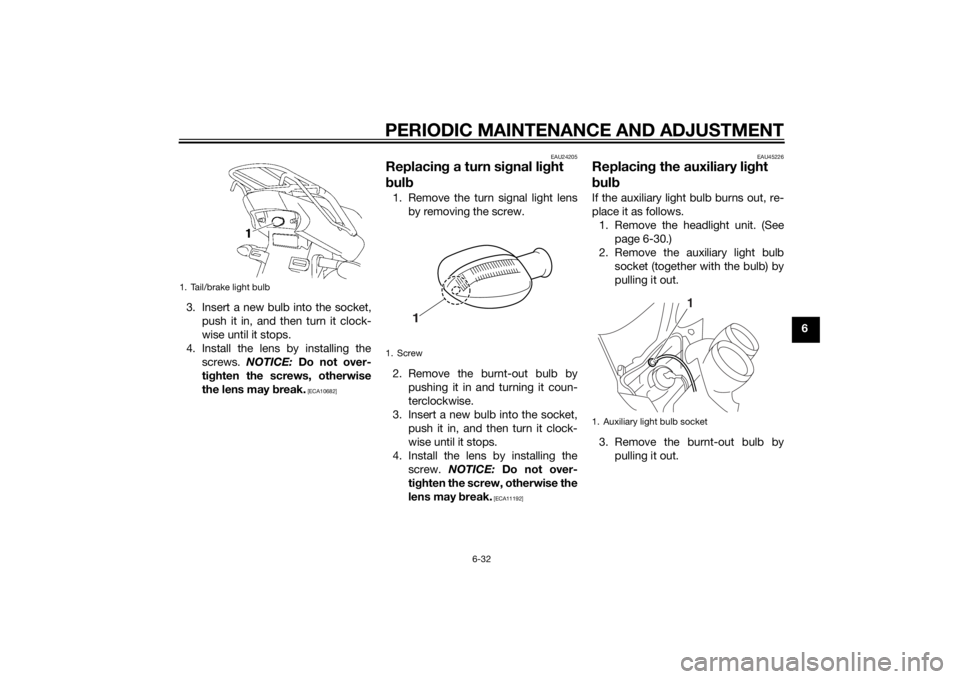

Replacin g the tail/ brake li ght
b ul b1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise.
1. Bolt
1. Headlight coupler
2. Headlight bulb cover
1
1
2
1. Headlight bulb holder
1
1. Screw
U51DE1E0.book Page 31 Thursday, August 29, 2013 4:41 PM
Page 65 of 84
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screws. NOTICE: Do not over-
ti g hten the screws, otherwise
the lens may break.
[ECA10682] EAU24205
Replacin
g a turn sig nal light
b ul b1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket, push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screw. NOTICE: Do not over-
ti g hten the screw, otherwise the
lens may break.
[ECA11192] EAU45226
Replacin
g the auxiliary li ght
b ul b If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See page 6-30.)
2. Remove the auxiliary light bulb socket (together with the bulb) by
pulling it out.
3. Remove the burnt-out bulb by pulling it out.
1. Tail/brake light bulb
1. Screw
1
1. Auxiliary light bulb socket
1
U51DE1E0.book Page 32 Thursday, August 29, 2013 4:41 PM
Page 66 of 84
PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
64. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the headlight unit.
EAU24361
Front wheel
EAU56302
To remove the front wheel
WARNING
EWA10822
To avoi d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.1. Remove the rubber cap, and then
loosen the wheel axle nut.
2. Place the motorcycle on the cen- terstand. 3. Disconnect the speedometer ca-
ble from the front wheel.
4. Remove the wheel axle nut and the washer.
5. Pull the wheel axle out, and then remove the wheel. NOTICE: Do
not apply the b rake after the
wheel an d b rake disc have b een
remove d, otherwise the brake
pa ds will be forced shut.
[ECA11073]
1. Auxiliary light bulb
1
1. Rubber cap
2. Axle nut
3. Washer
1. Speedometer cable
U51DE1E0.book Page 33 Thursday, August 29, 2013 4:41 PM
Page 74 of 84
MOTORCYCLE CARE AND STORAGE
7-3
7windshield which does not affect your
visibility and which cannot be easily
recognized.
After cleaning
1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Immediately dry the drive chain and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean- er to remove any remaining dirt.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely before storing or covering it.
WARNING
EWA11132
Contaminants on the brakes or tires
can cause loss of control. Make sure that there is no oil or
wax on the brakes or tires.
If necessary, clean the brake
d iscs an d b rake linin gs with a
re gular brake disc cleaner or
acetone, an d wash the tires with
warm water an d a mil d d eter-
g ent. Before ri din g at hi gher
speed s, test the motorcycle’s
b rakin g performance an d cor-
nerin g b ehavior.NOTICE
ECA10801
Apply spray oil an d wax spar-
in gly an d make sure to wipe off
any excess.
Never apply oil or wax to any
rubber an d plastic parts, but
treat them with a suitab le care
prod uct.
Avoi d usin g a brasive polishin g
compoun ds as they will wear
away the paint.
TIP Consult a Yamaha dealer for ad-
vice on what products to use.
Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
U51DE1E0.book Page 3 Thursday, August 29, 2013 4:41 PM
Page 77 of 84
SPECIFICATIONS
8-2
8
Chassis:Frame type:Diamond
Caster angle:
26.33 °
Trail: 92 mm (3.6 in)Front tire:Type:
Tubeless
Size: 2.75-18 42P
Manufacturer/model: CHENG SHIN/C-910Rear tire:Type:Tubeless
Size: 90/90-18 57P
Manufacturer/model:
CHENG SHIN/C-905Loa din g:Maximum load:
194 kg (428 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:175 kPa (1.75 kgf/cm², 25 psi)
Rear: 200 kPa (2.00 kgf/cm², 29 psi) Loading condition:
90–194 kg (198–428 lb)
Front:175 kPa (1.75 kgf/cm², 25 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Front wheel:Wheel type:Cast wheel
Rim size:
J18M/C x MT1.85Rear wheel:Wheel type:Cast wheel
Rim size:
J18M/C x MT1.85Front brake:Type:
Single disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 3 or 4Rear brake:Type:
Drum brake
Operation: Right foot operationFront suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper Wheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 105.0 mm (4.13 in)Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:YTX7L-BS
Voltage, capacity: 12 V, 6.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 35.0 W/35.0 W × 1
Tail/brake light: 12 V, 5.0 W/21.0 W × 1
Front turn signal light: 12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light: 12 V, 5.0 W × 1
U51DE1E0.book Page 2 Thursday, August 29, 2013 4:41 PM
Page 80 of 84
10-1
10
INDEXAAir filter element, cleaning .................... 6-11
Auxiliary light bulb, replacing ................ 6-32BBattery .................................................. 6-28
Brake and clutch levers, checking and lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever .............................................. 3-5
Brake lever free play, checking............. 6-17
Brake light switches.............................. 6-19
Brake pads and shoes, checking ......... 6-19
Brake pedal............................................. 3-6
Brake pedal, checking and
lubricating ........................................... 6-25
Brake pedal free play, adjusting ........... 6-18CCables, checking and lubricating ......... 6-24
Care ........................................................ 7-1
Carrier ................................................... 3-10
Catalytic converters ................................ 3-8
Centerstand and sidestand, checking
and lubricating .................................... 6-25
Clutch lever ............................................. 3-5
Clutch lever free play, adjusting ........... 6-16DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack................................... 6-21EEngine break-in....................................... 5-3
Engine idling speed, checking .............. 6-13
Engine oil .............................................. 6-10 Engine trouble warning light ................... 3-2
FFront fork, checking ............................. 6-26
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ...... 5-3
Fuel gauge .............................................. 3-4
Fuel tank cap .......................................... 3-6
Fuse, replacing ..................................... 6-29HHandlebar switches ................................ 3-4
Headlight bulb, replacing ..................... 6-30
High beam indicator light ....................... 3-2
Horn switch ............................................ 3-4IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-11
Indicator lights and warning light ........... 3-2KKickstarter .............................................. 3-9MMain switch/steering lock....................... 3-1
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Model label ............................................. 9-1NNeutral indicator light ............................. 3-2PPanels, removing and installing .............. 6-7
Parking ................................................... 5-4
Part locations ......................................... 2-1SSafety information .................................. 1-1 Self-diagnosis device..............................3-3
Shifting ....................................................5-2
Shift pedal ...............................................3-5
Shift pedal, checking ............................6-18
Shock absorber assemblies, adjusting ...3-9
Sidestand ..............................................3-10
Spark plug, checking ..............................6-8
Specifications .........................................8-1
Speedometer unit ...................................3-3
Starting the engine ..................................5-1
Start switch .............................................3-4
Steering, checking ................................6-27
Storage ...................................................7-4
Swingarm pivots, lubricating ................6-26
TTachometer .............................................3-3
Tail/brake light bulb, replacing..............6-31
Throttle grip and cable, checking and
lubricating ...........................................6-24
Throttle grip free play, checking ...........6-13
Tires ......................................................6-14
Tool kit ....................................................6-2
Troubleshooting ....................................6-36
Troubleshooting chart ...........................6-38
Turn signal indicator lights ......................3-2
Turn signal light bulb, replacing ............6-32
Turn signal switch ...................................3-4VValve clearance .....................................6-14
Vehicle identification number ..................9-1WWheel bearings, checking .....................6-27
Wheel (front) ..........................................6-33
Wheel (rear) ...........................................6-35
U51DE1E0.book Page 1 Thursday, August 29, 2013 4:41 PM
