fo"k; & lwphTABLE OF CONTENTS 4
PRE-OPERATION CHECKS.................... 4-1vkWijs'ku ¼dk;Z½ ls iwoZ tk¡pPre-operation check list........................... 4-1vkWijs'ku iwoZ tk¡p lwph
5
OPERATION AND IMPORTANT RIDING
POINTS................................................. 5-1dk;Z rFkk lokjh ls tqM+s vko';d fcUnq%Starting and warming up a
cold engine............................................. 5-1BaMs batu dks pkyw djuk vkSj FkksM+k xeZ djukStarting a warm engine............................ 5-2xeZ batu dks pkyw djukShifting.................................................. 5-2f'¯¶VxTips for reducing fuel consumption............ 5-4b±/ku dh [kir dks de djus ds rjhdsRunning-in.............................................. 5-4fujarj :i ¼j¯ux bu½Parking.................................................. 5-5ik²dx
6
PERIODIC MAINTENANCE AND MINOR
REPAIR................................................. 6-1lkef;d j[kj[kko rFkk ekewyh fjis;j
Tool kit................................................... 6-1Vwy fdVPreventive maintenance schedule............. 6-3izfrca/kd ¼fizosafVo½ j[kj[kko dk 'ksM~;wyPanel removal and installation.................. 6-7iSuy dks gVkuk rFkk LFkkfir djuk ¼yxkuk½Spark plug and installation....................... 6-9LikdZ Iyx dh tk¡pEngine oil............................................... 6-11b±tu vkW;yAir filter...................................................6-14,vj fQYVjCarburetor adjustment.............................6-16dkWjC;wjsVj dks lsV djuk ¼,sM~tLVesaV½Idle speed adjustment..............................6-16vkbZMy ,sM~tLVesaVThrottle cable free play adjustment............6-18FkzkWVy dscy dh Ýh Iys ,sM~tLVesaVValve clearance adjustment......................6-18okYo fDy;jsal dh ,sM~tLVesaVTyres......................................................6-18Vk;jWheels..................................................6-21ifg,
PG1_55.pmd2/25/2005, 10:04 AM 6
Page 18 of 156
DESCRIPTION11. Rear shock absorber(page 3-9)
12. Air filter (page 6-14)
13. Kick starter (page 3-7)
fiNyk 'kkWd ,Ct+kcZj
,;j fQYVj
fdd LVkVZj
14. Seat(page 3-8)
15. Engine oil filler cap (page 6-11)
16. Rear brake pedal (page 3-4,6-23)
lhV
batu vkW;y Hkjus ds fy, dSi
fiNyk czsd iSMy
nkb± & vkÑfr
Right viewfooj.k
2.2
ewy xkM+h
STANDARD VEHICLE
1411 1 213
1615
PG1_55.pmd2/25/2005, 10:04 AM 16
Page 41 of 156

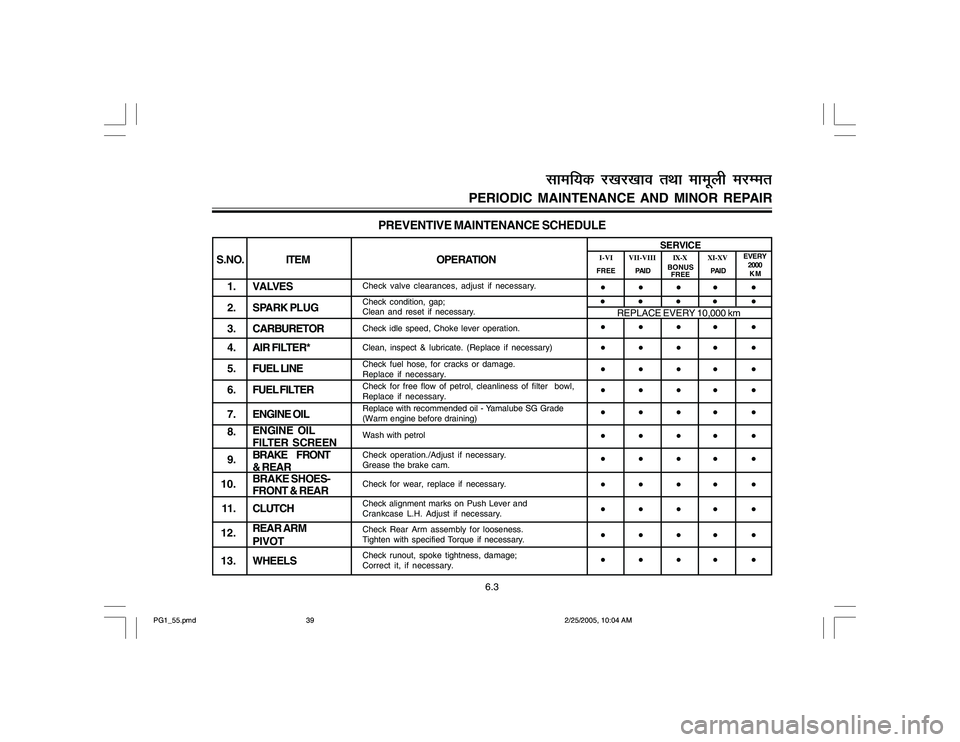

PREVENTIVE MAINTENANCE SCHEDULE
S.NO.ITEM OPERATION
1. VALVES
2. SPARK PLUG
3 . CARBURETOR
4. AIR FILTER*
5. FUEL LINE
6 . FUEL FILTER
7. ENGINE OIL
8.
9.
10.
11. CLUTCH
12.
1 3 . WHEELS
Check valve clearances, adjust if necessary.
Check condition, gap;
Clean and reset if necessary.
Check idle speed, Choke lever operation.
Clean, inspect & lubricate. (Replace if necessary)
Check fuel hose, for cracks or damage.
Replace if necessary.
Replace with recommended oil - Yamalube SG Grade
(Warm engine before draining)
Wash with petrol
Check operation./Adjust if necessary.
Grease the brake cam.
Check for wear, replace if necessary.
Check alignment marks on Push Lever and
Crankcase L.H. Adjust if necessary.
Check Rear Arm assembly for looseness.
Tighten with specified Torque if necessary.
Check runout, spoke tightness, damage;
Correct it, if necessary.Check for free flow of petrol, cleanliness of filter bowl,
Replace if necessary.
ENGINE OIL
FILTER SCREEN
BRAKE FRONT
& REAR
BRAKE SHOES-
FRONT & REAR
REAR ARM
PIVOT
REPLACE EVERY 10,000 km
•••
••
SERVICE
FREE
PAIDEVERY
2000
KM I-VIVII-VIIIIX-XXI-XV
BONUS
FREEPAID
6.3
PERIODIC MAINTENANCE AND MINOR REPAIR
lkef;d j[kj[kko rFkk ekewyh ejEer
•••
••
••• ••
••• ••
••• ••
••• ••
••• ••
••• ••
••• ••
••• ••
••• ••
••• •• ••• ••
PG1_55.pmd2/25/2005, 10:04 AM 39
Page 49 of 156
1. Engine oil filter cap
batu vkW;y fQYVj dSi

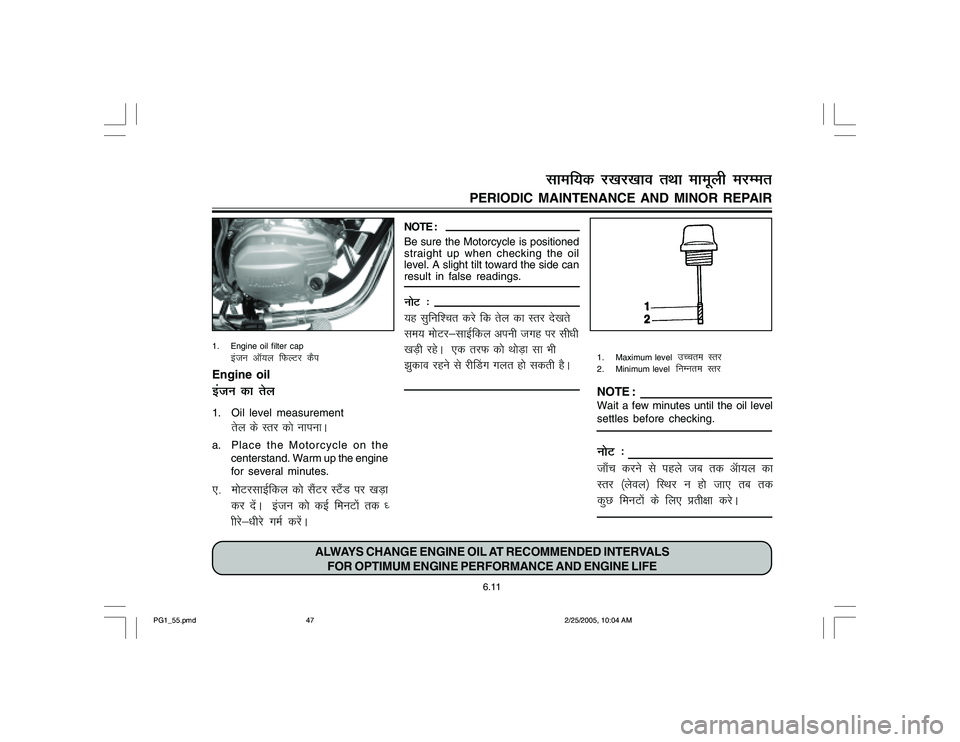

Engine oilbatu dk rsy1. Oil level measurement
rsy ds Lrj dks ukiukA
a. Place the Motorcycle on the
centerstand. Warm up the engine
for several minutes., - e¨VjlkbZfdy d¨ lSaVj LVSaM ij [kM+k
dj nsaA batu d¨ dbZ feuV¨a rd /
khjs&/khjs xeZ djsaA
1. Maximum level
mPpre Lrj
2. Minimum level
fuEure Lrj
NOTE :Wait a few minutes until the oil level
settles before checking.u¨V %tk¡p djus ls igys tc rd vWk;y dk
Lrj ¼ysoy½ fLFkj u g¨ tk, rc rd
dqN feuV¨a ds fy, çrh{kk djsA
NOTE :
Be sure the Motorcycle is positioned
straight up when checking the oil
level. A slight tilt toward the side can
result in false readings.u¨V %;g lqfuf'pr djs fd rsy dk Lrj ns[krs
le; e¨Vj&lkbZfdy viuh txg ij lh/kh
[kM+h jgsA ,d rjQ d¨ Fk¨M+k lk Hkh
>qdko jgus ls jh¯Mx xyr g¨ ldrh gSA
ALWAYS CHANGE ENGINE OIL AT RECOMMENDED INTERVALS
FOR OPTIMUM ENGINE PERFORMANCE AND ENGINE LIFE
6.11
PERIODIC MAINTENANCE AND MINOR REPAIR
lkef;d j[kj[kko rFkk ekewyh ejEer
PG1_55.pmd2/25/2005, 10:04 AM 47
Page 52 of 156
1. Air filter case cover
,;j&fQYVj dsl
2. Screw ( ×3)
isap
( ×3)
Air filter
,;j&fQYVj

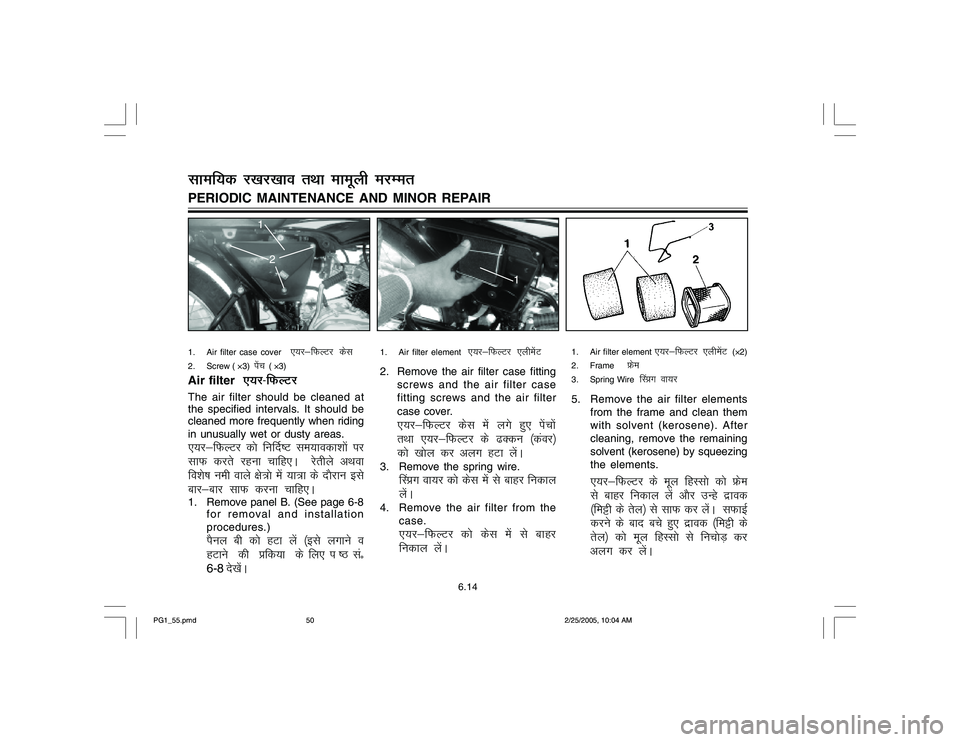

The air filter should be cleaned at
the specified intervals. It should be
cleaned more frequently when riding
in unusually wet or dusty areas.,;j&fQYVj dks fu£n"V le;kodk'kksa ij
lkQ djrs jguk pkfg,A jsrhys vFkok
fo'ks"k ueh okys {ks=kks esa ;k=kk ds n©jku bls
ckj&ckj lkQ djuk pkfg,A1. Remove panel B. (See page 6-8
for removal and installation
procedures.)
iSuy ch dks gVk ysa ¼bls yxkus o
gVkus dh çfd;k ds fy, i "B lañ6-8
ns[ksaA
1. Air filter element
,;j&fQYVj ,yhesaV
2. Remove the air filter case fitting
screws and the air filter case
fitting screws and the air filter
case cover.
,;j&fQYVj dsl esa yxs gq, isapksa
rFkk ,;j&fQYVj ds
3. Remove the spring wire.
¯Lçx ok;j dks dsl esa ls ckgj fudky
ysaA
4. Remove the air filter from the
case.
,;j&fQYVj dks dsl esa ls ckgj
fudky ysaA
6.14
1. Air filter element
,;j&fQYVj ,yhesaV
(×2)
2. Frame
Ýse
3. Spring Wire
¯Lçx ok;j
5. Remove the air filter elements
from the frame and clean them
with solvent (kerosene). After
cleaning, remove the remaining
solvent (kerosene) by squeezing
the elements.
,;j&fQYVj ds ewy fgLlks dks Ýse
ls ckgj fudky ysa v©j mUgs nzkod
¼feêh ds rsy½ ls lkQ dj ysaA lQkbZ
djus ds ckn cps gq, nzkod ¼feêh ds
rsy½ dks ewy fgLlks ls fupksM+ dj
vyx dj ysaA
PERIODIC MAINTENANCE AND MINOR REPAIRlkef;d j[kj[kko rFkk ekewyh ejEer
2 1
1
PG1_55.pmd2/25/2005, 10:04 AM 50
Page 53 of 156
CAUTION :
Make sure the air filter is
properly seated in the air filter
case.
The engine should never be run
without the air filter installed.
Excessive piston and/or
cylinder wear may result.
Dirty Element Air Cleaner
caused excessive fuel
consumption and loss of
power.
Clean Element Air Cleaner after
every 2000 kms.
The Element Air Cleaner should
be cleaned and lubricated more
frequently (every 1000 km,s), if
Motorcycle is operated in very
dusty (e.g. unpaved, dust laden
roads) conditions. lko/kkuh %
;g lqfufpr djsa fd ,;j&fQYVj
lgh

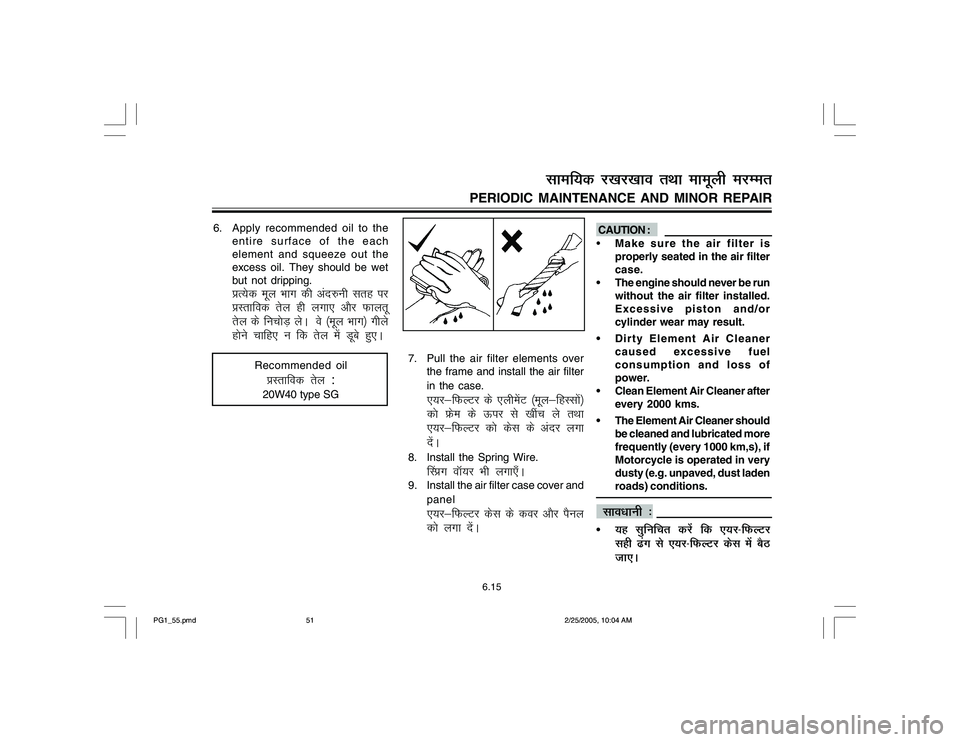

6. Apply recommended oil to the
entire surface of the each
element and squeeze out the
excess oil. They should be wet
but not dripping.
çR;sd ewy Hkkx dh van#uh lrg ij
çLrkfod rsy gh yxk, v©j Qkyrw
rsy ds fupksM+ ysA os ¼ewy Hkkx½ xhys
gksus pkfg, u fd rsy esa Mwcs gq,A
Recommended oil
çLrkfod rsy :20W40 type SG
7. Pull the air filter elements over
the frame and install the air filter
in the case.
,;j&fQYVj ds ,yhesaV ¼ewy&fgLlksa½
dks Ýse ds Åij ls [khap ys rFkk
,;j&fQYVj dks dsl ds vanj yxk
nsaA
8. Install the Spring Wire.
¯Lçx okW;j Hkh yxk,¡A
9. Install the air filter case cover and
panel
,;j&fQYVj dsl ds doj v©j iSuy
dks yxk nsaA
6.15
PERIODIC MAINTENANCE AND MINOR REPAIR
lkef;d j[kj[kko rFkk ekewyh ejEer
PG1_55.pmd2/25/2005, 10:04 AM 51
Page 90 of 156
SPECIFICATIONS
ModelCRUX S
Dimensions:
Overall length2,000 mm
Overall width 735 mm
Overall height1,075 mm
Seal height 780 mm
Wheelbase1,260 mm
Ground clearance160 mm
Minimum turning radius 2,000 mm
Weight : ( With oil & 90% fuel ) 113 kg
Engine :Engine type Air cooled 4-stroke,
SOHC
Cylinder arrangement Forward inclined
single cylinder
Displacement105.6 cm
3
Boer × Stroke49×56 mm
Compression ratio9.0 : 1
Starting systemKick starter
Lubrication systemWet sump
Maximum power7.60BHP(5.59kw) @ 7500 RPM
Maximum torque 0.8 Mkg @ 6000 RPM
EngineOil
Type:
CAUTION :
Be sure to use motor oils that do not contain
antifrication modifiers. Passenger car motor oils
(often labelled Energy conserving) contain anti-
friction additives which will cause clutch/or
starter clutch slippage, resulting in reduced
component life and poor engine performance.
Capacity :
Periodic oil change 0.9 L
Total amount 1.1 L
Air filter:Foam type element
Fuel :
Type Regular gasoline
(petrol)
Fuel tank capacity 11.0 Litres
Reserve amount1.4 Litres
Carburetor:
Type VM17SH
ManufactureMIKUNI
SPECIFICATIONSfo'ks"k fooj.k
8.1
YAMALUBE
4-Stroke motor oil (20W40)
Type SG
pg56_96.pmd2/25/2005, 9:59 AM 88
Page 98 of 156

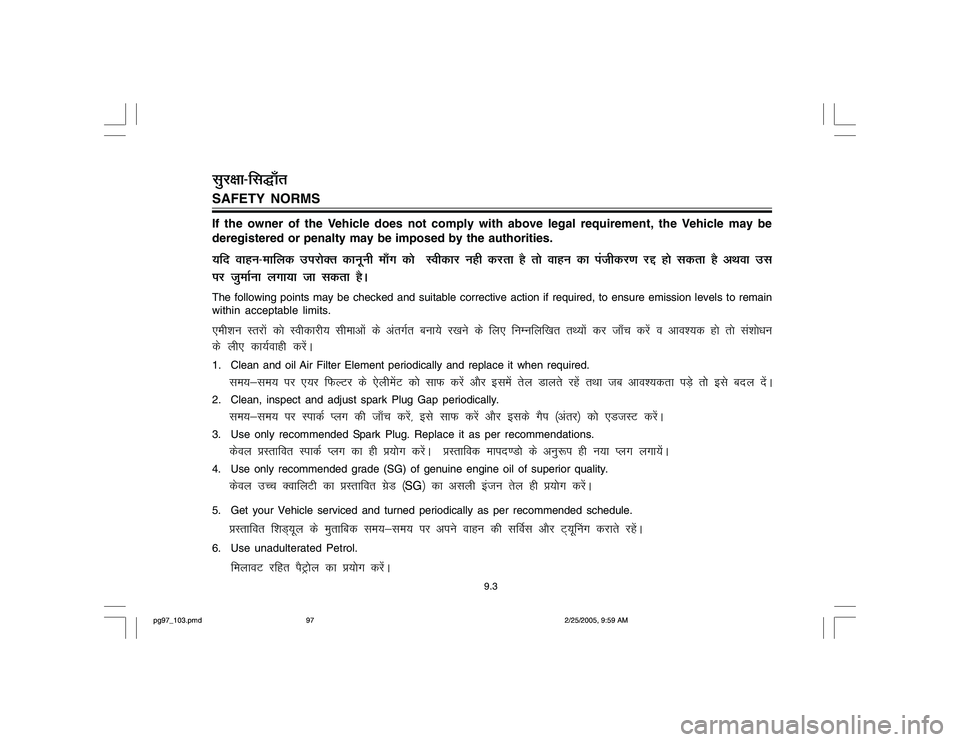

If the owner of the Vehicle does not comply with above legal requirement, the Vehicle may be
deregistered or penalty may be imposed by the authorities.;fn okgu&ekfyd mij¨Dr dkuwuh ek¡x d¨ Lohdkj ugh djrk gS r¨ okgu dk iathdj.k jí g¨ ldrk gS vFkok ml
ij tqekZuk yxk;k tk ldrk gSAThe following points may be checked and suitable corrective action if required, to ensure emission levels to remain
within acceptable limits.,eh'ku Lrjksa dks Lohdkjh; lhekvksa ds varxZr cuk;s j[kus ds fy, fuEufyf[kr rF;ksa dj tk¡p djsa o vko';d gks rks la'kks/ku
ds yh, dk;Zokgh djsaA1. Clean and oil Air Filter Element periodically and replace it when required.
le;≤ ij ,;j fQYVj ds ,syhesaV d¨ lkQ djsa v©j blesa rsy Mkyrs jgsa rFkk tc vko';drk iMs+ r¨ bls cny nsaA
2. Clean, inspect and adjust spark Plug Gap periodically.
le;≤ ij LikdZ Iyx dh tk¡p djsa] bls lkQ djsa v©j blds xSi ¼varj½ d¨ ,MtLV djsaA
3. Use only recommended Spark Plug. Replace it as per recommendations.
dsoy çLrkfor LikdZ Iyx dk gh ç;¨x djsaA çLrkfod ekin.M¨ ds vuq:i gh u;k Iyx yxk;saA
4. Use only recommended grade (SG) of genuine engine oil of superior quality.
dsoy mPp DokfyVh dk çLrkfor xzsM ¼
SG
½ dk vlyh batu rsy gh ç;¨x djsaA
5. Get your Vehicle serviced and turned periodically as per recommended schedule.
çLrkfor f'kM~;wy ds eqrkfcd le;≤ ij vius okgu dh l£ol v©j V~;w¯ux djkrs jgsaA
6. Use unadulterated Petrol.
feykoV jfgr iSVª¨y dk ç;¨x djsaaA SAFETY NORMS
9.3
lqj{kk&flðk¡r
pg97_103.pmd2/25/2005, 9:59 AM 97
Page 106 of 156

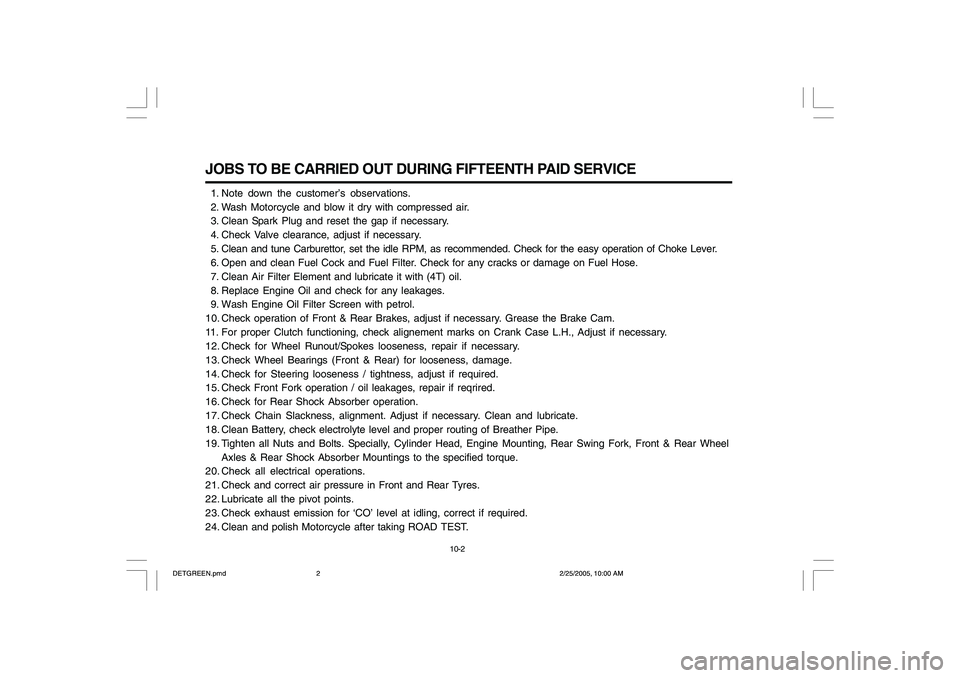

JOBS TO BE CARRIED OUT DURING FIFTEENTH PAID SERVICE 1. Note down the customer’s observations.
2. Wash Motorcycle and blow it dry with compressed air.
3. Clean Spark Plug and reset the gap if necessary.
4. Check Valve clearance, adjust if necessary.
5. Clean and tune Carburettor, set the idle RPM, as recommended. Check for the easy operation of Choke Lever.
6. Open and clean Fuel Cock and Fuel Filter. Check for any cracks or damage on Fuel Hose.
7. Clean Air Filter Element and lubricate it with (4T) oil.
8. Replace Engine Oil and check for any leakages.
9. Wash Engine Oil Filter Screen with petrol.
10. Check operation of Front & Rear Brakes, adjust if necessary. Grease the Brake Cam.
11. For proper Clutch functioning, check alignement marks on Crank Case L.H., Adjust if necessary.
12. Check for Wheel Runout/Spokes looseness, repair if necessary.
13. Check Wheel Bearings (Front & Rear) for looseness, damage.
14. Check for Steering looseness / tightness, adjust if required.
15. Check Front Fork operation / oil leakages, repair if reqrired.
16. Check for Rear Shock Absorber operation.
17. Check Chain Slackness, alignment. Adjust if necessary. Clean and lubricate.
18. Clean Battery, check electrolyte level and proper routing of Breather Pipe.
19. Tighten all Nuts and Bolts. Specially, Cylinder Head, Engine Mounting, Rear Swing Fork, Front & Rear Wheel
Axles & Rear Shock Absorber Mountings to the specified torque.
20. Check all electrical operations.
21. Check and correct air pressure in Front and Rear Tyres.
22. Lubricate all the pivot points.
23. Check exhaust emission for ‘CO’ level at idling, correct if required.
24. Clean and polish Motorcycle after taking ROAD TEST.
10-2
DETGREEN.pmd2/25/2005, 10:00 AM 2
Page 108 of 156

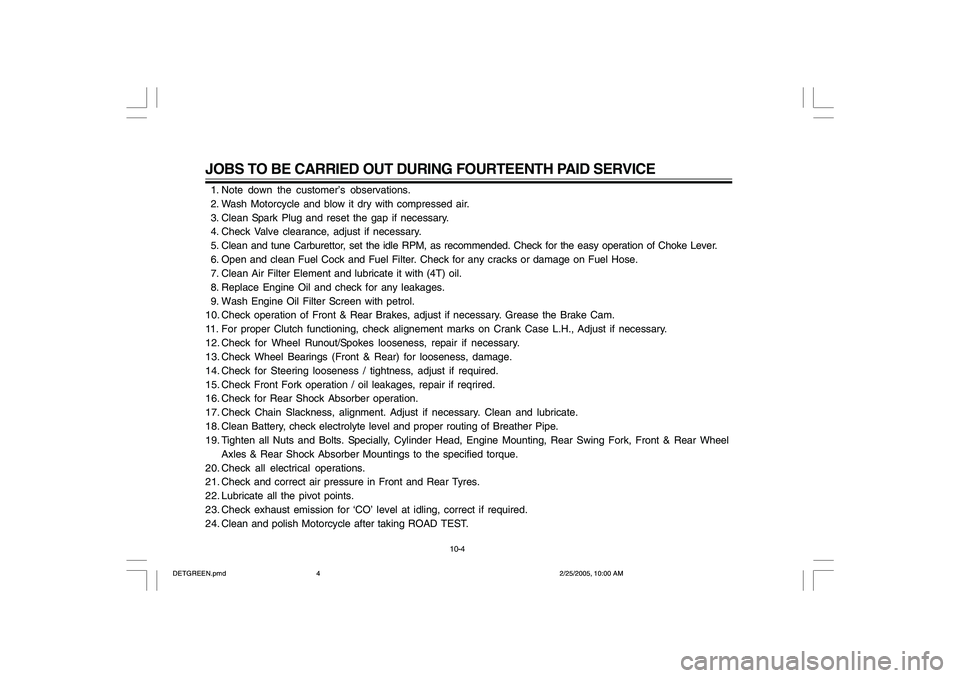

JOBS TO BE CARRIED OUT DURING FOURTEENTH PAID SERVICE 1. Note down the customer’s observations.
2. Wash Motorcycle and blow it dry with compressed air.
3. Clean Spark Plug and reset the gap if necessary.
4. Check Valve clearance, adjust if necessary.
5. Clean and tune Carburettor, set the idle RPM, as recommended. Check for the easy operation of Choke Lever.
6. Open and clean Fuel Cock and Fuel Filter. Check for any cracks or damage on Fuel Hose.
7. Clean Air Filter Element and lubricate it with (4T) oil.
8. Replace Engine Oil and check for any leakages.
9. Wash Engine Oil Filter Screen with petrol.
10. Check operation of Front & Rear Brakes, adjust if necessary. Grease the Brake Cam.
11. For proper Clutch functioning, check alignement marks on Crank Case L.H., Adjust if necessary.
12. Check for Wheel Runout/Spokes looseness, repair if necessary.
13. Check Wheel Bearings (Front & Rear) for looseness, damage.
14. Check for Steering looseness / tightness, adjust if required.
15. Check Front Fork operation / oil leakages, repair if reqrired.
16. Check for Rear Shock Absorber operation.
17. Check Chain Slackness, alignment. Adjust if necessary. Clean and lubricate.
18. Clean Battery, check electrolyte level and proper routing of Breather Pipe.
19. Tighten all Nuts and Bolts. Specially, Cylinder Head, Engine Mounting, Rear Swing Fork, Front & Rear Wheel
Axles & Rear Shock Absorber Mountings to the specified torque.
20. Check all electrical operations.
21. Check and correct air pressure in Front and Rear Tyres.
22. Lubricate all the pivot points.
23. Check exhaust emission for ‘CO’ level at idling, correct if required.
24. Clean and polish Motorcycle after taking ROAD TEST.
10-4
DETGREEN.pmd2/25/2005, 10:00 AM 4
