YAMAHA YD110 2006 Owners Manual

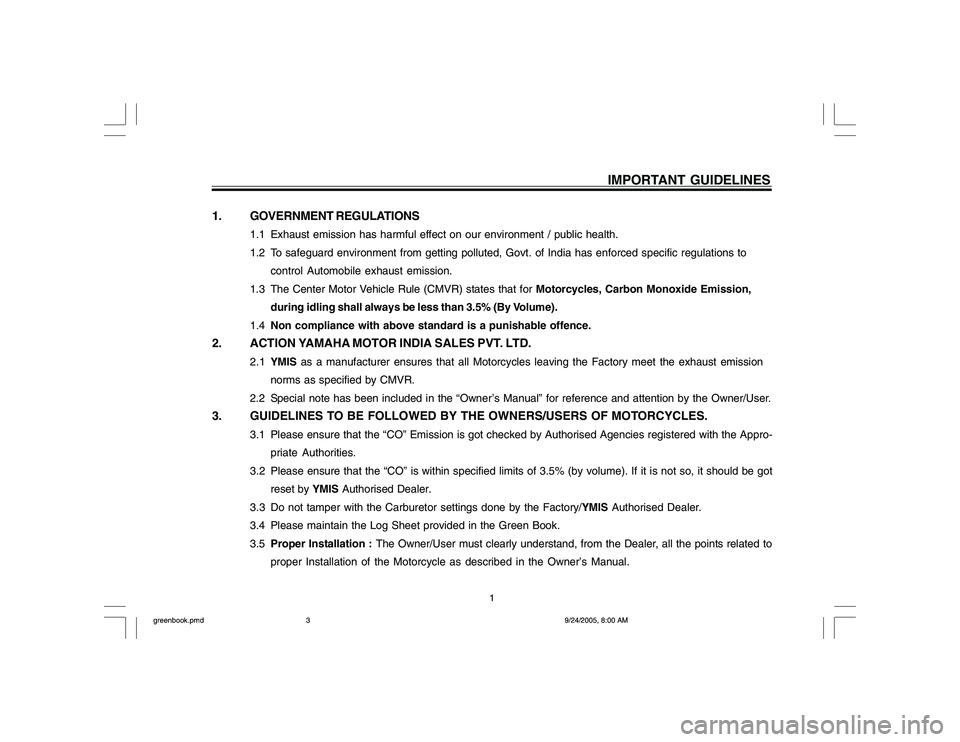

IMPORTANT GUIDELINES
1. GOVERNMENT REGULATIONS
1.1 Exhaust emission has harmful effect on our environment / public health.
1.2 To safeguard environment from getting polluted, Govt. of India has enforced specific regulations to
control Automobile exhaust emission.
1.3 The Center Motor Vehicle Rule (CMVR) states that for Motorcycles, Carbon Monoxide Emission,
during idling shall always be less than 3.5% (By Volume).
1.4Non compliance with above standard is a punishable offence.
2. ACTION YAMAHA MOTOR INDIA SALES PVT. LTD.
2.1YMIS as a manufacturer ensures that all Motorcycles leaving the Factory meet the exhaust emission
norms as specified by CMVR.
2.2 Special note has been included in the “Owner’s Manual” for reference and attention by the Owner/User.
3. GUIDELINES TO BE FOLLOWED BY THE OWNERS/USERS OF MOTORCYCLES.
3.1 Please ensure that the “CO” Emission is got checked by Authorised Agencies registered with the Appro-
priate Authorities.
3.2 Please ensure that the “CO” is within specified limits of 3.5% (by volume). If it is not so, it should be got
reset by YMIS Authorised Dealer.
3.3 Do not tamper with the Carburetor settings done by the Factory/YMIS Authorised Dealer.
3.4 Please maintain the Log Sheet provided in the Green Book.
3.5Proper Installation : The Owner/User must clearly understand, from the Dealer, all the points related to
proper Installation of the Motorcycle as described in the Owner’s Manual.
1
greenbook.pmd9/24/2005, 8:00 AM 3

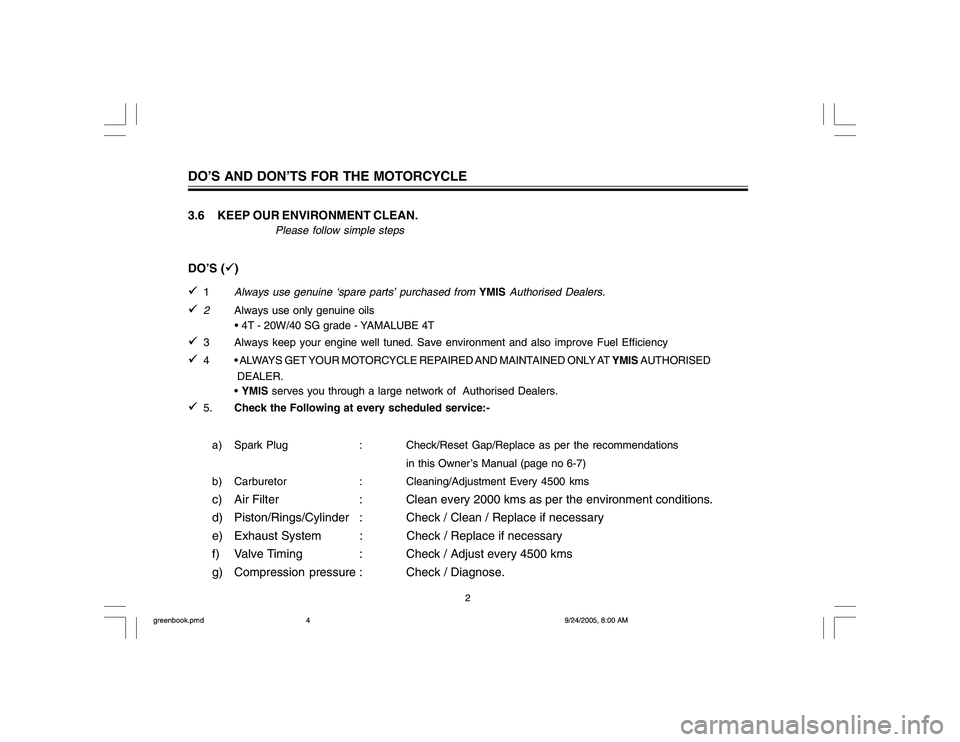

3.6 KEEP OUR ENVIRONMENT CLEAN.
Please follow simple steps
DO’S (
)


1
Always use genuine ‘spare parts’ purchased from
YMIS
Authorised Dealers.


2
Always use only genuine oils
 4T - 20W/40 SG grade - YAMALUBE 4T


3 Always keep your engine well tuned. Save environment and also improve Fuel Efficiency


4  ALWAYS GET YOUR MOTORCYCLE REPAIRED AND MAINTAINED ONLY AT YMIS AUTHORISED
DEALER.
 YMIS serves you through a large network of Authorised Dealers.


5.Check the Following at every scheduled service:-
a) Spark Plug : Check/Reset Gap/Replace as per the recommendations
in this Owner’s Manual (page no 6-7)
b) Carburetor : Cleaning/Adjustment Every 4500 kmsc) Air Filter : Clean every 2000 kms as per the environment conditions.
d) Piston/Rings/Cylinder : Check / Clean / Replace if necessary
e) Exhaust System : Check / Replace if necessary
f) Valve Timing : Check / Adjust every 4500 kms
g) Compression pressure : Check / Diagnose.
DO’S AND DON’TS FOR THE MOTORCYCLE
2
greenbook.pmd9/24/2005, 8:00 AM 4

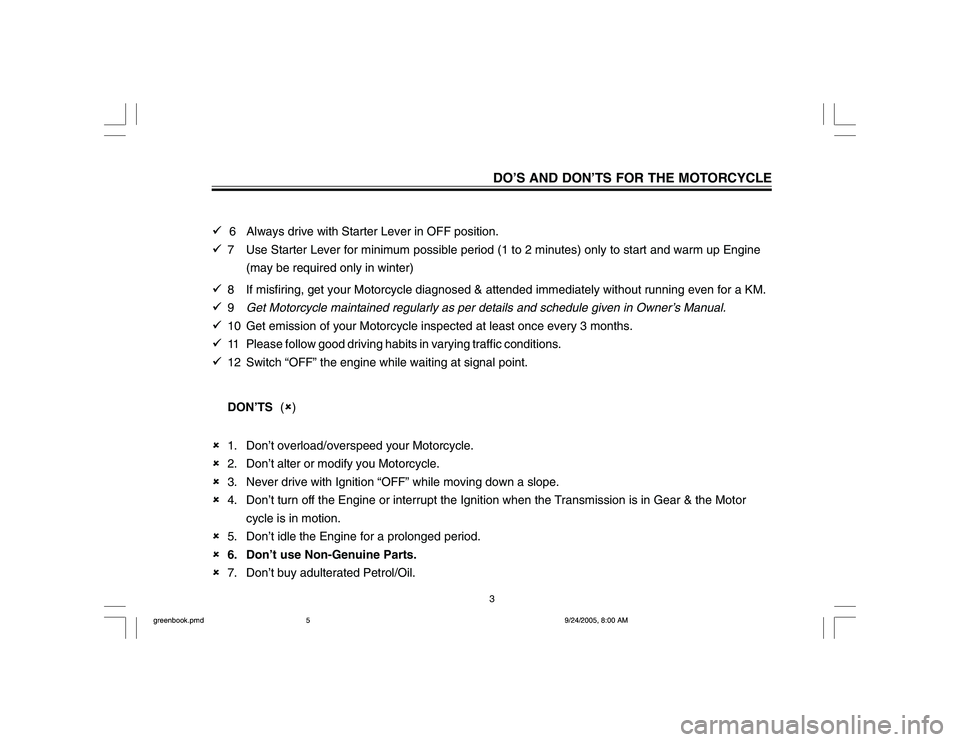

DO’S AND DON’TS FOR THE MOTORCYCLE

6 Always drive with Starter Lever in OFF position.

7 Use Starter Lever for minimum possible period (1 to 2 minutes) only to start and warm up Engine
(may be required only in winter)

8 If misfiring, get your Motorcycle diagnosed & attended immediately without running even for a KM.

9
Get Motorcycle maintained regularly as per details and schedule given in Owner’s Manual.

10 Get emission of your Motorcycle inspected at least once every 3 months.

11 Please follow good driving habits in varying traffic conditions.

12 Switch “OFF” the engine while waiting at signal point.
DON’TS ()
1. Don’t overload/overspeed your Motorcycle.
2. Don’t alter or modify you Motorcycle.
3. Never drive with Ignition “OFF” while moving down a slope.
4. Don’t turn off the Engine or interrupt the Ignition when the Transmission is in Gear & the Motor
cycle is in motion.
5. Don’t idle the Engine for a prolonged period.
6. Don’t use Non-Genuine Parts.
7. Don’t buy adulterated Petrol/Oil.
3
greenbook.pmd9/24/2005, 8:00 AM 5

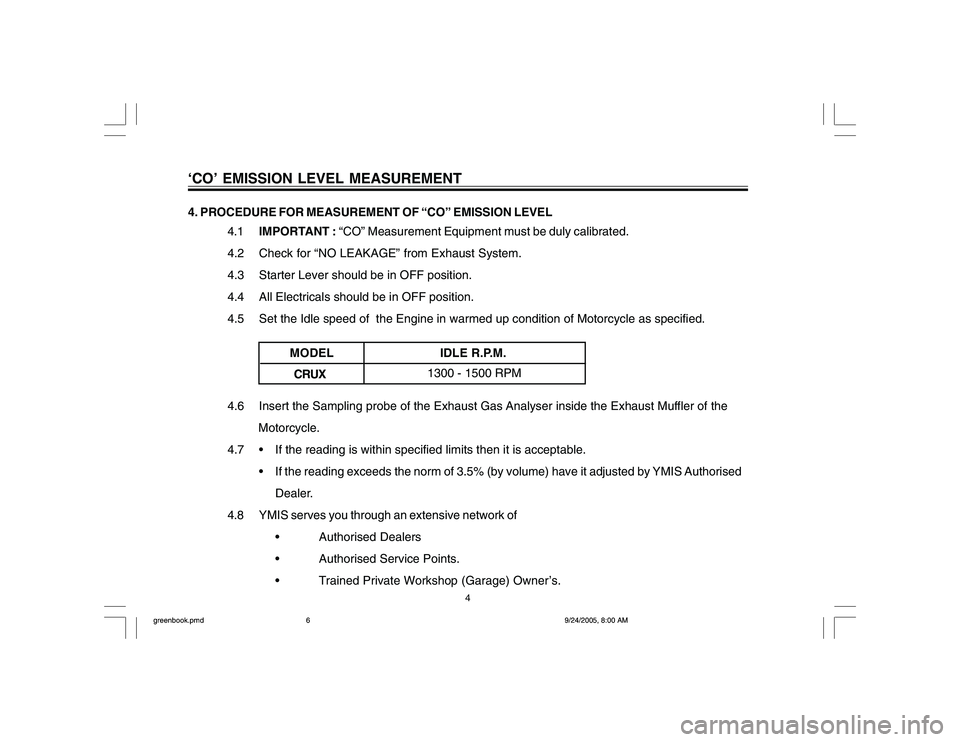

4. PROCEDURE FOR MEASUREMENT OF “CO” EMISSION LEVEL
4.1IMPORTANT : “CO” Measurement Equipment must be duly calibrated.
4.2 Check for “NO LEAKAGE” from Exhaust System.
4.3 Starter Lever should be in OFF position.
4.4 All Electricals should be in OFF position.
4.5 Set the Idle speed of the Engine in warmed up condition of Motorcycle as specified.
4.6 Insert the Sampling probe of the Exhaust Gas Analyser inside the Exhaust Muffler of the
Motorcycle.
4.7  If the reading is within specified limits then it is acceptable.
 If the reading exceeds the norm of 3.5% (by volume) have it adjusted by YMIS Authorised
Dealer.
4.8 YMIS serves you through an extensive network of
 Authorised Dealers
 Authorised Service Points.
 Trained Private Workshop (Garage) Owner’s.‘CO’ EMISSION LEVEL MEASUREMENT
4
MODELIDLE R.P.M.
1300 - 1500 RPM
CRUX
greenbook.pmd9/24/2005, 8:00 AM 6

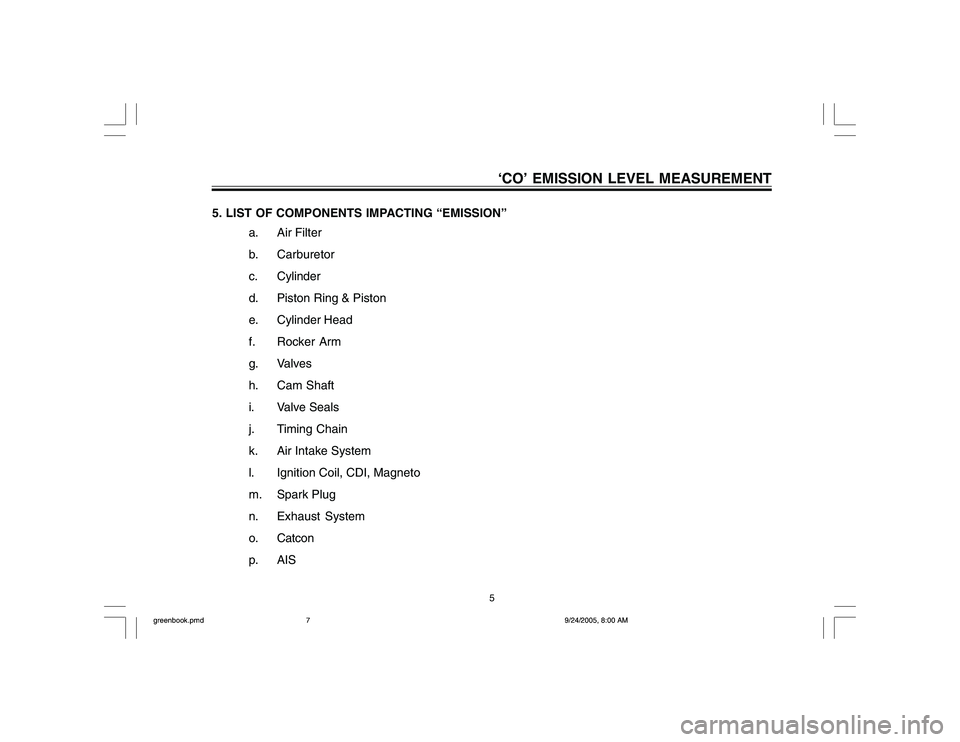

5. LIST OF COMPONENTS IMPACTING “EMISSION”
a. Air Filter
b. Carburetor
c. Cylinder
d. Piston Ring & Piston
e. Cylinder Head
f. Rocker Arm
g. Valves
h. Cam Shaft
i. Valve Seals
j. Timing Chain
k. Air Intake System
l. Ignition Coil, CDI, Magneto
m. Spark Plug
n. Exhaust System
o. Catcon
p. AIS
‘CO’ EMISSION LEVEL MEASUREMENT5
greenbook.pmd9/24/2005, 8:00 AM 7

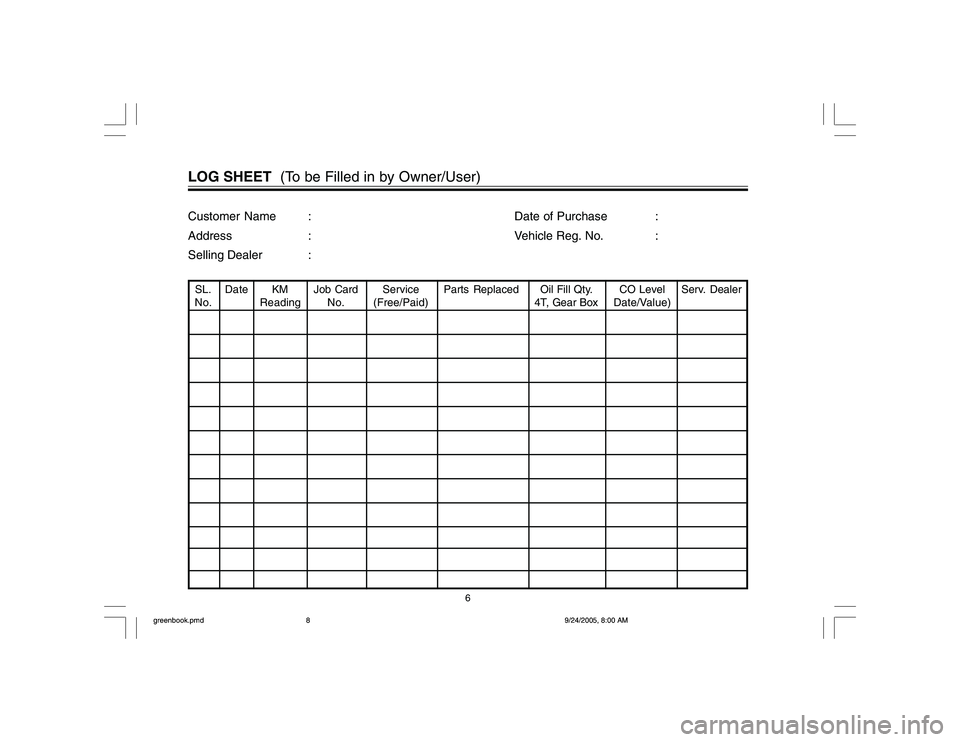

Customer Name : Date of Purchase :
Address : Vehicle Reg. No. :
Selling Dealer :SL.
No.Date KM
ReadingJob Card
No.Service
(Free/Paid)Parts Replaced Oil Fill Qty.
4T, Gear BoxCO Level
Date/Value)Serv. DealerLOG SHEET (To be Filled in by Owner/User)
6
greenbook.pmd9/24/2005, 8:00 AM 8

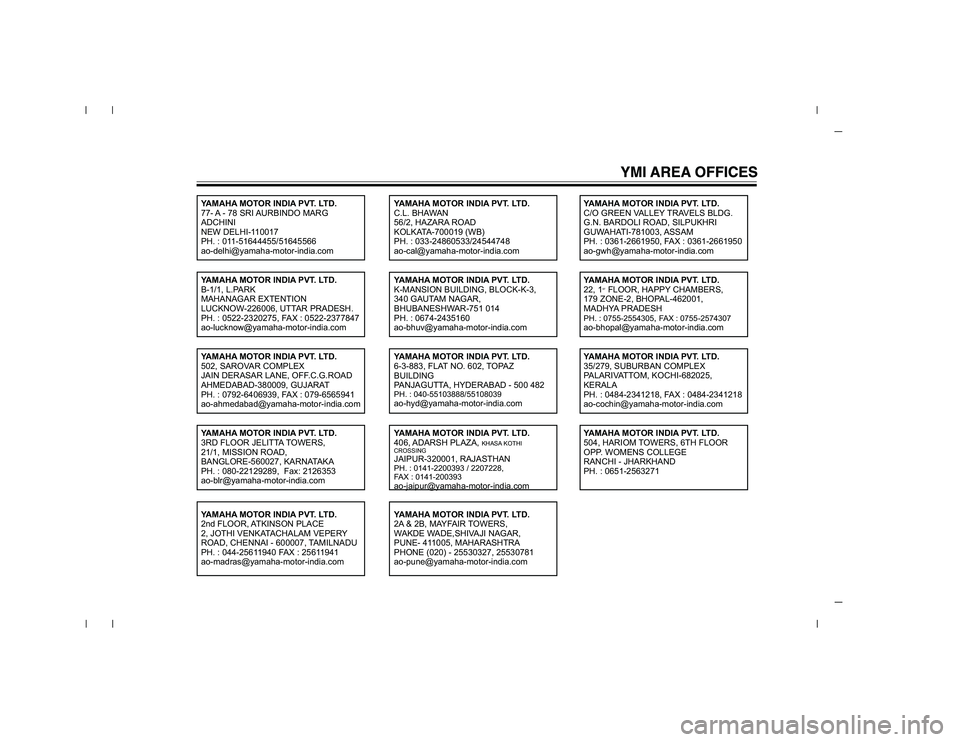

YAMAHA MOTOR INDIA PVT. LTD.
77- A - 78 SRI AURBINDO MARG
ADCHINI
NEW DELHI-110017
PH. : 011-51644455/51645566
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
B-1/1, L.PARK
MAHANAGAR EXTENTION
LUCKNOW-226006, UTTAR PRADESH.
PH. : 0522-2320275, FAX : 0522-2377847
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
502, SAROVAR COMPLEX
JAIN DERASAR LANE, OFF.C.G.ROAD
AHMEDABAD-380009, GUJARAT
PH. : 0792-6406939, FAX : 079-6565941
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
3RD FLOOR JELITTA TOWERS,
21/1, MISSION ROAD,
BANGLORE-560027, KARNATAKA
PH. : 080-22129289, Fax: 2126353
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
2nd FLOOR, ATKINSON PLACE
2, JOTHI VENKATACHALAM VEPERY
ROAD, CHENNAI - 600007, TAMILNADU
PH. : 044-25611940 FAX : 25611941
[email protected] MOTOR INDIA PVT. LTD.
C.L. BHAWAN
56/2, HAZARA ROAD
KOLKATA-700019 (WB)
PH. : 033-24860533/24544748
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
K-MANSION BUILDING, BLOCK-K-3,
340 GAUTAM NAGAR,
BHUBANESHWAR-751 014
PH. : 0674-2435160
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
6-3-883, FLAT NO. 602, TOPAZ
BUILDING
PANJAGUTTA, HYDERABAD - 500 482
[email protected]
PH. : 040-55103888/55108039YAMAHA MOTOR INDIA PVT. LTD.
406, ADARSH PLAZA,
JAIPUR-320001, RAJASTHAN
[email protected]
KHASA KOTHI
CROSSING
PH. : 0141-2200393 / 2207228,
FAX : 0141-200393YAMAHA MOTOR INDIA PVT. LTD.
2A & 2B, MAYFAIR TOWERS,
WAKDE WADE,SHIVAJI NAGAR,
PUNE- 411005, MAHARASHTRA
PHONE (020) - 25530327, 25530781
[email protected] MOTOR INDIA PVT. LTD.
C/O GREEN VALLEY TRAVELS BLDG.
G.N. BARDOLI ROAD, SILPUKHRI
GUWAHATI-781003, ASSAM
PH. : 0361-2661950, FAX : 0361-2661950
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
22, 1 FLOOR, HAPPY CHAMBERS,
179 ZONE-2, BHOPAL-462001,
MADHYA PRADESH
,
[email protected]
ST
PH. : 0755-2554305 FAX : 0755-2574307YAMAHA MOTOR INDIA PVT. LTD.
35/279, SUBURBAN COMPLEX
PALARIVATTOM, KOCHI-682025,
KERALA
PH. : 0484-2341218, FAX : 0484-2341218
[email protected]
YAMAHA MOTOR INDIA PVT. LTD.
504, HARIOM TOWERS, 6TH FLOOR
OPP. WOMENS COLLEGE
RANCHI - JHARKHAND
PH. : 0651-2563271
