gine as well as other vital parts of the ATV and
can lead to drive chain slippage or breakage.
To prevent this from occurring, keep the drive
chain slack within the specified limits.
5. Pull the rod out, and then tighten the rear axle
pinch bolts to the specified torque in the order
shown.
EBU24880
Lubricating the drive chain
The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenanceand lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.CAUTION:

ECB00560
The drive chain must be lubricated after wash-
ing the ATV or riding in the rain.
1. Clean the drive chain with kerosene and a
small soft brush.
CAUTION:

ECB00570
To prevent damaging the O-rings, do not clean
Tightening torque:
Rear axle pinch bolt:
21 Nm (2.1 m·kgf, 15.2 ft·lbf)
12 34
56 78

1. O-rings
1

8-33
1
2
3
4
5
6
78
9
10
11

the drive chain with steam cleaners, high-pres-
sure washers or inappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.
CAUTION:

ECB00580
Do not use engine oil or any other lubricants
for the drive chain, as they may contain sub-
stances that could damage the O-rings.
EBU24900
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING

EWB02130
Inspect cables frequently and replace if dam-aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to an
accident or injury.
EBU24921
Checking and lubricating the brake and
clutch levers
The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Recommended lubricant:
Engine oil
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease (all-purpose
grease)

8-34
1
2
3
4
5
6
78
9
10
11

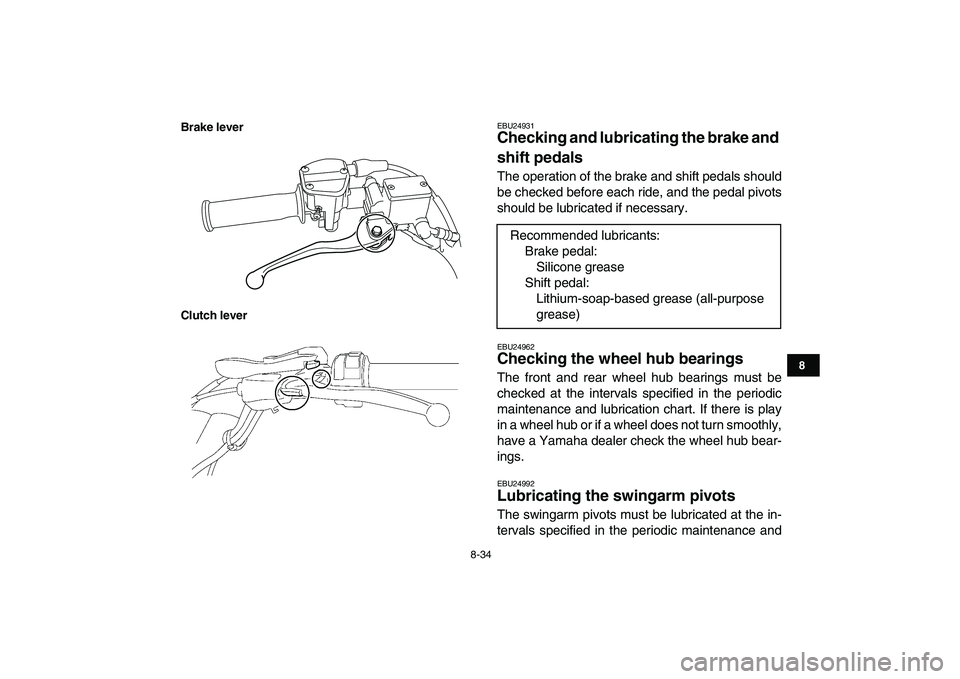

Brake lever
Clutch lever

EBU24931
Checking and lubricating the brake and
shift pedals
The operation of the brake and shift pedals should
be checked before each ride, and the pedal pivots
should be lubricated if necessary.
EBU24962
Checking the wheel hub bearings
The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.
EBU24992
Lubricating the swingarm pivots
The swingarm pivots must be lubricated at the in-
tervals specified in the periodic maintenance and
Recommended lubricants:
Brake pedal:
Silicone grease
Shift pedal:
Lithium-soap-based grease (all-purpose
grease)

8-35
1
2
3
4
5
6
78
9
10
11

lubrication chart.
EBU25030
Lubricating the upper and lower arm
pivots
The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.
Lubricate the pivoting points using a grease gun.

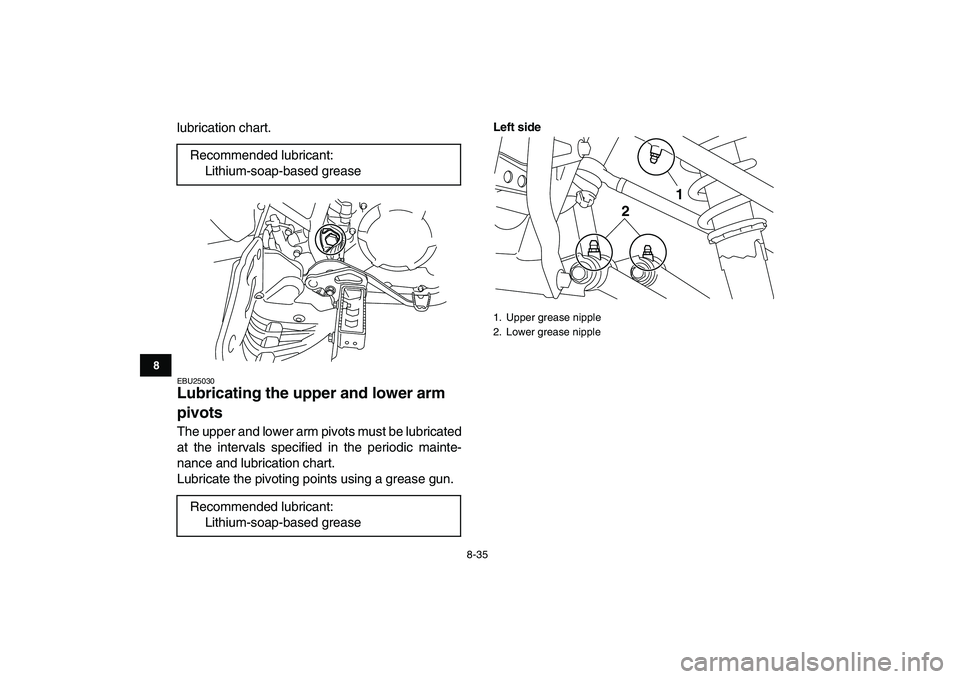

Left side
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
1. Upper grease nipple
2. Lower grease nipple
2
1

8-36
1
2
3
4
5
6
78
9
10
11

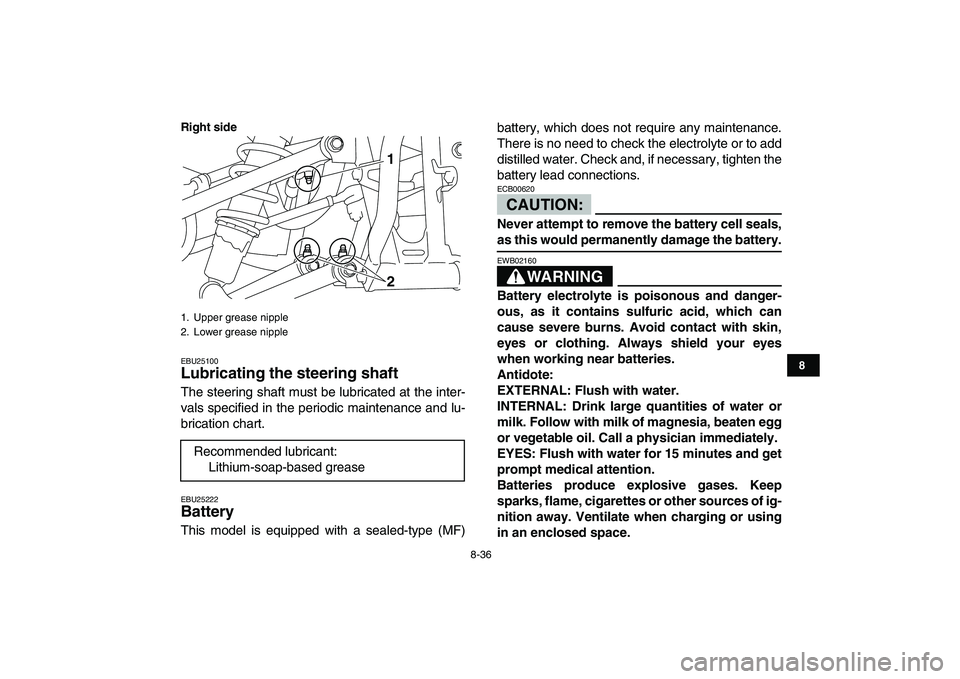

Right side

EBU25100
Lubricating the steering shaft
The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU25222
Battery
This model is equipped with a sealed-type (MF)battery, which does not require any maintenance.
There is no need to check the electrolyte or to add
distilled water. Check and, if necessary, tighten the
battery lead connections.CAUTION:

ECB00620
Never attempt to remove the battery cell seals,
as this would permanently damage the battery.WARNING
EWB02160
Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
1. Upper grease nipple
2. Lower grease nipple
Recommended lubricant:
Lithium-soap-based grease
1
2

8-37
1
2
3
4
5
6
78
9
10
11

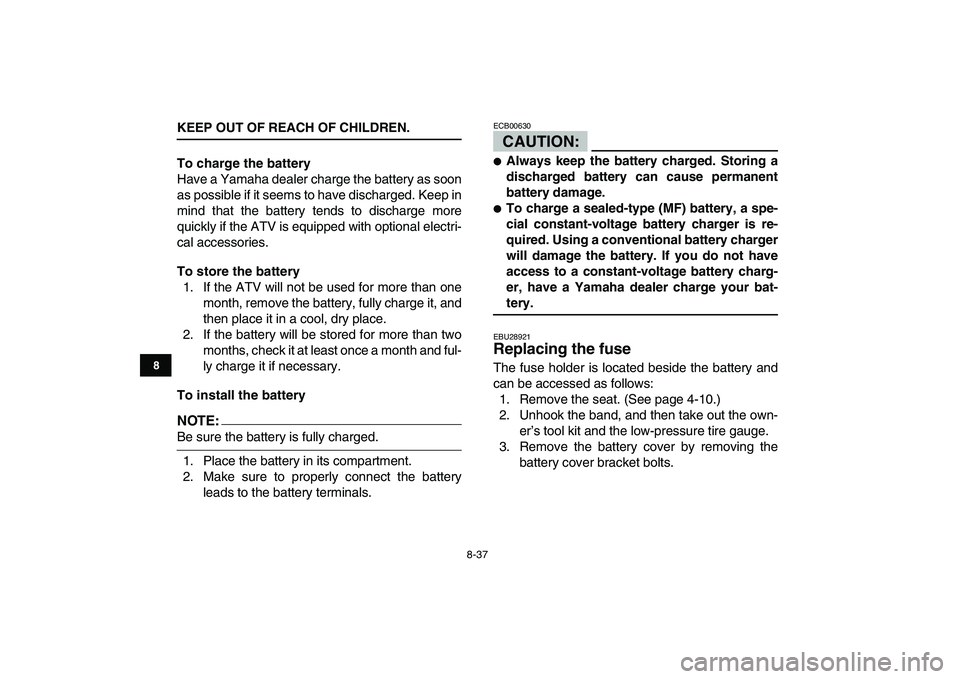

KEEP OUT OF REACH OF CHILDREN.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
To store the battery
1. If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for more than two
months, check it at least once a month and ful-
ly charge it if necessary.
To install the battery
NOTE:

Be sure the battery is fully charged.
1. Place the battery in its compartment.
2. Make sure to properly connect the battery
leads to the battery terminals.
CAUTION:

ECB00630

Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.

To charge a sealed-type (MF) battery, a spe-
cial constant-voltage battery charger is re-
quired. Using a conventional battery charger
will damage the battery. If you do not have
access to a constant-voltage battery charg-
er, have a Yamaha dealer charge your bat-
tery.
EBU28921
Replacing the fuse
The fuse holder is located beside the battery and
can be accessed as follows:
1. Remove the seat. (See page 4-10.)
2. Unhook the band, and then take out the own-
er’s tool kit and the low-pressure tire gauge.
3. Remove the battery cover by removing the
battery cover bracket bolts.

8-38
1
2
3
4
5
6
78
9
10
11

If the fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.CAUTION:
ECB00640
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.

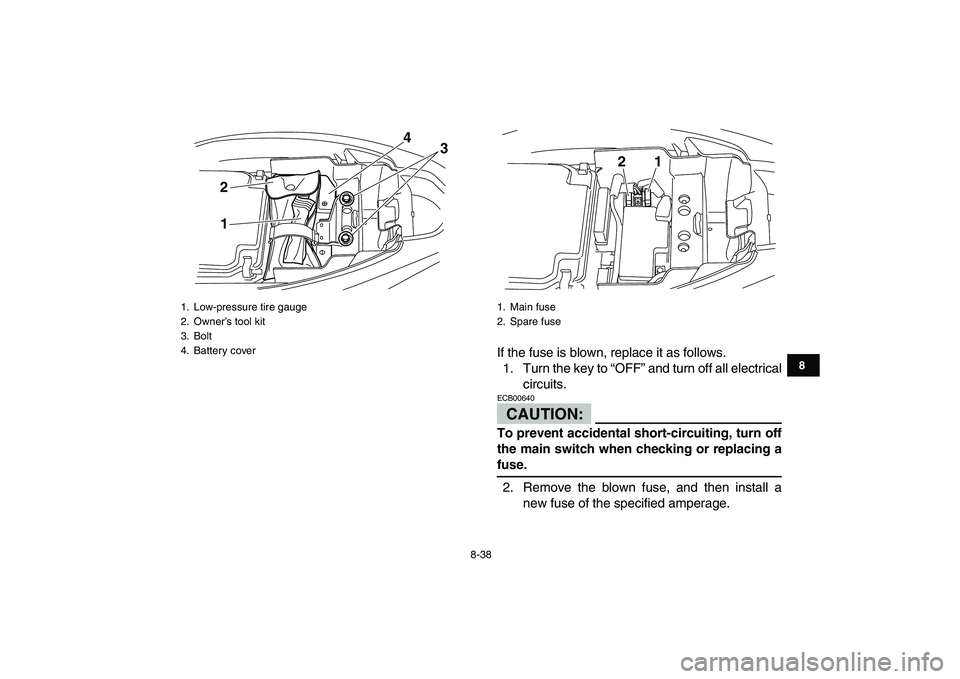

1. Low-pressure tire gauge
2. Owner’s tool kit
3. Bolt
4. Battery cover
3
24
1

1. Main fuse
2. Spare fuse
1 2

8-39
1
2
3
4
5
6
78
9
10
11
WARNING

EWB02171
Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-
tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
5. Install the battery cover by installing the bat-
tery cover bracket bolts.
6. Place the owner’s tool kit and the low-pres-
sure tire gauge onto the battery cover, and
then hook the band.
7. Install the seat.
EBU25440
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing thebolts.
2. Disconnect the headlight coupler.
3. Remove the headlight bulb holder cover. Specified fuse:
15.0 A

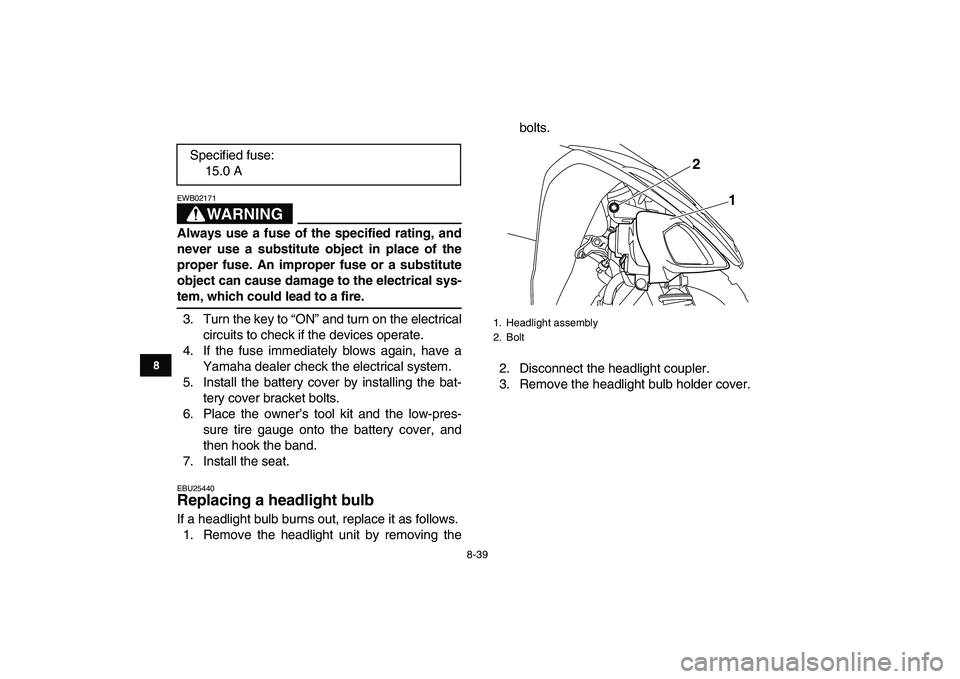

1. Headlight assembly
2. Bolt
1 2

8-40
1
2
3
4
5
6
78
9
10
11

4. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise, and then
remove the defective bulb.
WARNING

EWB02230
Do not touch a headlight bulb when it is on or
immediately after it is turned off. You can be
burned or a fire could start if the bulb touches
something flammable. Wait for the bulb to cool
before touching or removing it.
5. Place a new headlight bulb into position.
1. Headlight bulb holder cover
2. Headlight coupler
1
2

1. Headlight bulb holder
1

8-41
1
2
3
4
5
6
78
9
10
11
CAUTION:

ECB00650
Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner.
6. Install the headlight bulb holder by pushing it
in and turning it clockwise.
7. Install the headlight bulb holder cover.8. Connect the headlight coupler.
9. Install the headlight unit by installing the bolts.
10. Adjust the headlight beam if necessary.
EBU25550
Adjusting a headlight beam
CAUTION:

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the adjusting
screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).

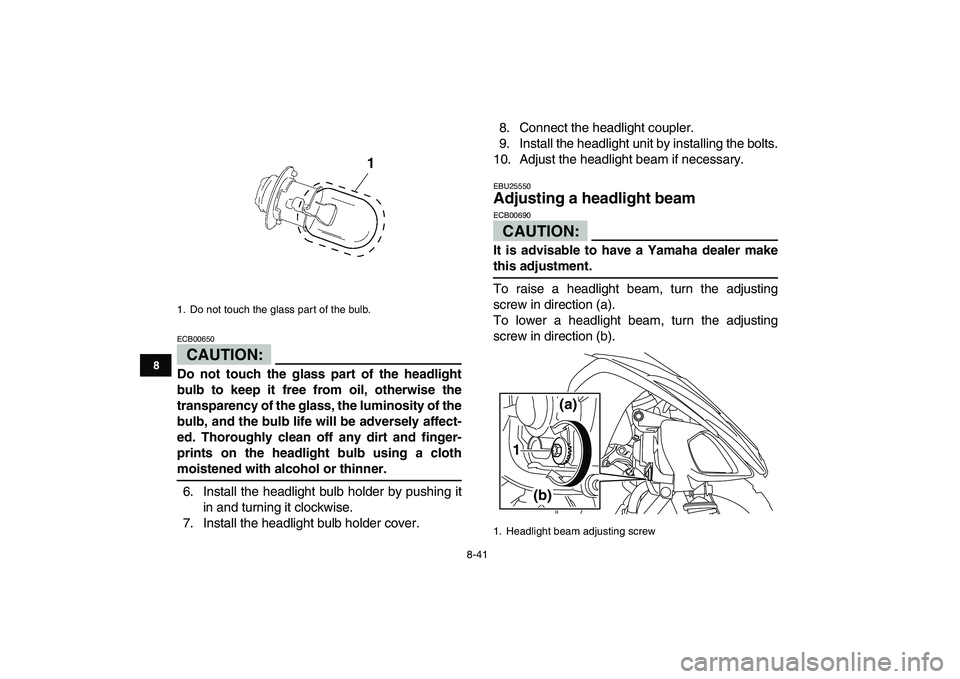

1. Do not touch the glass part of the bulb.
1

1. Headlight beam adjusting screw
1(a)
(b)
