YAMAHA YFM250R 2009 Owners Manual

10-1
1
2
3
4
5
6
7
8
910
11

EBU25960

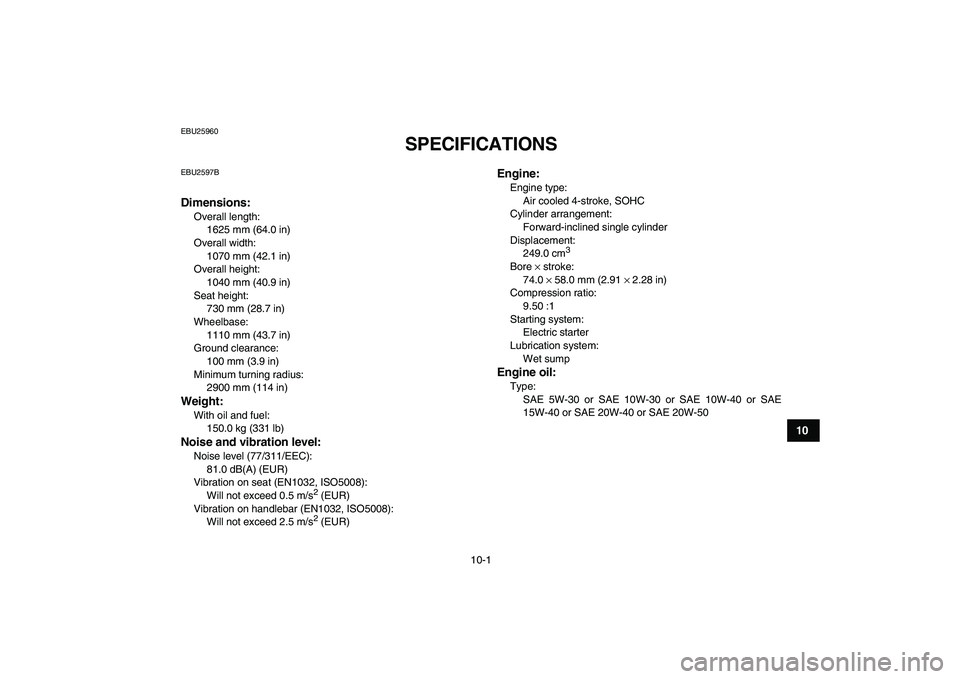

SPECIFICATIONS
EBU2597B
Dimensions:
Overall length:
1625 mm (64.0 in)
Overall width:
1070 mm (42.1 in)
Overall height:
1040 mm (40.9 in)
Seat height:
730 mm (28.7 in)
Wheelbase:
1110 mm (43.7 in)
Ground clearance:
100 mm (3.9 in)
Minimum turning radius:
2900 mm (114 in)
Weight:
With oil and fuel:
150.0 kg (331 lb)
Noise and vibration level:
Noise level (77/311/EEC):
81.0 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s
2

(EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s
2

(EUR)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249.0 cm
3

Bore
×
stroke:
74.0
×
58.0 mm (2.91
×
2.28 in)
Compression ratio:
9.50 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE 5W-30 or SAE 10W-30 or SAE 10W-40 or SAE
15W-40 or SAE 20W-40 or SAE 20W-50

10-2
1
2
3
4
5
6
7
8
910
11

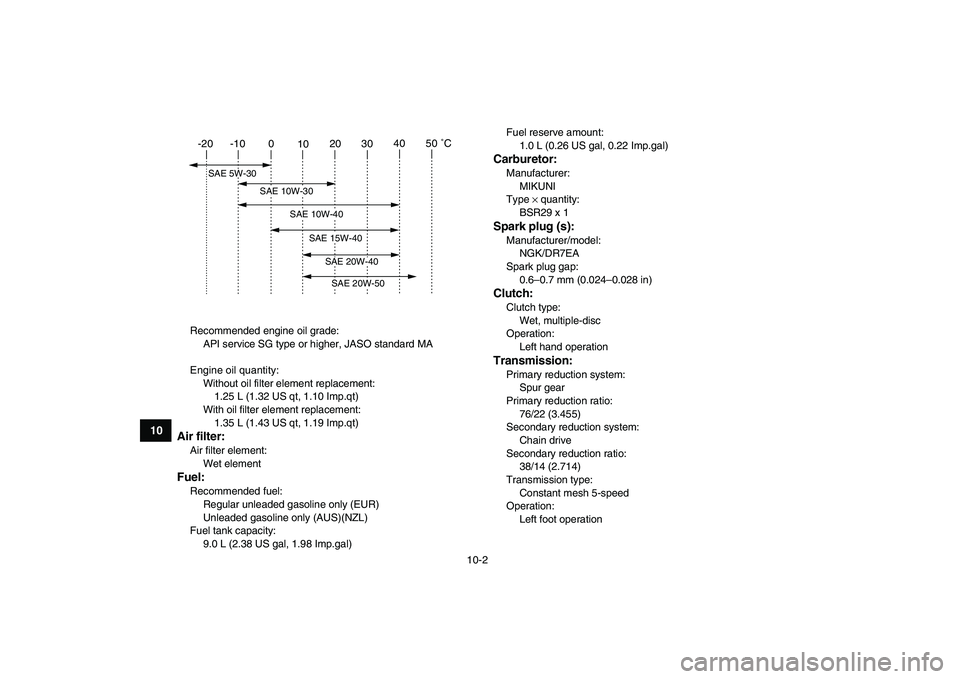

Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter element replacement:
1.25 L (1.32 US qt, 1.10 Imp.qt)
With oil filter element replacement:
1.35 L (1.43 US qt, 1.19 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
9.0 L (2.38 US gal, 1.98 Imp.gal)Fuel reserve amount:
1.0 L (0.26 US gal, 0.22 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type
×
quantity:
BSR29 x 1
Spark plug (s):
Manufacturer/model:
NGK/DR7EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc
Operation:
Left hand operation
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
76/22 (3.455)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
38/14 (2.714)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30

10-3
1
2
3
4
5
6
7
8
910
11

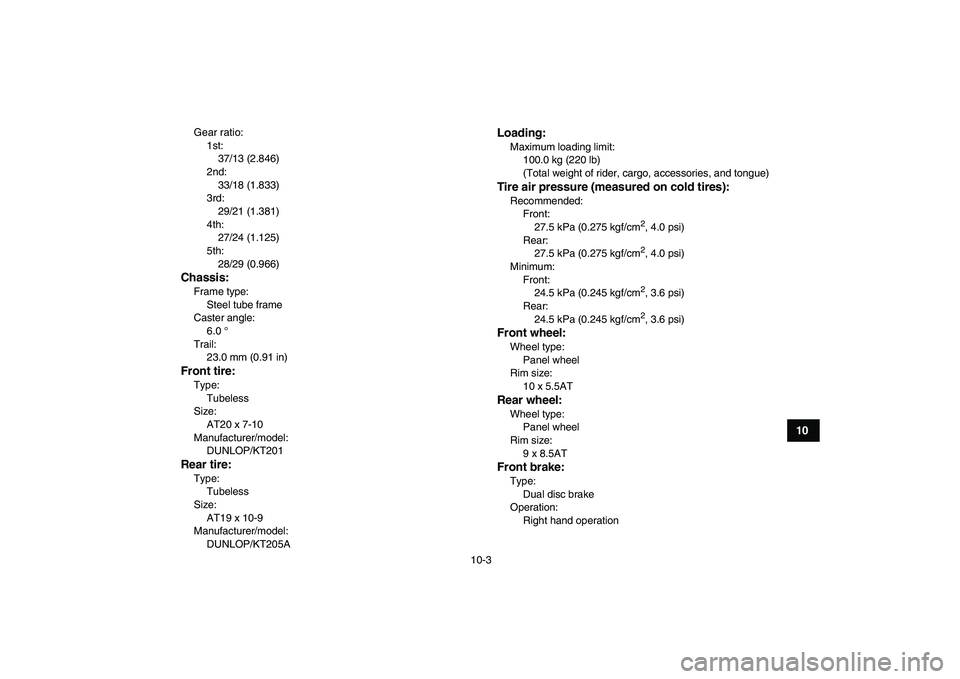

Gear ratio:
1st:
37/13 (2.846)
2nd:
33/18 (1.833)
3rd:
29/21 (1.381)
4th:
27/24 (1.125)
5th:
28/29 (0.966)
Chassis:
Frame type:
Steel tube frame
Caster angle:
6.0 °
Trail:
23.0 mm (0.91 in)
Front tire:
Type:
Tubeless
Size:
AT20 x 7-10
Manufacturer/model:
DUNLOP/KT201
Rear tire:
Type:
Tubeless
Size:
AT19 x 10-9
Manufacturer/model:
DUNLOP/KT205A
Loading:
Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
27.5 kPa (0.275 kgf/cm
2

, 4.0 psi)
Rear:
27.5 kPa (0.275 kgf/cm
2

, 4.0 psi)
Minimum:
Front:
24.5 kPa (0.245 kgf/cm
2

, 3.6 psi)
Rear:
24.5 kPa (0.245 kgf/cm
2

, 3.6 psi)
Front wheel:
Wheel type:
Panel wheel
Rim size:
10 x 5.5AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
9 x 8.5AT
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation

10-4
1
2
3
4
5
6
7
8
910
11

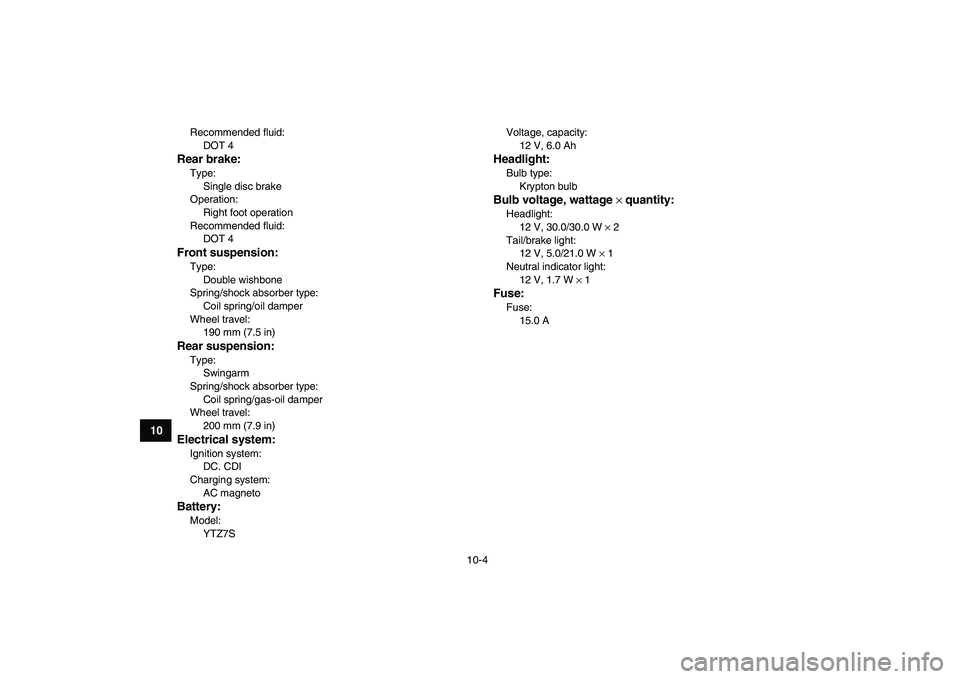

Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
190 mm (7.5 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
200 mm (7.9 in)
Electrical system:
Ignition system:
DC. CDI
Charging system:
AC magneto
Battery:
Model:
YTZ7SVoltage, capacity:
12 V, 6.0 Ah
Headlight:
Bulb type:
Krypton bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 30.0/30.0 W
×
2
Tail/brake light:
12 V, 5.0/21.0 W
×
1
Neutral indicator light:
12 V, 1.7 W
×
1

Fuse:
Fuse:
15.0 A

11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000

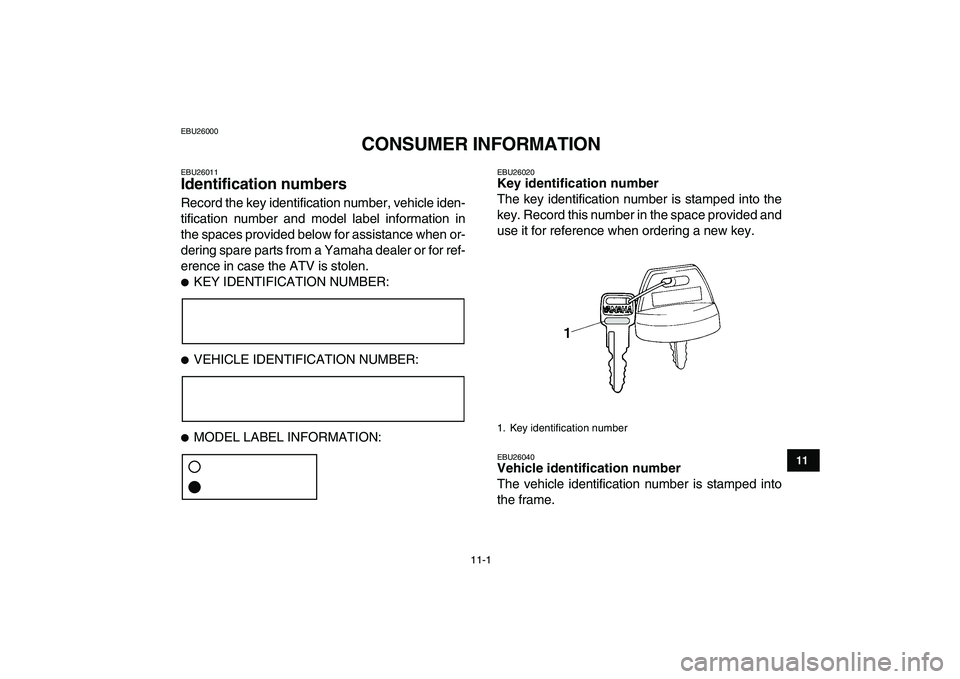

CONSUMER INFORMATION
EBU26011
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26040
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number

11-2
1
2
3
4
5
6
7
8
9
1011

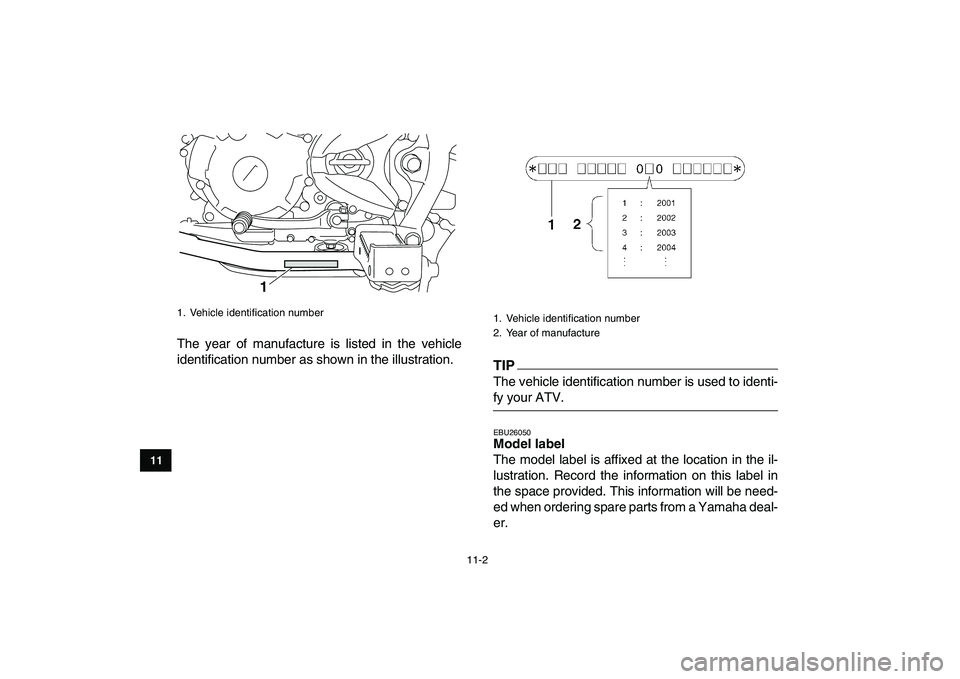

The year of manufacture is listed in the vehicle
identification number as shown in the illustration.TIP
The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1

1. Vehicle identification number
2. Year of manufacture

11-3
1
2
3
4
5
6
7
8
9
1011

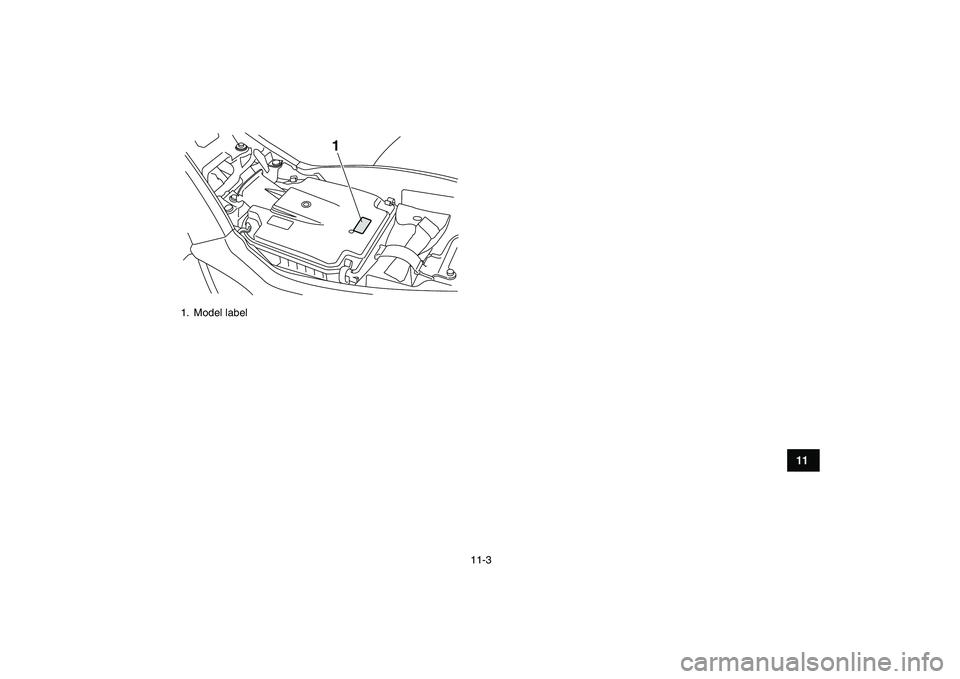

1. Model label
1

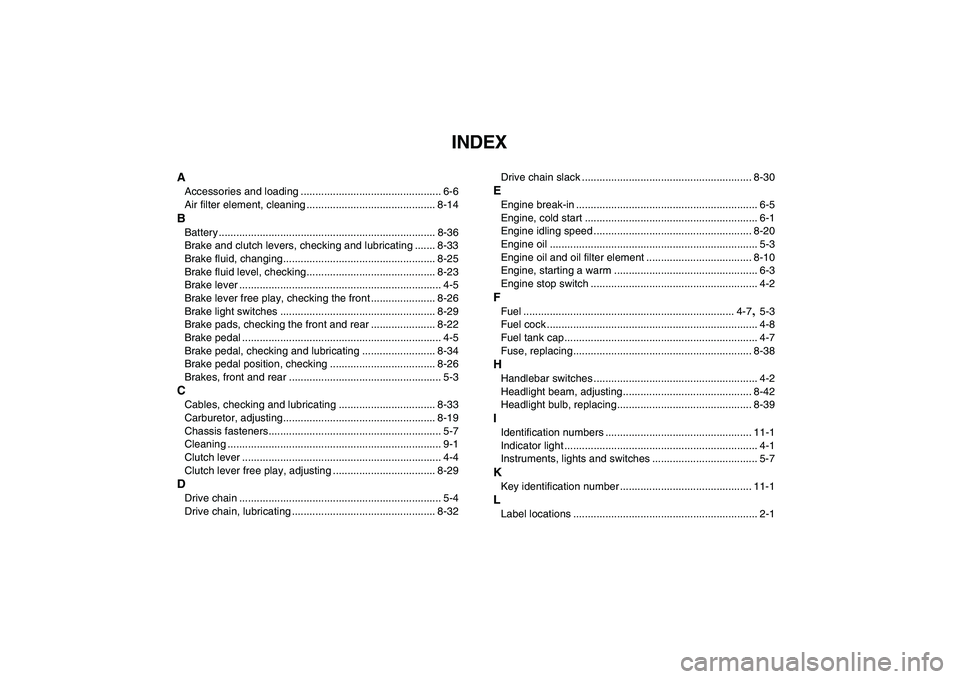

INDEX
A
Accessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-14
B
Battery .......................................................................... 8-36
Brake and clutch levers, checking and lubricating ....... 8-33
Brake fluid, changing.................................................... 8-25
Brake fluid level, checking............................................ 8-23
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-26
Brake light switches ..................................................... 8-29
Brake pads, checking the front and rear ...................... 8-22
Brake pedal .................................................................... 4-5
Brake pedal, checking and lubricating ......................... 8-34
Brake pedal position, checking .................................... 8-26
Brakes, front and rear .................................................... 5-3
C
Cables, checking and lubricating ................................. 8-33
Carburetor, adjusting.................................................... 8-19
Chassis fasteners........................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-29
D
Drive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-32Drive chain slack .......................................................... 8-30
E
Engine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-20
Engine oil ....................................................................... 5-3
Engine oil and oil filter element .................................... 8-10
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-2
F
Fuel ........................................................................ 4-7
,
5-3
Fuel cock ........................................................................ 4-8
Fuel tank cap.................................................................. 4-7
Fuse, replacing............................................................. 8-38
H
Handlebar switches ........................................................ 4-2
Headlight beam, adjusting............................................ 8-42
Headlight bulb, replacing.............................................. 8-39
I
Identification numbers .................................................. 11-1
Indicator light .................................................................. 4-1
Instruments, lights and switches .................................... 5-7
K
Key identification number ............................................. 11-1
L
Label locations ............................................................... 2-1

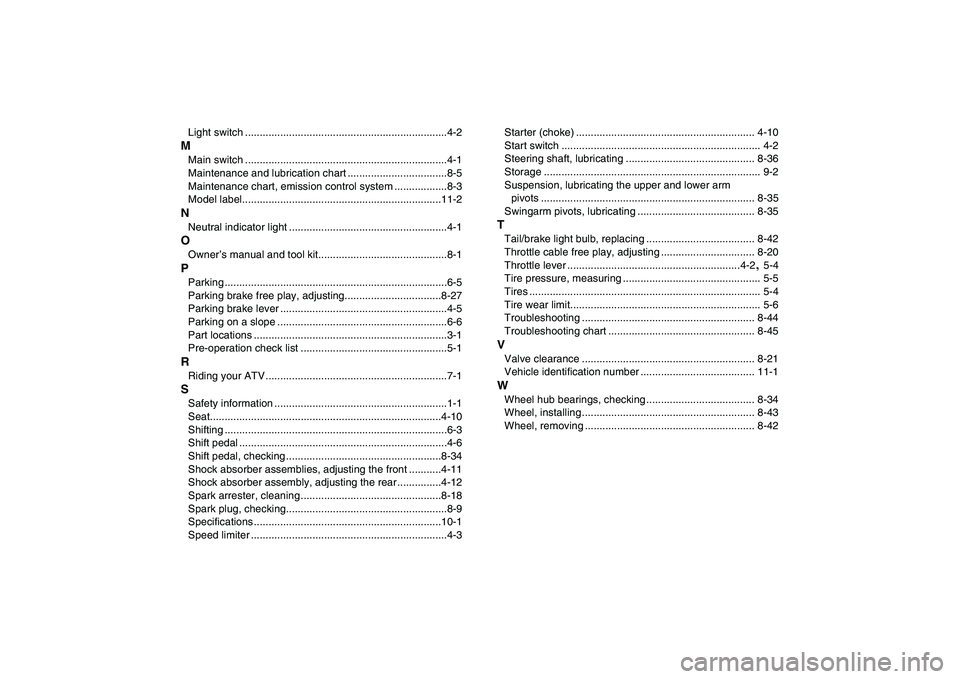

Light switch .....................................................................4-2
M
Main switch .....................................................................4-1
Maintenance and lubrication chart ..................................8-5
Maintenance chart, emission control system ..................8-3
Model label....................................................................11-2
N
Neutral indicator light ......................................................4-1
O
Owner’s manual and tool kit............................................8-1
P
Parking ............................................................................6-5
Parking brake free play, adjusting.................................8-27
Parking brake lever .........................................................4-5
Parking on a slope ..........................................................6-6
Part locations ..................................................................3-1
Pre-operation check list ..................................................5-1
R
Riding your ATV ..............................................................7-1
S
Safety information ...........................................................1-1
Seat...............................................................................4-10
Shifting ............................................................................6-3
Shift pedal .......................................................................4-6
Shift pedal, checking .....................................................8-34
Shock absorber assemblies, adjusting the front ...........4-11
Shock absorber assembly, adjusting the rear ...............4-12
Spark arrester, cleaning ................................................8-18
Spark plug, checking.......................................................8-9
Specifications ................................................................10-1
Speed limiter ...................................................................4-3Starter (choke) ............................................................. 4-10
Start switch .................................................................... 4-2
Steering shaft, lubricating ............................................ 8-36
Storage .......................................................................... 9-2
Suspension, lubricating the upper and lower arm
pivots ......................................................................... 8-35
Swingarm pivots, lubricating ........................................ 8-35
T
Tail/brake light bulb, replacing ..................................... 8-42
Throttle cable free play, adjusting ................................ 8-20
Throttle lever ...........................................................4-2
,
5-4
Tire pressure, measuring ............................................... 5-5
Tires ............................................................................... 5-4
Tire wear limit................................................................. 5-6
Troubleshooting ........................................................... 8-44
Troubleshooting chart .................................................. 8-45
V
Valve clearance ........................................................... 8-21
Vehicle identification number ....................................... 11-1
W
Wheel hub bearings, checking ..................................... 8-34
Wheel, installing ........................................................... 8-43
Wheel, removing .......................................................... 8-42

PRINTED IN JAPAN
2008.03-0.8x2 !
(E)
YAMAHA MOTOR CO., LTD.
PRINTED ON RECYCLED PAPER
