YAMAHA YFM250R 2010 Owner's Guide

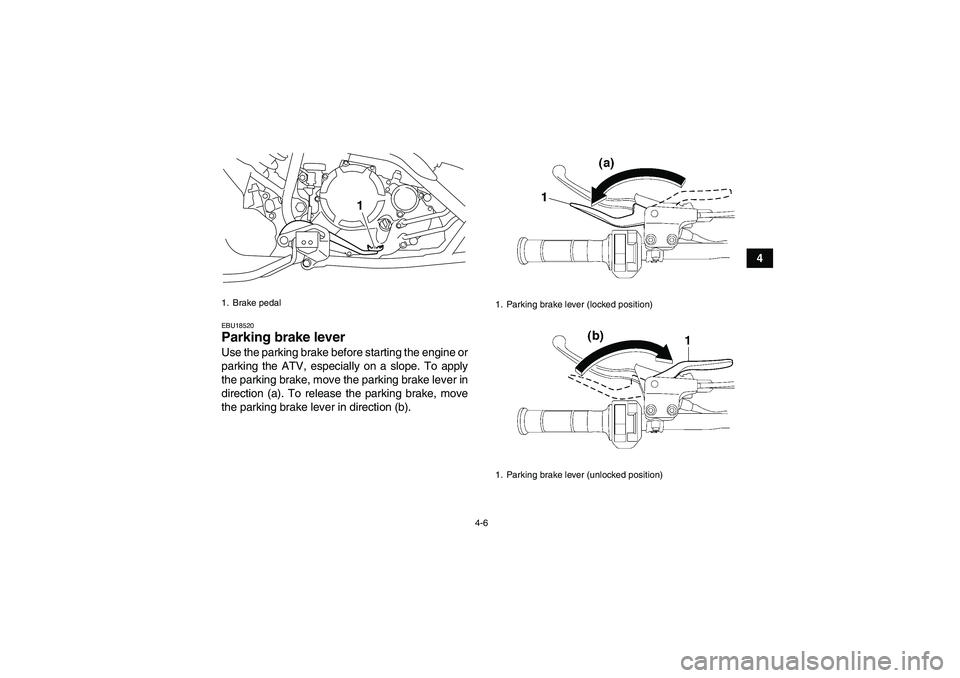

4-6
4
EBU18520Parking brake lever Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).1. Brake pedal
1
1. Parking brake lever (locked position)
1. Parking brake lever (unlocked position)
U1BT60E0.book Page 6 Wednesday, April 15, 2009 1:13 PM

4-7
4
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes
prematurely.EBU18530Shift pedal This ATV is equipped with a constant-mesh 5-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.1. Shift pedal
1
U1BT60E0.book Page 7 Wednesday, April 15, 2009 1:13 PM

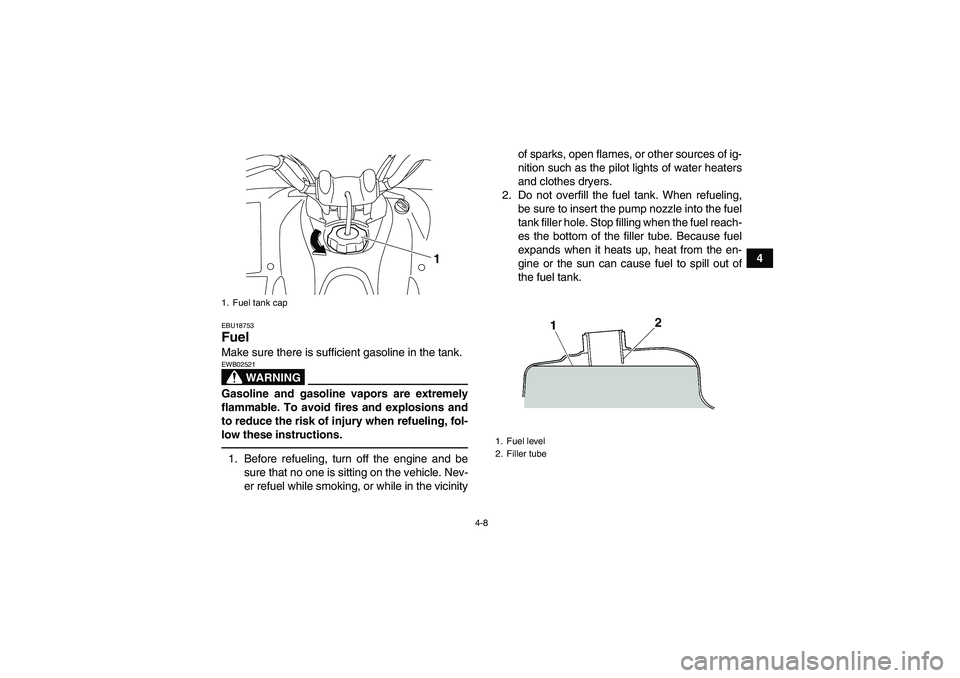

4-8
4
EBU18753Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinityof sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.1. Fuel tank cap
1
1. Fuel level
2. Filler tube
U1BT60E0.book Page 8 Wednesday, April 15, 2009 1:13 PM

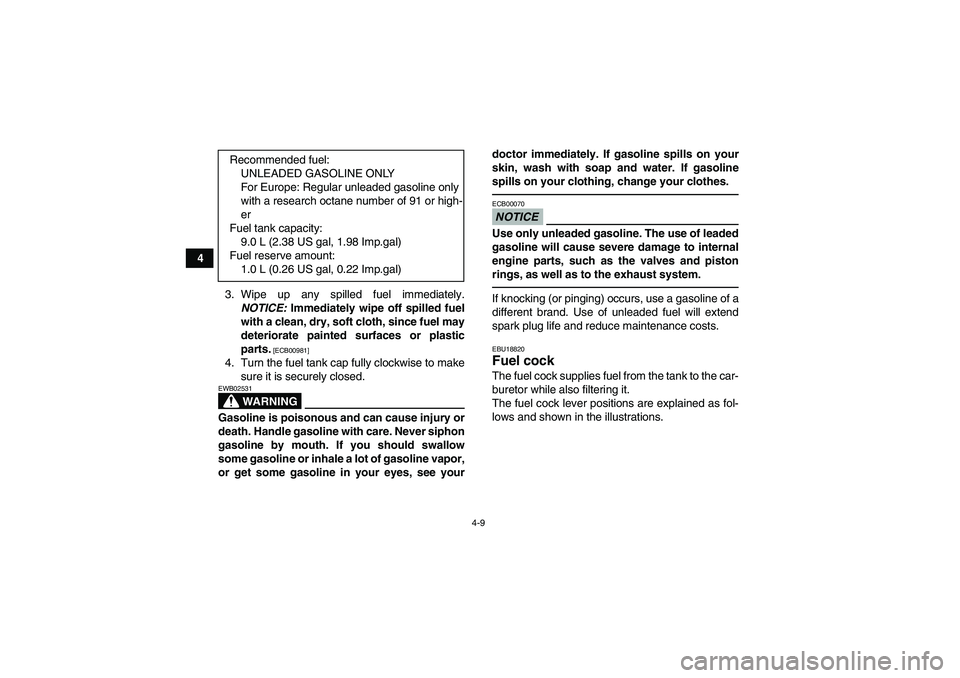

4-9
4
3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00981]
4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING
EWB02531Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see yourdoctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.If knocking (or pinging) occurs, use a gasoline of a
different brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations. Recommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or high-
er
Fuel tank capacity:
9.0 L (2.38 US gal, 1.98 Imp.gal)
Fuel reserve amount:
1.0 L (0.26 US gal, 0.22 Imp.gal)
U1BT60E0.book Page 9 Wednesday, April 15, 2009 1:13 PM

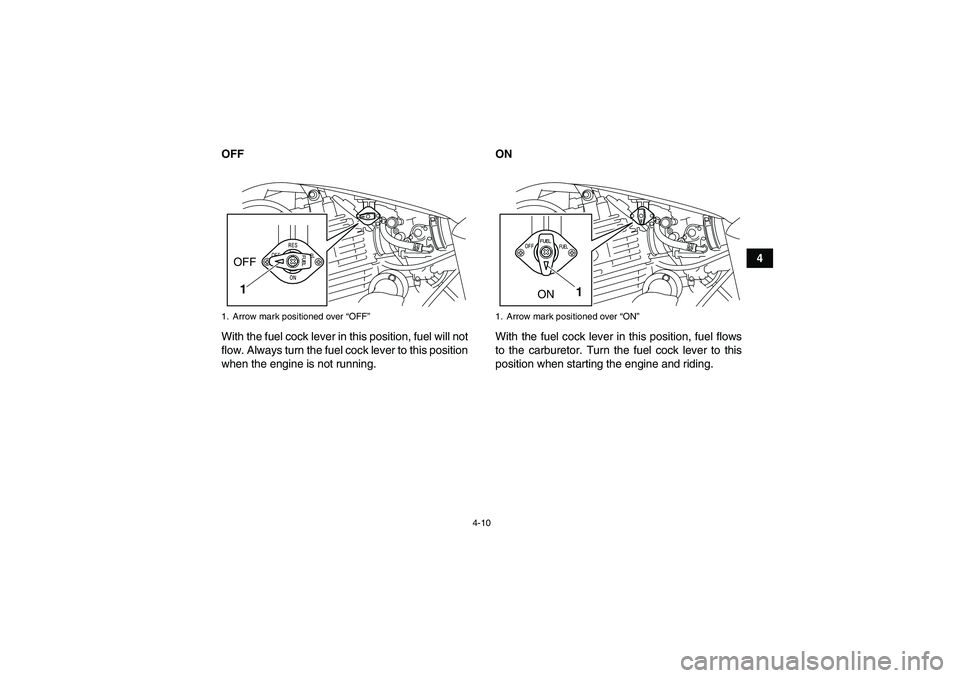

4-10
4 OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.
1. Arrow mark positioned over “OFF”
OFF1
1. Arrow mark positioned over “ON”
ON
1
U1BT60E0.book Page 10 Wednesday, April 15, 2009 1:13 PM

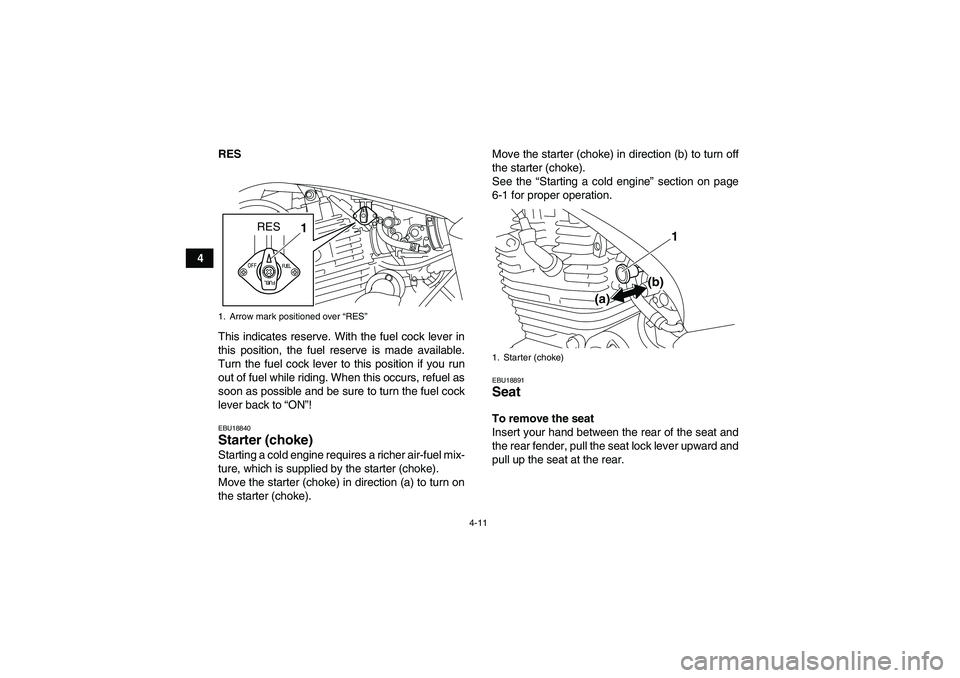

4-11
4RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18840Starter (choke) Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18891Seat To remove the seat
Insert your hand between the rear of the seat and
the rear fender, pull the seat lock lever upward and
pull up the seat at the rear.
1. Arrow mark positioned over “RES”
RES
1
1. Starter (choke)
(a)(b)1
U1BT60E0.book Page 11 Wednesday, April 15, 2009 1:13 PM

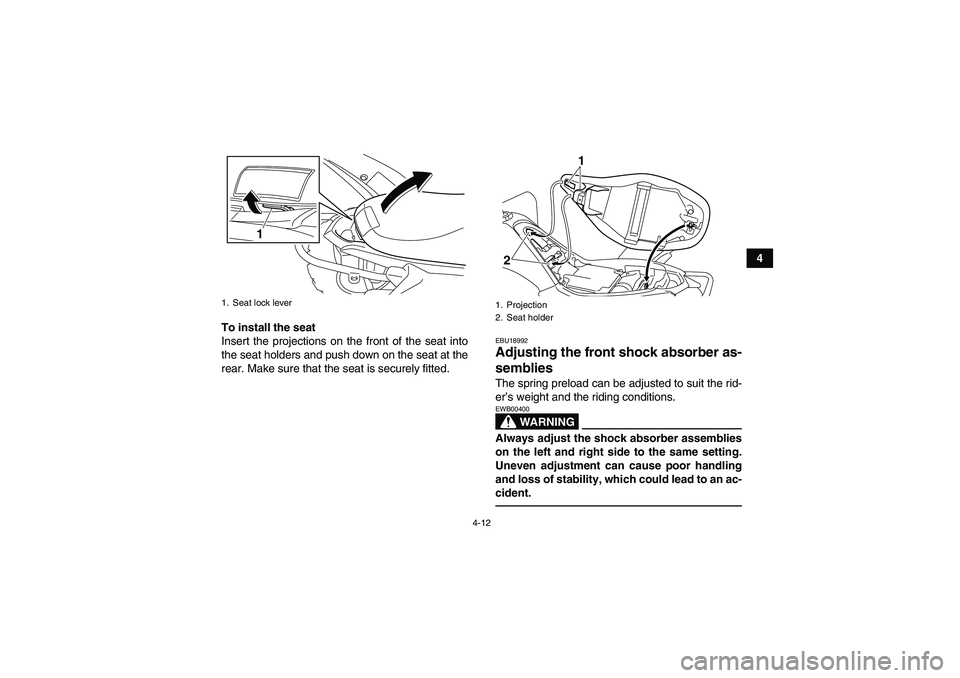

4-12
4
To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU18992Adjusting the front shock absorber as-
semblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident.
1. Seat lock lever
1
1. Projection
2. Seat holder
1
2
U1BT60E0.book Page 12 Wednesday, April 15, 2009 1:13 PM

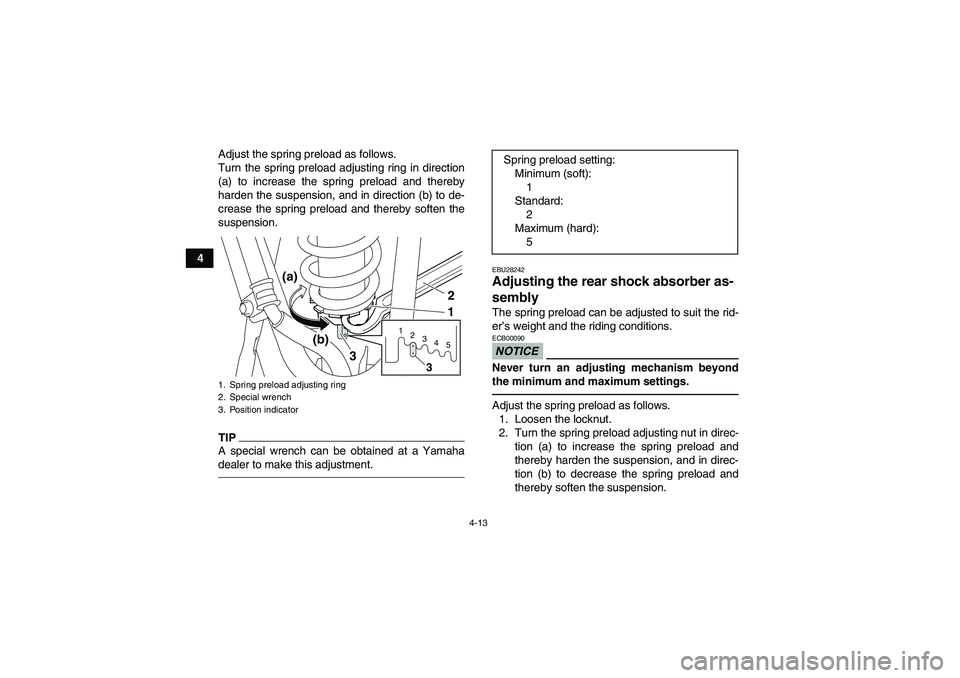

4-13
4Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.
EBU28242Adjusting the rear shock absorber as-
sembly The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.NOTICEECB00090Never turn an adjusting mechanism beyond
the minimum and maximum settings.Adjust the spring preload as follows.
1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc-
tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.
1. Spring preload adjusting ring
2. Special wrench
3. Position indicator
(a)
(b)1
2
3
1
2
3
4
5
3
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
5
U1BT60E0.book Page 13 Wednesday, April 15, 2009 1:13 PM

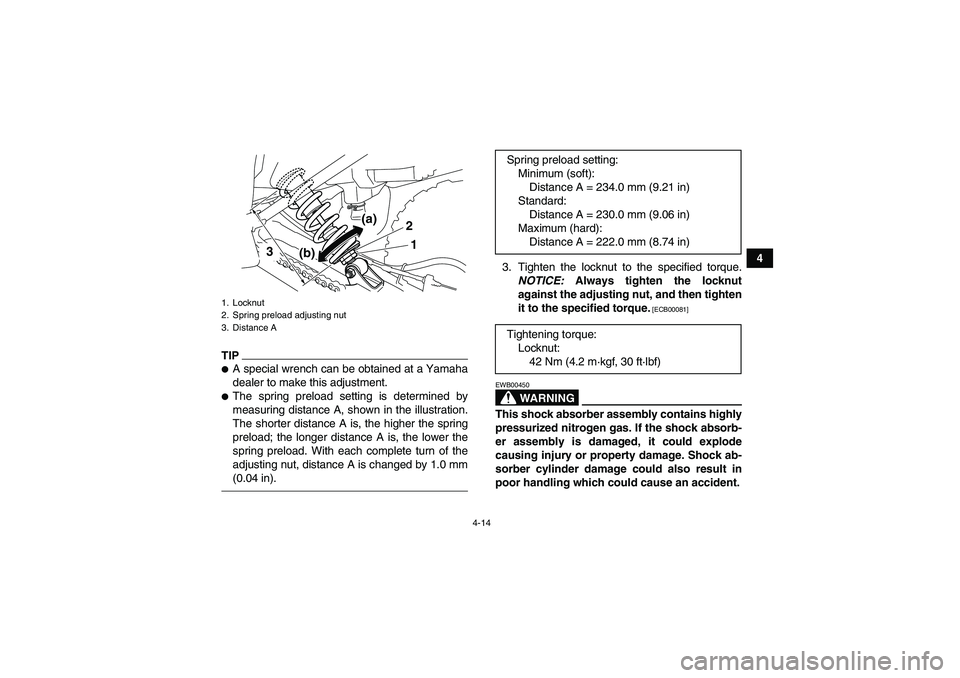

4-14
4
TIP
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.0 mm
(0.04 in).
3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00081]
WARNING
EWB00450This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.
1. Locknut
2. Spring preload adjusting nut
3. Distance A
2
1
(b) 3(a)
Spring preload setting:
Minimum (soft):
Distance A = 234.0 mm (9.21 in)
Standard:
Distance A = 230.0 mm (9.06 in)
Maximum (hard):
Distance A = 222.0 mm (8.74 in)
Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
U1BT60E0.book Page 14 Wednesday, April 15, 2009 1:13 PM

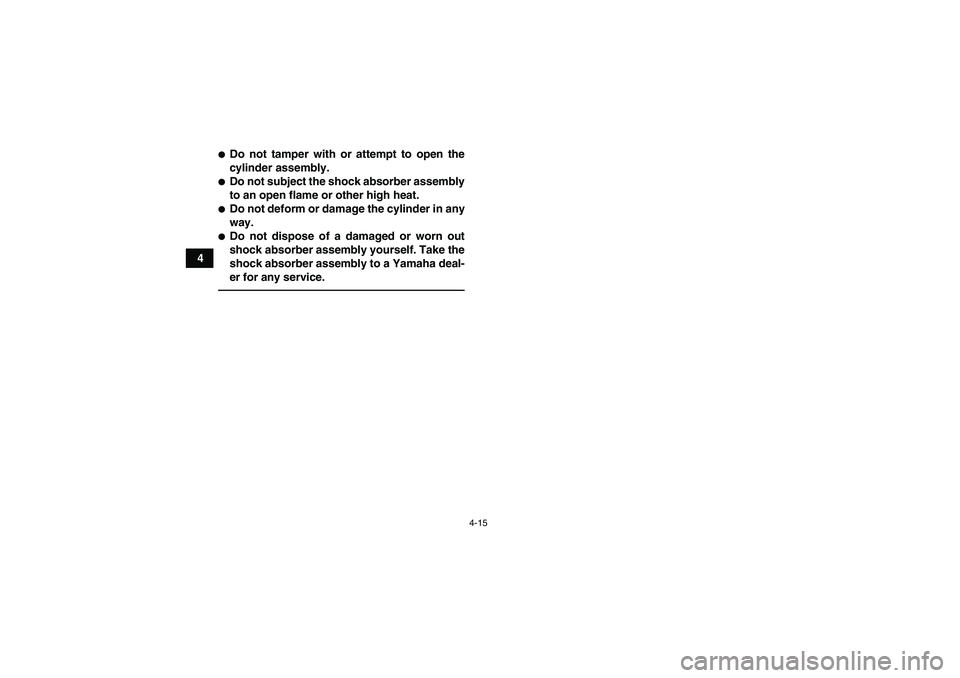

4-15
4

Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
U1BT60E0.book Page 15 Wednesday, April 15, 2009 1:13 PM
