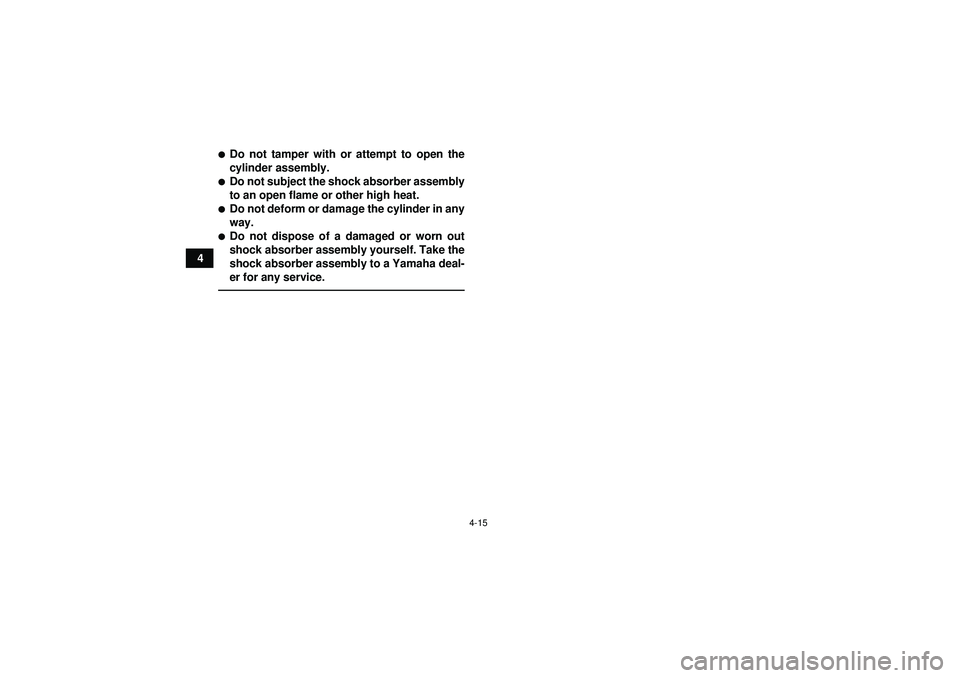

4-15
4

Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
U1BT62E0.book Page 15 Tuesday, April 19, 2011 7:06 PM

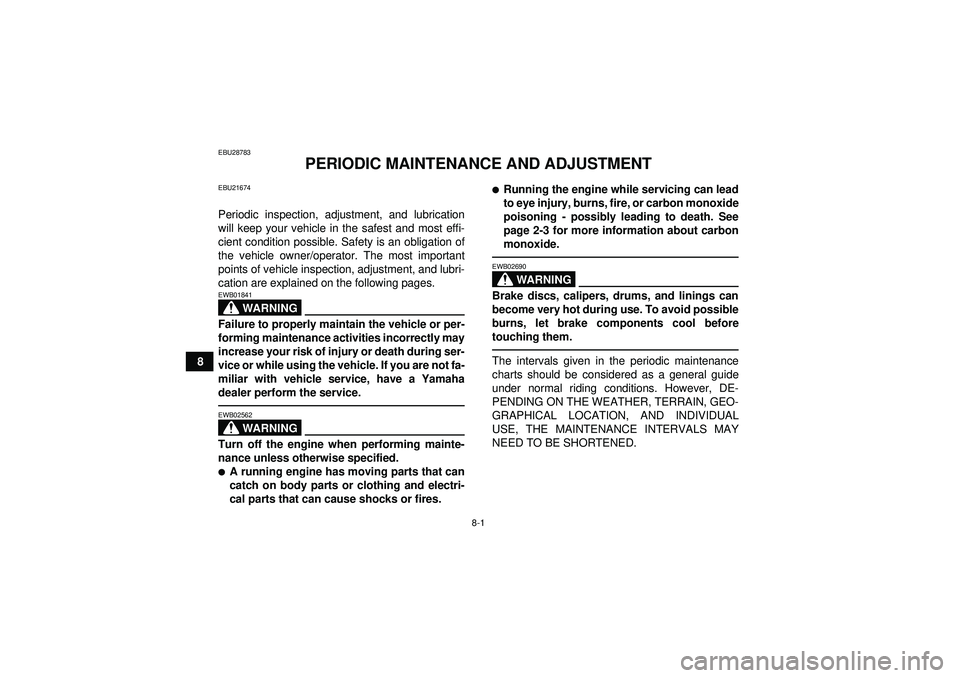

8-1
8
EBU28783
PERIODIC MAINTENANCE AND ADJUSTMENT
EBU21674Periodic inspection, adjustment, and lubrication
will keep your vehicle in the safest and most effi-
cient condition possible. Safety is an obligation of
the vehicle owner/operator. The most important
points of vehicle inspection, adjustment, and lubri-
cation are explained on the following pages.
WARNING
EWB01841Failure to properly maintain the vehicle or per-
forming maintenance activities incorrectly may
increase your risk of injury or death during ser-
vice or while using the vehicle. If you are not fa-
miliar with vehicle service, have a Yamaha
dealer perform the service.
WARNING
EWB02562Turn off the engine when performing mainte-
nance unless otherwise specified.
A running engine has moving parts that can
catch on body parts or clothing and electri-
cal parts that can cause shocks or fires.

Running the engine while servicing can lead
to eye injury, burns, fire, or carbon monoxide
poisoning - possibly leading to death. See
page 2-3 for more information about carbon
monoxide.
WARNING
EWB02690Brake discs, calipers, drums, and linings can
become very hot during use. To avoid possible
burns, let brake components cool before
touching them.The intervals given in the periodic maintenance
charts should be considered as a general guide
under normal riding conditions. However, DE-
PENDING ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTERVALS MAY
NEED TO BE SHORTENED.
U1BT62E0.book Page 1 Tuesday, April 19, 2011 7:06 PM

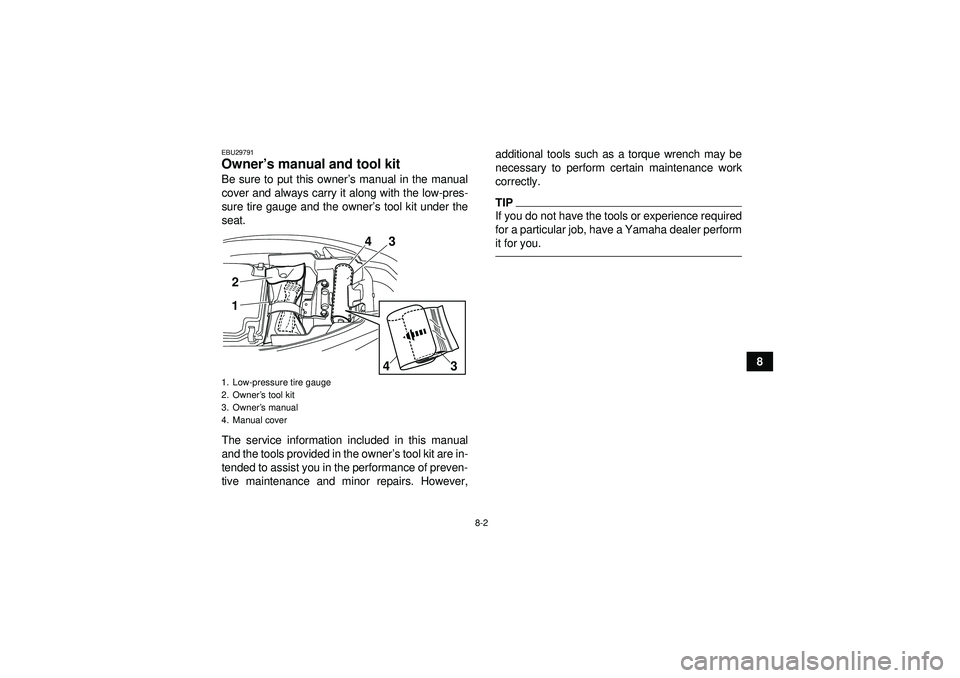

8-2
8
EBU29791Owner’s manual and tool kit Be sure to put this owner ’s manual in the manual
cover and always carry it along with the low-pres-
sure tire gauge and the owner ’s tool kit under the
seat.
The service information included in this manual
and the tools provided in the owner ’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However, additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Low-pressure tire gauge
2. Owner
’s tool kit
3. Owner ’s manual
4. Manual cover1 2 3
4
43
U1BT62E0.book Page 2 Tuesday, April 19, 2011 7:06 PM

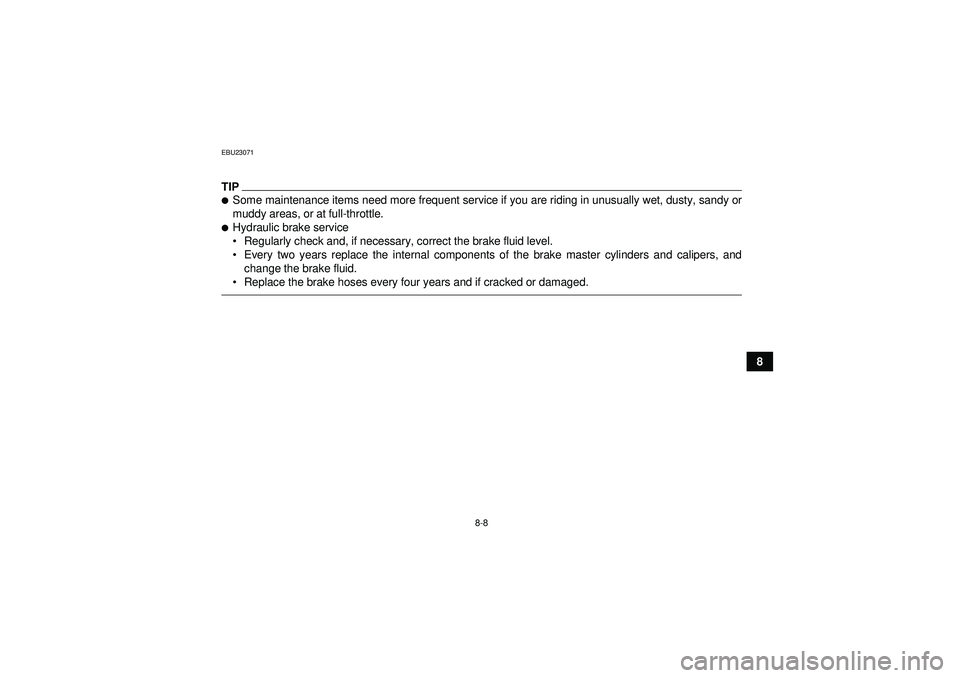

8-8
8
EBU23071TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
 Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.
 Replace the brake hoses every four years and if cracked or damaged.
U1BT62E0.book Page 8 Tuesday, April 19, 2011 7:06 PM

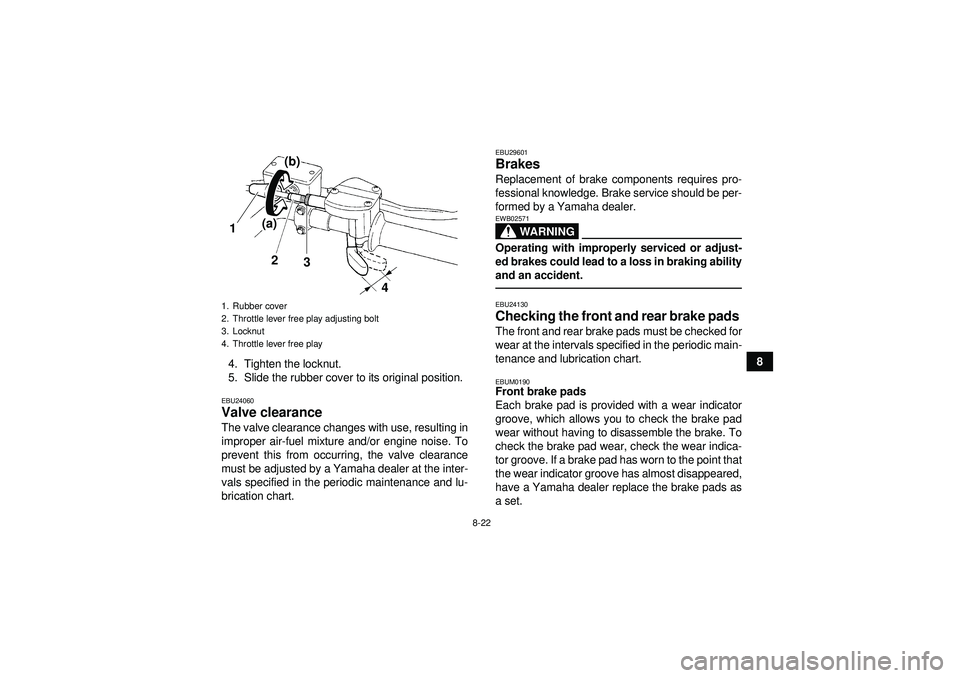

8-22
8
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU29601Brakes Replacement of brake components requires pro-
fessional knowledge. Brake service should be per-
formed by a Yamaha dealer.
WARNING
EWB02571Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.EBU24130Checking the front and rear brake pads The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart.EBUM0190Front brake pads
Each brake pad is provided with a wear indicator
groove, which allows you to check the brake pad
wear without having to disassemble the brake. To
check the brake pad wear, check the wear indica-
tor groove. If a brake pad has worn to the point that
the wear indicator groove has almost disappeared,
have a Yamaha dealer replace the brake pads as
a set.
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
4
2
1
3
(a)
(b)
U1BT62E0.book Page 22 Tuesday, April 19, 2011 7:06 PM

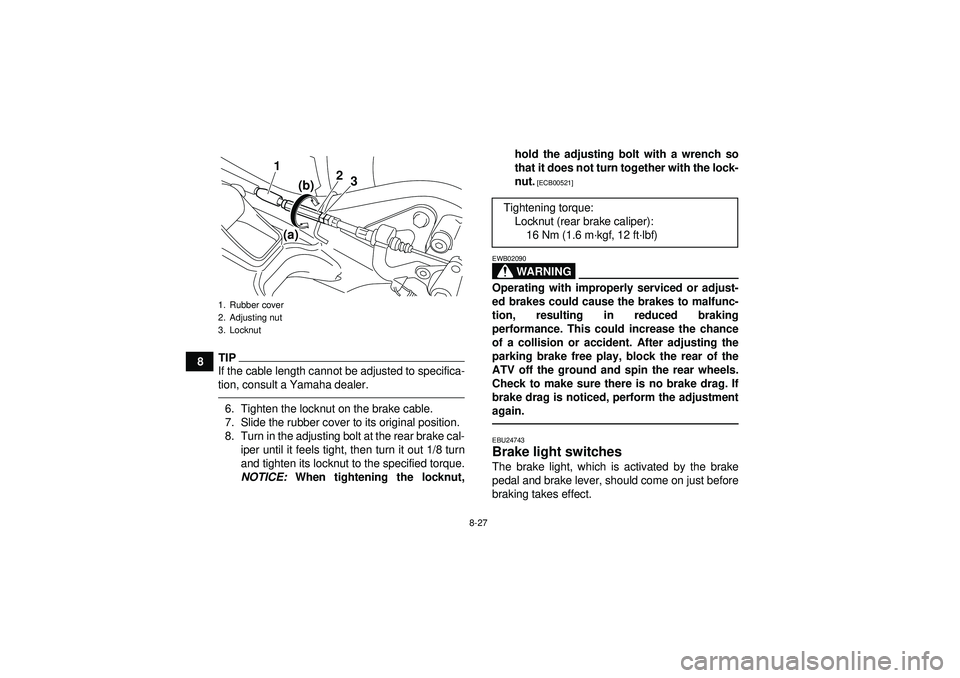

8-27
8
TIPIf the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.6. Tighten the locknut on the brake cable.
7. Slide the rubber cover to its original position.
8. Turn in the adjusting bolt at the rear brake cal-iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque.
NOTICE: When tightening the locknut, hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00521]
WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.EBU24743Brake light switches The brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect.
1. Rubber cover
2. Adjusting nut
3. Locknut
2
3
1(a) (b)
Tightening torque:
Locknut (rear brake caliper):16 Nm (1.6 m ·kgf, 12 ft· lbf)
U1BT62E0.book Page 27 Tuesday, April 19, 2011 7:06 PM

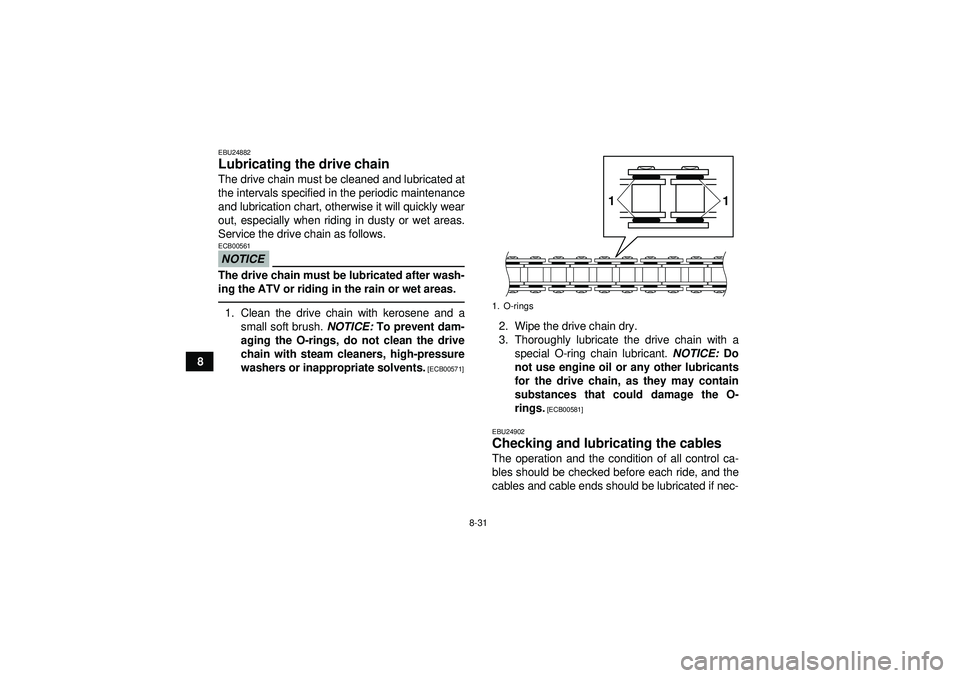

8-31
8
EBU24882Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00561The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.1. Clean the drive chain with kerosene and asmall soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00571]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]
EBU24902
Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-1. O-rings
1
1
U1BT62E0.book Page 31 Tuesday, April 19, 2011 7:06 PM

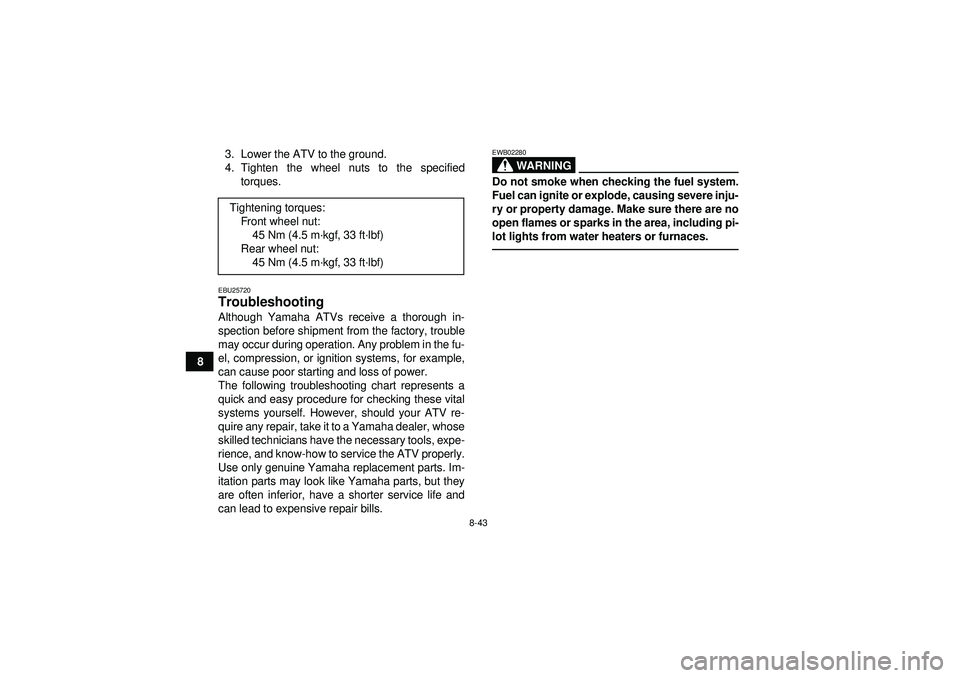

8-43
83. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.
EBU25720Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
Tightening torques:Front wheel nut:45 Nm (4.5 m ·kgf, 33 ft· lbf)
Rear wheel nut: 45 Nm (4.5 m ·kgf, 33 ft· lbf)
U1BT62E0.book Page 43 Tuesday, April 19, 2011 7:06 PM

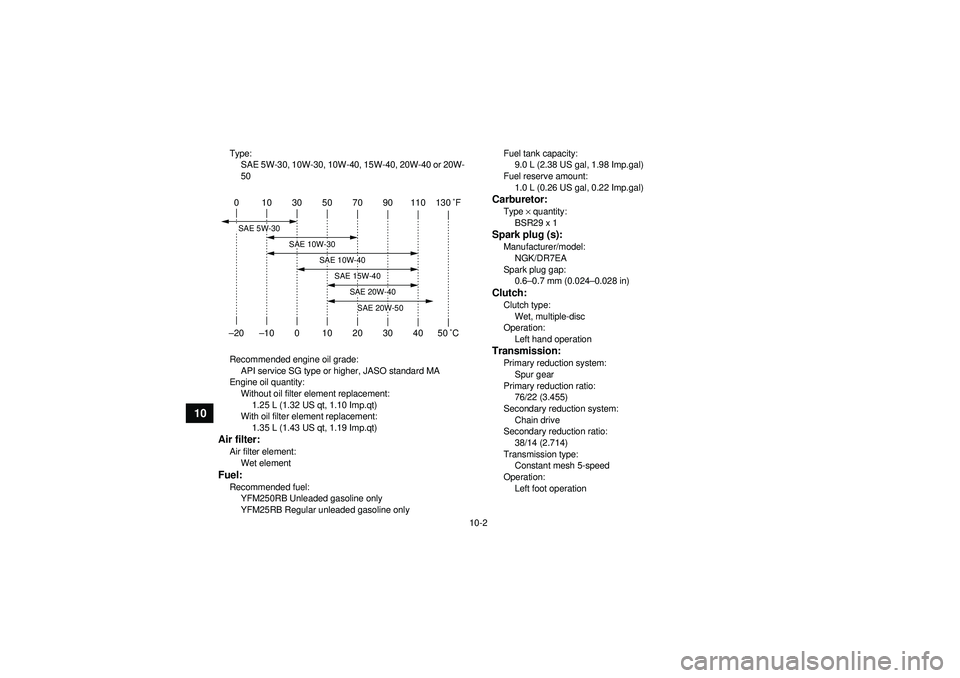

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter element replacement:
1.25 L (1.32 US qt, 1.10 Imp.qt)
With oil filter element replacement: 1.35 L (1.43 US qt, 1.19 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:YFM250RB Unleaded gasoline only
YFM25RB Regular unleaded gasoline only Fuel tank capacity:
9.0 L (2.38 US gal, 1.98 Imp.gal)
Fuel reserve amount: 1.0 L (0.26 US gal, 0.22 Imp.gal)
Carburetor:Type × quantity:
BSR29 x 1Spark plug (s):Manufacturer/model:
NGK/DR7EA
Spark plug gap: 0.6 –0.7 mm (0.024 –0.028 in)Clutch:Clutch type:
Wet, multiple-disc
Operation: Left hand operationTransmission:Primary reduction system:
Spur gear
Primary reduction ratio: 76/22 (3.455)
Secondary reduction system: Chain drive
Secondary reduction ratio:
38/14 (2.714)
Transmission type: Constant mesh 5-speed
Operation: Left foot operation
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
