width YAMAHA YFM250R 2012 Owners Manual

10-1
10
EBU25961

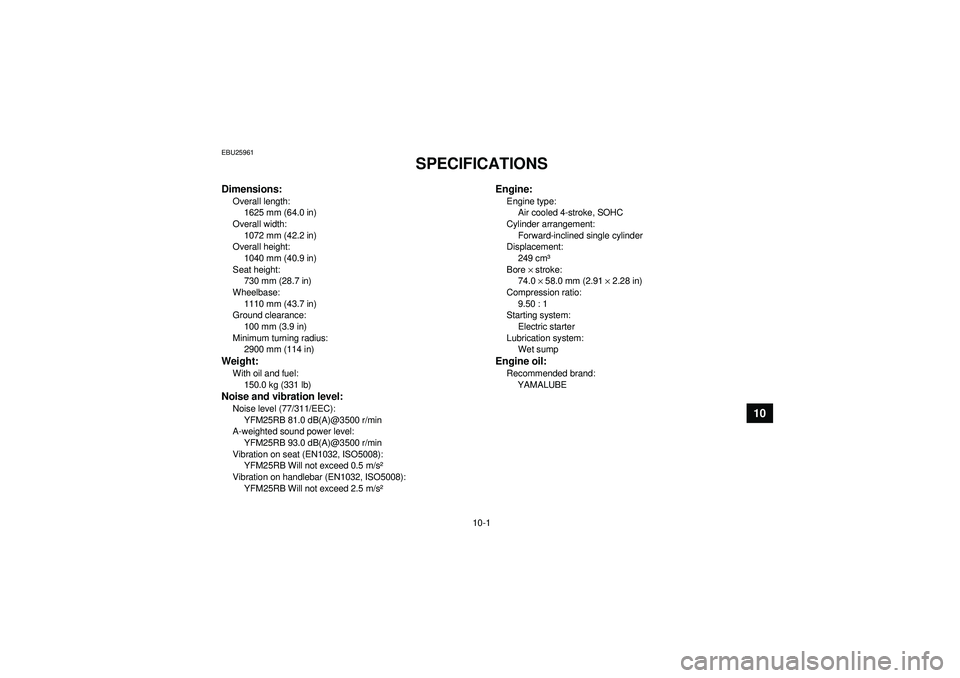

SPECIFICATIONS
Dimensions:Overall length:1625 mm (64.0 in)
Overall width: 1072 mm (42.2 in)
Overall height:
1040 mm (40.9 in)
Seat height: 730 mm (28.7 in)
Wheelbase: 1110 mm (43.7 in)
Ground clearance:
100 mm (3.9 in)
Minimum turning radius: 2900 mm (114 in)Weight:With oil and fuel:
150.0 kg (331 lb)Noise and vibration level:Noise level (77/311/EEC):YFM25RB 81.0 dB(A)@3500 r/min
A-weighted sound power level:
YFM25RB 93.0 dB(A)@3500 r/min
Vibration on seat (EN1032, ISO5008): YFM25RB Will not exceed 0.5 m/s ²
Vibration on handlebar (EN1032, ISO5008): YFM25RB Will not exceed 2.5 m/s ²
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement: Forward-inclined single cylinder
Displacement:
249 cm ³
Bore × stroke:
74.0 × 58.0 mm (2.91 × 2.28 in)
Compression ratio: 9.50 : 1
Starting system:
Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:
YAMALUBE
U1BT62E0.book Page 1 Tuesday, April 19, 2011 7:06 PM
